Key Features & Benefits
Precision Power Conditioning

Stabilized 20V DC output (±0.5%)

400mA current capacity (field side)

Active current limiting with fast recovery

Advanced Signal Integrity

<0.1dB signal attenuation

Integrated low-pass filtering (45kHz cutoff)

2000V DC galvanic isolation

Smart Diagnostics

Real-time voltage/current monitoring

Waveform capture and analysis

Predictive failure detection

Industrial Robustness

-40°C to +85°C operating range

IP40-rated aluminum enclosure

DIN-rail mounting (35mm)

Technical Specifications
Parameter Specification
Input Voltage 18-32V DC
Output Voltage 20V DC (±0.5%)
Maximum Current 400mA (field side)
Isolation 2000V DC (input-to-output)
Diagnostic Interface Modbus TCP, USB 2.0
Certifications ATEX, IECEx, UL, CSA, SIL2
Typical Applications
✔ Offshore oil platforms
✔ Petrochemical refineries
✔ Pharmaceutical batch processes
✔ Power plant control systems
✔ Food & beverage production

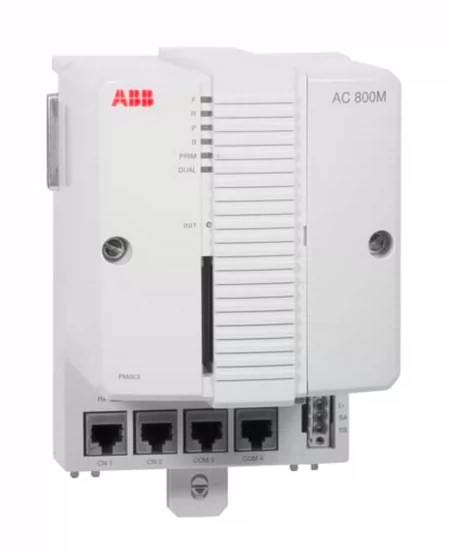

Key Features & Benefits
Superior Processing Capability

Dual-core processor @ 1.2GHz

2GB DDR3 RAM with error correction

4GB flash memory for program storage

Enhanced Reliability

99.999% availability with redundant configuration

Hot-swappable design for maintenance

Built-in watchdog monitoring

Comprehensive Connectivity

Dual 1000BASE-T Ethernet ports

PROFIBUS DP interface

USB 2.0 configuration port

Advanced Control Features

1ms control cycle execution

Supports all IEC 61131-3 languages

Integrated motion control functionality

Technical Specifications
Parameter Specification
Processor Dual-core 1.2GHz
Memory 2GB RAM, 4GB Flash
Communication 2x GbE, 1x PROFIBUS DP, 1x USB
Power Consumption 15W typical
Operating Temp -40°C to +70°C
Certifications UL, CE, ATEX, IEC 61508 SIL2
Typical Applications
✔ Power plant control systems
✔ Oil refinery process control
✔ Chemical batch processing
✔ Water treatment automation
✔ Pharmaceutical manufacturing

Key Features & Benefits
High-Capacity Power Conditioning

60V DC output (FOUNDATION Fieldbus compliant)

500mA current capacity (field side)

2000V DC galvanic isolation

Advanced Protection

Instantaneous short-circuit protection (<1μs)

Overvoltage and reverse polarity protection

8kV surge protection (ANSI/IEEE C62.41)

Industrial-Grade Construction

-40°C to +85°C operating range

IP66-rated aluminum enclosure

DIN-rail or panel mounting options

Smart Diagnostics

LED status indicators (power/segment health)

Remote monitoring capability

Predictive failure detection

Technical Specifications
Parameter Specification
Input Voltage 24V DC (18-32V range)
Output Voltage 60V DC (±1%)
Maximum Current 500mA continuous
Isolation 2000V DC (input-to-output)
Response Time <1μs (short-circuit)
Certifications ATEX, IECEx, UL, CSA, SIL2
Typical Applications
✔ Oil & gas production facilities
✔ Chemical processing plants
✔ Power generation systems
✔ Pharmaceutical manufacturing
✔ Water treatment automation

Key Features & Benefits
Precision Power Regulation

65V DC output (FF H1 compliant)

450mA current capacity (field side)

±0.5% voltage regulation accuracy

Advanced Protection System

1500V DC galvanic isolation

<1μs short-circuit response

6kV/3kA surge protection

Industrial Durability

-40°C to +85°C operating range

IP40-rated metal housing

DIN-rail mountable (35mm)

Smart Diagnostics

Dual-color LED status indicators

Remote monitoring capability

Built-in self-test function

Technical Specifications
Parameter Specification
Input Voltage 18-32V DC
Output Voltage 65V DC (±0.5%)
Maximum Current 450mA
Isolation 1500V DC
Response Time <1μs (short-circuit)
Certifications ATEX, IECEx, UL, CSA
Typical Applications
✔ Oil & gas processing plants
✔ Chemical production facilities
✔ Power generation systems
✔ Pharmaceutical manufacturing
✔ Water treatment plants

Key Features & Benefits
Precision Power Regulation

19.5V DC output (FF H1 compliant)

350mA current capacity

±0.5% voltage regulation accuracy

Advanced Protection Features

1500V DC galvanic isolation

<1μs short-circuit response

Reverse polarity protection

Industrial-Grade Design

-40°C to +85°C operating range

IP40-rated aluminum enclosure

Compact DIN-rail mounting (35mm)

Enhanced Diagnostics

LED status indicators (power/segment health)

Remote monitoring capability

Built-in self-test functionality

Technical Specifications
Parameter Specification
Input Voltage 18-32V DC
Output Voltage 19.5V DC (±0.5%)
Maximum Current 350mA
Isolation 1500V DC
Response Time <1μs (short-circuit)
Certifications ATEX, IECEx, UL, CSA
Typical Applications
✔ Oil & gas processing facilities
✔ Chemical production plants
✔ Power generation systems
✔ Pharmaceutical manufacturing
✔ Water treatment automation

Key Features & Benefits
Seamless Redundancy

<1ms switchover time (zero packet loss)

Dual independent H1 segments

Automatic fault detection and recovery

Signal Integrity Management

<0.05dB signal attenuation

Active signal conditioning

2000V DC galvanic isolation

Industrial Robustness

-40°C to +85°C operating range

IP66-rated stainless steel housing

DIN-rail or panel mounting options

Advanced Diagnostics

Dual-color LED per channel

Remote health monitoring

Predictive failure analysis

Technical Specifications
Parameter Specification
Voltage Range 9-32V DC
Current Capacity 500mA per segment
Isolation 2000V DC (segment-to-segment)
Switchover Time <1ms
Certifications ATEX, IECEx, SIL2, UL, CSA
Typical Applications
✔ Offshore oil platforms
✔ Nuclear power plants
✔ Pharmaceutical batch processes
✔ Chemical reactor control
✔ Critical pipeline operations

Key Features & Benefits
Ultra-Fast Redundancy Switching

<0.5ms automatic failover (zero process interruption)

Dual independent H1 segments (1.0km range each)

Live segment health monitoring

Signal Integrity Optimization

Active signal conditioning technology

<0.03dB insertion loss

2500V DC galvanic isolation

Extreme Environment Durability

-40°C to +85°C operating range (with condensation protection)

316L stainless steel enclosure (IP68 rated)

ATEX/IECEx Zone 1 [Ex ia] IIC T4 certified

Advanced Predictive Maintenance

Real-time segment impedance analysis

Trend logging for 500+ parameters

Web-based diagnostic interface

Technical Specifications
Parameter Specification
Power Supply 18-32V DC (dual redundant inputs)
Segment Current 600mA max per channel
Isolation 2500V DC (input/output/segment)
Communication Modbus TCP, OPC UA
Certifications SIL2, ATEX, IECEx, UL, CSA, DNV-GL
Typical Applications
✔ Floating production storage vessels (FPSOs)
✔ LNG processing trains
✔ Nuclear safety systems (Class 1E)
✔ Pharmaceutical sterile processing
✔ Critical chemical batch reactors

Key Features & Benefits
High-Speed Fieldbus Communication

Dual H1 channels (31.25 kbps)

Supports 32 devices per segment

<1ms cycle time for time-critical applications

Advanced Diagnostics & Monitoring

Real-time segment health analysis

Predictive device failure detection

Waveform capture for signal troubleshooting

Industrial Reliability

-40°C to +70°C operating range

Hot-swappable design (with redundant configuration)

2000V galvanic isolation

Seamless Integration

Native integration with 800xA DCS

Supports FF H1, HSE and HART protocols

Configuration via Control Builder M

Technical Specifications
Parameter Specification
Protocol FOUNDATION Fieldbus H1 (IEC 61158-2)
Channels 2 independent H1 ports
Device Support 32 devices per segment
Isolation 2000V AC (channel-to-system)
Certifications ATEX, IECEx, SIL2, UL, CSA
Typical Applications
✔ Oil & gas production facilities
✔ Chemical batch processes
✔ Pharmaceutical manufacturing
✔ Power plant control systems
✔ Water treatment automation

Key Features & Benefits
Superior Processing Power

800MHz dual-core processor

1GB RAM with error correction

16MB flash memory for application storage

Enhanced Reliability

99.999% availability in redundant configurations

Built-in watchdog timer

Hot-swappable design for maintenance

Comprehensive Connectivity

Dual Ethernet ports (10/100/1000 Mbps)

Serial communication ports (RS-232/RS-485)

USB 2.0 configuration port

Advanced Control Capabilities

1ms control cycle execution

Supports all IEC 61131-3 programming languages

Integrated motion control functionality

Technical Specifications
Parameter Specification
Processor 800MHz dual-core
Memory 1GB RAM, 16MB Flash
Communication 2x Ethernet, 2x Serial, 1x USB
Power Consumption 12W typical
Operating Temp -40°C to +70°C
Certifications UL, CE, ATEX, IEC 61508 SIL2
Typical Applications
✔ Oil & gas processing plants
✔ Power generation facilities
✔ Chemical production
✔ Pharmaceutical manufacturing
✔ Water treatment systems

Key Features & Benefits
Precision Power Regulation

65V DC output (FF H1 compliant)

450mA current capacity (field side)

±0.5% voltage regulation accuracy

Advanced Protection System

1500V DC galvanic isolation

<1μs short-circuit response time

6kV/3kA surge protection

Industrial-Grade Durability

-40°C to +85°C operating range

IP40-rated metal housing

DIN-rail mountable (35mm)

Smart Diagnostics

Dual-color LED status indicators

Remote monitoring capability

Built-in self-test function

Technical Specifications
Parameter Specification
Input Voltage 18-32V DC
Output Voltage 65V DC (±0.5%)
Maximum Current 450mA
Isolation 1500V DC
Response Time <1μs (short-circuit)
Certifications ATEX, IECEx, UL, CSA
Typical Applications
✔ Oil & gas processing plants
✔ Chemical production facilities
✔ Power generation systems
✔ Pharmaceutical manufacturing
✔ Water treatment plants
