Key Features
✔ Extreme Processing Power

Quad-core 1.5 GHz processor for complex control tasks

2 GB RAM with error-correcting code (ECC) protection

Supports up to 1,000,000 I/O points system-wide

✔ Advanced Cybersecurity

IEC 62443-3-3 certified security level

Secure boot with hardware root of trust

Encrypted communication and role-based access

✔ Industrial Connectivity

Dual 1 Gbps Ethernet ports with switch functionality

Supports PROFINET IO, OPC UA, Modbus TCP

Optional TSN (Time-Sensitive Networking) capability

✔ Rugged Industrial Design

Extended temperature range: -40°C to +70°C

50g shock resistance (IEC 60068-2-27)

Corrosion-resistant aluminum housing

✔ Future-Ready Architecture

Containerized application support

Edge computing capability

Predictive maintenance features

Technical Specifications
Parameter Specification
Processor Quad-core 1.5 GHz ARM Cortex-A72
Memory 2 GB RAM / 8 GB Flash
Communication 2x 1Gbps Ethernet, PROFINET, OPC UA
I/O Capacity Up to 1,000,000 points
Power Supply 24V DC (18-32V range)
Power Consumption <15W typical
Certifications CE, UL, cULus, ATEX, IECEx
Typical Applications
Smart Manufacturing (Industry 4.0 implementations)

Energy Management Systems (microgrid control)

Pharmaceutical (batch process automation)

Oil & Gas (digital twin implementations)

Water/Wastewater (smart city infrastructure)

Key Features
✔ High-Performance Processing

Dual-core 1.2 GHz processor with 1 GB RAM

Supports up to 500,000 I/O points system-wide

Real-time deterministic control execution

✔ Enhanced Cybersecurity

IEC 62443-3-3 compliant security

Secure boot with hardware root of trust

Role-based access control with encryption

✔ Industrial Connectivity

2x Ethernet ports (10/100/1000 Mbps) with switch functionality

Supports OPC UA, Modbus TCP, PROFINET

Optional wireless communication modules

✔ Rugged Industrial Design

Operating temperature: -40°C to +70°C

Vibration resistant (5g @ 10-150Hz)

Compact form factor (50% smaller than previous generations)

✔ Future-Ready Features

Edge computing capability

Container support for advanced applications

Predictive maintenance functionality

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE053241R1
Processor Dual-core 1.2 GHz ARM Cortex-A9
Memory 1 GB RAM / 4 GB Flash
Communication 2x Ethernet, PROFINET, OPC UA
I/O Capacity Up to 500,000 points
Power Supply 24V DC (18-32V range)
Power Consumption <10W typical
Certifications CE, UL, cULus, ATEX Zone 2
Typical Applications
Process Industries (chemical, oil & gas)

Power Generation (turbine control)

Water/Wastewater Treatment

Pharmaceutical Manufacturing

Discrete Manufacturing (automotive, electronics)

Key Features
✔ Versatile I/O Configuration

16 digital inputs (24V DC)

16 digital outputs (24V DC, 0.5A)

4 analog inputs (0-10V/4-20mA)

✔ Robust Industrial Design

IP20 protection (panel-mounted)

Operating temperature: 0°C to +55°C

Vibration resistant construction

✔ Robot-Specific Features

Direct integration with ABB IRC5 controllers

RobotWare compatible configuration

Hot-pluggable design for easy maintenance

✔ Diagnostic Capabilities

LED status indicators for all I/O channels

Short-circuit protected outputs

Overvoltage protection

Technical Specifications
Parameter Specification
Manufacturer P/N 3HAC025779-001
Input Voltage 24V DC (±10%)
Input Current 3-8mA (digital)
Output Current 0.5A max per channel
Analog Resolution 12-bit
Communication DeviceNet interface
Mounting DIN rail
Certifications CE, UL
Typical Applications
Robotic Material Handling

Automated Welding Cells

Machine Tending Applications

Assembly Line Automation

Paint Robot Systems

Key Features
✔ High-Accuracy Temperature Measurement

Supports 2/3/4-wire RTD connections (Pt100, Pt1000, Ni100, etc.)

±0.1°C measurement accuracy

16-bit ADC resolution for precise readings

✔ Industrial-Grade Reliability

Galvanic isolation (500V) between channels

Operating temperature: -40°C to +85°C

EMC/RFI protected for noisy environments

✔ Advanced Functionality

Open/short circuit detection

Lead resistance compensation (for 2-wire RTDs)

Configurable filtering for signal stability

✔ Flexible Integration

Modbus RTU/TCP communication

DIN-rail mounting for easy installation

LED status indicators for all channels

Technical Specifications
Parameter Specification
Manufacturer P/N 1MRS050644A1
Input Type RTD (Pt100, Pt1000, Ni100, Cu10, etc.)
Measurement Range -200°C to +850°C
Accuracy ±0.1°C (Pt100)
Resolution 0.01°C
Isolation 500V channel-to-system
Power Supply 24V DC (±20%)
Communication Modbus RTU (RS-485), Modbus TCP
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Industry Temperature Monitoring

HVAC System Control

Power Plant Equipment Protection

Food & Beverage Processing

Pharmaceutical Manufacturing

Key Features:
Multi-function Relay: Supports configurable output contacts (NO/NC) for flexible use in alarm, tripping, or control circuits.

Wide Compatibility: Interfaces with ABB’s protection relays (e.g., REF, SPAJ, REC series) and other automation equipment.

Compact Design: Space-saving form factor for easy installation in panels or cabinets.

High Reliability: Robust construction with galvanic isolation to ensure noise immunity and safety.

LED Indicators: Visual status monitoring for relay operation and power supply.Technical Specifications:
Supply Voltage: 24–250V AC/DC (depending on variant)

Contact Rating: Typically 5–8A, 250V AC/DC

Standards Compliance: IEC, UL, CE

Key Features:
Wide Input Range: Supports a broad input voltage range (e.g., 85–265V AC/DC), making it suitable for diverse power conditions.

High Efficiency: Provides efficient power conversion with minimal energy loss.

Galvanic Isolation: Ensures protection against electrical noise and surges, improving system reliability.

Compact & Robust Design: Durable construction for harsh industrial environments.

LED Status Indicators: Visual feedback for power availability and fault conditions.

Typical Applications:
Power distribution systems

Substation automation

Protection relays (e.g., REF, REJ, REC series)

Industrial control panels

Technical Specifications:
Input Voltage: 85–265V AC/DC (varies by model)

Output Voltage: Typically 24V DC (or as specified)

Power Rating: Depends on variant (check datasheet)

Protections: Overload, short-circuit, and overvoltage protection

Standards Compliance: IEC, UL, CE

Key Features:
Powerful Processing: Equipped with a high-speed processor for complex control algorithms and real-time operation.

Modular & Scalable: Flexible I/O configuration and expandable architecture to meet diverse application needs.

Robust Communication: Supports multiple industrial protocols (e.g., IEC 61850, Modbus, Profibus, OPC UA) for seamless integration.

High Availability: Redundant CPU and power supply options for mission-critical applications.

Advanced Diagnostics: Comprehensive system monitoring and fault detection for enhanced reliability.

Certified for Safety: Complies with stringent industry standards (IEC 61508 SIL3, IEEE, etc.).

Typical Applications:
Power plant control (turbine control, boiler management)

Substation automation (protection & control)

Industrial process control (oil & gas, chemical, water treatment)

Renewable energy systems (wind, solar, hydro)

Technical Specifications:
Processor: High-performance multi-core CPU

Memory: Expandable for program and data storage

I/O Modules: Supports analog, digital, and specialty I/O cards

Operating Temperature: -40°C to +70°C (industrial-grade)

Certifications: IEC, IEEE, UL, CE, SIL3 compliant

Key Features & Benefits:
Industrial-Grade Performance

Powerful processor for high-speed execution of control algorithms

Deterministic real-time operation with <1ms cycle times

Supports up to 300,000 I/O points (system-wide)

Unmatched Reliability

Redundant CPU and power supply configurations

Hot-swappable modules for zero downtime maintenance

Built-in diagnostics and predictive maintenance features

Universal Connectivity

Native support for 20+ communication protocols including:

IEC 61850 (for substation automation)

Profibus DP/PA, Modbus TCP/RTU

OPC UA for secure data exchange

Integrated web server for remote monitoring

Engineering Flexibility

Programmable with ABB’s Control Builder M software

Supports all IEC 61131-3 languages plus CFC

Seamless integration with ABB’s 800xA DCS

Technical Specifications:
Parameter Specification
Processor PowerPC-based, 800MHz
Memory 128MB RAM (expandable)
I/O Capacity Up to 1024 local I/O points
Communication Dual Ethernet ports (10/100Mbps)
Operating Temp -40°C to +70°C
Certifications UL, CE, IEC 61131, SIL2/3 compliant

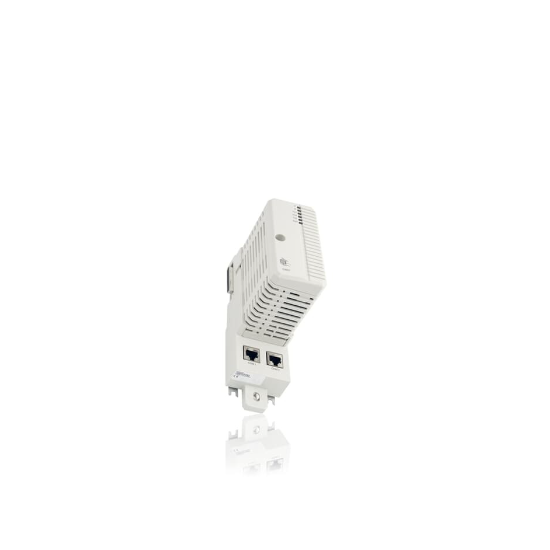

Key Features
Dual-Port Design

2 independent 10/100 Mbps Ethernet ports

Auto-negotiation and auto-MDI/MDIX capability

Switch functionality for daisy-chaining devices

Industrial Reliability

Operating temperature range: -40°C to +70°C

High EMC immunity (EN 61000-6-2)

DIN-rail mountable design

Advanced Networking

Supports MODBUS TCP, IEC 61850, and OPC UA protocols

VLAN and QoS support for traffic prioritization

Integrated firewall functionality

Seamless Integration

Hot-swappable module for AC 800M controllers

Configuration via Control Builder M engineering tool

LED status indicators for port activity and diagnostics

Technical Specifications
Parameter Specification
Ethernet Standard IEEE 802.3 (10BASE-T/100BASE-TX)
Protocols Supported MODBUS TCP, IEC 61850, OPC UA
Connectors 2x RJ45 (shielded)
Power Consumption 1.5W typical
Certifications UL, CE, IEC 61850-3, IEEE 1613

Key Features
High-Performance Connectivity

10/100 Mbps Ethernet port with auto-negotiation

RJ45 connector with industrial-grade shielding

IEEE 802.3 compliant

Industrial Durability

Operating temperature: -40°C to +70°C

High resistance to vibration and shock

DIN-rail mountable design

Protocol Support

MODBUS TCP protocol support

Compatible with ABB's industrial communication standards

Transparent ready for system integration

Easy Integration

Plug-and-play installation for AC 800M controllers

Configuration via Control Builder M

LED status indicators for network monitoring

Technical Specifications
Parameter Specification
Ethernet Standard IEEE 802.3 (10BASE-T/100BASE-TX)
Protocol Support MODBUS TCP
Connector 1x RJ45 (shielded)
Power Consumption 1.2W typical
Certifications UL, CE, IEC 61131
