Key Parameters
Core Drive
Power: 440kW (590HP)

Input: 3-phase 525-690V AC (±10%)

Output: 530A

Control: DTC (Direct Torque Control)

Overload: 110% continuous

Modules
E205 I/O Extension

+4AI (2x 0-10V, 2x 4-20mA)

+4DI, +2RO

Q950 Liquid Cooling

Cooling capacity: 440kW

Flow rate: 35L/min

V991 Backup Module

Stores 10 parameter sets

<5min drive replacement

Performance
Speed accuracy: ±0.1%

Torque accuracy: ±1%

Switching freq.: 1-4kHz

Physical
Drive Dimensions: 900×2200×600mm

Cooling Unit: 600×900×400mm

Total Weight: 680kg

IP Rating: IP00 (cabinet-mounted)

Certifications
CE, UL, cUL

SIL3/PL e

Key Specifications
Parameter Value
Power Rating 160 kW (215 HP)
Input Voltage 3-phase 380-500V AC (±10%)
Output Current 300 A
Overload 110% continuous
Control Method DTC (Direct Torque Control)
Cooling Method Liquid (Q950 unit)
System Components

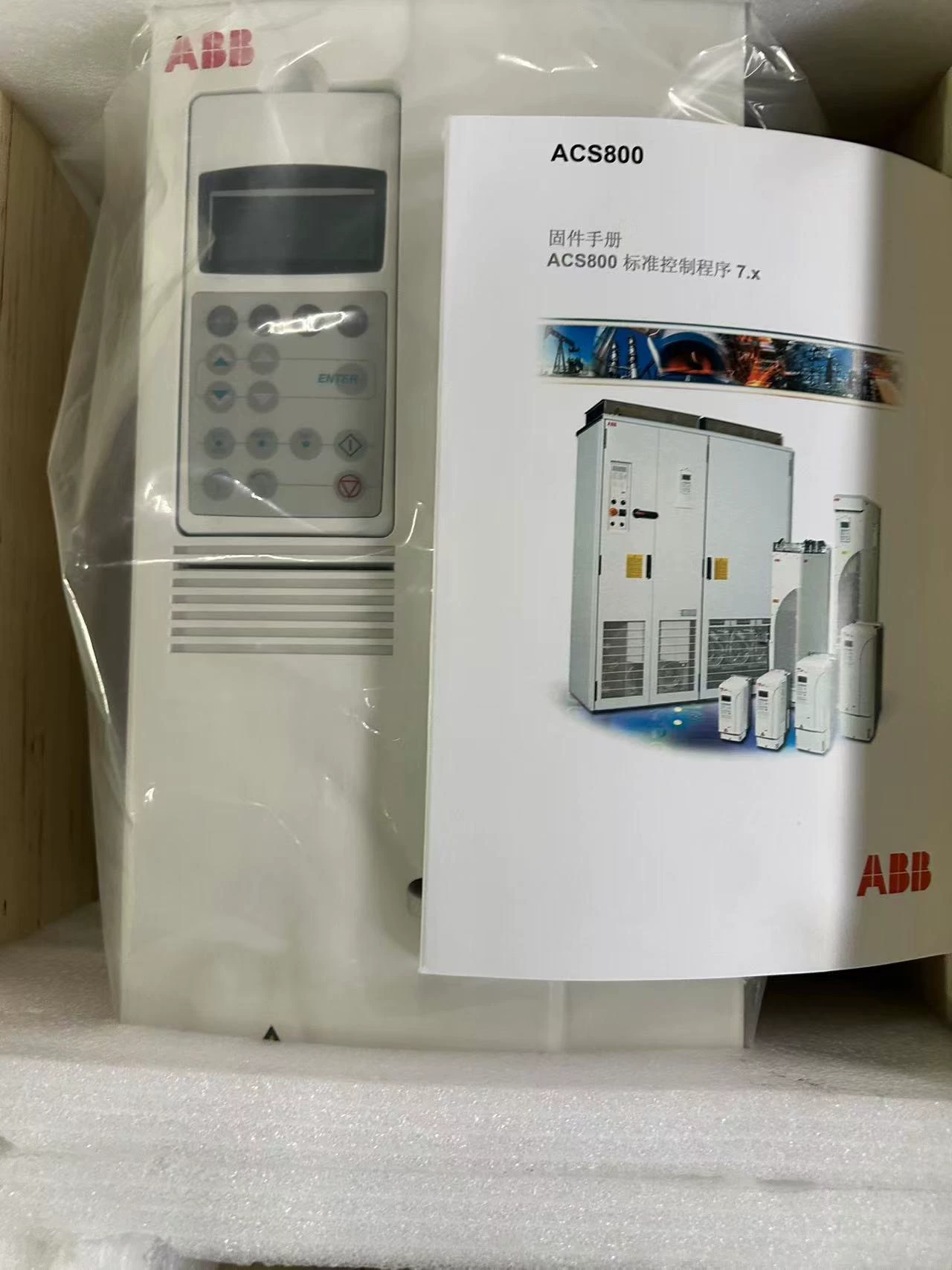

ACS800-104-0175-5 Drive

DTC technology (±0.1% speed accuracy)

Built-in EMC filter

IP00 enclosure (cabinet-mounted)

Q950 Cooling Unit

Cooling capacity: 160kW

Flow rate: 25L/min

Integrated temperature control

Technical Highlights
✔ Precision Control

Torque accuracy: ±1%

Automatic motor adaptation

Flying start function

✔ Thermal Management

Maintains optimal operating temperature

Reduced audible noise (<65dB)

50°C ambient capability

✔ Connectivity

RS485 (Modbus RTU) standard

Optional fieldbus adapters

Physical Specs
Drive Dimensions: 482×800×350mm

Cooling Unit Dimensions: 600×900×400mm

Total Weight: 210kg

Certifications
CE

UL

cULus

IEC 61800-3

Key Parameters
Core Drive
Power: 440kW (590HP)

Input: 3-phase 525-690V AC (±10%)

Output: 530A

Control: DTC (Direct Torque Control)

Overload: 110% continuous

Modules
E205 I/O Extension

+4 analog inputs (2x 0-10V, 2x 4-20mA)

+4 digital inputs

+2 relay outputs

V991 Backup Module

Stores 10 parameter sets

Enables <5min drive replacement

Performance
Speed accuracy: ±0.1%

Torque accuracy: ±1%

Switching freq.: 1-4kHz

Physical
Dimensions: 900×2200×600mm (W×H×D)

Weight: 380kg

Cooling: Liquid (10L/min flow required)

IP Rating: IP21

Certifications
CE, UL, cUL

SIL3/PL e

Key Parameters
Core Drive
Power: 580kW (777HP)

Input: 3-phase 525-690V AC (±10%)

Output: 700A

Control: DTC (Direct Torque Control)

Overload: 110% continuous

Modules
E205 I/O Extension

+4 analog inputs (2x 0-10V, 2x 4-20mA)

+4 digital inputs

+2 relay outputs

V991 Backup Module

Stores 10 parameter sets

Enables <5min drive replacement

Performance
Speed accuracy: ±0.1%

Torque accuracy: ±1%

Switching freq.: 1-4kHz

Physical
Dimensions: 900×2200×600mm (W×H×D)

Weight: 420kg

Cooling: Liquid (12L/min flow required)

IP Rating: IP21

Certifications
CE, UL, cUL

SIL3/PL e

Key Parameters
Core Drive
Power: 400kW (536HP)

Input: 3-phase 525-690V AC (±10%)

Output: 480A

Control: DTC (Direct Torque Control)

Overload: 110% continuous

Modules
E205 I/O Extension

+4 analog inputs (2x 0-10V, 2x 4-20mA)

+4 digital inputs

+2 relay outputs

V991 Backup Module

Stores 10 parameter sets

Fast drive replacement

Performance
Speed accuracy: ±0.1%

Torque accuracy: ±1%

Switching freq.: 1-4kHz

Physical
Dimensions: 900×2200×600mm (W×H×D)

Weight: 350kg

Cooling: Liquid

IP Rating: IP21

Certifications
CE, UL, cUL

SIL3/PL e

Key Parameters
Core Drive
Power: 45kW (60HP)

Input: 3-phase 525-690V AC (±10%)

Output: 60A

Control: DTC (Direct Torque Control)

Overload: 150% for 60s

Modules
N671 Encoder Interface

Supports incremental encoders

Resolution: Up to 4096 ppr

Protocols: RS422/TTL

P901 Brake Chopper

Braking power: 45kW cont.

Peak: 67.5kW (60s)
Requires external resistor

Performance
Speed accuracy: ±0.01% (with encoder)

Torque accuracy: ±1%

Switching freq.: 1-12kHz

Physical
Dimensions: 482×800×350mm (H×W×D)

Weight: 45kg

Cooling: Forced air

IP Rating: IP21

Certifications
CE, UL, cUL

SIL3/PL e

Key Parameters
Core Specifications
Power: 18.5kW (25HP)

Input: 3-phase 380-480V AC (±10%)

Output Current: 38A

Control: DTC (Direct Torque Control)

Overload: 150% for 60s

Brake System (P901)
Continuous Braking: 18.5kW

Peak Braking (60s): 27.75kW

External resistor required

Performance
Speed accuracy: ±0.1%

Torque accuracy: ±1%

Switching frequency: 1-12kHz adjustable

Physical
Dimensions: 245×482×227mm (W×H×D)

Weight: 14kg

Cooling: Forced air

Enclosure: IP21

Certifications
CE, UL, cUL

SIL3/PL e compliant

Key Parameters
Drive Unit
Power: 30kW (40HP)

Input: 3-phase 380-500V AC (±10%)

Output: 60A

Control: DTC (Direct Torque Control)

Overload: 150% for 60s

P901 Brake Chopper
Braking Power: 30kW continuous

Peak Capacity: 45kW (60s)

Requires external resistor

Performance
Speed accuracy: ±0.1%

Torque accuracy: ±1%

Switching freq.: 1-12kHz

Physical
Dimensions: 482×245×227mm (H×W×D)

Weight: 15kg

Cooling: Forced air

IP Rating: IP21

Certifications
CE, UL, cUL

SIL3/PL e compliant

Key Specifications
Parameter Value
Power Rating 18.5 kW (25 HP)
Input Voltage 3-phase 380-500V AC (±10%)
Output Current 38 A
Overload Capacity 150% for 60s
Control Method DTC (Direct Torque Control)
Efficiency >98%
Switching Frequency 1-12 kHz (adjustable)
Main Features
✔ Advanced Motor Control

Speed accuracy: ±0.1% (sensorless)

Torque accuracy: ±2% of rated

Flying start function

✔ Compact Design

Space-saving IP21 enclosure

Forced air cooling

Wall-mount installation

✔ Application Flexibility

10 pre-programmed macros

Built-in PID controller

Customizable logic

✔ Protection

Motor thermal protection

Short-circuit protection

Ground fault detection

✔ Connectivity

RS485 (Modbus RTU) standard

Optional fieldbus adapters

Physical Specs
Dimensions: 350 × 482 × 227 mm

Weight: 18 kg

Ambient Temp: 0-40°C

Certifications
CE

UL

cULus

IEC 61800-3

Key Specifications
Parameter Value
Power Rating 250 kW (335 HP)
Input Voltage 3-phase 380-500V AC (±10%)
Output Current 450 A
Overload Capacity 150% for 60s
Control Method DTC (Direct Torque Control)
Efficiency >98.5%
Switching Frequency 1-4 kHz (adjustable)
Main Features
✔ Precision Control

Speed accuracy: ±0.01% (with encoder)

Torque accuracy: ±1% of rated

Adaptive motor tuning

✔ Robust Construction

Heavy-duty IGCT power stage

IP21 enclosure (IP54 kit available)

50°C ambient operation

✔ Connectivity

Standard:

Ethernet (TCP/IP)

Modbus TCP

Optional:

PROFIBUS DP-V1

PROFINET IRT

✔ Safety

Safe Torque Off (STO)

Safe Stop 1 (SS1)

SIL3/PL e certified

Physical Specs
Dimensions: 900×2200×600 mm

Weight: 320 kg

Cooling: Liquid cooling system

Certifications
CE

UL 61800-5-1

cULus

DNV GL
