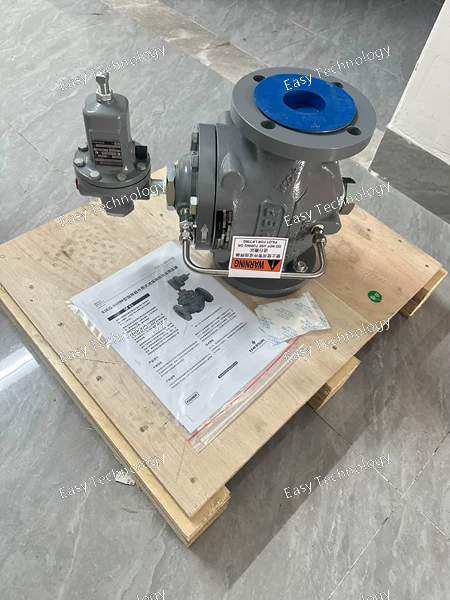

Technical Parameters Category Parameter Specification / Description General Model 63EG Type Electro-Pneumatic Positioner Input & Output Input Signal 4 to 20 mA DC or 10 to 50 mA DC (selectable) Supply Pressure Up to 100 psig (6.9 bar) Output Pressure Can approach supply pressure. Performance Linearity ±1% of span Hysteresis Less than 0.4% of span Gain High. Designed for fast-response control loops. Air Consumption Steady State: ~0.15 SCFM (4.2 NLPM) During Stroking: ~2.0 SCFM (56.6 NLPM) Environmental Ambient Temperature -40°F to 175°F (-40°C to 80°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Explosion-proof (Class I, Div. 1 & 2; Class II & III). Physical Housing Material Cast Aluminum Pneumatic Connections 1/4" NPT Conduit Opening 1/2" NPT Weight Approximately 12 lbs (5.4 kg)

Technical Parameters General Model: Fisher CVX Valve Positioner Type: Microprocessor-Based, Electro-Pneumatic Positioner Technology: Non-contact, using a Hall Effect sensor for position feedback. Communication: Analog 4-20 mA; HART® communication protocol (on HART-enabled models). Input Signal Standard Analog Input: 4 to 20 mA DC, two-wire connection. Input Impedance: 8 ohms (at 20 mA, including HART communication). Pneumatic Performance Supply Pressure Range: 1.4 to 7.0 bar (20 to 100 psig) Output Pressure Range: 0 to 100% of supply pressure. Air Consumption (Static): Very low, typically less than 0.024 Nm³/hr (0.015 SCFM). Air Flow Capacity: Up to 1.8 Nm³/hr (1.1 SCFM) for standard models; High-flow versions are available for faster actuators. Control & Performance Linearity: ±0.5% of span (with characterized feedback) Hysteresis: Less than 0.3% of span. Calibration: Fully automatic, one-touch calibration procedure. Environmental Ambient Temperature Range: Standard: -25° to 80°C (-13° to 176°F) Extended: -40° to 80°C (-40° to 176°F) Relative Humidity: 0 to 100% condensing. Enclosure Rating: NEMA 4X / Type 4X / IP66 (Weatherproof, Dust-tight, and Hose-proof). Electrical Loop Power: Powered directly from the 4-20 mA signal loop (Two-wire device). Hazardous Area Approvals: Available as Intrinsically Safe (FM, FMC, CSA) and Flameproof (Explosion-proof). Physical & Mounting Mounting: Directly mounts to Fisher rotary actuators (e.g., 1052, 1066 styles) and many linear actuators. Adaptable to other valve brands using universal mounting kits. Housing Material: Lightweight, corrosion-resistant aluminum. Weight: Approximately 1.6 kg (3.5 lbs). Options & Variants CVX500: Standard model. CVX HART: Includes HART protocol for digital configuration and diagnostics using a hand-held communicator. Feedback Characterizations: Available in linear and various characterized (e.g., quick-opening) curves to match the valve's flow characteristic.

Technical Parameters General Model: FIELDVUE DPC2K Digital Pressure Controller Type: Loop-Powered I/P, I/P with Boost Transducer Microprocessor: Integrated for digital control and communication. Input Signal Standard Analog Input: 4 to 20 mA DC Input Impedance: Typically 10 ohms at 20 mA Output Pressure Standard Ranges: 3 to 15 psig (0.2 to 1.0 bar) 3 to 27 psig (0.2 to 1.9 bar) 6 to 30 psig (0.4 to 2.1 bar) Maximum Supply Pressure: 150 psig (10.3 bar) Performance Accuracy: Typically better than ±0.5% of span. Linearity: Typically better than ±0.5% of span. Hysteresis: Typically less than 0.2% of span. Repeatability: Typically better than 0.2% of span. Sensitivity: Typically less than 0.1% of span. Air Consumption (Static): Typically less than 0.05 SCFM (0.08 Nm³/hr) at zero output flow. Air Supply Required Air Supply: Clean, dry, instrument-quality air, non-lubricated or lubricated. If lubricated, a lubricator must be maintained. Supply Pressure Range: Must be at least 5 psig (0.35 bar) above the required output pressure, up to the maximum of 150 psig (10.3 bar). Environmental Ambient Temperature Range: Operating: -40° to 185°F (-40° to 85°C) Storage: -60° to 185°F (-51° to 85°C) Relative Humidity: 0 to 100% (condensing). Enclosure Rating: NEMA Type 4X (Weatherproof and Corrosion-Resistant) when properly installed. Electrical Loop Power: Powered directly from the 4-20 mA signal loop. No separate power supply is required. HART® Communication: Supports HART protocol (FSK) for digital configuration, calibration, and diagnostics via the same two wires used for the 4-20 mA signal. Physical Mounting: Directly onto actuator mounting holes or via a bracket. Common mounting patterns include Fisher 1052 and 1066 styles. Materials: Housing is typically aluminum with a corrosion-resistant coating. Internal parts are stainless steel and anodized aluminum. Weight: Approximately 2.3 kg (5.0 lbs). Approvals Typically carries FM, FMC, ATEX, IECEx, and CSA approvals for use in hazardous (classified) locations. Specific approval codes depend on the model variant.

Technical Parameters General Model: Fisher LCP100 Local Control Panel Type: Field-mounted Local Operator Interface Primary Function: Local control, monitoring, and HART communication for valve instrumentation. Enclosure Enclosure Rating: NEMA 4X / IP66 (Weatherproof, Dust-tight, Corrosion-Resistant, and Hose-proof). Material: Fiberglass-reinforced polyester or equivalent rugged material. Window: Transparent, impact-resistant cover for viewing indicators and communicator. Control & Indication Control Buttons: Typically includes Open, Close, and Stop pushbuttons. Selector Switch: Local/Off/Remote selector switch to transfer control between the panel and the central control system. Status Indicators: LED indicators for: Valve Open Valve Closed Valve in Motion Fault / Alarm HART Communicator: Includes a integrated, NEMA 4X rated HART communicator (often a specific model like the Emerson 475HPAC) stored in a dedicated compartment with a communication port. Electrical Input Power: The power requirements depend on the connected devices (e.g., positioner, solenoids). The LCP100 itself is a passive interface; it must be wired to the device power supply. Intrinsic Safety: Can be installed with intrinsically safe barriers to meet hazardous area requirements. Termination: Internal terminal blocks for connecting to the valve actuator, positioner (e.g., DVC6000, DVC2000), solenoids, and limit switches. Environmental Ambient Temperature Range: Standard: -40° to 70°C (-40° to 158°F) Relative Humidity: 0 to 100% condensing. Compatibility Valve Controllers: Compatible with Fisher FIELDVUE digital valve controllers (DVC series) and other HART-enabled devices. Actuators: Can be configured for use with both spring-return and double-acting pneumatic actuators. Physical Data Dimensions: Compact design, typical footprint is approximately 318mm H x 241mm W x 178mm D (12.5 in H x 9.5 in W x 7.0 in D). Dimensions can vary. Weight: Approximately 4.5 kg (10 lbs). Approvals Typically carries major international approvals for hazardous locations, including FM, FMC, ATEX, IECEx, and CSA.

Technical Parameters General Product Line: Fisher Whisper Noise and Cavitation Control Trims Model: Whisper NXV Trim Type: Multi-stage, cage-style, labyrinth path trim. Valve Body Compatibility: Fisher easy-e globe valve bodies (e.g., ET, EWT, ES models). Design & Performance Noise Reduction: Capable of achieving noise reductions of up to 50 dBA or more compared to a single-stage orifice, making it one of the most effective trim designs available. Cavitation Control: Eliminates cavitation damage by managing the pressure drop across multiple stages, ensuring the internal pressure at each stage remains above the fluid's vapor pressure. Pressure Staging: Utilizes dozens of individual turns and chambers to create a high number of pressure stages, dissipating energy in a controlled manner. Flow Characteristic: Inherent flow characteristic is modified linear, designed to provide stable control over the entire travel range. Pressure & Temperature Pressure Class: Available for valve bodies rated ANSI Class 150 through 2500. Temperature Rating: Suitable for the full temperature range of the compatible easy-e body, typically from -29°C to 593°C (-20°F to 1100°F), depending on body and trim materials. Sizing & Capacity Valve Size Range: Typically available for valve sizes 1 inch through 12 inches (DN 25 through DN 300). Flow Capacity (Cv): The Cv value for an NXV trim is specific to its part number and is generally lower than a single-stage trim of the same size due to the restrictive flow path. Exact Cv values are determined using Fisher sizing software. Liquid Pressure Recovery (FL): The NXV design results in a high FL factor, making it highly resistant to cavitation. Materials Trim Materials: Standard materials include 17-4PH stainless steel and 316 stainless steel. Other hardened and corrosion-resistant alloys like Alloy 20, 410 SS, 440C SS, and Stellite are available for more severe services. Cage & Component Materials: Constructed to match the process requirements and provide long-term durability under high-energy flashing or cavitating conditions. Applications High-Pressure Drop Services: Pressure reduction, let-down applications. Liquid Services: Pump minimum flow (recirculation), feedwater control, water injection, where cavitation is a primary concern. Gas & Steam Services: High-pressure steam let-down, compressor anti-surge, gas pressure reduction, where noise is the primary concern.

Technical Parameters General Model: FIELDVUE DVC4400 Digital Valve Controller Type: Digital Valve Controller for Partial-Stroke Testing (PST) and On-Off/ESD Applications. Safety Focus: Designed for use in Safety Instrumented Systems (SIS). Communication Protocol: HART (4-20 mA analog signal with digital overlay). Input Signal Digital Command: Via HART communication from a host system (e.g., asset management software, safety PLC) to initiate Partial-Stroke Tests or full valve strokes. Analog Signal Monitoring: Monitors a 4-20 mA discrete input for valve trip commands (if configured). Input Impedance: 10 ohms at 20 mA. Pneumatic Performance Supply Pressure Range: 1.4 to 10.0 bar (20 to 150 psig) Output Pressure: Two independent outputs (Output 1 and Output 2) for double-acting actuators or a single output for single-acting actuators. Air Delivery Capacity (Volume Boost): High-flow capacity for fast stroking of ESD valves. Partial-Stroke Testing (PST) Function: Allows automated, programmable partial stroking of the valve to verify movement without a full process shutdown. Test Parameters: Test stroke limit, test duration, and test frequency are configurable. Benefits: Reduces proof testing costs, provides verification of valve health, and improves Safety Integrity Level (SIL) performance. Diagnostics & Alerts Monitored Parameters: Valve travel, actuator pressure (for both sides of a double-acting actuator), supply pressure, device temperature, total travel cycles, and test results. PST Results: Records and reports pass/fail status and detailed data for each partial-stroke test. Alerts: Provides early warnings for issues such as low air supply, high friction, and actuator pressure imbalances. Environmental Ambient Temperature Range: Standard Electronics: -40° to 85°C (-40° to 185°F) Extended Temperature Electronics: -50° to 80°C (-58° to 176°F) Relative Humidity: 0 to 100% condensing. Enclosure Rating: NEMA 4X / IP66 (Weatherproof, Dust-tight, and Hose-proof). Electrical Loop Power: Powered directly from the 4-20 mA signal loop (Two-wire device). Local User Interface (LUI): Magnetic pushbuttons and a backlit LCD display for local configuration, manual operation, and viewing diagnostics without intruding on the HART signal. Physical & Mounting Mounting: Directly mounts to Fisher rotary and linear actuators. Compatible with a wide range of valve types using appropriate mounting kits. Housing Material: Aluminum with a corrosion-resistant coating.

echnical Parameters General Model: FIELDVUE DVC7K Digital Valve Controller Type: Microprocessor-Based, Digital Valve Positioner Communication Protocols: HART 7, HART 5 (backward compatible), and 4-20 mA Analog. Input Signal Analog Control Signal: 4 to 20 mA DC, two-wire connection. Input Impedance: 7.5 ohms at 20 mA (HART communication), 4.5 ohms (analog only). Pneumatic Performance Supply Pressure Range: 1.4 to 10.0 bar (20 to 150 psig) Output Pressure Range: Equal to supply pressure (minus minor internal losses). Air Delivery Capacity (Volume Boost): High Flow: Up to 100 SCFM (170 Nm³/hr) for fast stroking of large actuators. Standard Flow: Sufficient for most standard applications. Air Consumption (Static): Typically less than 0.02 SCFM (0.03 Nm³/hr). Control & Performance Tight Shut-Off (TSO) Capability: Yes, with automated calibration. Strobe Capability: Allows partial valve stroke testing during normal operation. Stability & Accuracy: Very high stability with minimal deadband, providing precise positioning accuracy. Environmental Ambient Temperature Range: Standard Electronics: -40° to 85°C (-40° to 185°F) Extended Temperature Electronics: -50° to 80°C (-58° to 176°F) Relative Humidity: 0 to 100% condensing. Enclosure Rating: NEMA 4X / IP66 (Weatherproof, Dust-tight, and Hose-proof). Electrical Loop Power: Powered directly from the 4-20 mA signal loop (Two-wire device). Intrinsic Safety: Approved for use in hazardous areas. Local User Interface (LUI): Backlit graphical display and pushbuttons for local configuration, calibration, and diagnostics without a hand-held communicator. Physical & Mounting Mounting: Directly mounts to Fisher rotary (e.g., 1052, 1066) and most linear actuators. Adaptable to many other valve brands using Fisher mounting kits. Housing Material: Aluminum with a corrosion-resistant coating. Weight: Approximately 2.5 kg (5.5 lbs). Diagnostics & Alerts Monitored Parameters: Valve travel, actuator pressure (single or dual), supply pressure, output torque (estimated), device temperature, and total travel cycles. Alerts: Provides early warnings for issues such as high friction, air supply failure, low actuator pressure, and packing wear.

Technical Parameters General Model: Fisher Baumann 24000C Control Valve Type: Pneumatic Actuated, Cage-Guided Globe Valve Body Primary Application: High-pressure drop, anti-cavitation, and noise attenuation services. Valve Body Size Range: 1/2 inch to 4 inches (DN 15 to DN 100) Pressure Class: ANSI 150, 300, 600, 900, 1500, 2500 (depending on size and construction) End Connections: Flanged (RF, RTJ), buttweld, socket weld, or threaded. Body Materials: Carbon Steel (WCC), Stainless Steel (CF8M/316), Alloy 20, Duplex Stainless Steel, and other alloys. Actuator Type: Spring-and-Diaphragm Pneumatic Actuator. Action: Fail-Close (Air-to-Open) or Fail-Open (Air-to-Close) configurations available. Spring Ranges: Multiple standard spring ranges are available (e.g., 0.2-1.0 bar, 0.4-2.0 bar, etc.) to match available air supply and required thrust. Trim & Performance Trim Type: Baumann "C" Multi-Stage, Anti-Cavitation Trim. The flow path is split into multiple stages, each dissipating a portion of the pressure energy to prevent cavitation. Flow Characteristic: Modified linear or equal percentage, inherent to the multi-stage cage design. Leakage Class: ANSI Class IV (standard metal seat). ANSI Class V or VI (soft seat) is available for applications requiring tight shutoff. Noise & Cavitation Control: Significantly reduces noise (typically by 10-20 dBA) and eliminates cavitation damage compared to standard single-orifice valves. Flow Capacity Cv Range: Available in a wide range of Cv values, selected by choosing the appropriate trim size and number of stages for the specific application. Exact Cv values are determined by the trim designation (e.g., C-1, C-2, etc.). Pressure & Temperature Max Inlet Pressure: Up to ANSI Class 2500 rating (e.g., ~420 bar @ 100°F / 38°C for Class 2500). Temperature Range: Standard packing from -29°C to 232°C (-20°F to 450°F). High-temperature designs are available for services up to 538°C (1000°F). Options & Accessories Positioner: Fisher FIELDVUE DVC6200 or other pneumatic/high-performance positioners can be mounted. Limit Switches: Solenoid valves, proximity switches, and other accessories. Air Sets: Filter regulators (Type 67SR) can be mounted directly on the actuator. Packing: Standard V-ring, low-emission live-loading, or bellows seal options.

Technical Parameters Parameter Specification / Options Series Fisher Baumann 26000 Type Low-Flow Globe Control Valve Flow Characteristic Linear, Equal Percentage, Quick Opening (depends on trim) End Connections 1/4 in., 3/8 in., 1/2 in. NPT (Common); 6 mm, 10 mm Tube; Swagelok® Body Materials Brass (Standard), 316 Stainless Steel, Alloy C-276, Monel Trim Materials 316 Stainless Steel, 17-4PH Stainless Steel, Alloy C-276 Pressure Rating Varies with body material and size. - Brass: Up to 600 psig (41 bar) - Stainless Steel: Up to 2500 psig (172 bar) or higher. Temperature Range -40°F to 500°F (-40°C to 260°C); higher with special packing. Flow Capacity (Cv) From 0.00002 to 0.1 (Extremely low flow range) Leakage Class ANSI Class II, IV, V, VI (depends on trim design)

Technical Parameters Parameter Specification / Options Series Fisher Baumann 51000 Type High-Performance, Cage-Guided Globe Valve Trim Type Balanced, Cage-Guided Flow Characteristic Linear, Equal Percentage, Modified Parabolic Body Styles Globe, Angle End Connections Flanged (ANSI Class 150 to 2500), Butt-Weld, Socket Weld Body Materials Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Alloy Steel (WC6/WC9) Trim Materials Stainless Steel, Hardened Stainless Steel, Stellite Pressure Rating ANSI Class 150 to 2500 (Up to 4500 psig / 310 bar) Temperature Range -450°F to 1200°F (-268°C to 649°C) with special designs and materials. Flow Capacity (Cv) Varies by size and trim, covering a wide range from low to very high flow. Noise Reduction Capable of 15-20 dBA or more of noise attenuation. Leakage Class ANSI Class IV (Standard), ANSI Class V & VI available.
