Technical Parameters Category Parameter Specification / Description General Model 1098-EGR Type Double-Acting Scotch-Yoke Rotary Actuator Product Line RCS Classic Performance Torque Output The "E" in EGR specifies the actuator size, which determines its torque output. For size "E", the torque is approximately 900 lb-in (102 Nm) at an 80 psig (5.5 bar) supply pressure. Standard Rotation 90° (Standard). Other angles are available. Supply Pressure Typical operating range: 40 to 120 psig (2.8 to 8.3 bar). Action & Options Action The "GR" portion of the suffix defines the standard package. As a double-acting actuator, it requires air pressure to move in both directions and has no spring return. Positioner Mounting The "GR" package typically includes a bracket and linkage ready for the installation of a Fisher 1061 or similar pneumatic positioner. Construction & Environment Body Material Aluminum Temperature Range Standard: -20°F to 180°F (-29°C to 82°C) Corrosion Protection Epoxy coating.

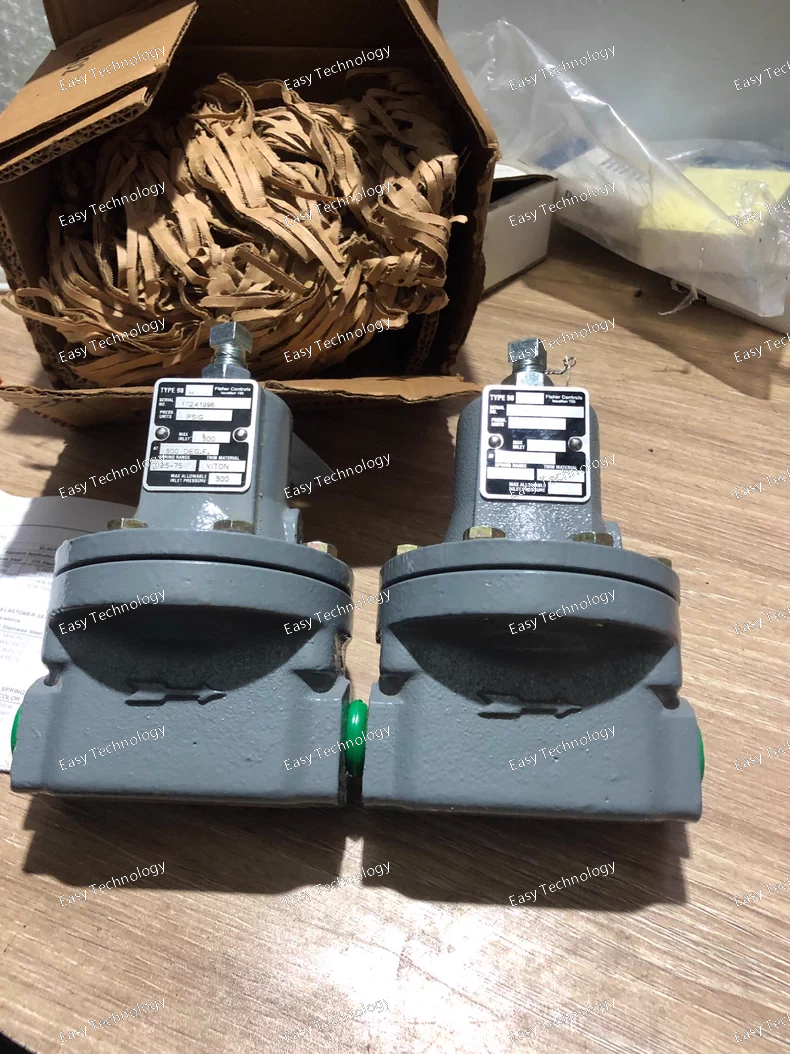

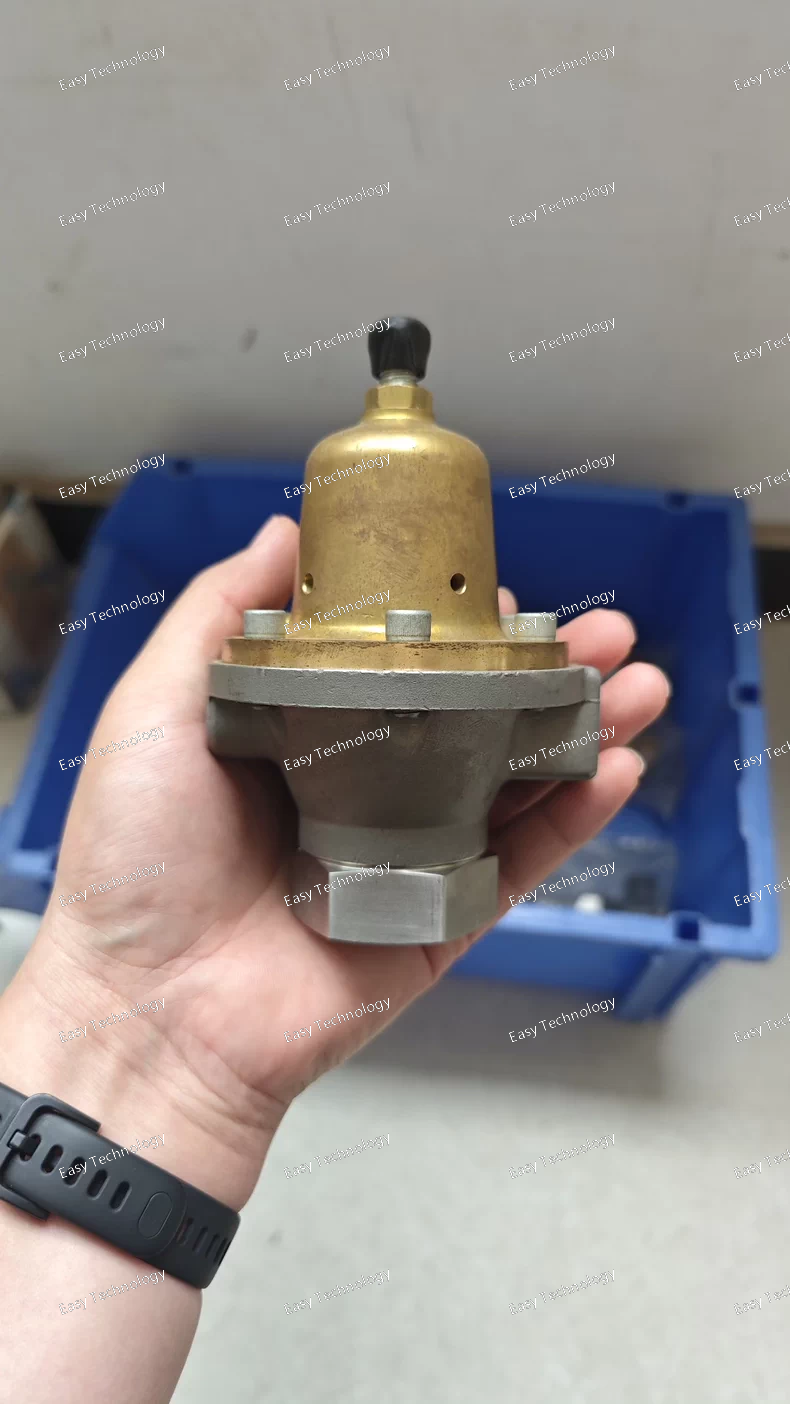

Technical Parameters Category Parameter Specification / Description General Model 1301F Type Direct-Operated Pressure Reducing Regulator Pressure Ratings Maximum Inlet Pressure (P1) 5 psig (0.34 bar) Outlet Pressure Range (P2) Adjustable: Typically from 3" to 14" WC (0.75 to 3.5 kPa). Specific range is defined by the internal spring. Pressure Rating 125 psig (8.6 bar) Body Rating. Flow & Capacity Flow Capacity (Cv) Very Low, designed for pilot burners and small main burners. End Connections 1/2" NPT (Internal Pipe Thread) Materials & Environment Body Material Aluminum Internal Parts Stainless Steel, Brass Diaphragm Material Neoprene, fabric reinforced. Ambient Temperature Standard: -20°F to 150°F (-29°C to 66°C)

Technical Parameters Category Parameter Specification / Description General Model MR98H Type High-Thrust, Multi-Spring Pneumatic Positioner Input & Output Input Signal 3 to 15 psi (0.2 to 1.0 bar) Supply Pressure Up to 150 psig (10.3 bar) Output Action Double-Acting (Standard) Performance Output Capacity Extremely High. Specifically designed to supply and exhaust the large air volumes required by piston actuators. Significantly higher than standard positioners like the 3610J. Linearity ±1% of span Hysteresis Less than 0.5% of span Air Consumption Steady State: ~0.2 SCFM (5.7 NLPM) During Stroking: Very high, capable of flows over 10 SCFM. Environmental Ambient Temperature -40°F to 180°F (-40°C to 82°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Explosion-proof (Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G). Physical Housing Material Cast Aluminum with corrosion-resistant coating. Pneumatic Connections Supply & Outputs: 1/2" NPT (to accommodate high flow) Mounting Typically mounts directly onto Fisher 98L and other large piston actuators.

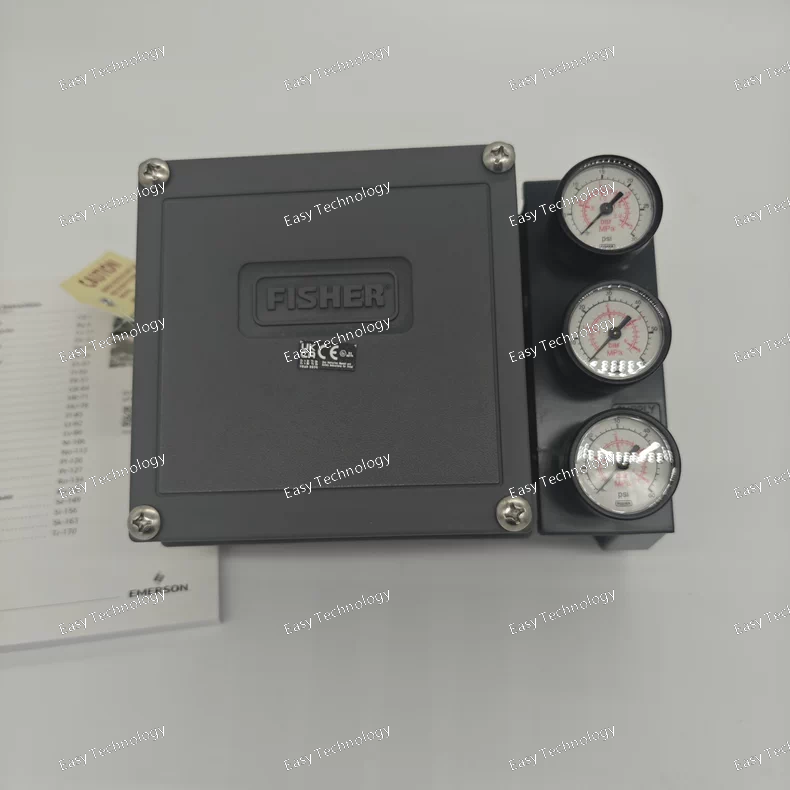

Technical Parameters Category Parameter Specification / Description General Model 3582G Type High-Gain Pneumatic Positioner Input & Output Input Signal 3 to 15 psi (0.2 to 1.0 bar) Supply Pressure Up to 100 psig (6.9 bar) Output Action Double-Acting (Standard for high-gain models to drive piston actuators). Performance Gain High. This is its defining characteristic, providing high sensitivity and fast response to input signal changes. Linearity ±1% of span Hysteresis Less than 0.5% of span Air Consumption Steady State: ~0.15 SCFM (4.2 NLPM) During Stroking: Higher, suitable for driving demanding actuators. Environmental Ambient Temperature -40°F to 180°F (-40°C to 82°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Explosion-proof (Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G). Physical Housing Material Aluminum with corrosion-resistant coating. Pneumatic Connections Supply & Outputs: 1/4" NPT Weight Approximately 11 lbs (5 kg)

Technical Parameters Category Parameter Specification / Description General Model 3720 Type Pneumatic Level Transmitter Performance Input Range Level range defined by the length of the float lever arm (e.g., 12", 24", 36", etc.). Output Signal 3 to 15 psig (0.2 to 1.0 bar) Supply Pressure 20 psig (1.4 bar) minimum, 20-35 psig (1.4-2.4 bar) typical. Accuracy ±1% of span Sensitivity 0.1% of span Mechanical Float Material Copper (Standard for water), Stainless Steel (for corrosive liquids). Lever Arm Length Standard lengths available to suit various tank depths. Mounting Typically side-mounted on the tank. Environmental Liquid Specific Gravity Typically designed for S.G. > 0.5 Ambient Temperature -20°F to 180°F (-29°C to 82°C) Enclosure Rating Weatherproof

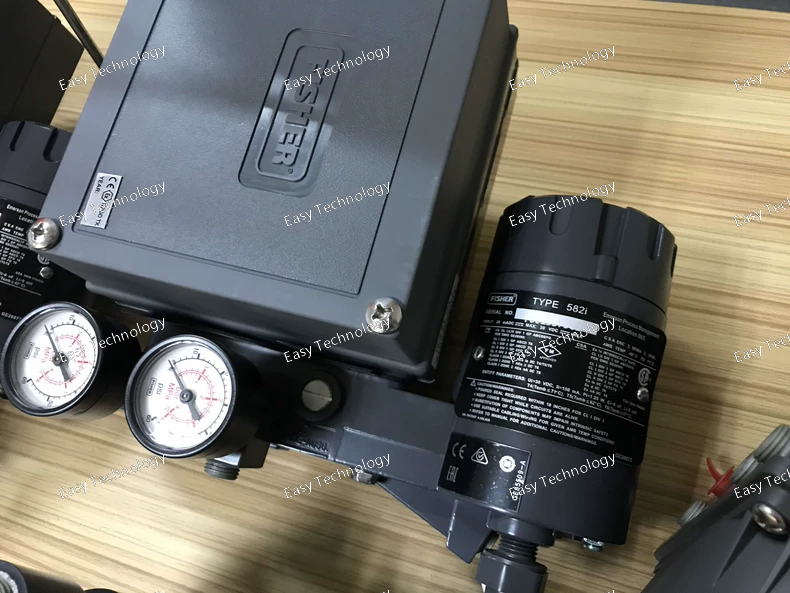

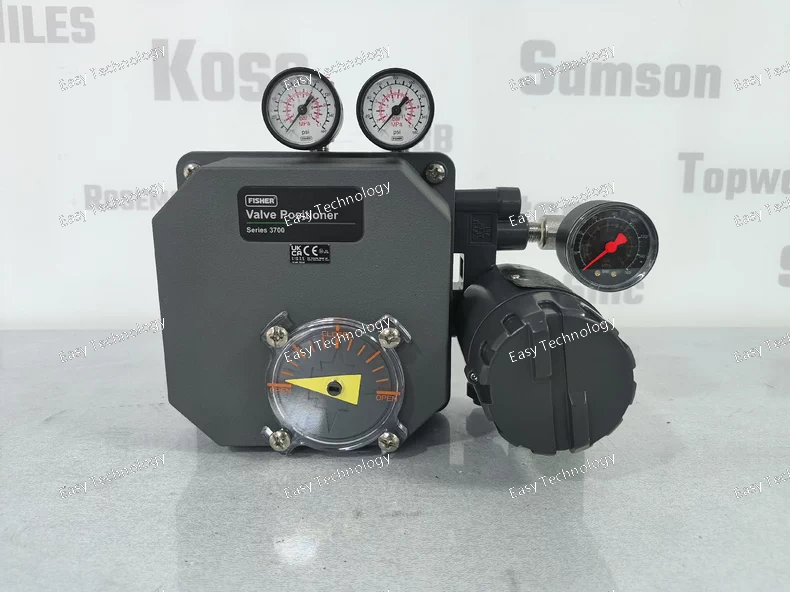

Technical Parameters Category Parameter Specification / Description General Model 3582i Type Pneumatic Force-Balance Positioner (Indicating) Input & Output Input Signal 3 to 15 psi (0.2 to 1.0 bar) Supply Pressure Up to 100 psig (6.9 bar) Output Action Can be configured for Single-Acting (for spring-return actuators) or Double-Acting (for piston actuators). Performance Linearity ±1% of span Hysteresis Less than 0.5% of span Air Consumption Steady State: ~0.15 SCFM (4.2 NLPM) During Stroking: ~2.0 SCFM (56.6 NLPM) Environmental Ambient Temperature -40°F to 180°F (-40°C to 82°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Explosion-proof (Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G). Physical Housing Material Aluminum with corrosion-resistant coating. Pneumatic Connections Supply & Outputs: 1/4" NPT Weight Approximately 11 lbs (5 kg) Indicator Local mechanical gauge showing valve travel vs. signal.

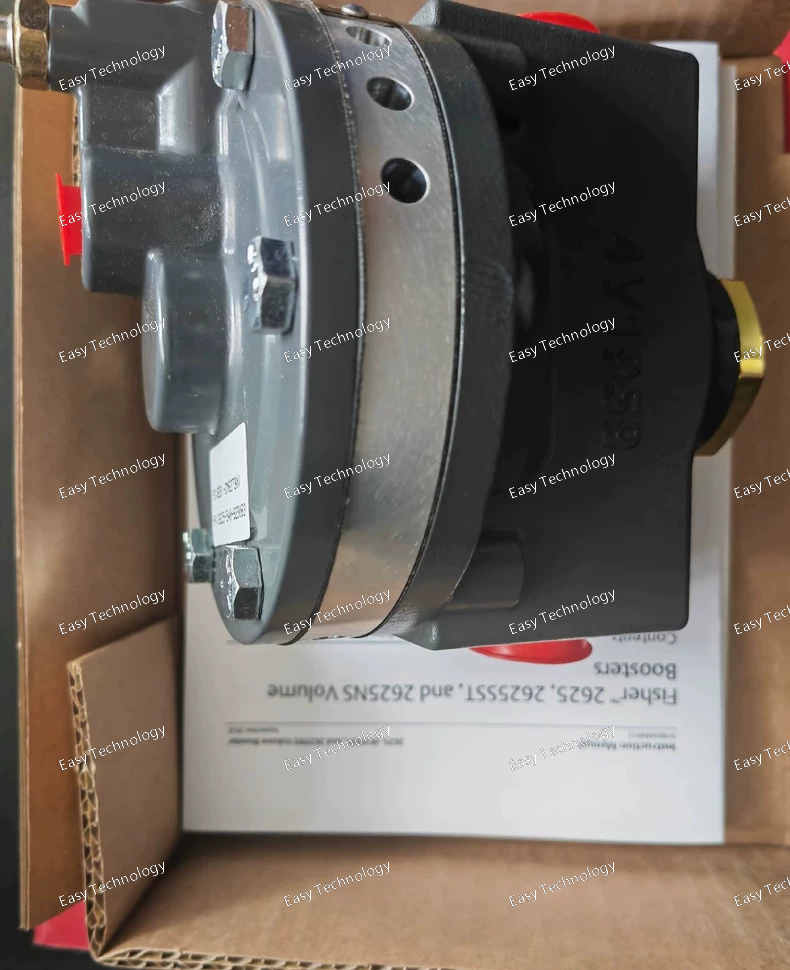

Technical Parameters Category Parameter Specification / Description General Model Series 2625 Type Direct-Operated Pressure Reducing Regulator Pressure Ratings Maximum Inlet Pressure (P1) 400 psig (27.6 bar) Outlet Pressure Range (P2) Adjustable: Common ranges from 0-25 psig to 0-200 psig, depending on the specific spring range installed. Pressure Rating 400 psig (27.6 bar) Body Rating. Flow & Capacity Flow Capacity (Cv) Approximately 0.14 (Designed for low to moderate flows). End Connections 1/4" NPT (Internal Pipe Thread) Materials & Environment Body Material Aluminum Internal Parts Stainless Steel, Brass Diaphragm Material Nylon / Elastomer Seat Material Elastomer (e.g., Buna-N) for tight shut-off. Ambient Temperature -20°F to 150°F (-29°C to 66°C)

Technical Parameters Category Parameter Specification / Description General Model 546NS Type Pilot-Operated Nitrogen Sealing Regulator Pressure Ratings Maximum Inlet Pressure (P1) 400 psig (27.6 bar) Outlet Pressure Range (P2) Adjustable: Commonly from a very low 3" H₂O (0.75 kPa) up to 25 psig (1.7 bar) or higher, depending on the pilot spring. Pressure Rating 400 psig (27.6 bar) Body Rating. Flow & Capacity Flow Capacity (Cv) Low to Moderate, suitable for sealing/purge flow rates. End Connections 1/4" NPT or 1/2" NPT (Internal Pipe Thread) Performance Accuracy & Stability Very high, due to pilot-operated design. Minimal droop or creep. Construction & Materials Body Material Aluminum Internal Parts Stainless Steel, Brass Pilot Filter Standard, 40 micron. Diaphragm Material Nylon / Elastomer

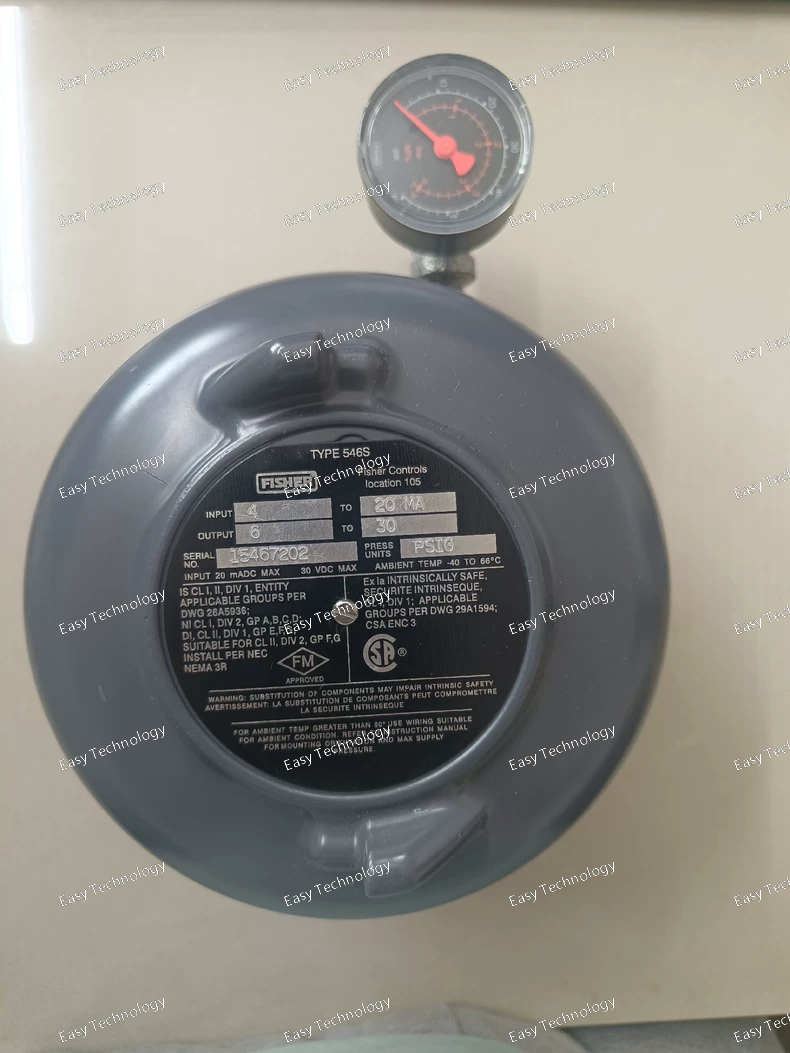

Technical Parameters Category Parameter Specification / Description General Model 546S Type Pilot-Operated Pressure Reducing Regulator (Steam) Pressure & Temperature Body Pressure Rating (ANSI) ANSI Class 125, 150, 250, or 300 (depending on body size and order). Maximum Inlet Pressure (P1) Varies with body class; can be up to 600 psig (41 bar) or higher for certain classes. Outlet Pressure Range (P2) Wide range, adjustable via the pilot spring. Common ranges from 10 to 250 psig (0.7 to 17 bar). Temperature Range Suitable for saturated and superheated steam temperatures. Flow & Sizing Flow Capacity (Cv) High. Ranges from ~5 to over 200+, depending on the valve size (e.g., 1/2", 1", 2", 3"). End Connections Flanged (RF, RTJ) or Screwed (NPT). Construction & Materials Body Materials Cast Steel (WCB) as standard for steam service. Trim Materials Stainless Steel. Pilot Valve 546 Pilot configured for steam service. Options Pilot Options May include a strainer to protect the pilot from pipeline scale and debris, which is crucial in steam systems.

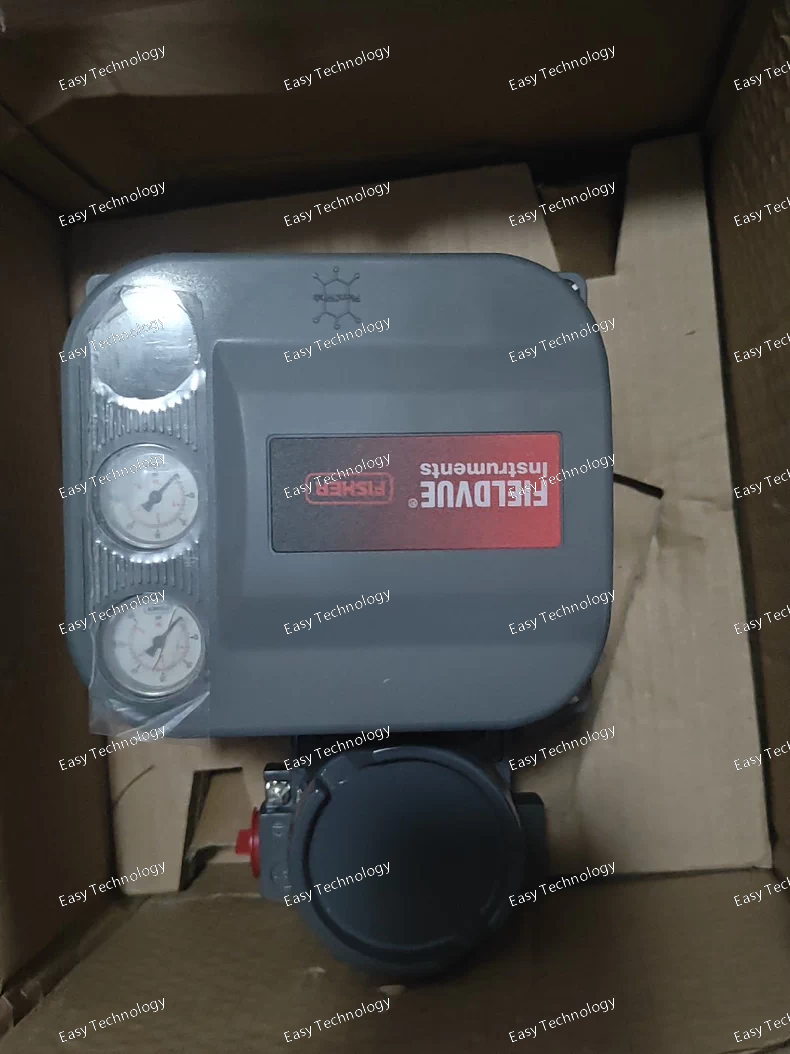

Technical Parameters Category Parameter Specification / Description General Model DVC6010 Type Digital Valve Controller (Single-Action) Product Family FIELDVUE Primary Protocol HART Input & Output Input Signal 4 to 20 mA DC, two-wire Supply Pressure Up to 150 psig (10.3 bar) Output Action Single-Action (One output port for spring-return actuators) Performance Linearity ±0.5% of span Hysteresis Less than 0.4% of span Air Consumption Steady State: ~0.04 SCFM (1.1 NLPM) Environmental Ambient Temperature -40°F to 185°F (-40°C to 85°C) Enclosure Rating Type 4X, 6 (IP66/67); Dust-tight and protected against water. Hazardous Area Certifications FM/CSA: Explosion-proof, Intrinsically Safe (Class I, II, III, Div. 1 & 2) ATEX/IECEx: Ex db, Ex tb, Ex ia [ia] (Zone 1 & 21) Physical Conduit Openings Two 1/2" NPT Pneumatic Connections Supply & Output: 1/4" NPT
