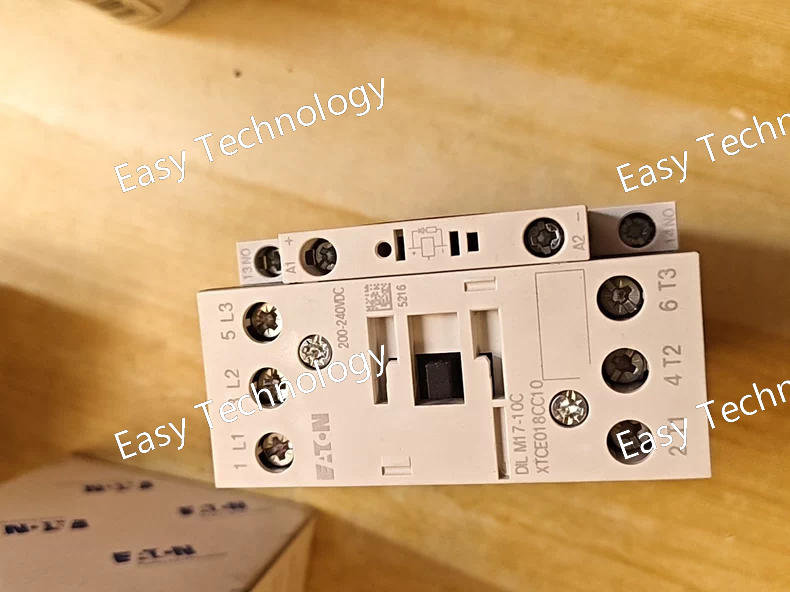

Key Parameters Category Description / Value Product Line Eaton DILM Contactors Rated Operational Current (Iₑ) 17 A at AC-3 (motor loads) Rated Thermal Current (Ith) 25 A Poles 3 main poles Coil Voltage DC (specific voltage must be verified from device label) Rated Power 7.5 kW / 10 HP at 400V 50Hz Rated Operational Voltage Up to 690 V AC Utilization Categories AC-3, AC-1 Electrical Durability ~1 million operations Mechanical Durability ~10-15 million operations Standards IEC/EN 60947-4-1, UL 508 Mounting DIN rail (35mm) or screw mounting Connection Cage clamp terminals

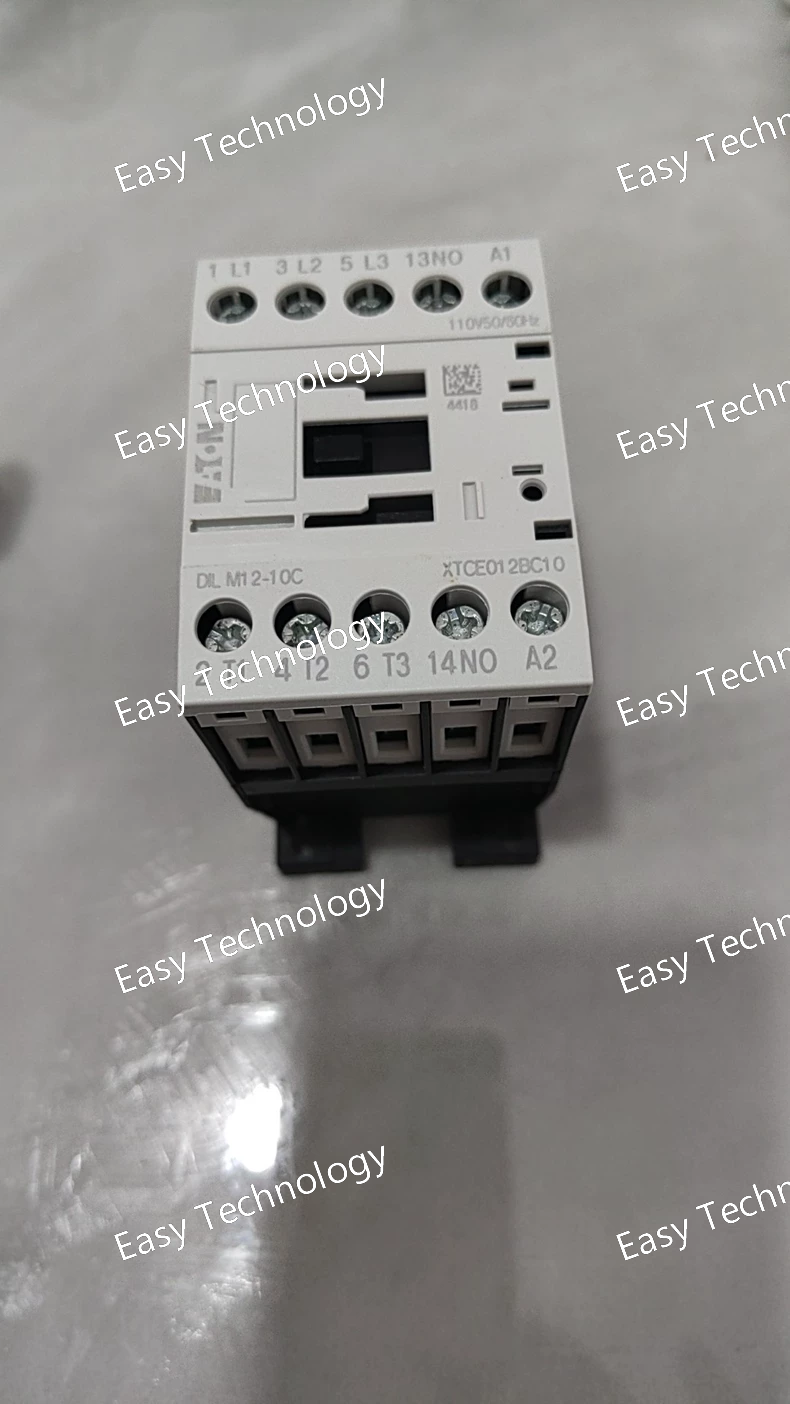

Key Parameters Category Description / Value Product Line Eaton DILM Contactors Rated Operational Current (Iₑ) 12 A at AC-3 (motor loads) Rated Thermal Current (Ith) 16 A Poles 3 main poles Coil Voltage DC (specific voltage must be verified from device label - typically 24V DC) Rated Power 5.5 kW / 7.5 HP at 400V 50Hz Rated Operational Voltage Up to 690 V AC Utilization Categories AC-3, AC-1 Electrical Durability ~1 million operations Mechanical Durability ~10 million operations Standards IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14 Mounting DIN rail (35mm) or screw mounting Connection Cage clamp terminals

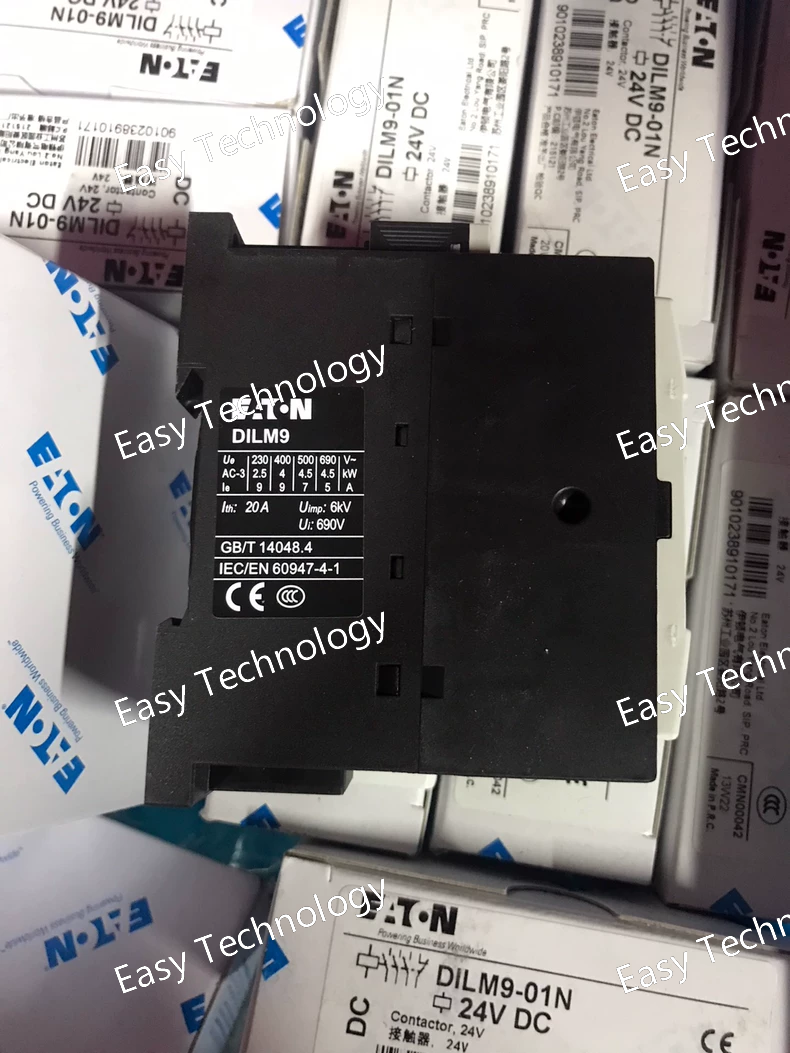

Key Parameters Category Description / Value Product Line Eaton DILM Contactors Rated Operational Current (Iₑ) 9 A at AC-3 (motor loads) Rated Thermal Current (Ith) 12 A Poles 3 main poles Coil Voltage AC (specific voltage must be verified from device label) Rated Power 4 kW / 5.5 HP at 400V 50Hz Rated Operational Voltage Up to 690 V AC Utilization Categories AC-3, AC-1 Electrical Durability ~1 million operations Mechanical Durability ~10 million operations Standards IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14 Mounting DIN rail (35mm) or screw mounting Connection Cage clamp terminals

Key Parameters Category Description / Value Product Line Eaton XT Timer Relays Type Digital Timer Relay Time Range Adjustable (specific ranges depend on CG configuration) Supply Voltage Typically 24-240V AC/DC (must verify from datasheet) Output Type Relay contact output Time Functions Multiple functions available (on-delay, off-delay, etc.) Mounting DIN rail (35mm) Connection Screw terminals Standards IEC/EN 60947-5-1

Key Parameters Category Description / Value Product Line Eaton XT Timer Relays Type Multi-function Timer Relay Supply Voltage Typically 24-240V AC/DC (verify from datasheet) Time Range Adjustable (seconds/minutes/hours) Output Configuration Relay contact (SPDT or similar) Mounting DIN rail (35mm) Display May include LED indicators Connection Screw terminals Standards IEC/EN 60947-5-1

Key Parameters Category Description / Value Product Line Eaton Crouse-Hinds S811 Series Type Explosion-Proof LED Floodlight Light Source 50W LED Input Voltage 120V AC (as indicated by N3 code) Housing Color Silver/Grey Hazardous Location Class I Division 2, Class II Division 2, Class III Enclosure Rating NEMA 4X Protection Level IP66/IP67 Body Material Copper-free aluminum

Key Parameters Category Description / Value Product Line Eaton M22 Inductive Sensors Sensor Type Inductive Proximity Sensor Housing Diameter 22mm Sensing Distance Typically 5-8mm (verify from datasheet) Output Type PNP (as indicated by PV code) Connection M12 connector (as indicated by KC11) Supply Voltage 10-30V DC Housing Material Nickel-plated brass Protection Rating IP67

Key Parameters Category Description / Value Product Line Eaton M22 Inductive Sensors Sensor Type Inductive Proximity Sensor Housing Diameter 22mm Sensing Distance Standard M22 sensing range (typically 5-8mm) Output Type PNP (sourcing output) Connection Specific connector type per KC02 code Supply Voltage 10-30V DC Output Current ≤200 mA Housing Material Nickel-plated brass or stainless steel Protection Rating IP67

Key Parameters Category Description / Value Product Line Eaton FAK (Control Relays) Type Modular Control Relay Contact Configuration Multiple changeover contacts (specific arrangement depends on R/V code) Coil Voltage Specific voltage to be verified from datasheet (indicated by IY suffix) Rated Operational Current Typically 6-10A for relay contacts Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals or spring-cage terminals Standards Compliance IEC/EN 60947-5-1

Key Parameters Category Description / Value Product Line Eaton NZMH (Air Circuit Breakers) Rated Current (Iₙ) 400 A Number of Poles 3-Pole or 4-Pole versions available Trip Unit Type Electronic Trip Unit (S1 type) Rated Operational Voltage (Uₑ) Up to 690 V AC, 50/60 Hz Rated Insulation Voltage (Uᵢ) 1000 V Rated Ultimate Short-Circuit Breaking Capacity (Iᶜᵘ) Very high, typically 65 kA to 100 kA at 400V AC (IEC 60947-2) Protection Functions • Long-time delay (L) • Short-time delay (S) • Instantaneous (I) • Ground-fault (G) Mounting Fixed mounting or Draw-out version available Standards Compliance IEC/EN 60947-2
