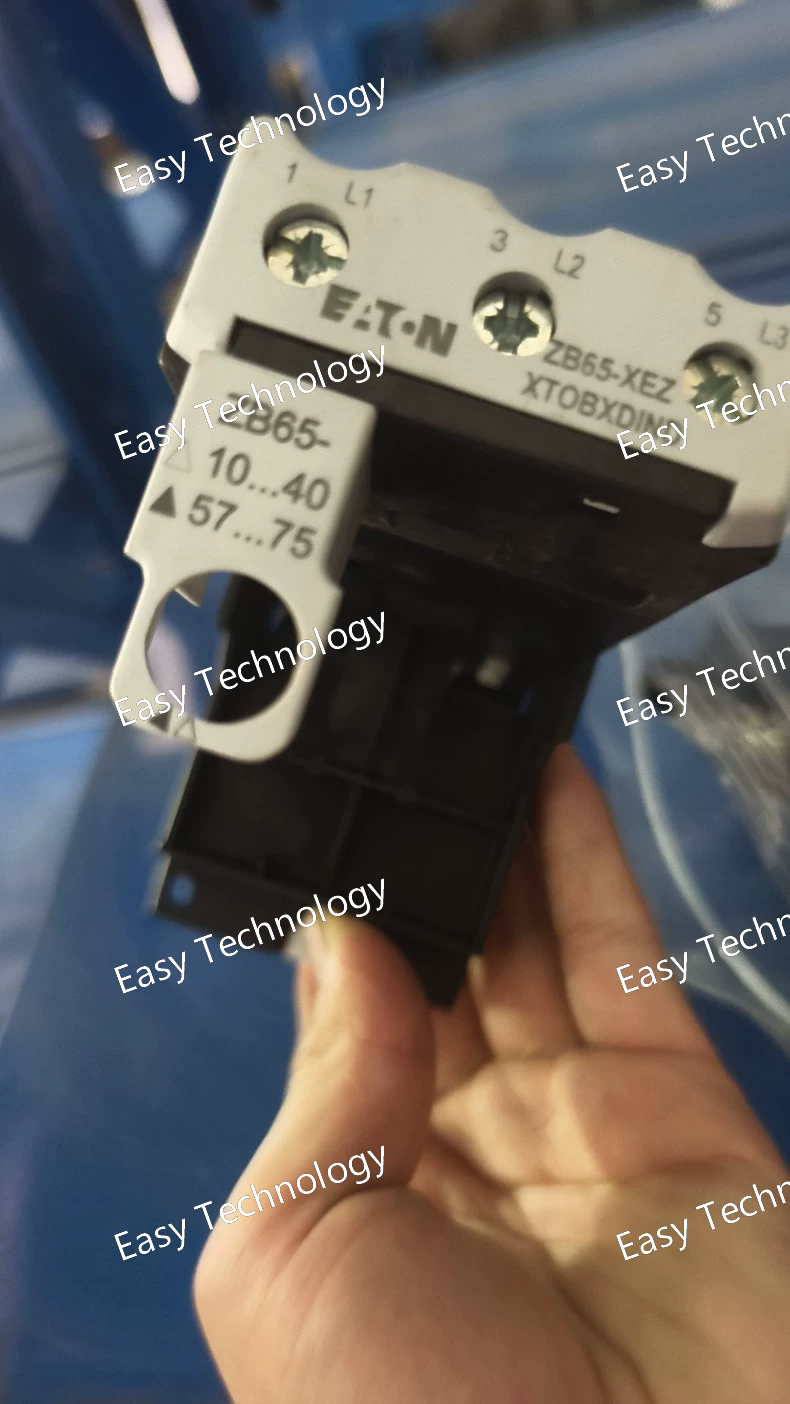

Technical Parameters Parameter Specification Notes Model ZB65-XEZ Plug-in Bridge & Test Terminal Product Type Test Terminal with Integrated Shunt/Resistor Rated Voltage Typically 600/1000 V Rated Current Dependent on the integrated shunt's rating A common rating for this type is 50 A, generating 60 mV drop. This is a critical detail to confirm. Shunt Output Typically 60 mV or 100 mV The voltage signal at rated current for measurement. Rated Cross-Section (Wire Size) Up to 16 mm² or 25 mm² Number of Positions Custom configuration (e.g., 4-pole) Connection Technology Cage Clamp (Spring Loaded) Mounting DIN Rail NS 35 Material (Housing) Polyamide (PA), typically Black Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS

Technical Parameters Parameter Specification Notes Model ZB12C-2.4 Product Type Plug-in Terminal Block Consists of a base and a plug Rated Voltage 250 V Rated Current 16 A Rated Cross-Section (Wire Size) 2.4 mm² This is the core specification. It typically accommodates a range, e.g., 0.5 mm² to 2.5 mm². Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Conductor Type Solid, stranded, or finely stranded with ferrule Mounting DIN Rail NS 35/7.5 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS, cULus

echnical Parameters Parameter Specification Notes Model ZB32N-4 Product Type Level Junction Terminal Block Rated Voltage 400 V Rated Current 57 A Rated Cross-Section 4.0 mm² Primary specification indicated by "-4" Wire Range 1.5 - 4.0 mm² Confirm in datasheet Number of Positions 1 Units can be assembled into blocks Connection Technology Cage Clamp (Spring Loaded) Tool-less operation Conductor Type Solid, stranded, or ferruled strands Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm rail Housing Material Polycarbonate (PC), Transparent Clamp Material Steel, Tin-plated Conductor Material Copper, Tin-plated Standards & Approvals UL 1059, CSA, CE, RoHS Component recognized

Technical Parameters Parameter Specification Notes Model XTOD18-1.6 Type Solid State Relay (SSR) DC Input to DC Output Load Voltage 5 to 60 VDC Load Current 18 A max Absolute Max Load Current 27 A Non-repetitive peak On-State Resistance ≤ 18 mΩ On-State Voltage Drop ≤ 0.32 V @ 18A Input Control Voltage 3 to 10 VDC Input Current 10 mA typical @ 5V Turn-On Time 1 ms max Turn-Off Time 0.1 ms max Isolation Voltage 1500 Vrms Between input and output Operating Temperature -40°C to +80°C Storage Temperature -40°C to +100°C Mounting PCB Mount Through-hole type Package Plastic, sealed Weight Approx. 10 g Agency Approvals UL 508, CE, CQC Recognized / Certified

Technical Parameters Parameter Specification Notes Model XTOD18-8 Type Solid State Relay (SSR) DC Input to DC Output Load Voltage 5 to 60 VDC Load Current 18 A max Absolute Max Load Current 27 A Non-repetitive peak On-State Resistance ≤ 18 mΩ On-State Voltage Drop ≤ 0.32 V @ 18A Input Control Voltage 3 to 10 VDC Input Current 10 mA typical @ 5V Turn-On Time 1 ms max Turn-Off Time 0.1 ms max Isolation Voltage 1500 Vrms Between input and output Operating Temperature -40°C to +80°C Storage Temperature -40°C to +100°C Mounting PCB Mount Through-hole type Package Plastic, sealed Weight Approx. 10 g Agency Approvals UL 508, CE, CQC Recognized / Certified

Technical Parameters Parameter Specification Notes Model ZB32N-1,5 Equivalent to ZB32N-1.5 Product Type Level Junction Terminal Block Rated Voltage 400 V Rated Current 24 A Rated Cross-Section (Wire Size) 1.5 mm² This is the core specification indicated by "1,5". It can also accommodate a range of wire sizes, e.g., 0.5 mm² to 2.5 mm² (check datasheet). Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Tool-less or with a screwdriver for opening. Conductor Type Solid, stranded, or finely stranded with ferrule Torque (for cage clamp) Typically 0.6 - 0.8 Nm Refer to datasheet for exact value. Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS Recognized Component

Technical Parameters Parameter Specification Notes Model ZB32N-6 Product Type Level Junction Terminal Block Rated Voltage 400 V Rated Current 76 A Rated Cross-Section (Wire Size) 6.0 mm² This is the core specification indicated by "-6". It can also accommodate a range of wire sizes, e.g., 1.5 mm² to 6.0 mm² (check datasheet). Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Tool-less or with a screwdriver for opening. Conductor Type Solid, stranded, or finely stranded with ferrule Torque (for cage clamp) Typically 0.6 - 0.8 Nm Refer to datasheet for exact value. Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS Recognized Component

Technical Parameters Parameter Specification Notes Model XTOD005CC1 Type Solid State Relay (SSR) DC Input to DC Output Load Voltage 5 to 60 VDC Load Current 5 A max Absolute Max Load Current 7.5 A Non-repetitive peak On-State Resistance ≤ 50 mΩ On-State Voltage Drop ≤ 0.5 V @ 5A Input Control Voltage 3 to 10 VDC Input Current 10 mA typical @ 5V Turn-On Time 1 ms max Turn-Off Time 0.1 ms max Isolation Voltage 1500 Vrms Between input and output Operating Temperature -40°C to +80°C Storage Temperature -40°C to +100°C Mounting PCB Mount Through-hole type Package Plastic, sealed Weight Approx. 10 g Agency Approvals UL 508, CE, CQC Recognized / Certified

Technical Parameters Parameter Specification Notes Model ZB32N-5 Product Type Level Junction Terminal Block Rated Voltage 400 V Rated Current 76 A Rated Cross-Section (Wire Size) 5.0 mm² This is the core specification indicated by "-5". It can also accommodate a range of wire sizes, e.g., 1.5 mm² to 6.0 mm² (check datasheet). Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Tool-less or with a screwdriver for opening. Conductor Type Solid, stranded, or finely stranded with ferrule Torque (for cage clamp) Typically 0.6 - 0.8 Nm Refer to datasheet for exact value. Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS Recognized Component

Technical Parameters Parameter Specification Notes Model DIL M32C-XHI11-S Product Type Contactor with Integrated Electronic Module Rated Operational Current (Ie) 32 A at AC-3, 400 V Rated Operational Power (Pme) 15 kW (20 hp) at AC-3, 400 V Rated Insulation Voltage (Ui) 690 V Rated Operational Voltage (Ue) 230 V / 400 V / 690 V AC Rated Control Supply Voltage (Us) 230 V AC Key specification for the "-S" variant Motor Load (Utilization Category AC-3) 32 A at 400 V 15 kW 25 A at 690 V 18.5 kW Resistive Load (Utilization Category AC-1) 32 A at 400 V Mechanical Durability 10 million operations Electrical Durability 1.5 million operations at AC-3, 32 A, 400 V Integrated XHI11 Module Functions • Forbidden Simultaneity (Electronic Interlock): Prevents two interlocked contactors from closing simultaneously. • Motor Locking Protection: Protects against jammed motors. • Phase Reversal Protection: Detects and protects against incorrect phase sequence. • Timer Functions: On-delay and Off-delay. • Status Indication: Via diagnostic LEDs. Terminals Cage Clamp For main and auxiliary circuits Mounting Standard DIN Rail (35mm) or Panel Mount Agency Approvals CE, cULus, RoHS, etc.
