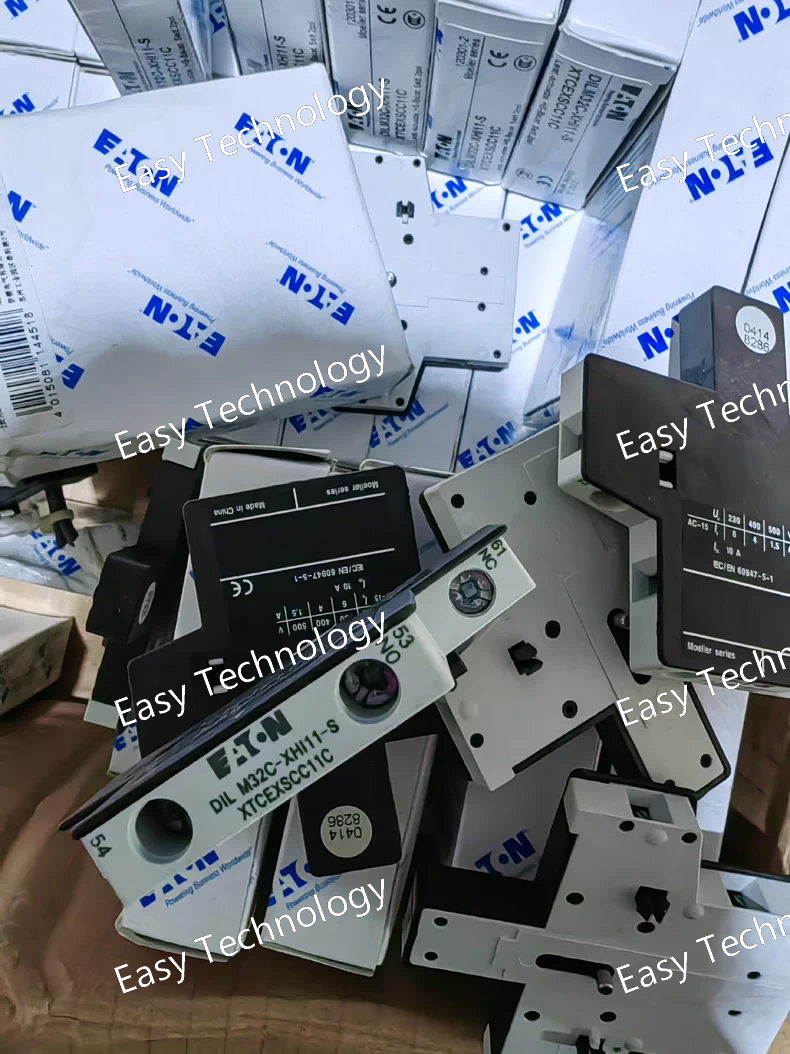

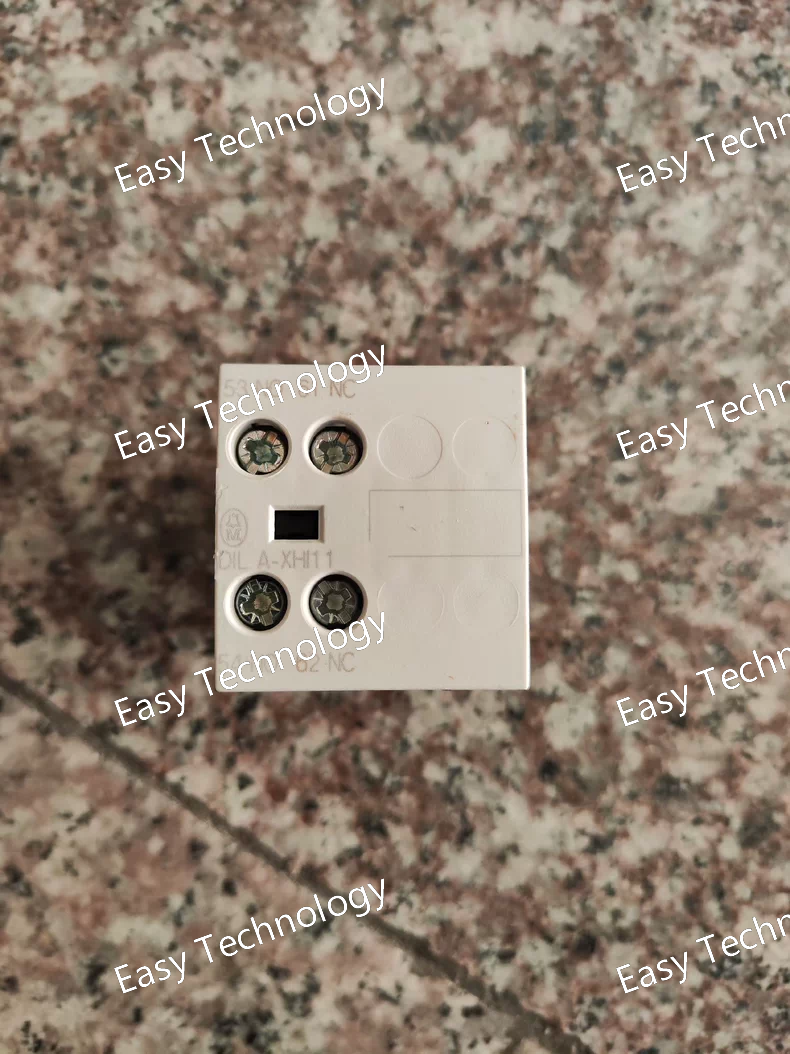

Technical Parameters Parameter Specification Notes Model DILM32C-XHI11-S Product Type Contactor with Electronic Blocking Module Rated Operational Current (Ie) 32 A at AC-3, 400 V Rated Operational Power (Pme) 15 kW / 20 hp at AC-3, 400 V Rated Insulation Voltage (Ui) 690 V Rated Operational Voltage (Ue) 230 V / 400 V / 690 V AC Rated Control Circuit Voltage 230 VAC This is a critical detail for this specific "-S" model. Motor Load (AC-3) 32 A at 400V 15 kW 25 A at 690V 18.5 kW Resistive Load (AC-1) 32 A at 400V Mechanical Durability 10 million operations Electrical Durability 1.5 million operations at AC-3, 32A, 400V Integrated XHI11 Module Functions • Electronic Interlock: Prevents simultaneous closing of two linked contactors. • Motor Locking Protection: Protects against jammed motors. • Phase Reversal Protection: Protects against incorrect phase sequence. • Timer Functions: On/Off delays. • Diagnostic LEDs: Status indication. Terminals Cage Clamp / Screw Clamp Mounting Standard DIN Rail (35mm) or Panel Mount Agency Approvals CE, cULus, RoHS, etc.

Technical Parameters Parameter Specification Notes Model XTCE007B10 Type Solid State Relay (SSR) DC Input to AC Output Load Voltage 48 to 660 VAC Load Current 10 A max Absolute Max Load Current 100 A Non-repetitive peak for 10 ms Input Control Voltage 3 to 32 VDC Input Current 15 mA typical Turn-On Time 1/2 cycle max + 2 ms Dependent on AC line frequency Turn-Off Time 1/2 cycle max + 2 ms Dependent on AC line frequency Isolation Voltage 4000 Vrms Between input and output dv/dt (Static) 100 V/µs min Operating Temperature -40°C to +80°C (With appropriate heatsink) Mounting Panel / Heat Sink Mount Standard SSR footprint Screw Terminals M4 For main terminals Weight Approx. 50 g Agency Approvals UL 508, cULus, CE, GL, RoHS Recognized / Certified

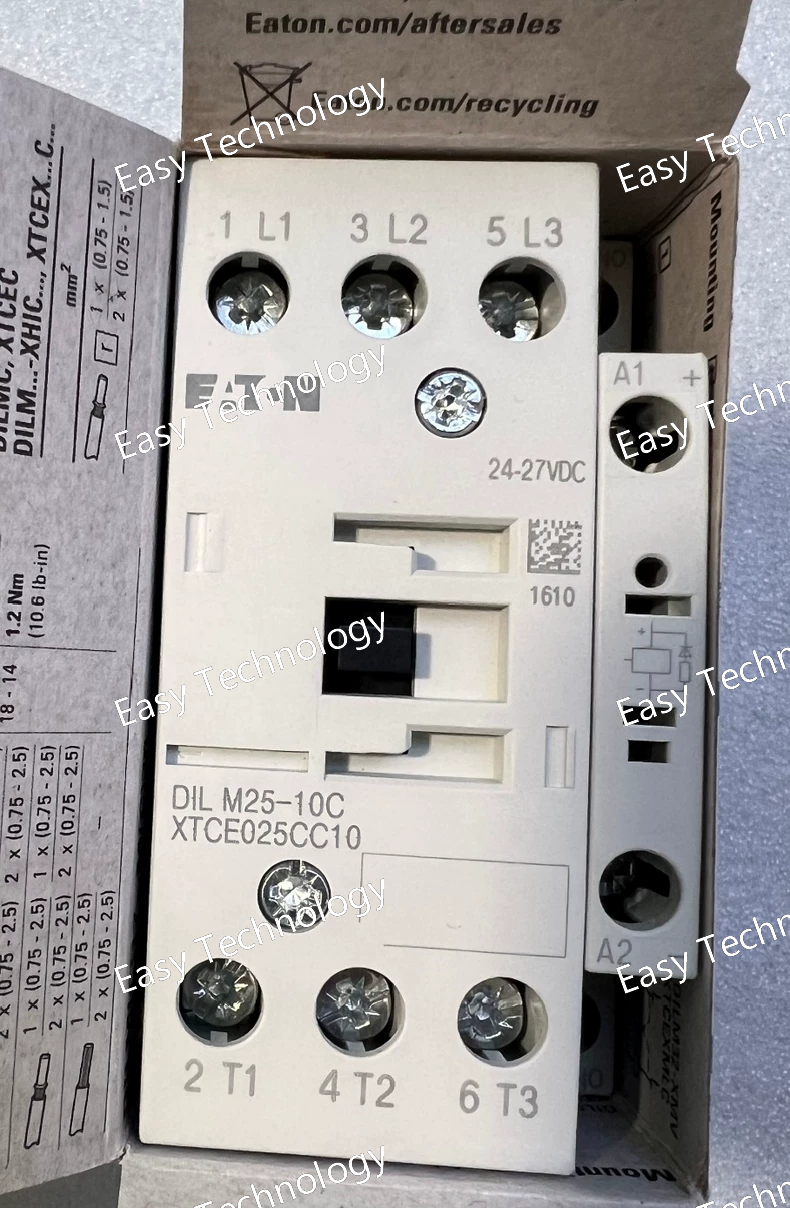

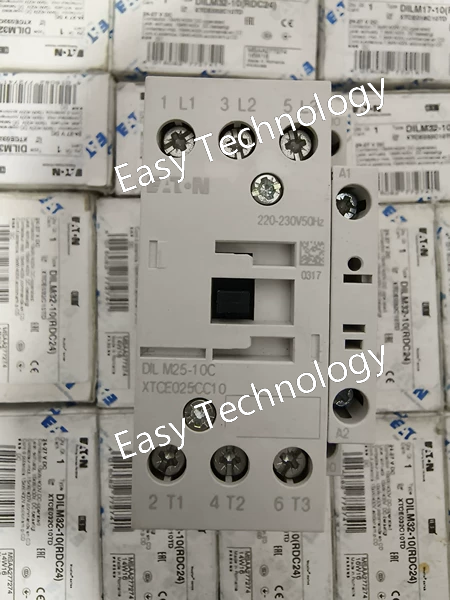

Technical Parameters Parameter Specification Notes Model XTCE025CC10 Type Solid State Relay (SSR) DC Input to DC Output Load Voltage 5 to 25 VDC Load Current 10 A max Absolute Max Load Current 15 A Non-repetitive peak On-State Resistance ≤ 30 mΩ On-State Voltage Drop ≤ 0.3 V @ 10A Input Control Voltage 3 to 10 VDC Input Current 10 mA typical @ 5V Turn-On Time 1 ms max Turn-Off Time 0.1 ms max Isolation Voltage 1500 Vrms Between input and output Operating Temperature -40°C to +80°C Storage Temperature -40°C to +100°C Mounting PCB Mount Through-hole type Package Plastic, sealed Weight Approx. 12 g Agency Approvals UL 508, CE, CQC Recognized / Certified

Key Parameters Category Description / Value Product Line Eaton DILAC Control Units Type Control and Monitoring Unit Compatibility Designed for use with Eaton motor protection devices Functions Control, monitoring, status indication Mounting Designed for integration with compatible Eaton devices Connection Electrical connections for control and signaling Standards IEC/EN 60947 series

Key Parameters Category Description / Value Product Line Eaton XT Timer Relays Type Multi-function Timer Relay Supply Voltage Typically 24-240V AC/DC Time Range Adjustable (seconds/minutes/hours) Output Type Relay contact output Mounting DIN rail (35mm) Connection Screw terminals Standards IEC/EN 60947-5-1

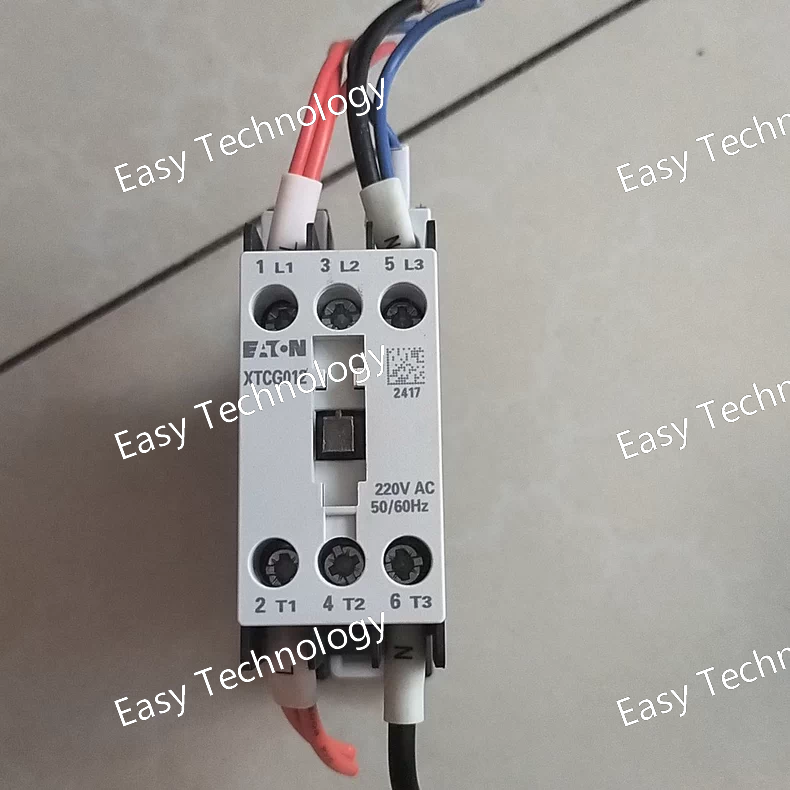

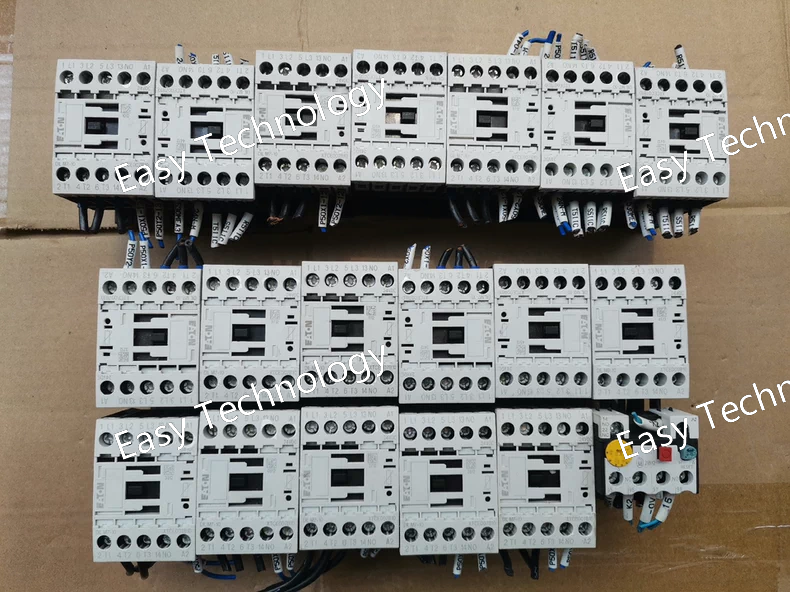

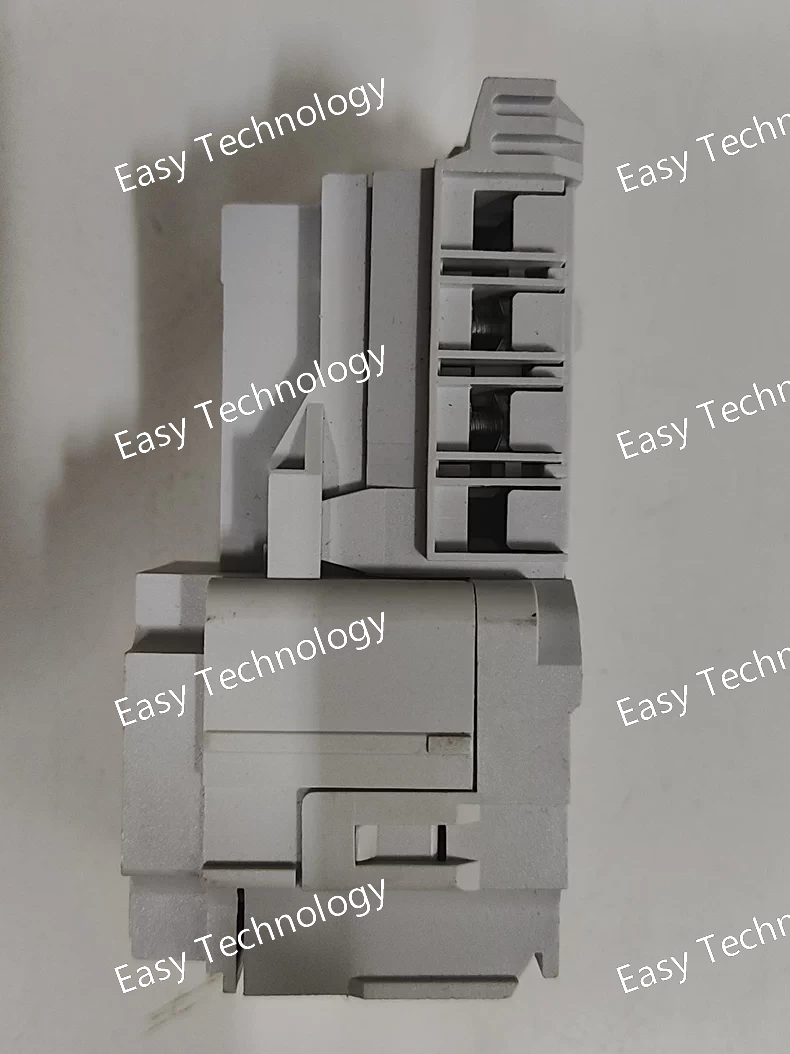

Key Parameters Category Description / Value Product Line Eaton DILM Contactors Rated Operational Current 32 A at AC-3 Rated Thermal Current 40 A Poles 3 main poles Coil Voltage DC (specific voltage to be verified from label) Rated Power 15 kW / 20 HP at 400V 50Hz Special Feature Mechanical Interlock Utilization Categories AC-3, AC-1 Standards IEC/EN 60947-4-1, UL 508 Mounting DIN rail (35mm) or screw mounting

Key Parameters Category Description / Value Product Line Eaton DILM Contactors Rated Operational Current (Iₑ) 25 A at AC-3 (motor loads) Rated Thermal Current (Ith) 32 A Poles 3 main poles Coil Voltage DC (specific voltage must be verified from device label) Rated Power 11 kW / 15 HP at 400V 50Hz Rated Operational Voltage Up to 690 V AC Utilization Categories AC-3, AC-1 Electrical Durability ~1 million operations Mechanical Durability ~10 million operations Standards IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14 Mounting DIN rail (35mm) or screw mounting Connection Cage clamp terminals

Key Parameters Category Description / Value Product Line Eaton NZM4 Accessories Function Undervoltage Release (UVR) Compatible Breakers NZM4 series circuit breakers Rated Control Voltage 380-440V AC Mounting Direct mounting onto compatible NZM4 breaker Operation Prevents closing when voltage is low; trips when voltage is lost

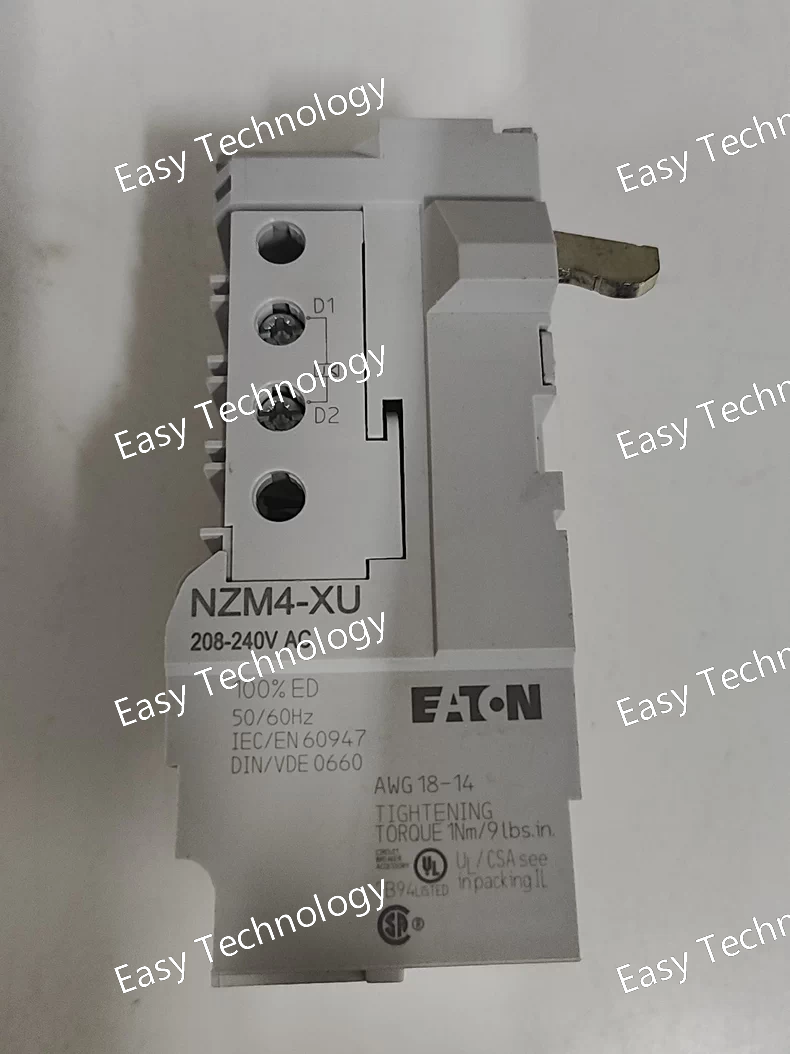

Key Parameters Category Description / Value Product Line Eaton NZM4 Accessories Function Undervoltage Release (UVR) Compatible Breakers NZM4 series circuit breakers Rated Control Voltage 208-240V AC Frequency 50/60 Hz Mounting Direct mounting onto compatible NZM4 breaker Operation Principle Prevents closing when voltage is low; automatically trips when voltage is lost

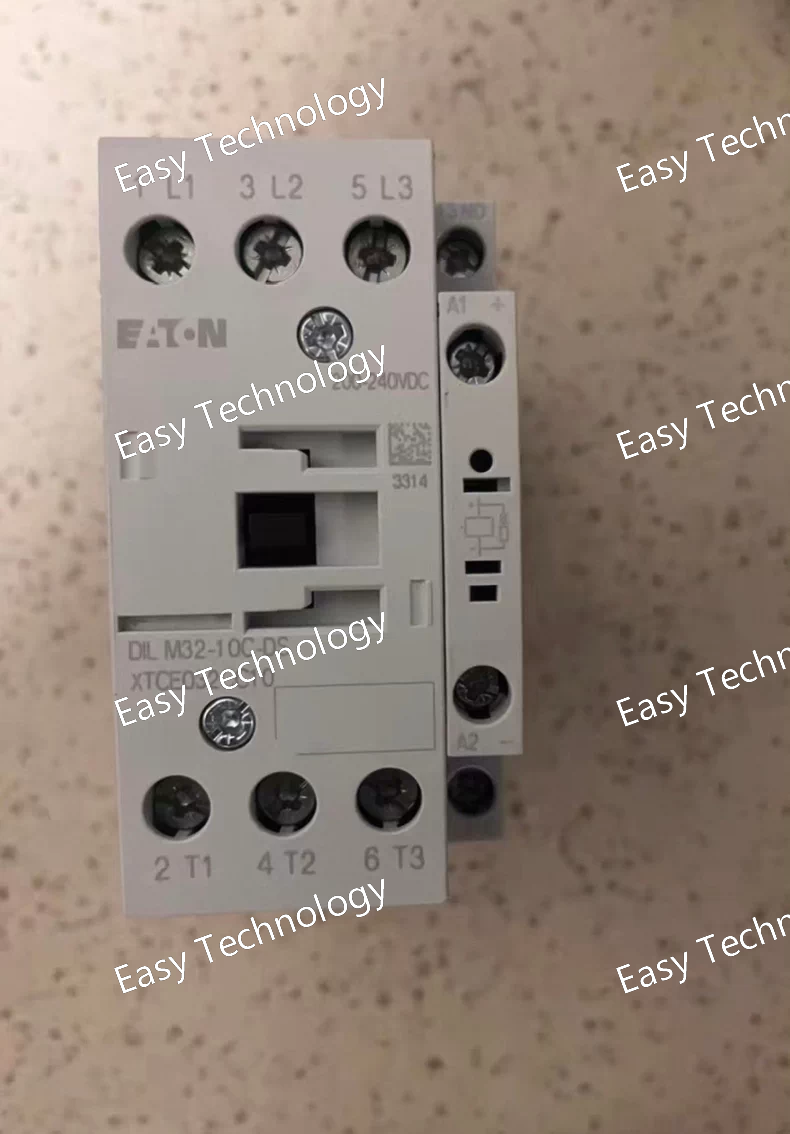

Key Parameters Category Description / Value Product Line Eaton DILM Contactors Rated Operational Current (Iₑ) 32 A at AC-3 (motor loads) Rated Thermal Current (Ith) 40 A Poles 3 main poles Coil Voltage DC (specific voltage must be verified from device label) Rated Power 15 kW / 20 HP at 400V 50Hz Rated Operational Voltage Up to 690 V AC Utilization Categories AC-3, AC-1 Standards IEC/EN 60947-4-1, UL 508 Mounting DIN rail (35mm) or screw mounting
