Key Parameters Category Description / Value Product Line Eaton E (Residual Current Releases) Type Residual Current Release (RCD Module) Compatible Main Device Specific Eaton load breakers (e.g., certain PL, EZ9 series MCBs). Poles For use with 1-pole (1P) main devices. Rated Residual Operating Current (IΔn) 30 mA (0.03 A) Test Function Manual Test Button (as indicated by "ME" suffix) Mounting Side-mounted onto the compatible load breaker. Connection Wiring for the current transformer and auxiliary connections.

Key Parameters Category Description / Value Product Line Eaton BZM (Explosion-Proof Enclosures) Type Explosion-Proof Power Distribution & Control Box Main Switch Rating 320 A Branch Circuits 8 ways (as indicated by "S08") Branch Protection Typically fuses or miniature circuit breakers (specific type to be confirmed from datasheet). Body Material Cast Aluminum Hazardous Location Classifications Certified for Class I, Division 1, Class II, Division 1, and Class III groups (Exact certification must be verified). Enclosure Rating NEMA 4X (Weatherproof and Corrosion-Resistant) Terminal Compartments Separate compartments for power and control wiring. Window / Cover Typically includes a window for viewing indicators and a bolted cover.

Key Parameters Category Description / Value Product Line Eaton FAZ (DIN Fuses) Rated Current (Iₙ) 16 A Fuse Characteristic Time-Delay (Slow-Blow, Type C) Rated Voltage (Uₑ) 500 V AC (as indicated by "/3" size code) Fuse Size/Dimension 14 x 51 mm (DIN 43620) Indicator Type Striker/Flag Indicator (as indicated by "NA" suffix) Breaking Capacity High, typically 50 kA or more at 500V AC Standards Compliance IEC 60269-1, UL 248-14 (or equivalent) Fuse Type Cartridge Fuse with Indicator

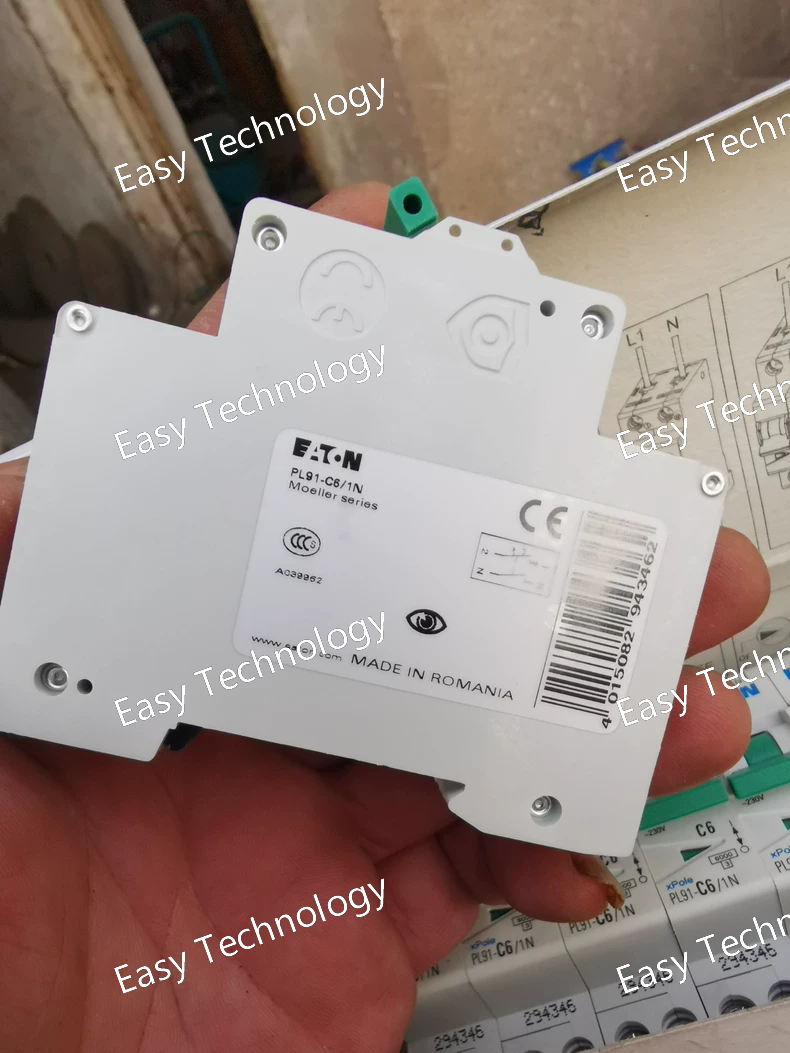

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 6 A Number of Poles 1 Pole + Neutral (1P+N) Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230 V AC (Single-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 6 kA or 10 kA). Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Connection Screw terminals.

Key Parameters Category Description / Value Product Line Eaton FAZ (DIN Fuses) Rated Current (Iₙ) 6 A Fuse Characteristic Time-Delay (Slow-Blow, Type C) Rated Voltage (Uₑ) 250 V AC (as indicated by "/1" size code) Fuse Size/Dimension 10 x 38 mm (DIN 43620) Breaking Capacity High, typically 50 kA or more at 250V AC Standards Compliance IEC 60269-1, UL 248-14 (or equivalent) Fuse Type Cartridge Fuse

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 2 A Number of Poles 2-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230 V AC (Single-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 40 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 50 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton FAZ (DIN Fuses) Rated Current (Iₙ) 16 A Fuse Characteristic Time-Delay (Slow-Blow, Type C) Rated Voltage (Uₑ) 250 V AC (as indicated by "/1" size code) Fuse Size/Dimension 10 x 38 mm (DIN 43620) Breaking Capacity High, typically 50 kA or more at 250V AC Standards Compliance IEC 60269-1, UL 248-14 (or equivalent) Fuse Type Cartridge Fuse

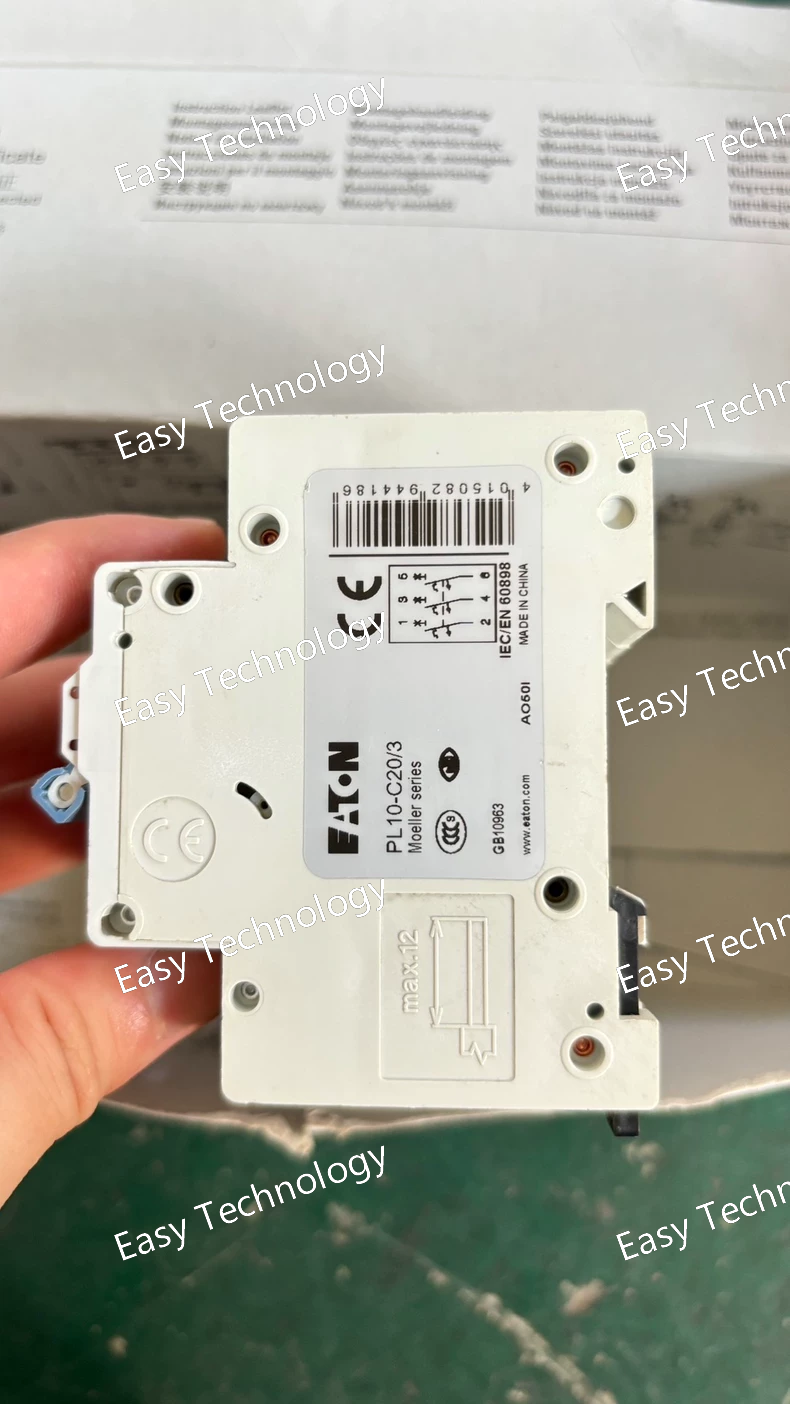

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 20 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 6-10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals
