Technical Parameters Parameter Specification Model DILMC9-01 Rated Operational Current (Ie) 9 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 4 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage See note below* Number of Poles 3 main poles Auxiliary Contacts 1 NO (normally open) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

Technical Parameters Parameter Specification Model NZMN1-M63 Rated Current (In) 63 A Number of Poles 1P (Single Pole) Rated Voltage 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity 10 kA (at 400 V AC) Tripping Characteristic C Curve (Medium starting current) Electrical Life 10,000 operations Mechanical Life 20,000 operations Mounting DIN Rail (35mm) Terminal Type Screw Clamp Standards & Approvals IEC/EN 60898-1, CE

Technical Parameters Parameter Specification Model DILM12-01LN Rated Operational Current (Ie) 12 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 5.5 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage 24 V AC/DC (as indicated by "LN" suffix) Number of Poles 3 main poles + 1 auxiliary contact (1 NO) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

Technical Parameters Parameter Specification Model DILM15-01LN Rated Operational Current (Ie) 15 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 7.5 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage 24 V AC/DC (as indicated by "LN" suffix) Number of Poles 3 main poles + 1 auxiliary contact (1 NO) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

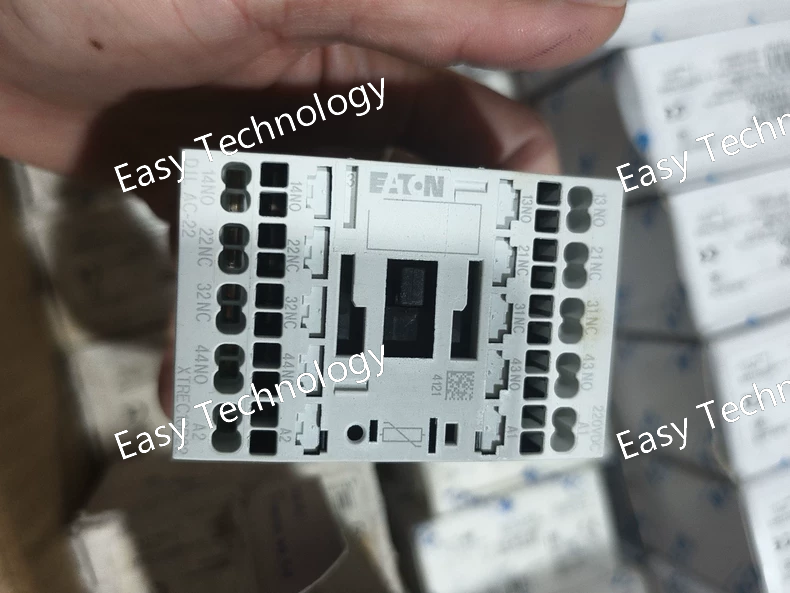

Technical Parameters Parameter Specification Model DILAC-22 Rated Operational Current 22 A Motor Power Range (at 400V AC) 11 kW Rated Operational Voltage 690 V AC Control Voltage 24-240 V AC/DC (varies by specific model) Protection Degree IP20 Mounting DIN Rail (35mm) Auxiliary Contacts 1 NO + 1 NC (minimum) Standards & Approvals IEC/EN 60947-4-2, UL 508, CE, cULus

Technical Parameters Parameter Specification Model ZB12C-1.6 Product Type Plug-in Terminal Block (Base + Plug) Rated Voltage 250 V Rated Current 16 A Wire Cross-Section 1.6 mm² (Range: 0.25-2.5 mm²) Connection Technology Cage Clamp (Spring Loaded) Conductor Types Solid, Stranded, or Ferruled Strands Mounting DIN Rail NS 35/7.5 Housing Material Transparent Polycarbonate (PC) Clamp Material Tin-plated Steel Conductor Material Tin-plated Copper Standards & Approvals UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Model ZB12C-1 Product Type Plug-in Terminal Block (Base + Plug) Rated Voltage 250 V Rated Current 10 A Wire Cross-Section 1.0 mm² (Range: 0.25-1.5 mm²) Connection Technology Cage Clamp (Spring Loaded) Conductor Types Solid, Stranded, or Ferruled Strands Mounting DIN Rail NS 35/7.5 Housing Material Transparent Polycarbonate (PC) Clamp Material Tin-plated Steel Conductor Material Tin-plated Copper Standards & Approvals UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Notes Model ZB12C-1 Product Type Plug-in Terminal Block Consists of a base and a plug Rated Voltage 250 V Rated Current 10 A Rated Cross-Section (Wire Size) 1.0 mm² This is the core specification indicated by "-1". It typically accommodates a range, e.g., 0.25 mm² to 1.5 mm². Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Conductor Type Solid, stranded, or finely stranded with ferrule Mounting DIN Rail NS 35/7.5 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Notes Model ZB32C-32 Product Type Plug-in Terminal Block Consists of a base and a plug Rated Voltage 500 V Rated Current 32 A This is the core specification indicated by "-32". Rated Cross-Section (Wire Size) Up to 6.0 mm² Typical range is 0.5 mm² to 6.0 mm² (check datasheet). Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Conductor Type Solid, stranded, or finely stranded with ferrule Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS Recognized Component

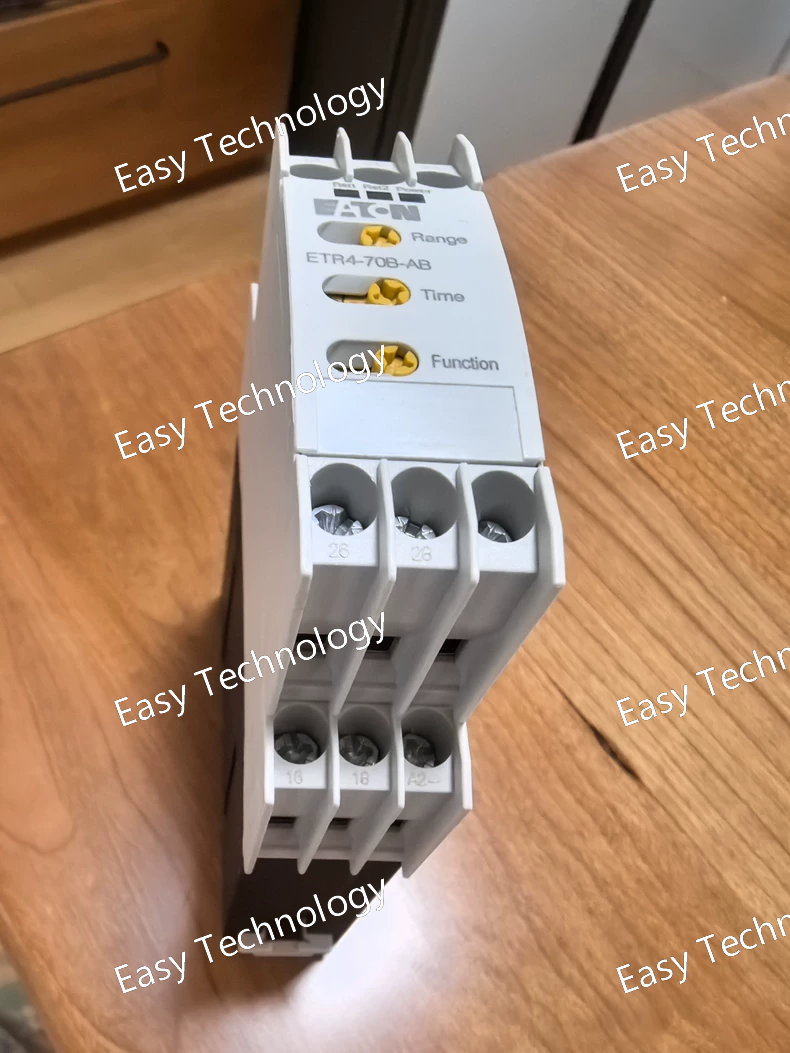

Technical Parameters) Parameter Specification Notes Model ETR4-70B-AB Electronic Time Relay Product Type Multi-function Timer Operating Voltage (Us) 24-240 V AC/DC This is a key feature of the "AB" suffix. Wide-range, auto-sensing supply. Timing Range 0.05s - 300h Extremely wide range, selectable via sub-ranges. Switching Capacity 8 A / 250 V AC (AC-1) 8 A / 30 V DC (DC-1) Resistive load ratings. Output Type 1 Changeover (CO) Relay Contact SPDT (1 normally open + 1 normally closed) Number of Time Ranges 7 Selectable via the rotary switch. Number of Functions 10+ e.g., On-delay, Off-delay, Interval, Star-Delta, Flasher. Repeat Accuracy < 0.5% of set value + 10 ms Mounting DIN Rail (35mm) Terminal Type Screw Clamp Degree of Protection IP20 (front), IP40 (terminal) Agency Approvals UL 508, CSA, CE, cULus, RoHS
