Key Parameters Category Description / Value Product Line Eaton FAZ (DIN Fuses) Rated Current (Iₙ) 40 A Fuse Characteristic Time-Delay (Slow-Blow, Type C) Rated Voltage (Uₑ) 250 V AC (as indicated by "/1" size code) Fuse Size/Dimension 10 x 38 mm (DIN 43620) Breaking Capacity High, typically 50 kA or more at 250V AC Standards Compliance IEC 60269-1, UL 248-14 (or equivalent) Fuse Type Cartridge Fuse

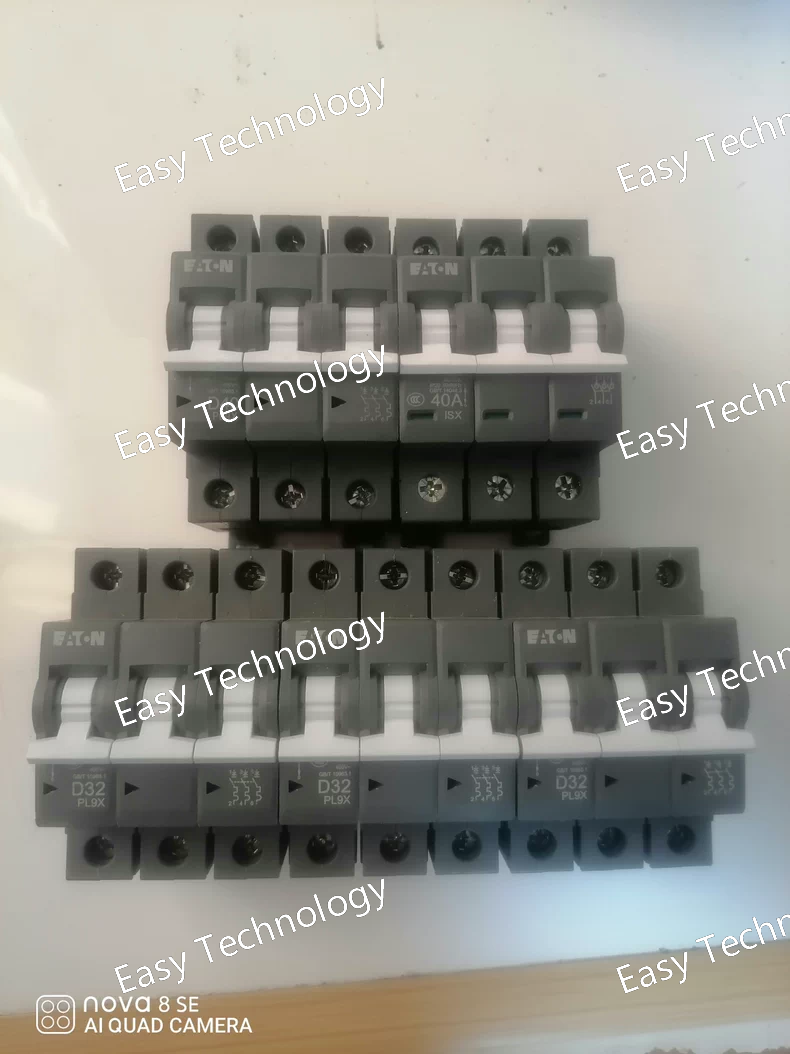

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 32 A Number of Poles Typically available in 1-Pole, 2-Pole, 3-Pole, and 4-Pole versions Tripping Characteristic D-Curve (Instantaneous trip between 10-20 x Iₙ) Rated Operational Voltage (Uₑ) 230/400 V AC Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton E6X (Residual Current Devices) Rated Current (Iₙ) 16 A Number of Poles Typically 2-pole (1P+N) Rated Residual Operating Current (IΔn) 30 mA (standard sensitivity for personal protection) RCD Type AC Type (responds to alternating sinusoidal residual currents) Rated Operational Voltage (Uₑ) 230 V AC (Single-Phase) Breaking Capacity According to IEC/EN 61008 standard Standards Compliance IEC/EN 61008-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton FAZ (DIN Fuses) Rated Current (Iₙ) 16 A Fuse Characteristic Quick-Acting (Fast-Blow, Type B) Rated Voltage (Uₑ) 500 V AC (as indicated by "/2" size code) Fuse Size/Dimension 10 x 38 mm (DIN 43620) Breaking Capacity High, typically 50 kA or more at 500V AC Standards Compliance IEC 60269-1, UL 248-14 (or equivalent) Fuse Type Cartridge Fuse

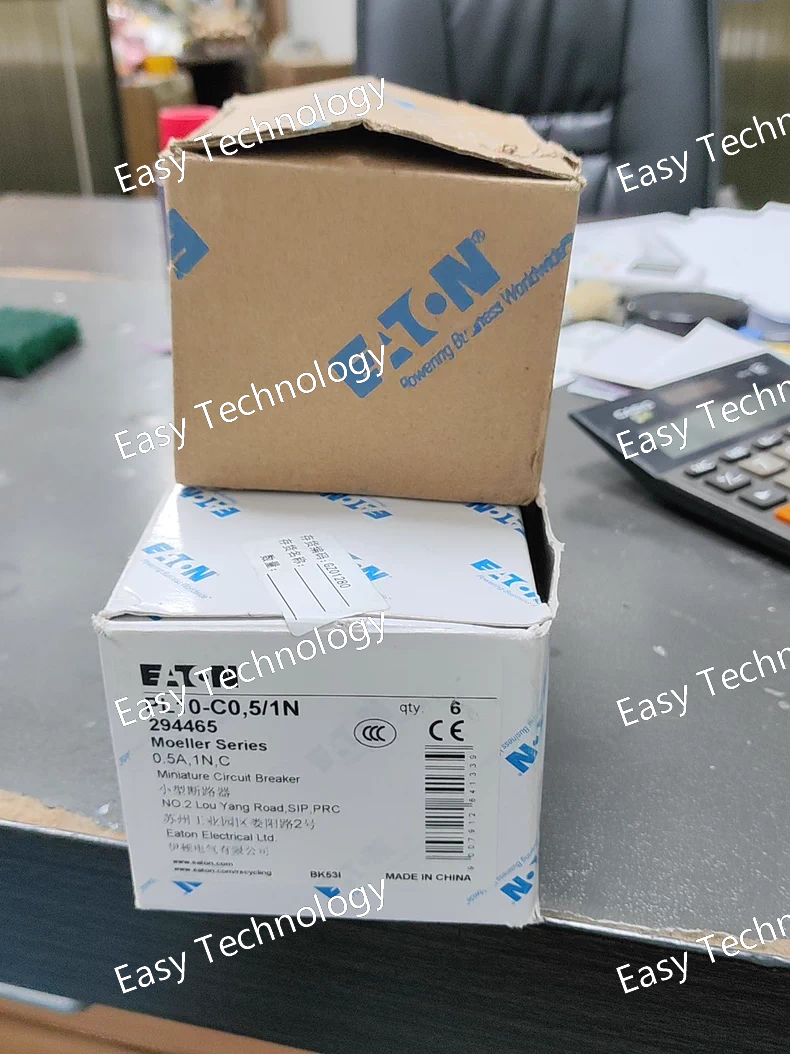

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 0.5 A (500 mA) Number of Poles 1 Pole + Neutral (1P+N) Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230 V AC (Single-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

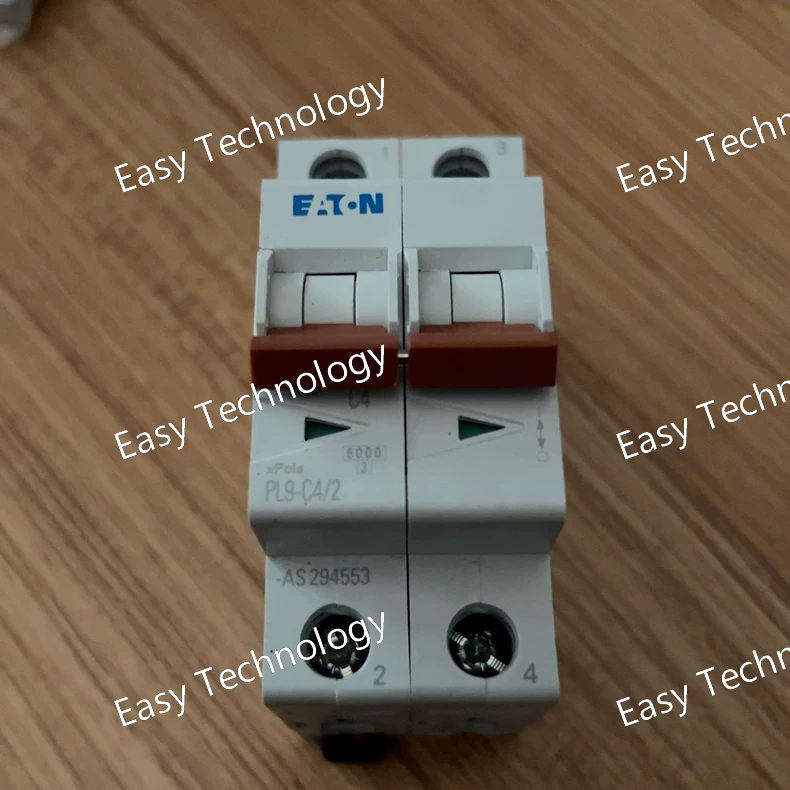

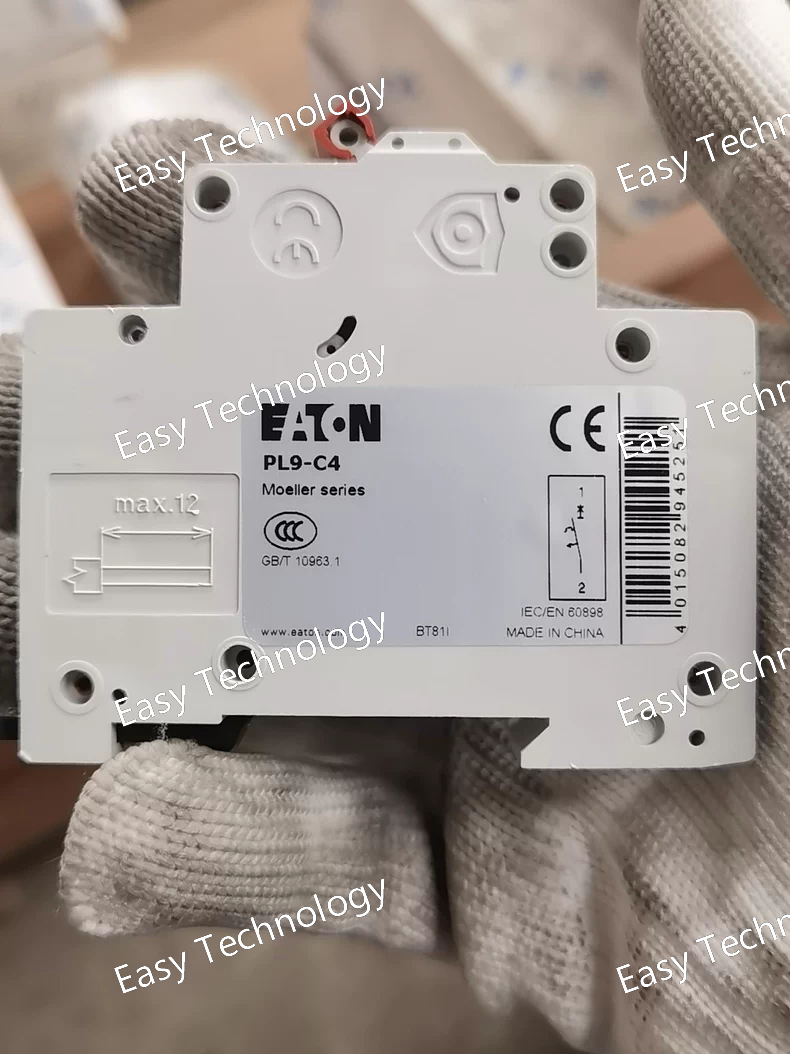

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 4 A Number of Poles Typically available in 1-Pole, 2-Pole, 3-Pole versions Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230/400 V AC Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 6-10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

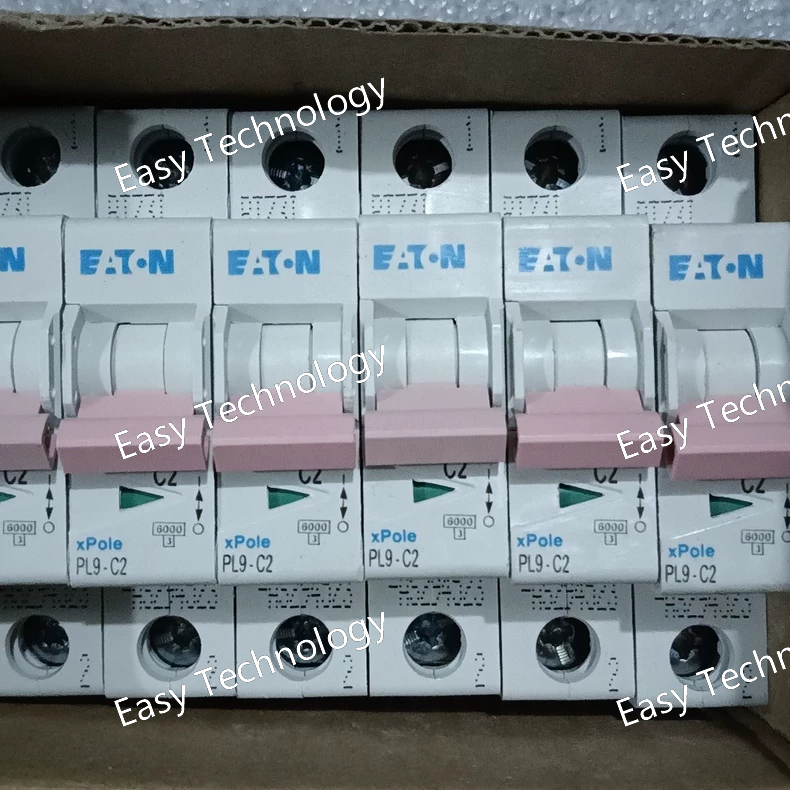

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 2 A Number of Poles Typically available in 1-Pole, 2-Pole, 3-Pole versions Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230/400 V AC Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 2 A Number of Poles Typically available in 1-Pole, 2-Pole, 3-Pole versions Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230/400 V AC Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

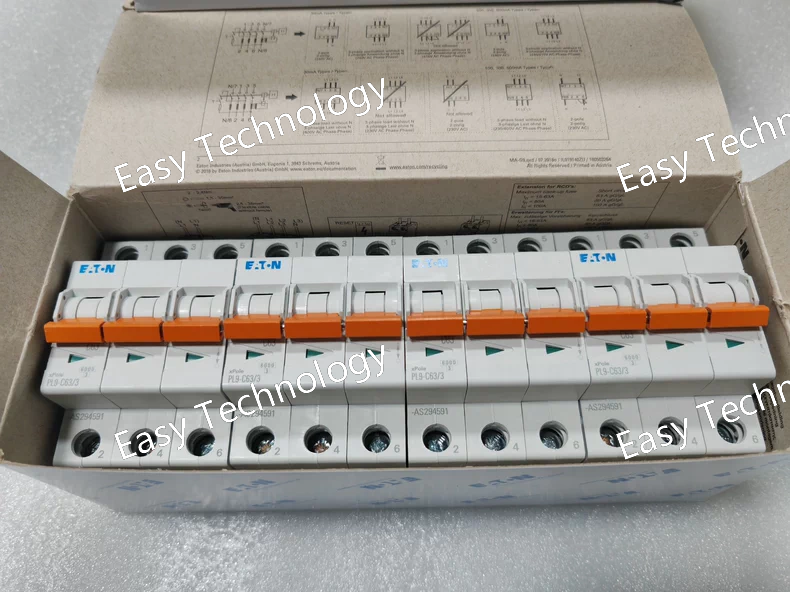

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 63 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 6 A Number of Poles Typically 1-Pole or 2-Pole (must be confirmed from datasheet) Tripping Characteristic C-Curve Rated Operational Voltage (Uₑ) DC Voltage - The specific maximum DC voltage (e.g., 60V DC, 125V DC) must be confirmed from the device datasheet, as it differs from AC ratings. Breaking Capacity Rated for DC circuits according to relevant standards. Standards Compliance IEC/EN 60898-1 (or relevant DC standard) Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Connection Screw terminals.
