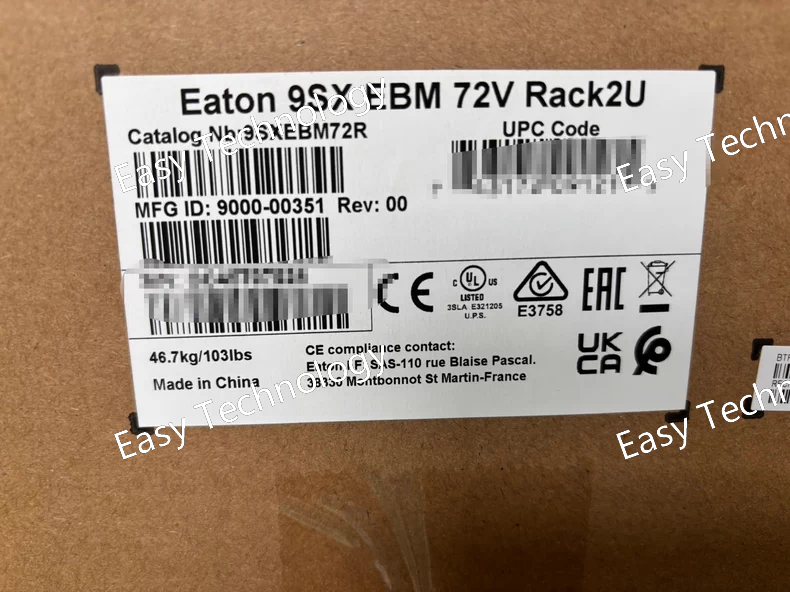

Technical Parameters Category Specification Product Model 9SXEBM72R Product Family Eaton 9SX Series Battery Modules Device Type External Battery Module (Rack-mount) Compatibility Eaton 9SX series UPS systems Battery Technology Sealed Lead-Acid (SLA) VRLA Nominal Voltage 192V DC Battery Capacity 7Ah (per battery string) Form Factor 2U Rack-mountable Physical Dimensions 89 × 482 × 605 mm (H×W×D) Weight Approximately 25 kg Operating Temperature 0°C to 40°C Storage Temperature -15°C to 50°C Relative Humidity 0-95% non-condensing Cooling Natural convection Safety Standards UL, cUL, CE, RoHS

Technical Parameters Category Specification Product Model 9SXEBM48R Product Family Eaton 9SX Series Battery Modules Device Type External Battery Module (Rack-mount) Compatibility Eaton 9SX series UPS systems Battery Technology Sealed Lead-Acid (SLA) VRLA Nominal Voltage 192V DC Battery Capacity 5Ah Form Factor 2U Rack-mountable Physical Dimensions 89 × 482 × 605 mm (H×W×D) Weight Approximately 22 kg Operating Temperature 0°C to 40°C Storage Temperature -15°C to 50°C Relative Humidity 0-95% non-condensing Cooling Natural convection Safety Standards UL, cUL, CE, RoHS

Technical Parameters Category Specification Product Model 9SXEBM36R Product Family Eaton 9SX Series Battery Modules Device Type External Battery Module (Rack-mount) Compatibility Eaton 9SX series UPS systems Battery Technology Sealed Lead-Acid (SLA) VRLA Nominal Voltage 192V DC Battery Capacity 3.6Ah Form Factor 2U Rack-mountable Physical Dimensions 89 × 482 × 605 mm (H×W×D) Weight Approximately 18 kg Operating Temperature 0°C to 40°C Storage Temperature -15°C to 50°C Relative Humidity 0-95% non-condensing Cooling Natural convection Safety Standards UL, cUL, CE, RoHS

Technical Parameters Category Specification Product Model 9SX2000IR Product Family Eaton 9SX Series UPS Topology Double Conversion Online Rated Capacity 2000VA/1800W Input Characteristics - Voltage Range 160-280V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection IEC 320 C14 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (8) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) VRLA - Typical Runtime 5.5 minutes at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 89 × 482 × 584 mm (H×W×D) - Weight 24 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 9SX3000IR Product Family Eaton 9SX Series UPS Topology Double Conversion Online Rated Capacity 3000VA/2700W Input Characteristics - Voltage Range 160-280V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection IEC 320 C20 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (12) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) VRLA - Typical Runtime 6.5 minutes at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 3U Rack-mountable - Dimensions 132 × 482 × 610 mm (H×W×D) - Weight 38 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <50 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 9PX1500IRT2U Product Family Eaton 9PX Series UPS Topology Double Conversion Online Rated Capacity 1500VA/1350W Input Characteristics - Voltage Range 160-280V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection IEC 320 C14 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (8) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) VRLA - Typical Runtime 5.5 minutes at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 89 × 482 × 584 mm (H×W×D) - Weight 22.5 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 9PXEBM72RT3U Product Family Eaton 9PX Series Battery Modules Device Type External Battery Module (Rack-mount) Compatibility Eaton 9PX series UPS systems Battery Technology Sealed Lead-Acid (SLA) VRLA Nominal Voltage 192V DC Battery Capacity 7Ah Form Factor 3U Rack-mountable Physical Dimensions 132 × 482 × 584 mm (H×W×D) Weight 32 kg Operating Temperature 0°C to 40°C Storage Temperature -15°C to 50°C Relative Humidity 0-95% non-condensing Cooling Natural convection Safety Standards UL, cUL, CE, RoHS

Technical Parameters Category Specification Product Model 9SX1000I Product Family Eaton 9SX Series UPS Topology Double Conversion Online Rated Capacity 1000VA/900W Input Characteristics - Voltage Range 160-280V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection IEC 320 C14 Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 96% (in online mode) - Output Connections (6) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) VRLA - Typical Runtime 5 minutes at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 89 × 482 × 584 mm (H×W×D) - Weight 20 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <45 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model 5PX3000IRT2U G2 Product Family Eaton 5PX Series UPS (Generation 2) Topology Double Conversion Online Rated Capacity 3000VA/2700W Input Characteristics - Voltage Range 200-240V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Power Factor >0.99 - Input Connection Hardwired Output Characteristics - Voltage 200-240V AC - Frequency 50/60 Hz (±0.5% synchronous) - Waveform Pure Sine Wave - Efficiency Up to 97% (in online mode) - Output Connections (12) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) VRLA - Typical Runtime 6.5 minutes at full load - Recharge Time 3 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 2U Rack-mountable - Dimensions 89 × 482 × 660 mm (H×W×D) - Weight 35 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <50 dBA at 1 meter Communications - Interfaces USB, Serial, Network slot - Management Eaton Intelligent Power Manager - Display Color LCD graphical display

Technical Parameters Category Specification Product Model Ellipse 5P 650iR 1U Product Family Eaton Ellipse 5P Series Topology Line Interactive Rated Capacity 650VA/400W Input Characteristics - Voltage Range 160-286V AC - Frequency Range 50/60 Hz (auto-sensing) - Input Connection IEC 320 C14 Output Characteristics - Voltage 230V AC - Frequency 50/60 Hz (±3Hz synchronous) - Waveform Simulated Sine Wave - Efficiency >95% - Output Connections (4) IEC 320 C13 Battery System - Battery Type Sealed Lead-Acid (SLA) VRLA - Typical Runtime 5 minutes at full load - Recharge Time 6 hours to 90% capacity - Battery Life 3-5 years (typical) Physical Specifications - Form Factor 1U Rack-mountable - Dimensions 44 × 430 × 355 mm (H×W×D) - Weight 9.5 kg Environmental - Operating Temperature 0°C to 40°C - Operating Humidity 0-95% non-condensing - Audible Noise <40 dBA at 1 meter Communications - Interfaces USB, Serial - Management Eaton Intelligent Power Manager
