Technical Parameters Category Specification Product Model XTCE115GC Product Family Eaton XTCE Enclosure Series Enclosure Type Wall-Mount Electrical Enclosure NEMA Rating NEMA 4X (Watertight, Dusttight, Corrosion Resistant) Material Fiberglass Reinforced Polyester (FRP) Color Gray Dimensions (H×W×D) 115 × 115 × 115 mm (4.53" × 4.53" × 4.53") Operating Temperature -40°C to +120°C (-40°F to +248°F) UV Resistance Excellent (Suitable for outdoor use) Chemical Resistance Resistant to most chemicals and solvents Impact Resistance High impact strength Flame Rating UL 94 V-0

Technical Parameters Parameter Specification Model BZMB2-A250-AP Rated Current (Iₙ) 250 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity 35 kA (at 480 V AC) Trip Unit Type Thermal-magnetic Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Fixed Type Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

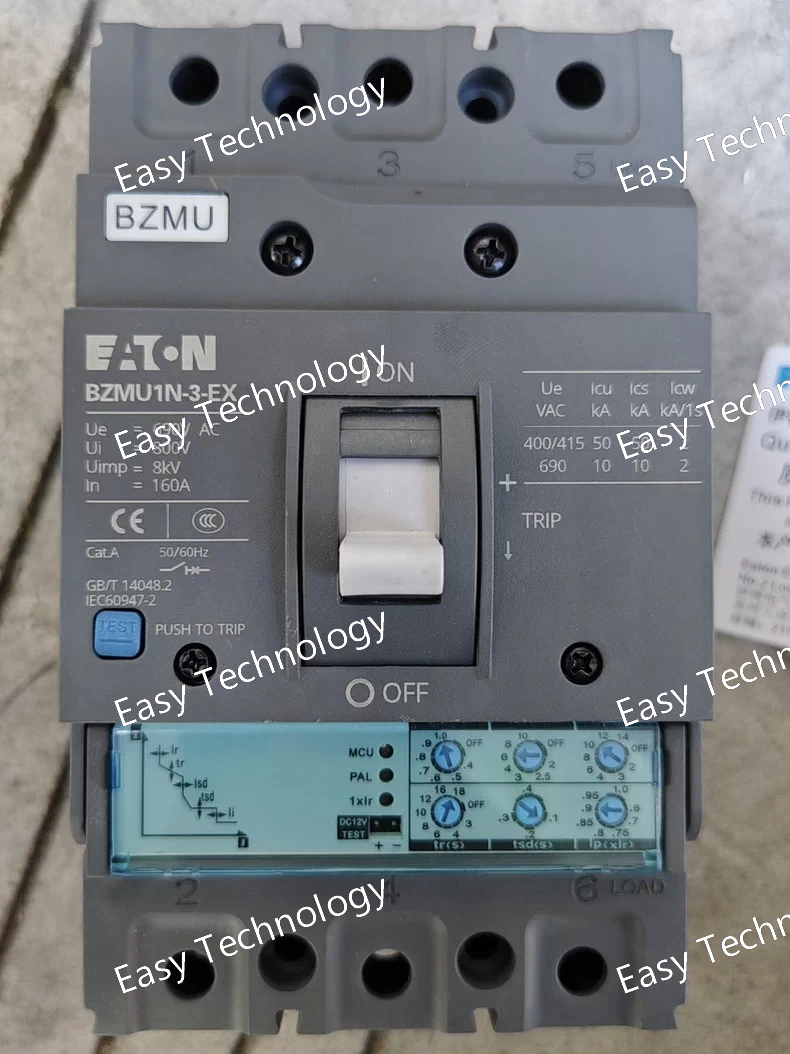

Technical Parameters Parameter Specification Model BZMU1N-3-EX160 Rated Current (Iₙ) 160 A Frame Size 160 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 690 V AC Rated Frequency 50/60 Hz Breaking Capacity 35 kA (at 480 V AC) Trip Unit Type Electronic (EX type) Rated Insulation Voltage (Uᵢ) 1000 V Rated Impulse Voltage (Uᵢₘₚ) 12 kV Protection Functions Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G) Communication Protocol Modbus, Profibus (optional) Mounting Fixed Type Terminal Type Screw Clamp Wire Range 1/0 AWG - 250 kcmil Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

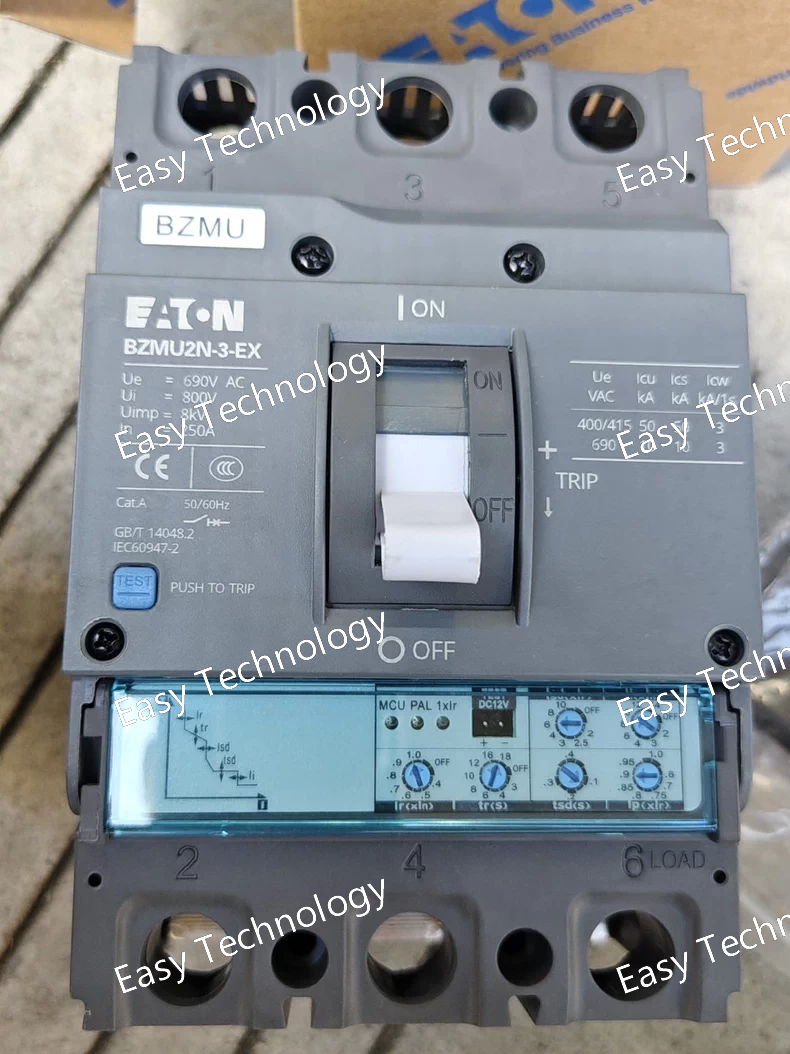

Technical Parameters Parameter Specification Model BZMU2N-3-EX250 Rated Current (Iₙ) 250 A Frame Size 250 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 690 V AC Rated Frequency 50/60 Hz Breaking Capacity 65 kA (at 480 V AC) Trip Unit Type Electronic (EX type) Rated Insulation Voltage (Uᵢ) 1000 V Rated Impulse Voltage (Uᵢₘₚ) 12 kV Protection Functions Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G) Communication Protocol Modbus, Profibus (optional) Mounting Fixed Type Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

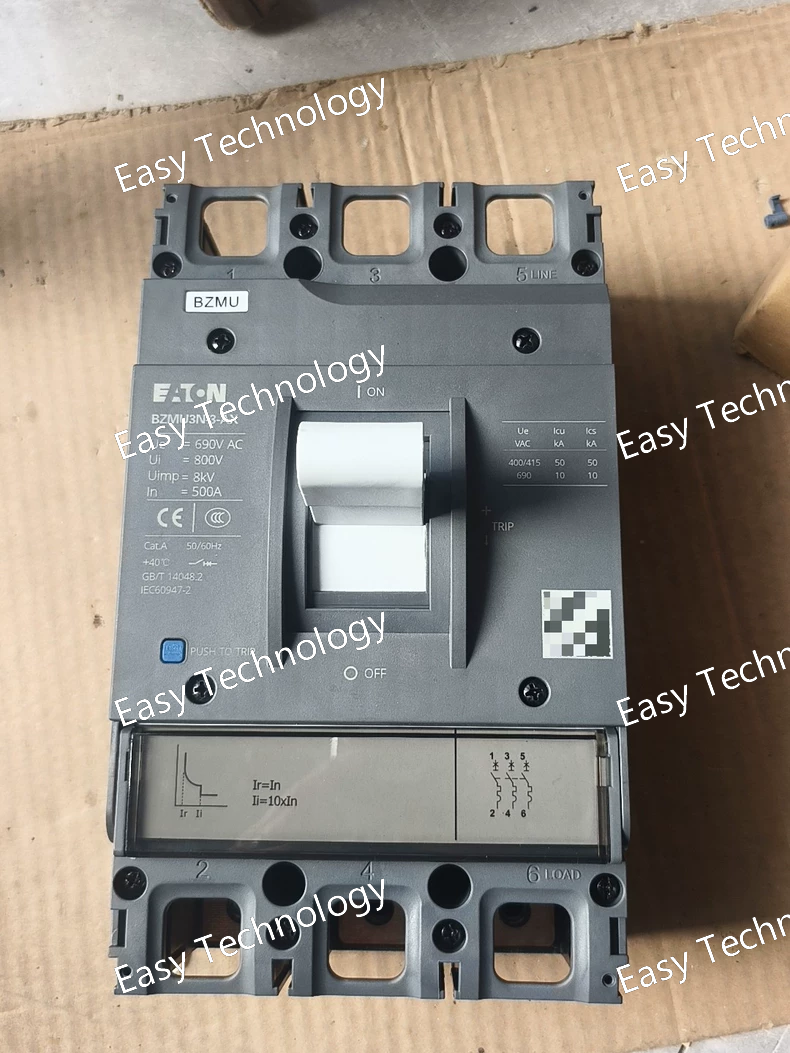

Technical Parameters Parameter Specification Model BZMU3N-3-AX Rated Current (Iₙ) Up to 630A (specific rating depends on order code) Frame Size 630A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 690 V AC Rated Frequency 50/60 Hz Breaking Capacity Up to 100 kA (depending on specific rating) Trip Unit Type Electronic (AX type) Rated Insulation Voltage (Uᵢ) 1000 V Rated Impulse Voltage (Uᵢₘₚ) 12 kV Protection Functions Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G) Communication Protocol Modbus, Profibus (optional) Mounting Fixed or Drawout Type Terminal Type Screw Clamp or Bus Connection Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

Technical Parameters Parameter Specification Model HNM3-3HU Rated Current (Iₙ) 63 A (typical - confirm specific rating) Number of Poles 3P (Three Pole) Rated Voltage 400 V AC Rated Frequency 50/60 Hz Breaking Capacity 10 kA (at 230/400 V AC) Tripping Characteristic C Curve (Medium starting current) Electrical Life 6,000 operations Mechanical Life 20,000 operations Mounting DIN Rail (35mm) Terminal Type Screw Clamp Wire Range 16 mm² - 25 mm² Standards & Approvals IEC 60898-1, CE

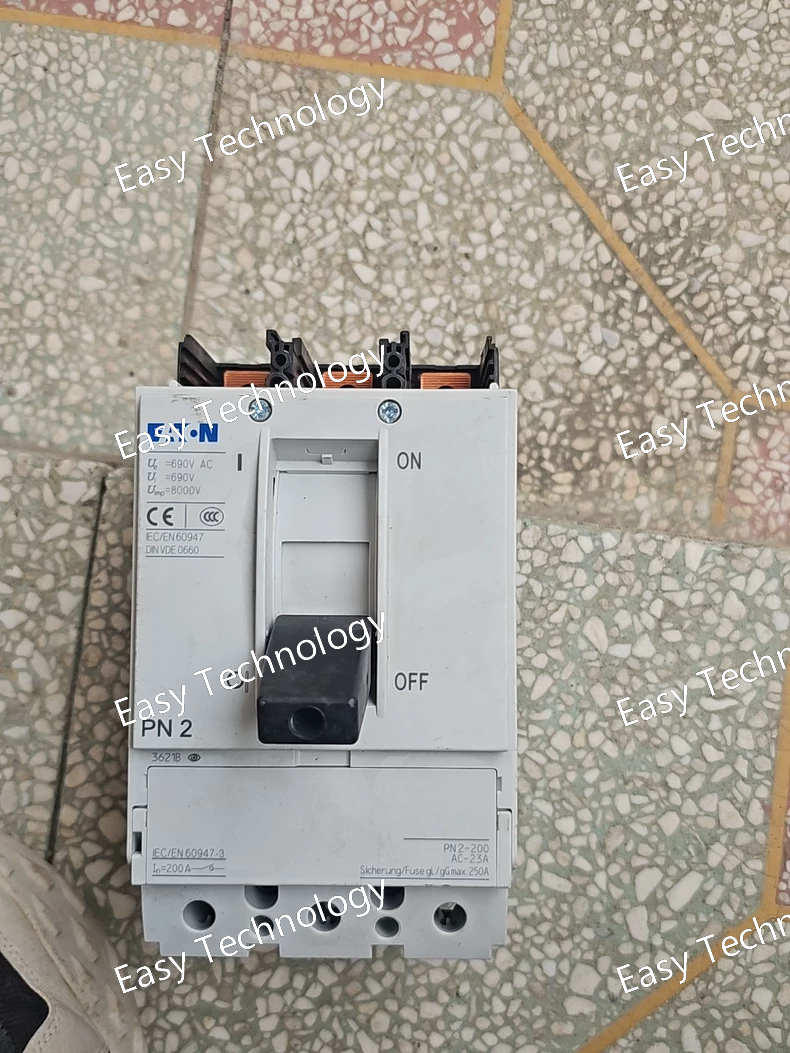

Technical Parameters Parameter Specification Model N2-200 Rated Current (Iₙ) 200 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity 35 kA (at 480 V AC) Trip Unit Type Thermal-magnetic Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Fixed Type Terminal Type Screw Clamp Wire Range 3/0 AWG - 250 kcmil Standards & Approvals UL 489, IEC 60947-2, CSA 22.2

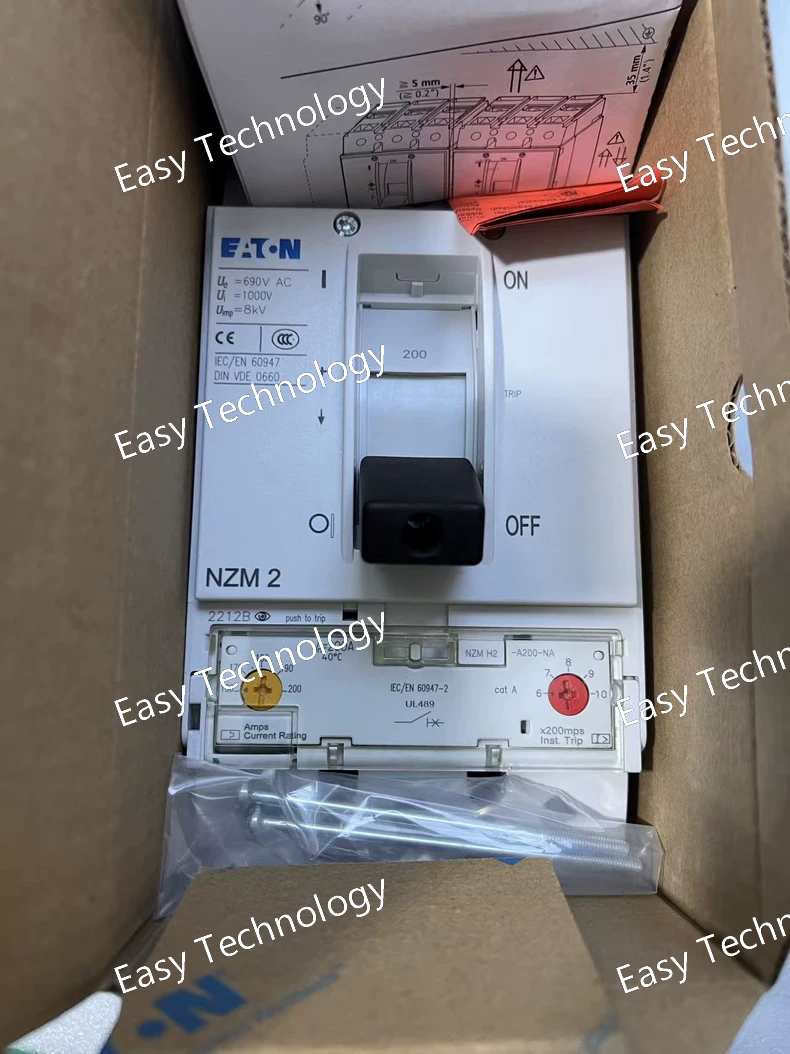

Technical Parameters Parameter Specification Model NZMH2-A200-NA Rated Current (Iₙ) 200 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity (Iᶜᵂ) 35 kA (at 480 V AC) Trip Unit Type Thermal-magnetic (TM) Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Fixed Type Terminal Type Screw Clamp Wire Range 3/0 AWG - 250 kcmil Standards & Approvals UL 489, IEC 60947-2, CSA 22.2

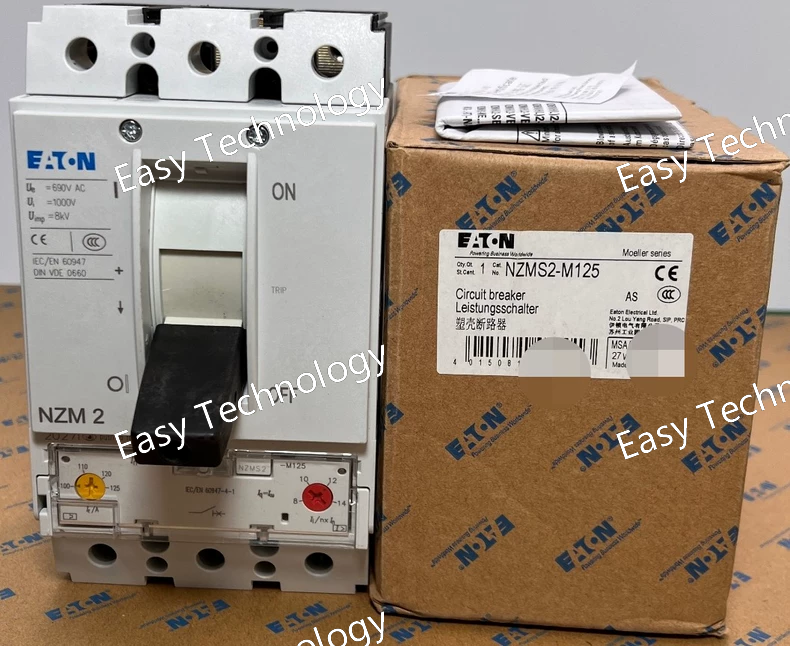

Technical Parameters Parameter Specification Model NZMS2-M125 Rated Current (Iₙ) 125 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 500 V AC Rated Frequency 50/60 Hz Breaking Capacity (Iᶜᵂ) 25 kA (at 400 V AC) Trip Unit Type Thermal-magnetic Rated Insulation Voltage (Uᵢ) 690 V Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Fixed Type Terminal Type Screw Clamp Wire Range 1/0 AWG - 250 kcmil Standards & Approvals IEC 60947-2, CCC

Technical Parameters Parameter Specification Model NZMN2-A250-NA Rated Current (Iₙ) 250 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity (Iᶜᵂ) 65 kA (at 480 V AC) Trip Unit Type Thermal-magnetic (TM) Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Fixed Type Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, IEC 60947-2, CSA 22.2
