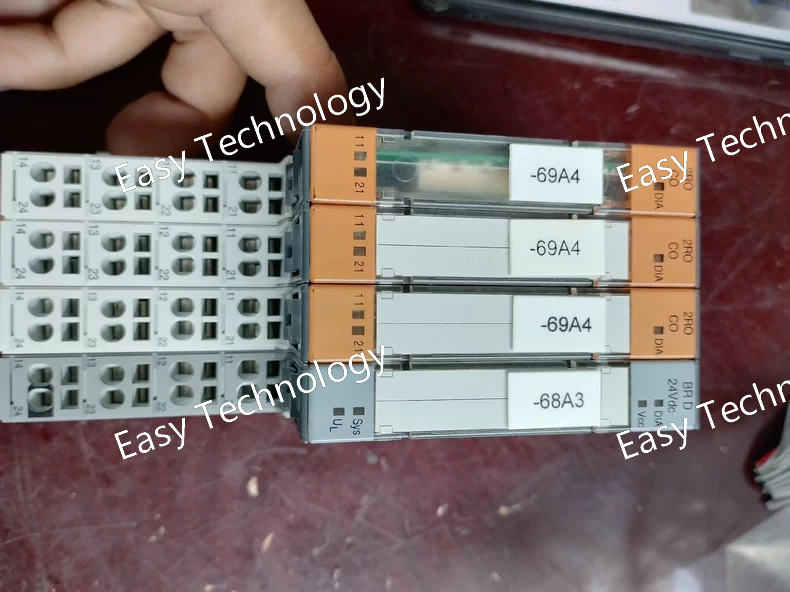

Technical Parameters Parameter Category Specification Details / Notes General Model XN-2DO-R-CO 2 Digital Outputs, Relay, Change-Over Product Line Eaton X-Nergy Part of the Moeller series of control products. Output Characteristics Number of Channels 2 Contact Type Change-Over (Form C, SPDT) • Common (C) • Normally Open (NO) • Normally Closed (NC) Rated Current 5 A @ 250V AC 5 A @ 30V DC Max. Switching Voltage 250V AC / 30V DC Max. Switching Power 1250 VA / 750 W (AC) 90 W (DC) Electrical Durability Typically > 100,000 cycles (at rated load) Mechanical Durability Typically > 10,000,000 cycles Control & Communication Control Supply Voltage Provided via the X-Nergy base (e.g., 24V DC from XN-BR-24VDC-D). The logic side is powered by this bus voltage. Communication Bus X-Nergy System Bus (integrated into the base). Status Indication LED Indicators 2 yellow/green LEDs (one per channel) to indicate the output state. Electrical Connection Field-Side Connection Screw clamp terminals for load wiring (C, NO, NC for each channel). Control-Side Connection Via plug-in connection to the X-Nergy base. Mechanical Characteristics Mounting Plugs onto a standard 35mm DIN rail via the X-Nergy base. Module Width Multiple of a standard module width (e.g., 45mm). Standards & Approvals Safety & EMC UL 508, CSA C22.2 No. 14, CE marked, cULus listed.

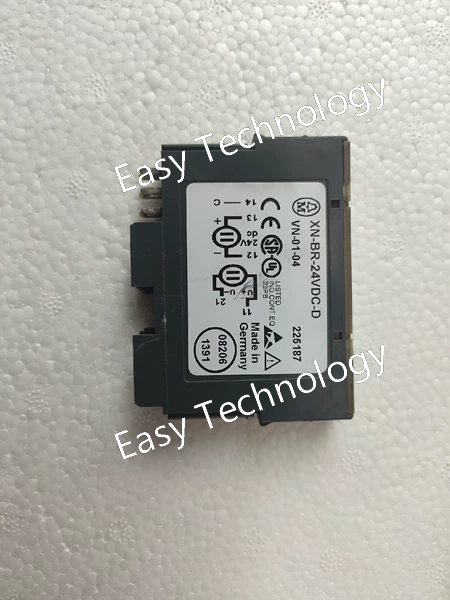

Technical Parameters Parameter Category Specification Details General Model XN-BR-24VDC-D X-Nergy Base, 24V DC Power Supply Product Line Eaton X-Nergy Input Characteristics Input Voltage 100-240V AC, 50/60 Hz (Wide-range input) Output Characteristics Output Voltage 24V DC Rated Output Current Typically 1.3 A (Verify from datasheet for exact capacity to ensure it can power all connected modules). Power Rating Typically ~30W. System Characteristics Module Capacity Can physically accommodate and power a specific number of X-Nergy modules (e.g., 4 or 8 modules). The total current draw of all modules must not exceed the base's output current. Communication Bus Integrated X-Nergy communication and power bus. Mechanical Characteristics Mounting Standard 35mm DIN Rail Connection Screw terminals for AC input and optional external wiring. Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, CE, cULus

Technical Parameters Category Specification Product Model CAN-16DO/R-NO Product Type Digital Output Module Communication Protocol CANopen (CiA DS-301, CIA DSP-401) Number of Channels 16 Output Type Electromechanical Relay, Normally Open (SPST - Form A) Contact Rating - 2 A @ 250 V AC - 2 A @ 30 V DC Electrical Life > 100,000 cycles (at rated load) Mechanical Life > 10,000,000 cycles Isolation - Channel-to-Channel: Yes - Channel-to-Bus: Yes (Optically isolated) Connection Method Removable screw terminal block Supply Voltage 24 V DC Power Consumption Typically < 5 W (dependent on active relays) Status Indicators - PWR (Power): Green LED - CAN (Network): Green/Red LED - OUTx (Output): Green LED per channel IP Rating IP20 (for enclosure mounting) Mounting Standard 35 mm DIN rail Operating Temperature 0 °C to +55 °C (32 °F to 131 °F) Storage Temperature -25 °C to +85 °C (-13 °F to 185 °F) Relative Humidity 95% (non-condensing)

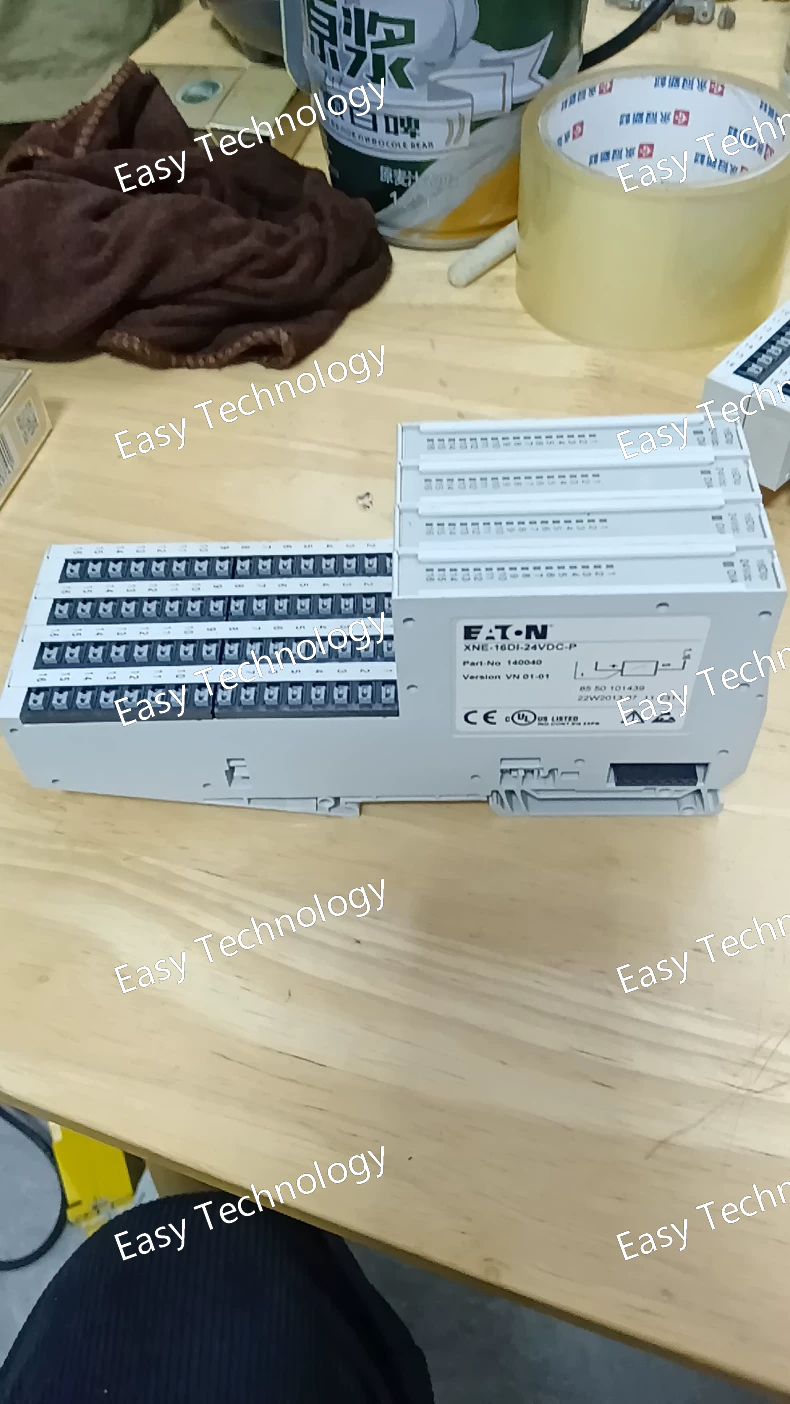

Technical Parameters Category Specification Product Model XN-16DI-24VDC-P Product Type Digital Input Module Number of Channels 16 Input Type 24 V DC, Sourcing (PNP compatible) Nominal Voltage 24 V DC Rated Input Voltage "1" 15 V DC to 30 V DC Rated Input Voltage "0" -30 V DC to 5 V DC Input Current Typically 3 mA per input (at 24 V DC) Connection Type 2-wire Isolation Channel-to-Bus: Yes (Optically isolated) Connection Method Removable screw terminal block Module Power Supply 24 V DC (via the XN system base or terminal block) Status Indicators - PWR (Power): Green LED - SF (System Fault): Red LED - INx (Input Status): Green LED per channel IP Rating IP20 (for enclosure mounting) Mounting On an XN system base unit, which is mounted on a standard 35 mm DIN rail Operating Temperature -25 °C to +55 °C (-13 °F to 131 °F) Storage Temperature -40 °C to +85 °C (-40 °F to 185 °F) Relative Humidity 95% (non-condensing)

Technical Parameters Category Specification Product Model DS6-340-30K37K-MX Product Type Programmable Electronic Pressure Switch Pressure Ranges Channel 1 (K1): 30 bar (435 psi) Channel 2 (K2): 37 bar (537 psi) Note: Multiple range combinations are available in the DS6 series. Pressure Media Hydraulic oil, lubricating oil, air, water (compatible with wetted materials) Wetted Materials Stainless Steel Electrical Connection Output 1: 2x PNP/NPN, 0.5A (Relay function) Output 2: 1x PNP/NPN, 0.5A (Relay function) Analog Output: 1x 4...20 mA or 0...10 V (programmable) Supply Voltage 12...30 V DC (Universal) Accuracy Typically ≤ ±1.0% Full Scale (FS) Display Multi-digit LCD with bargraph and status indicators Programming Interface - Integrated buttons and display - Easy Menu PC Software (via communication interface) Electrical Connector M12 x 1 circular connector Pressure Port G ¼" (external) or other options depending on variant Protection Rating IP66 / IP67 (Dust-tight and protected against water immersion) Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F) Media Temperature -40 °C to +100 °C (-40 °F to +212 °F)

Technical Parameters Category Specification Product Model XV-102-D6 Product Line Viking® Valve Type 5/2-way (5 ports, 2 positions) Actuation Type Solenoid (The "D" in D6 typically indicates single or double solenoid). Note: The exact configuration (single solenoid with spring return or double solenoid) should be confirmed from the datasheet. Port Size 1/4" (NPT standard) Operating Pressure Range 30 to 150 psi (2 to 10 bar) Media Compressed Air, as per ISO 8573-1:2010 [7:4:4] Voltage Options Various AC and DC voltages are available (e.g., 24 V DC, 110 V AC, 230 V AC). The specific voltage must be confirmed from the valve's label or ordering code. Standard CE, RoHS compliant Body Material Die-cast Zinc Seal Material NBR (Nitrile Rubber) Temperature Range Media & Ambient: 14° to 140°F (-10° to 60°C) Flow Coefficient (Cv) Approximately 1.8 (This is a typical value for this port size; confirms flow capacity) Mounting Base-mounted (Sub-base) Electrical Connection Standard DIN 43650 Form A (for solenoids)

Technical Parameters Category Specification Product Model XV-102-D6-57TVRC-1K Product Line Eaton Viking® Valve Type 5/2-way (5 ports, 2 positions) Actuation Type Double Solenoid (The "D6" confirms this) Port Size 1/4" NPT Operating Pressure Range 30 to 150 psi (2 to 10 bar) Media Compressed Air (Filtered, Lubricated or Non-Lubricated) Solenoid Voltage 24 V DC (This is specified by the "-1K" suffix in this context) Electrical Connection PVC Cable with Flying Leads, 2m length (Specified by "57TVRC") Standard CE, RoHS compliant Body Material Die-cast Zinc Seal Material NBR (Nitrile Rubber) Temperature Range Media & Ambient: 14° to 140°F (-10° to 60°C) Flow Coefficient (Cv) Approximately 1.8 Mounting Base-mounted (Sub-base)

Technical Parameters Parameter Specification Product Model XV-102-B5-35TQR-10-PLC Product Line Eaton Viking® Valve Type 5/2-way (5 ports, 2 positions) Actuation Type Single Solenoid, Spring Return Port Size 1/4" NPT Operating Pressure 30 to 150 psi (2 to 10 bar) Media Filtered Compressed Air (Lubricated or Non-Lubricated) Solenoid Voltage 120 V AC, 50/60 Hz (specified by the "-10" suffix) Electrical Connection Standard Plug Connector (DIN 43650 Form A) Special Features Pilot Light & Manual Override ("-PLC" suffix): - Indicator Light: Shows energization status. - Manual Override Button: Allows manual shifting for setup and troubleshooting. Standards CE, RoHS Compliant Body Material Die-Cast Zinc Seal Material NBR (Nitrile Rubber) Temperature Range Media & Ambient: 14° to 140°F (-10° to 60°C) Flow Coefficient (Cv) Approximately 1.8 Mounting Base-Mounted

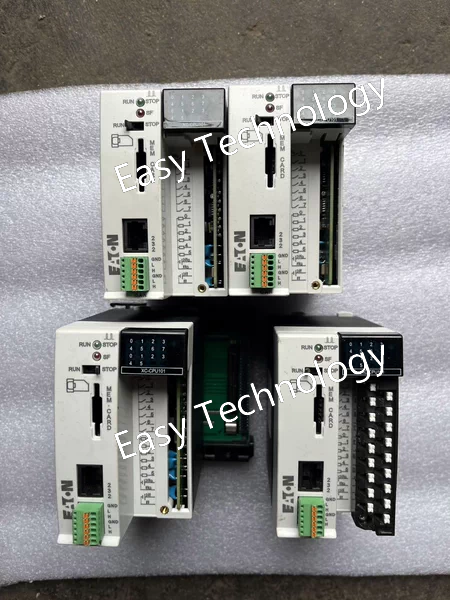

Technical Parameters Parameter Specification Product Model XC-CPU101-C256K Product Family Eaton XC-100 Programmable Logic Controller (PLC) Type Compact CPU Module with Integrated I/O User Program Memory 256 KB Data Memory 64 KB (Typical value for this family) Integrated I/O - 14x Digital Inputs (24 V DC Sink/Source) - 10x Digital Outputs (Relay, 2 A) Program Execution Speed ~0.15 µs per binary instruction (Typical) Communication Ports - 1x RS-232 (COM1) for programming and HMI - 1x RS-485 (COM2) for networking (Modbus RTU, etc.) Expansion Capability Supports connection of up to 7 expansion I/O modules (XC-200 series) Real-Time Clock (RTC) Yes (With battery backup for time retention) Programming Software Eaton XV-103 (SoMachine Basic / EcoStruxure Machine Basic) Programming Languages Ladder Diagram (LD), Function Block Diagram (FBD), Instruction List (IL) Supply Voltage 24 V DC (Typically via the base connector) Physical Design Modular, DIN-rail mountable

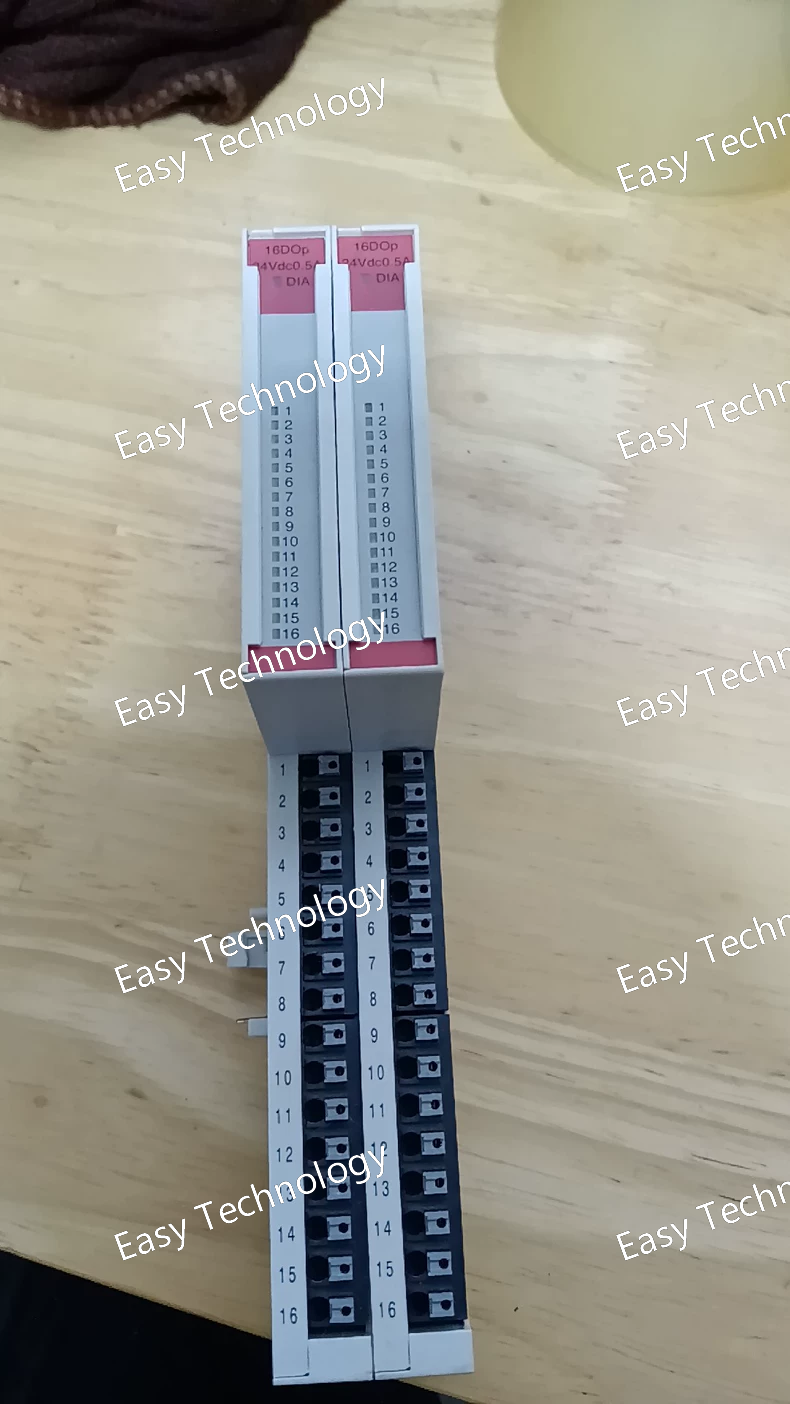

Technical Parameters Parameter Specification Product Model XNE-16DO-24VDC-0.5A-P Product Family Eaton XN System (Electronic Module) Module Type Digital Output Module Number of Channels 16 Output Type Sourcing (PNP) Output Voltage 24 V DC (Nominal) Load Current per Channel 0.5 A (Maximum) Total Module Current 4 A (Maximum, sum of all channels) Short-Circuit Protection Yes (Per channel, electronically) Load Type Resistive, Inductive, Lamp Load Isolation Channel-to-Bus: Yes (Optically isolated) Connection Method Removable screw terminal block Module Power Supply 24 V DC (via the XN system base or terminal block) Status Indicators - PWR (Power): Green LED - SF (System Fault): Red LED - CHx (Channel Status): Green LED per channel IP Rating IP20 (for installation inside a control cabinet) Mounting On an XN system base unit, mounted on a standard 35 mm DIN rail Operating Temperature -25 °C to +60 °C (-13 °F to 140 °F) Standards & Certifications CE, UL, cULus, RoHS compliant
