Technical Parameters Category Specification Product Model DIL M185A Product Family Eaton DIL M-series Motor Protection Circuit Breakers Number of Poles 3 poles Rated Current 185A Rated Operational Voltage 690V AC Rated Insulation Voltage 1000V AC Rated Frequency 50/60 Hz Breaking Capacity 100kA (at 415V AC) Utilization Category AC-3 (for squirrel cage motors) Motor Power Rating Up to 90kW (at 400V AC) Standards Compliance IEC/EN 60947-2, IEC/EN 60947-4-1, CE, UL Electrical Life 5,000 operations Mechanical Life 10,000 operations Operating Temperature -25°C to +70°C Protection Degree IP20 (when installed in enclosure) Protection Characteristics Overload Protection: Adjustable 0.7-1.0 × In Short-Circuit Protection: Magnetic instantaneous trip Phase Failure Protection: Built-in protection Trip Class: Class 10 (standard) Electrical Characteristics Rated Service Short-Circuit Capacity (Ics): 65kA Rated Ultimate Short-Circuit Capacity (Icu): 100kA Power Loss: <25W per pole Terminal Capacity: 185 mm² max cable size Mechanical Specifications Mounting: Fixed mounting or adapter plate Connection: Screw terminals Torque Requirement: 40-50 Nm Weight: Approximately 4.5 kg Dimensions: 158 × 105 × 140 mm (H×W×D)

Technical Parameters Category Specification Product Model NZM1-XU Product Family Eaton NZM1 Accessories Device Type Undervoltage Release Rated Control Voltage 230V AC / 400V AC Operating Voltage Range 0.7-1.1 × Us (rated control voltage) Release Voltage <0.35 × Us (must trip) >0.85 × Us (must not trip) Power Consumption Approx. 20VA (during operation) Operating Time <100ms Mounting Position Can be mounted on left or right side Compatibility NZM1 series circuit breakers Electrical Life >1,000 operations Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker) Standards Compliance IEC/EN 60947-2 Electrical Characteristics Rated Insulation Voltage: 690V AC Dielectric Strength: 2500V AC (1 minute) Insulation Resistance: >100MΩ (at 500V DC) Connection Method: Screw terminals Mechanical Specifications Mounting: Direct mounting on NZM1 breaker Weight: Approximately 0.3-0.5 kg (depending on breaker size) Connection: Fixed wiring connection

Technical Parameters Category Specification Product Model NZM2/3-XA 208250V AC/DC Product Family Eaton NZM Accessories Device Type Shunt Trip Release Rated Control Voltage 208-250V AC/DC Operating Voltage Range 0.7-1.1 × Us Power Consumption AC: 20VA (inrush), 8VA (hold) DC: 20W (inrush), 8W (hold) Operating Time <50ms Mounting Compatibility NZM2 and NZM3 series circuit breakers Electrical Life >1,000 operations Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker) Standards Compliance IEC/EN 60947-2 Electrical Characteristics Rated Insulation Voltage: 690V AC Dielectric Strength: 2500V AC (1 minute) Insulation Resistance: >100MΩ (at 500V DC) Connection Method: Screw terminals Mechanical Specifications Mounting: Direct mounting on NZM2/NZM3 breaker Weight: Approximately 0.4 kg Connection: Fixed wiring connection

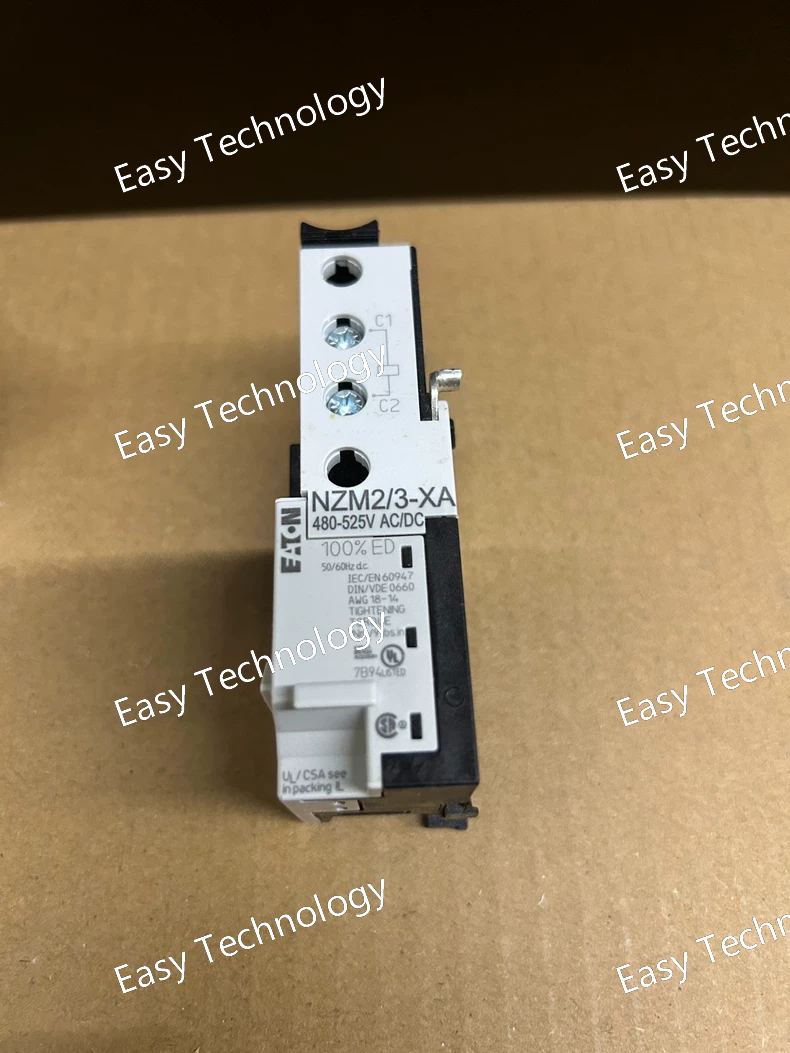

Technical Parameters Category Specification Product Model NZM2/3-XA480-525AC/DC Product Family Eaton NZM Accessories Device Type Shunt Trip Release Rated Control Voltage 480-525V AC/DC Operating Voltage Range 0.7-1.1 × Us Power Consumption AC: 25VA (inrush), 10VA (hold) DC: 25W (inrush), 10W (hold) Operating Time <50ms Mounting Compatibility NZM2 and NZM3 series circuit breakers Electrical Life >1,000 operations Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker) Standards Compliance IEC/EN 60947-2, UL 489 Electrical Characteristics Rated Insulation Voltage: 690V AC Dielectric Strength: 2500V AC (1 minute) Insulation Resistance: >100MΩ (at 500V DC) Terminal Capacity: 2.5 mm² max Connection Method: Screw terminals

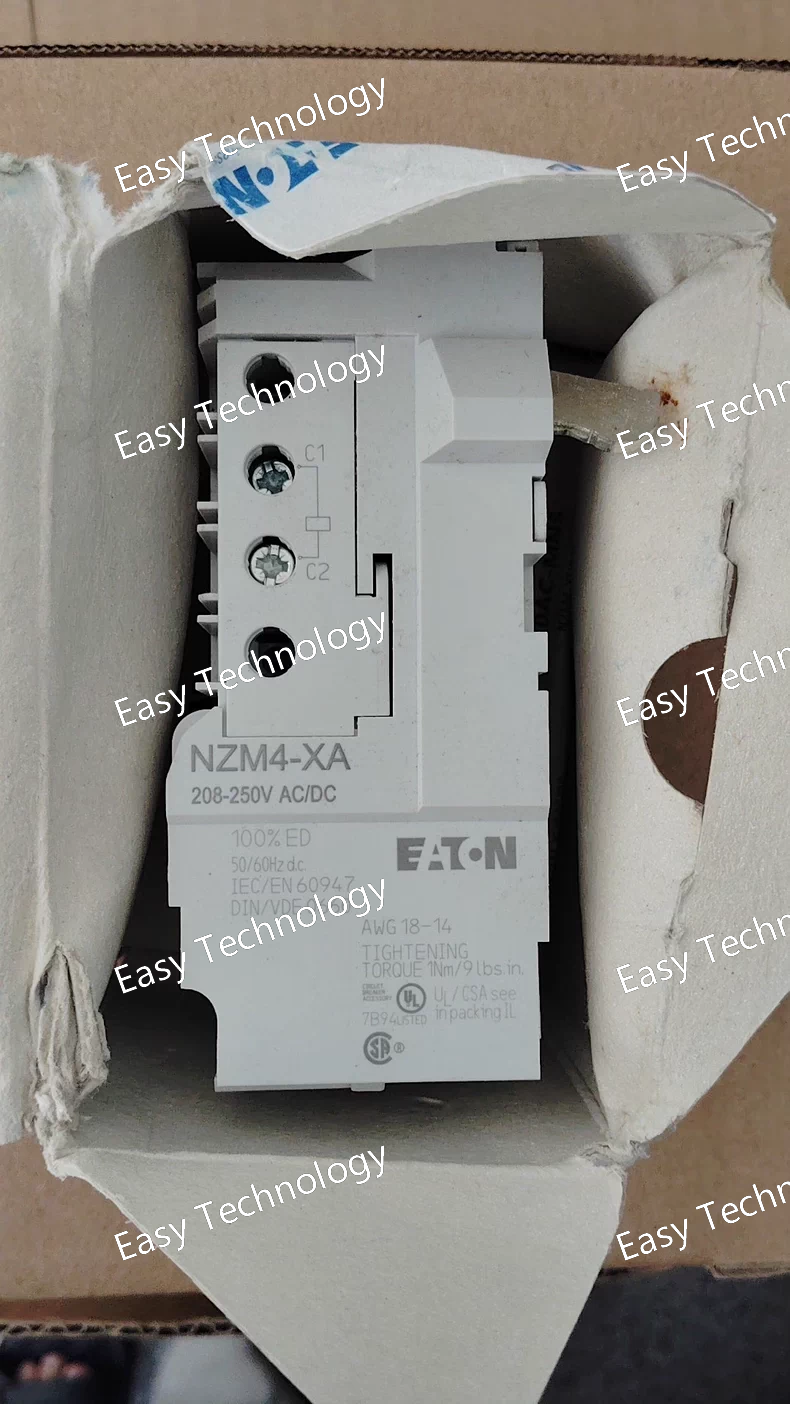

Technical Parameters Category Specification Product Model NZM4-XA Product Family Eaton NZM Accessories Device Type Shunt Trip Release Compatibility NZM4 series circuit breakers Mounting Position Can be mounted on left or right side of breaker Electrical Life >1,000 operations Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker) Standards Compliance IEC/EN 60947-2

Technical Parameters Category Specification Product Model LZMN1-A125 Product Family Eaton LZMN Series Miniature Circuit Breakers Number of Poles 1 pole Rated Current 125A Rated Voltage 230/400V AC Rated Frequency 50/60 Hz Breaking Capacity 10kA (at 230/400V AC) Tripping Characteristic C-characteristic (medium trip) Standards Compliance IEC 60898-1, CE Electrical Life 6,000 operations Mechanical Life 20,000 operations Operating Temperature -25°C to +55°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in enclosure)

Technical Parameters Category Specification Product Model CI-PKZ0-GRM Product Family Eaton PKZ Electronic Overload Relays Device Type Electronic Overload Relay Rated Current Range 0.1-0.16A (adjustable) Rated Operational Voltage 690V AC max Control Supply Voltage 24V AC/DC or 110-230V AC Standards Compliance IEC/EN 60947-4-1, UL 508, CE Ambient Temperature -20°C to +60°C Storage Temperature -40°C to +85°C Protection Degree IP20

Technical Parameters Category Specification Product Model NZM2-XHB-DA-NA Product Family Eaton NZM2 Digital Accessories Device Type Digital Trip Unit with Communication Rated Current Configurable based on breaker size Rated Voltage 690V AC max Communication Protocol Modbus, Profibus DP (configurable) Power Supply Self-powered from current transformers Standards Compliance IEC 60947-2, UL 1066, CE Operating Temperature -25°C to +70°C Protection Degree IP20 (when installed in breaker)

Technical Parameters Category Specification Product Model NZM2-XIPK Product Family Eaton NZM2 Accessories Device Type Instrumentation and Communication Kit Compatibility NZM2 series circuit breakers Rated Voltage Up to 690V AC Communication Protocols Modbus RTU, Profibus DP Power Supply Self-powered via current transformers Standards Compliance IEC 60947-2, UL 1066, CE Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker)

Technical Parameters Category Specification Product Model NZM2-XKSA Product Family Eaton NZM2 Accessories Device Type Extended Rotary Handle Kit Compatibility NZM2 series circuit breakers Mounting Position Front panel mounting Handle Length Standard extension length Maximum Panel Thickness Typically up to 6mm Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Protection Degree IP40 (when properly installed) Standards Compliance IEC 60947-2
