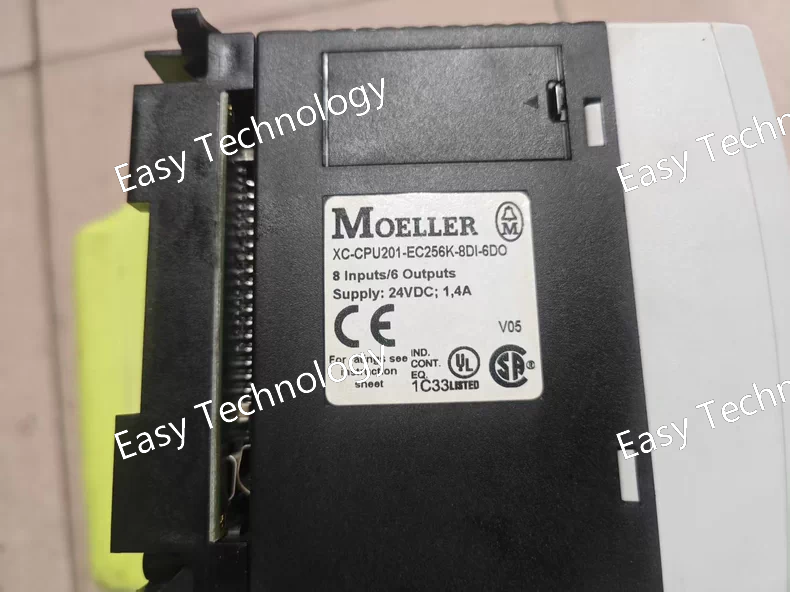

Technical Parameters Parameter Specification Product Model XC-CPU201-EC256K-8DI-6DO Product Family Eaton XC-200 Programmable Logic Controller (PLC) Type Compact CPU Module with Integrated I/O and Ethernet User Program Memory 256 KB Data Memory 128 KB Integrated I/O - 8x Digital Inputs (24 V DC, Sink/Source) - 6x Digital Outputs (24 V DC, Sourcing (PNP), 0.5 A) Program Execution Speed ~0.04 µs per binary instruction (Typical, faster than XC-100 series) Communication Ports - 1x Ethernet (RJ45) for programming, HMI, and PLC-to-PLC communication - 1x RS-485 for networking (Modbus RTU, etc.) Ethernet Protocol MODBUS TCP Expansion Capability Supports connection of up to 7 expansion I/O modules (XC-200 series) Real-Time Clock (RTC) Yes Programming Software EcoStruxure Machine Expert - Basic (formerly SoMachine Basic) Programming Languages Ladder Diagram (LD), Function Block Diagram (FBD), Instruction List (IL) Supply Voltage 24 V DC Physical Design Modular, DIN-rail mountable

Technical Parameters Category Specification Product Model XC-CPU201-EC256K-8DI-6DO Product Family Eaton XC-200 PLC Series CPU Performance 256 KB User Program Memory 128 KB Data Memory ~0.04 μs per binary instruction Integrated I/O • 8x Digital Inputs (24V DC, Sink/Source) • 6x Digital Outputs (24V DC, Sourcing/PNP, 0.5A) Communication Interfaces • 1x Ethernet (RJ45) - MODBUS TCP • 1x RS-485 - MODBUS RTU/ASCII Expansion Capability Up to 7 XC-200 series expansion modules Programming EcoStruxure Machine Expert - Basic Ladder Diagram (LD) Function Block Diagram (FBD) Instruction List (IL) Power Supply 24V DC Operating Temperature 0°C to +55°C Storage Temperature -25°C to +70°C Relative Humidity 5% to 95% (non-condensing) Vibration Immunity 2g (10-150 Hz) Shock Immunity 15g (11ms duration) Isolation 500V AC (Communication ports) 1500V AC (I/O circuits) Standards Compliance CE, cULus, RoHS, WEEE

Technical Parameters Parameter Specification Product Model EASY-E4-AC-12RC1 Product Family Eaton EASY-E4 Controller Type Micro-PLC (Programmable Logic Controller) Supply Voltage 100 - 240 V AC (Wide Range) Integrated I/O Total: 20 I/O Points - 12x Digital Inputs (24 V DC, Sink/Source) - 8x Relay Outputs: • 6x Changeover Contacts (CO) • 2x Normally Open Contacts (NO) Relay Contact Rating - 6A @ 250V AC (for CO contacts) - 2A @ 250V AC (for NO contacts) Program Memory Typically ~4 KB (for EASY-E4 series) Data Memory Typically ~2 KB (for EASY-E4 series) Programming - EASY-SOFT PC Software - Direct Device Programming via built-in display and keys Programming Language Function Block Diagram (FBD) / Circuit Diagram style Real-Time Clock (RTC) Yes Communication - EASY-LINK (for networking multiple EASY controllers) - USB Port for programming (on specific variants) Display Backlit LCD for status, values, and diagnostics Mounting Standard 35 mm DIN rail Operating Temperature -25 °C to +55 °C (-13 °F to 131 °F)

Technical Parameters Parameter Specification Product Model EASY-E4-DC-12RC1 Product Family Eaton EASY-E4 Controller Type Micro-PLC (Programmable Logic Controller) Supply Voltage 24 V DC Integrated I/O Total: 20 I/O Points - 12x Digital Inputs (24 V DC, Sink/Source) - 8x Relay Outputs: • 6x Changeover Contacts (CO) • 2x Normally Open Contacts (NO) Relay Contact Rating - 6A @ 250V AC (for CO contacts) - 2A @ 250V AC (for NO contacts) Program Memory Typically ~4 KB (for EASY-E4 series) Data Memory Typically ~2 KB (for EASY-E4 series) Programming - EASY-SOFT PC Software - Direct Device Programming via built-in display and keys Programming Language Function Block Diagram (FBD) / Circuit Diagram style Real-Time Clock (RTC) Yes Communication - EASY-LINK (for networking multiple EASY controllers) - USB Port for programming (on specific variants) Display Backlit LCD for status, values, and diagnostics Mounting Standard 35 mm DIN rail Operating Temperature -25 °C to +55 °C (-13 °F to 131 °F) Relative Humidity 95% (non-condensing)

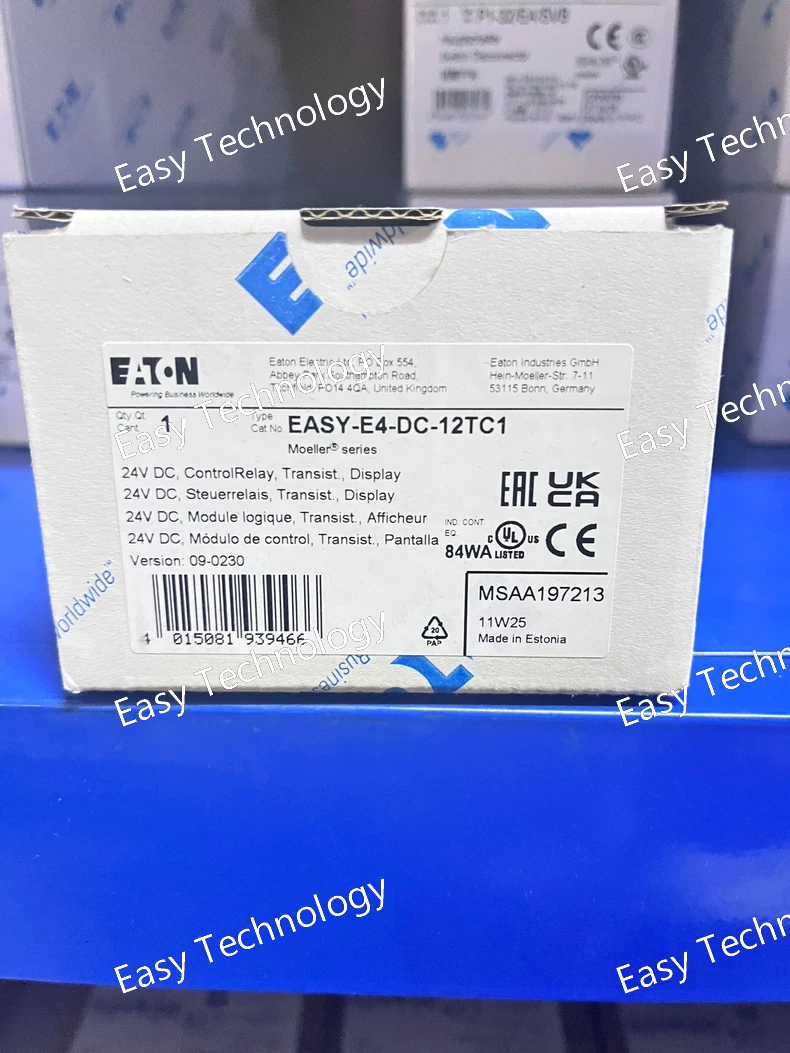

Technical Parameters Category Specification Product Model EASY-E4-DC-12TC1 Product Family Eaton EASY-E4 Controller Series Controller Type Micro PLC with Integrated Temperature Control Power Supply 24V DC Integrated I/O • 12x Digital Inputs (24V DC) • 8x Relay Outputs (6x CO + 2x NO) Relay Ratings • 6A @ 250V AC (CO contacts) • 2A @ 250V AC (NO contacts) Temperature Inputs 2 channels for thermocouple or RTD sensors Temperature Ranges -200°C to 1800°C (depending on sensor type) Control Algorithms • ON/OFF control • PID control • Heating/Cooling control Program Memory 4 KB Data Memory 2 KB Real-Time Clock Integrated Programming EASY-SOFT software or front panel Programming Language Function Block Diagram (FBD) Display Backlit LCD with status indicators Communication EASY-LINK network capability Mounting 35 mm DIN rail Operating Temperature -25°C to +55°C Protection Rating IP20 (for cabinet installation)

Technical Parameters Parameter Specification Product Model FY-EM-T02-02 Product Family Eaton F&F (Field & Function) Series Device Type Programmable Energy & Power Monitoring Relay Supply Voltage 24 - 240 V AC/DC (Wide Range, Auto-sensing) Measurement Inputs Voltage: Up to 480 V AC (via potential transformer) Current: 0-1A or 0-5A AC (via current transformer) Measurement Channels 2 independent channels Measured Parameters Voltage (V), Current (I), Active Power (kW), Apparent Power (kVA), Reactive Power (kvar), Power Factor (cos φ), Frequency (Hz), Energy (kWh, kvarh) Outputs 2x Changeover Relay Contacts (CO) - Rated Load: 6 A / 250 V AC Communication Interface RS-485 with Modbus RTU protocol Programming & Display - Front-face buttons and LCD display - Configuration software (e.g., Eaton SOFISYS) Primary Functions - Under/Over voltage & current monitoring - Power & Power Factor monitoring - Energy (kWh) metering & tariff control - Asymmetry & Phase Sequence monitoring - Timer & Threshold functions Mounting Standard 35 mm DIN rail Operating Temperature -25 °C to +55 °C (-13 °F to 131 °F) Safety Standards IEC/EN 61010-1, UL 508

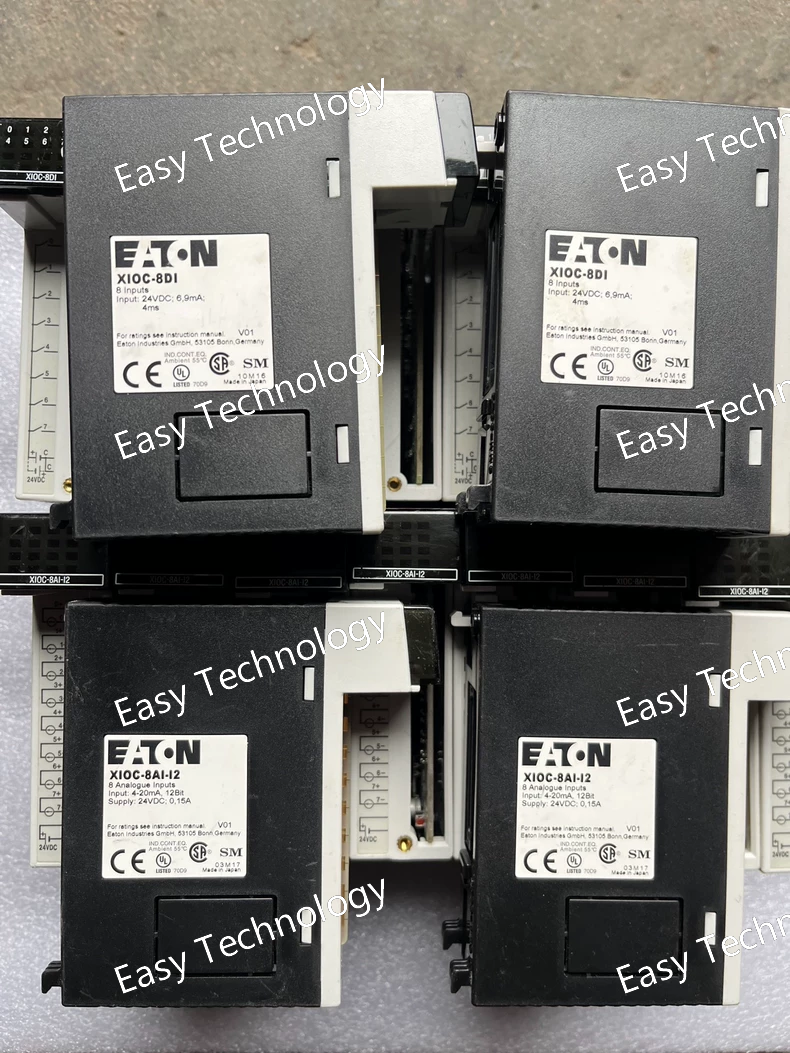

Technical Parameters Parameter Specification Product Model XIOC-8AI-12 Compatible Systems Eaton XP, XR, and XC Series PLCs Module Type Analog Input Module Number of Channels 8 Input Type Voltage Input Range 0 to 10 V DC (Standard factory default; other ranges like ±10V may be configurable) Resolution 12-bit (or higher, depending on the specific PLC system's processing capabilities) Conversion Time Typically a few milliseconds per channel (varies based on the master PLC) Connection Method Removable screw terminal block Isolation Channel-to-Bus: Yes (Opto-coupled) Channel-to-Channel: Typically not isolated Power Supply Powered by the 5 V DC backplane of the PLC rack/base unit Status Indicators - RUN/PWR: Green LED (indicates operational status) - ERR: Red LED (indicates a fault) - Ix: Status LED per channel (may be present) Mounting Mounts onto the XP/XR/XC series base unit or rack Operating Temperature 0 °C to +55 °C (32 °F to 131 °F)

Technical Parameters Parameter Specification Product Model XIOC-8DI Compatible Systems Eaton XP, XR, and XC Series PLCs Module Type Digital Input Module Number of Channels 8 Input Type 24 V DC, Sink/Source (Universal) Nominal Input Voltage 24 V DC Rated Input Voltage "1" 15 V DC to 30 V DC Rated Input Voltage "0" -30 V DC to 5 V DC Input Current Typically 3-5 mA per input (at 24 V DC) Connection Method Removable screw terminal block Isolation Channel-to-Bus: Yes (Optically isolated) Power Supply Powered by the 5 V DC backplane of the PLC rack/base unit Status Indicators - RUN/PWR: Green LED (indicates operational status) - ERR: Red LED (indicates a fault) - INx: Green LED per channel (indicates input status) Mounting Mounts onto the XP/XR/XC series base unit or rack Operating Temperature 0 °C to +55 °C (32 °F to 131 °F) Standards CE, cULus, RoHS

Technical Parameters Category Specification Product Model ERC3-DO-CB-A-V100BI Product Family Eaton ERC3 System Module Type Digital Output Communication Board Output Configuration 4 independent channels Output Type Relay contacts (Changeover) Contact Rating 16A @ 250V AC Load Type Resistive, inductive, lamp loads Control Voltage 230V AC (via main unit) - Communication KNX TP1 (Twisted Pair) Protocol KNX Standard Programming ETS (KNX Engineering Tool Software) Configuration Application program "A" Mounting DIN rail (within ERC3 enclosure) Operating Temperature -5°C to +45°C Storage Temperature -25°C to +70°C Relative Humidity ≤ 93% (non-condensing) Protection Class IP20 (when installed in enclosure) Standards Compliance KNX Standard, EN 50090, EN 60669-1 Electrical Characteristics Rated Impulse Voltage: 4kV Dielectric Strength: 2.5kV AC (50Hz) Insulation Resistance: >100MΩ Power Consumption: <1W (standby), <2W (active) Communication Features KNX Address: Individual and group addressing Telegram Rate: Up to 9600 bps Bus Connection: KNX red/grey terminal Configuration: Via ETS software Application Functions Lighting control (on/off, dimming) Blind/shutter control Heating control Ventilation control Signal functions

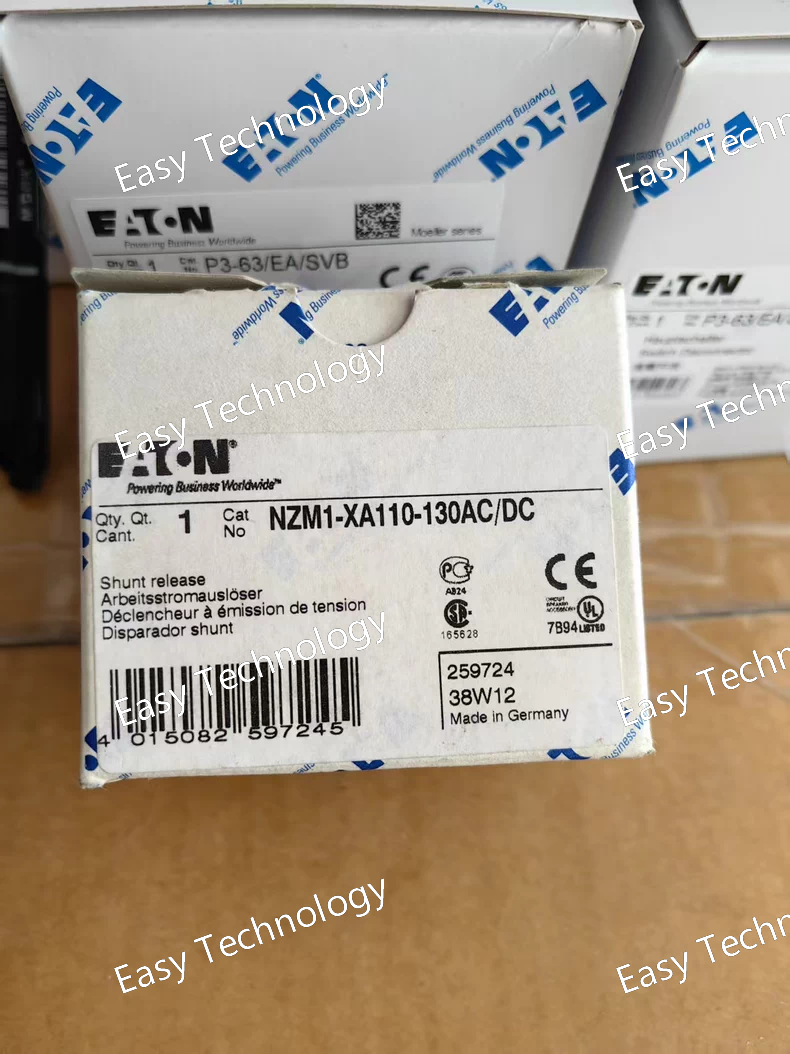

Technical Parameters Parameter Specification Product Model NZM1-XA110-130AC/DC Product Family Eaton NZM1 Circuit Breaker Accessory Device Type Under-Voltage Release / Shunt Trip Release Rated Operational Voltage (Ue) 110 - 130 V AC/DC (Wide Range) Power Consumption Approx. 10 W / 20 VA (at moment of tripping) Mounting Position Can be mounted on either the left or right side of the NZM1 breaker Compatibility Designed for Eaton NZM1 Molded Case Circuit Breakers Function Remotely trips the circuit breaker when the control voltage is applied. Electrical Life Typically > 1000 operations (at rated voltage) Connection Via screw terminals on the accessory Standards IEC/EN 60947-2
