Technical Parameters Parameter Specification Product Name Eaton Network-M3 Network Management Card Product Type Internal UPS Communication Card Compatibility Eaton 3S, 5P, 5S, 5SC, 9PX, 9SX, and other series UPS (Check compatibility list) Network Interface 10/100 Mbps Ethernet (RJ-45 connector) Management Protocols HTTP/HTTPS, SSH, SNMP v1/v3, Telnet, DHCP/BOOTP, DNS Shutdown Support Supports graceful shutdown for Windows, Linux, VMware, Mac OS, and other major operating systems Environmental Monitoring Yes (via RJ-11 port for optional EATON T/H probe) Additional I/O One Dry Contact relay output (for external alarm) Power Supply Powered directly by the host UPS Configuration Via integrated web browser interface or Eaton software (e.g., Intelligent Power Manager) Security Features User authentication (multiple user levels), SSL/SSH encryption, SNMP v3 Firmware Field-upgradable Certifications CE, cULus, RoHS

Technical Parameters Parameter Specification Product Series Eaton 93E Product Type Metered, Switched (by branch) PDU, Vertical (0U) Nominal Input Power 40 kVA / 40 kW (Assume PF=1.0) Input Type 3-Phase + Neutral + Ground Input Voltage 200/208 V AC or 400/415 V AC (Specific voltage to be confirmed) Input Current Typically 100 A or 60 A (depending on the specific voltage rating) Frequency 50/60 Hz Output Outlets Multiple outlet banks (Typically IEC C13/C19, NEMA, or a combination) Branch Circuit Breakers Multiple branches (e.g., 1P or 3P breakers, 16A, 20A, or 32A) Monitoring & Control Metering: Input current (per phase), voltage (L-N, L-L), power (kW), energy (kWh), power factor Switching: Individual branch circuit control (ON/OFF/reboot) Communication: Built-in Network Card (10/100/1000 Ethernet) Protocols: Web, SSH, SNMP, Telnet Display Local LCD for status and basic metrics Form Factor Vertical (0U) Mounting Zero U, vertical mounting in 19-inch rack Management Features Power sequencing, alarm thresholds, event logging, user access control Standards Compliance UL 60950-1, cULus, CE, RoHS

Technical Parameters Parameter Specification Product Series Eaton PW9100 iSeries Product Type Intelligent, Switched PDU with Environmental Monitoring Nominal Input Power 1000W (Total load capacity) Input Connection Plug: IEC 60320 C14 or C20 (Region-specific cord attached) Input Voltage 100-125 V AC / 200-240 V AC (Auto-sensing) Input Current 12A @ 100V / 16A @ 125V / 10A @ 200-240V Frequency 50/60 Hz Output Outlets 10 x IEC C13 (Typical configuration, may vary) Outlet Control Individual outlet switching (per outlet ON/OFF/reboot) Monitoring & Control Metering: Aggregate current (A), voltage (V), power (kW), energy (kWh) Switching: Individual outlet control Environmental: Ports for external temperature & humidity sensors Communication: Built-in 10/100 Mbps Network Card Protocols: Web, SSH, SNMP, Telnet Display Local backlit LCD for status and metrics Form Factor Horizontal 2U Rackmount Mounting 19-inch rack, 2 Rack Units (2U) high Management Features Power sequencing, alarm thresholds, event logging, user access control Standards Compliance UL 60950-1, cULus, CE, RoHS

Technical Parameters Parameter Specification Product Series Eaton 93PS Product Type Metered, Switched (by branch) PDU, Vertical (0U) Nominal Input Power 15 kVA / 15 kW Input Connection Plug: NEMA L5-20P or L6-20P (20A, 120/208/240V) [Confirm exact type from datasheet] Input Voltage 120/208/240 V AC (Auto-sensing) Input Current 20 A Frequency 50/60 Hz Output Outlets 15 (Typically a mix of NEMA 5-15R and/or 5-20R, arranged in 15A branched groups) Branch Circuit Breakers Multiple 15 A branch breakers Monitoring & Control Metering: Input current, voltage, power (kW), energy (kWh) Switching: Individual outlet/branch control Communication: Built-in Network Card (10/100 Ethernet) Protocols: Web, SSH, SNMP, Telnet Display Local LCD for status and basic metrics Form Factor Vertical (0U) Mounting Zero U, vertical mounting in 19-inch rack Management Features Power sequencing, alarm thresholds, event logging Standards Compliance UL 60950-1, cULus, CE, RoHS

Technical Parameters Parameter Specification Product Series Eaton EATS Product Type Automatic Transfer Switch (ATS) Rated Power 30 kVA Rated Operational Current (Ie) Typically 125 A (at 240V AC) Poles 2 Poles Rated Operational Voltage (Ue) 240 V AC (Single-Phase) Withstand Current (Icm) Typically 10 kA (Please verify from datasheet) Switching Mechanism Motor-Driven Control Voltage Typically 24 V DC (sourced from the generator start circuit or external supply) Time Delays Engine Start Delay: Adjustable Transfer to Emergency Delay: Adjustable Retransfer to Normal Delay: Adjustable Engine Cool Down Delay: Adjustable Standby Source Generator or other alternative AC source Electrical Life Typically 10,000 operations (at rated current) Mechanical Life Typically 50,000 operations Mounting Suitable for panel or wall mounting Standards Compliance UL 1008, CSA C22.2

Technical Parameters Parameter Specification Product Series Eaton 9PX Series Product Type Double Conversion Online UPS (Rackmount) Topology Online Double Conversion Nominal Output Power 8 kVA / 7.2 kW (at 0.9 output power factor) Input Voltage: 200/208/220/230/240 V AC (Auto-sensing) Frequency: 50/60 Hz (Auto-sensing) Connector: Typically hardwired for this power rating Output Voltage: 200/208/220/230/240 V AC (User-selectable) Frequency: 50/60 Hz ± 1 Hz (Synchronized to bypass) Output Power Factor: 0.9 Typical Runtime Extended runtime at half load (3.6 kW) due to the "i" configuration. Exact minutes must be verified from the official datasheet. Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable, user-replaceable cartridge Expansion: Supported via external battery packs (e.g., EBM series) Efficiency >96% in online mode (at full load); >99% in Eaton GreenMode™ Communications Standard: USB, RS-232, Dry Contact Optional: Slot for Network Management Card (e.g., IPM) Display & Interface Color Graphical LCD Form Factor 4U Rackmount (19-inch) Typical Applications Data Centers, Server Rooms, Large Network Closets, Virtualization Hosts Warranty Typically 3 years (including battery) Standards Compliance IEC 62040-1, CE, cULus, RoHS

Technical Parameters Parameter Specification Product Series Eaton 9PX Series Product Type Double Conversion Online UPS (Rackmount) Topology Online Double Conversion Nominal Output Power 6 kVA / 5.4 kW (at 0.9 output power factor) Input Voltage: 200/208/220/230/240 V AC (Auto-sensing) Frequency: 50/60 Hz (Auto-sensing) Connector: Hardwired or specific plug type (check local variant) Output Voltage: 200/208/220/230/240 V AC (User-selectable) Frequency: 50/60 Hz ± 1 Hz (Synchronized to bypass) Output Power Factor: 0.9 Typical Runtime Extended runtime at half load (2.7 kW) due to the "i" configuration. Exact minutes must be verified from the datasheet. Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable, user-replaceable cartridge Expansion: Supported via external battery packs (e.g., EBM series) Efficiency >96% in online mode (at full load); >99% in Eaton GreenMode™ Communications Standard: USB, RS-232, Dry Contact Optional: Slot for Network Management Card (e.g., IPM) Display & Interface Color Graphical LCD Form Factor 3U Rackmount (19-inch) Typical Applications Server Racks, Network Closets, Data Centers, Telecom Installations Warranty Typically 3 years (including battery) Standards Compliance IEC 62040-1, CE, cULus, RoHS

Technical Parameters Parameter Specification Product Series Eaton 9PX Series Product Type Double Conversion Online UPS (Tower/Rackmount) Topology Online Double Conversion Nominal Output Power 6 kVA / 5.4 kW (at 0.9 output power factor) Input Voltage: 200/208/220/230/240 V AC (Auto-sensing) Frequency: 50/60 Hz (Auto-sensing) Connector: Hardwired or specific plug type (check local variant) Output Voltage: 200/208/220/230/240 V AC (User-selectable) Frequency: 50/60 Hz ± 1 Hz (Synchronized to bypass) Output Power Factor: 0.9 Typical Runtime Extended runtime at half load (2.7 kW) due to the "i" configuration. Exact minutes must be verified from the datasheet as it depends on the specific battery cartridge. Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable, user-replaceable cartridge Expansion: Supported via external battery packs (e.g., EBM series) Efficiency >96% in online mode (at full load); >99% in Eaton GreenMode™ Communications Standard: USB, RS-232, Dry Contact Optional: Slot for Network Management Card (e.g., IPM) Display & Interface Color Graphical LCD Form Factor Tower with Integrated Rackmount Kit (RTG) Typical Applications Server Racks, Network Closets, Data Centers, Medical Equipment Warranty Typically 3 years (including battery) Standards Compliance IEC 62040-1, CE, cULus, RoHS

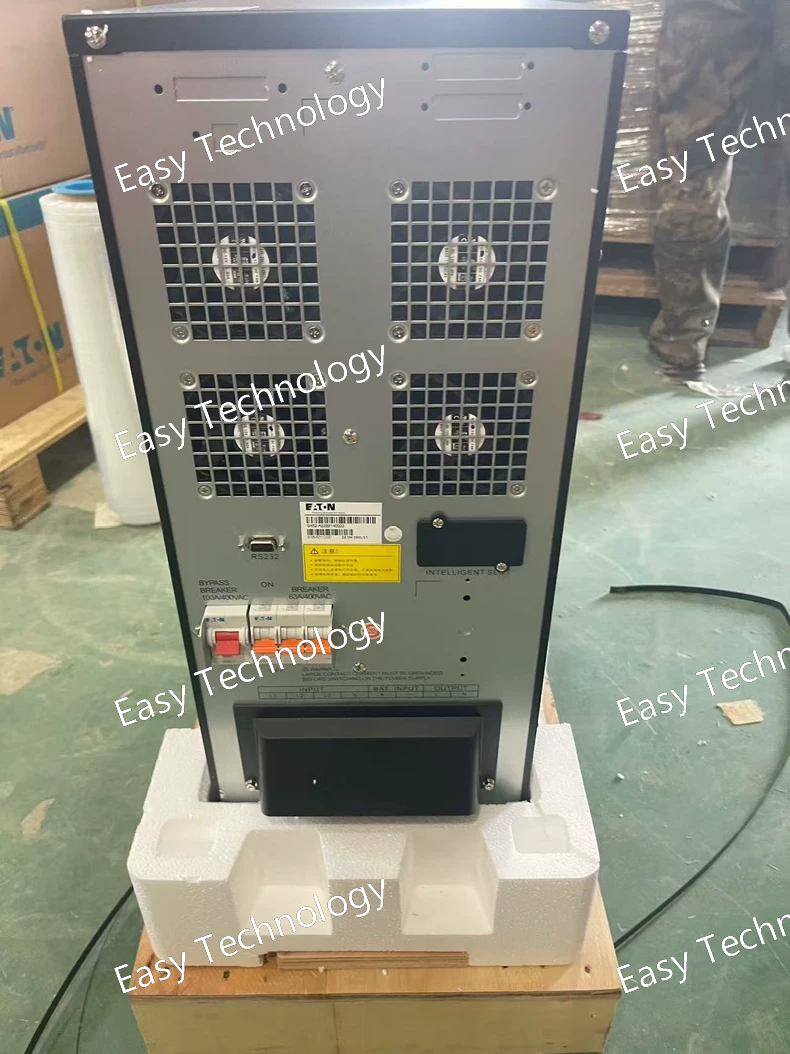

Technical Parameters Parameter Specification Product Series Eaton DX Series Product Type Double Conversion Online UPS, Tower/Rackmount Topology Online Double Conversion Nominal Input/Output Power 15 kVA / 15 kW (assuming PF=1.0) Input Voltage: 208/220/230/240 V AC Frequency: 50/60 Hz (Auto-sensing) Connector: Hardwired or specific plug type (check local variant) Output Voltage: 208/220/230/240 V AC (User-selectable) Frequency: 50/60 Hz ± 0.5% (Synchronized to bypass if present) Power Factor: 1.0 Typical Runtime at Full Load Short runtime with internal batteries (e.g., 5-10 minutes). Extended runtime requires external battery packs. Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable modules Expansion: Supported via external battery ports Efficiency >95% in online mode (at full load) Communications Standard: USB, RS-232, Dry Contact Optional: SNMP/Web Card (e.g., IPM) for network management Display & Interface Graphical LCD status display with navigation buttons Form Factor Tower (Standard), Rackmount (with optional kit) Typical Applications Data Centers, Server Rooms, Network Closets, Industrial Controls Standards Compliance IEC 62040-1, CE, cULus, RoHS

Technical Parameters Parameter Specification Product Series Eaton NZM1 Product Type Programmable Electronic Trip Unit (Release) for Air Circuit Breaker Rated Current (In) of Frame 1300 A (This is the fixed rating for this specific trip unit) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time Overload), S (Short-time), I (Instantaneous), G (Ground Fault) Setting Adjustment Programmable via USB connection and dedicated software (e.g., Eaton's NZM Configurator) Communication Interface USB Port for local configuration and monitoring Short-Circuit Breaking Capacity (Icu) Dependent on the complete NZM1 breaker assembly, typically very high (e.g., 50kA to 100kA at 400V). Must be verified from the breaker frame's datasheet. Display Typically includes an LCD or LED display for status and fault indication Mounting Integrated into a compatible NZM1 circuit breaker frame Standards Compliance IEC 60947-2, UL 1066, CSA 22.2
