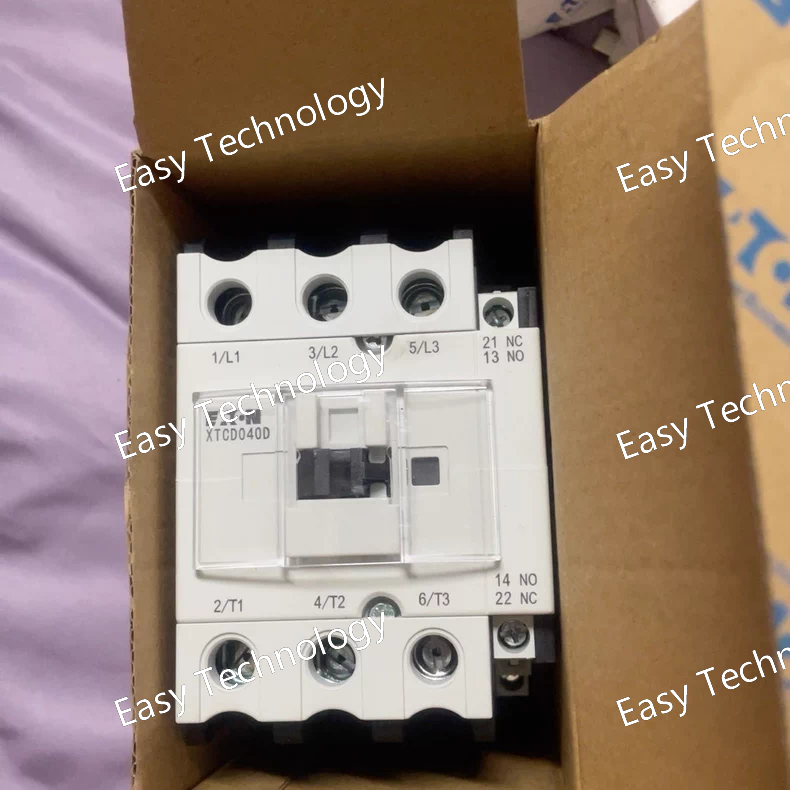

Technical Parameters Parameter Specification Product Series Eaton XTC Product Type DC Power Contactor Rated Operational Current (Ie) 40 A Rated Operational Voltage (Ue) Up to 1000 V DC Poles 1 Pole (Typically) Control Coil Voltage Various DC voltages available (e.g., 12V DC, 24V DC, 48V DC). The "D" in the model number may indicate a standard DC coil voltage, which must be confirmed from the datasheet. Rated Making/Breaking Capacity Specified for DC loads (e.g., L/R ≤ 30ms) Electrical Life Varies with load (e.g., 100,000 operations at rated current) Mechanical Life Typically millions of operations Mounting Screw mounting or DIN Rail Terminal Type Screw clamp for power and control connections Standards Compliance IEC 60947-4-1, UL 508

Technical Parameters Parameter Specification Product Series Eaton Modular UPS Power Module (for 93PM frames) Product Type Hot-swappable UPS Power Module Topology Double Conversion Online Nominal Output Power per Module 11 kVA / 11 kW Input Voltage: 200/208/220/230/240/380/400/415 V AC, 3-Phase + Neutral Frequency: 50/60 Hz (Auto-sensing) Output Voltage: 200/208/220/230/240/380/400/415 V AC (Configurable) Waveform: Pure Sine Wave Efficiency >96% in online mode (at full load) Battery Voltage Compatible with the external battery system of the UPS frame Form Factor Modular cartridge for specific Eaton UPS chassis Key Feature Hot-swappable for online maintenance and scalability Typical System Configuration Installed in a central UPS frame (e.g., 93PM) to build systems from 11kVA to 100s of kVA

Technical Parameters Parameter Specification Product Series Eaton Modular UPS Power Module (for 93PM / 9PX G2 frames) Product Type Hot-swappable UPS Power Module Topology Double Conversion Online Nominal Output Power per Module 6 kVA / 6 kW Input Voltage: 200/208/220/230/240 V AC, 3-Phase + Neutral Frequency: 50/60 Hz (Auto-sensing) Output Voltage: 200/208/220/230/240 V AC (Configurable) Waveform: Pure Sine Wave Efficiency >96% in online mode (at full load) Battery Voltage Compatible with the external battery system of the UPS frame Form Factor Modular cartridge for specific Eaton UPS chassis Key Feature Hot-swappable for online maintenance and scalability Typical System Configuration Installed in a central UPS frame to build systems from 6kVA to 100s of kVA

Technical Parameters Parameter Specification Product Series Eaton 9PX EBM (External Battery Module) Product Type External Battery Module / Pack Compatibility Designed for specific Eaton 9PX UPS models (e.g., 3kVA, 6kVA, 10kVA models). Must be verified with compatibility chart. Nominal Battery Voltage 240 V DC (This is a typical voltage for EBMs supporting higher-power UPS systems) Form Factor 3U Rackmount Mounting 19-inch server rack (3 Rack Units high) Battery Type Sealed, maintenance-free Lead-Acid batteries (VRLA) Battery Configuration Multiple internal battery trays or strings Communication Connects to the host UPS for monitoring battery status and health Typical Use Extending the runtime of 9PX UPS systems

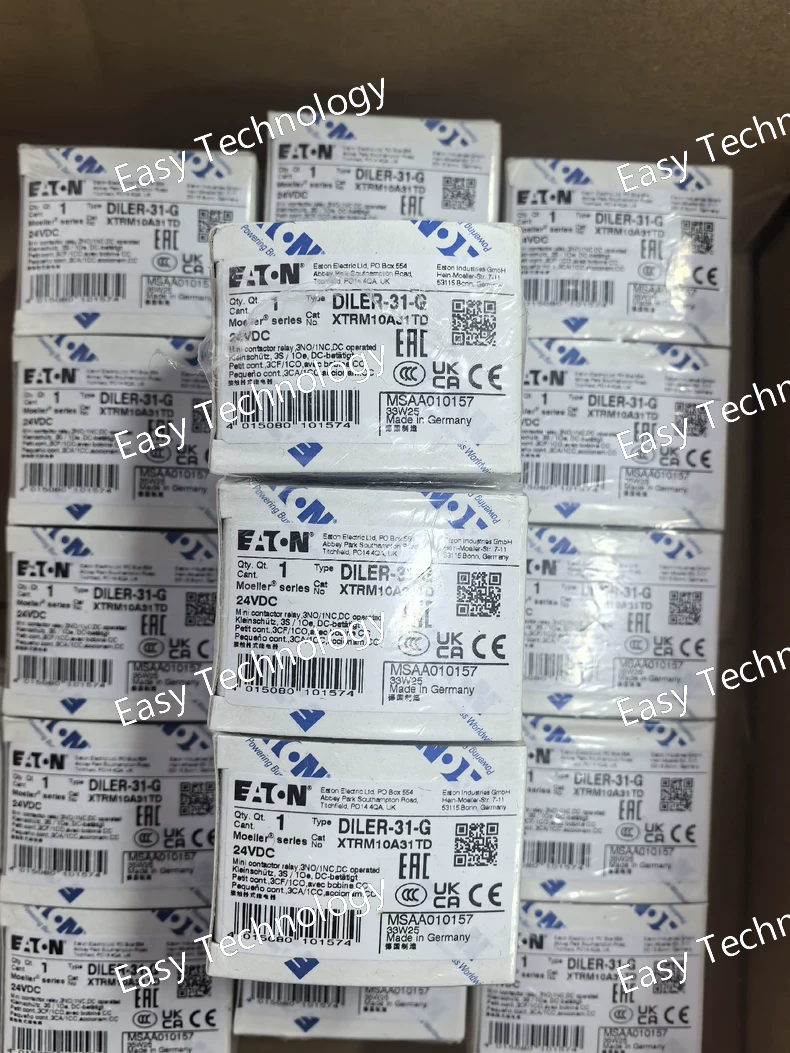

Technical Parameters Parameter Specification Product Series Eaton DIL (DILER Series) Product Type Timer Relay / Time Delay Relay Timing Function On-Delay (G) Operating Voltage 24 V DC Time Range Adjustable (e.g., 0.1s - 30h, or another specific range for the -31 model) Number & Type of Output Contacts Typically 1 Changeover (CO) contact (SPDT - 1 NO + 1 NC) Rated Operational Current (Ie) Typically 6 - 8 A (for the output relay contacts) Mounting DIN Rail (35 mm) Setting Method Potentiometer or DIP-switches Status Indication LED Standards Compliance IEC 60947-5-1, UL 508, CSA C22.2 No. 14

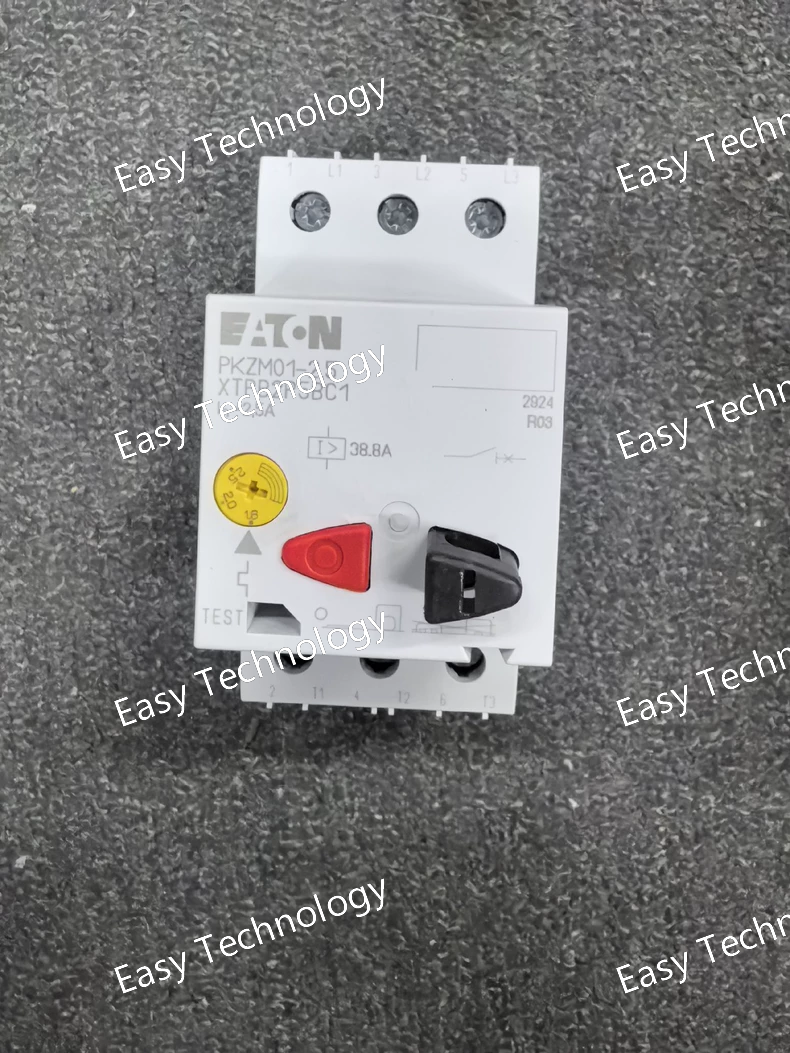

Technical Parameters Parameter Specification Product Series Eaton PKZ (PKZM0 series) Product Type Motor Protection Circuit Breaker (MPCB) Rated Operational Current (Ie) Up to 2.5 A (Adjustable within a range, e.g., 1.6 - 2.5 A) Rated Operational Voltage (Ue) 690 V AC Poles 3 Rated Insulation Voltage (Ui) 1000 V AC Utilization Category AC-3 (Squirrel cage motor switching) Short-Circuit Breaking Capacity (Icu) Typically 100 kA at 400V AC (IEC 60947-2) Overload Protection Setting Adjustable via rotary dial Trip Class Typically Class 10 (Fast tripping characteristic for standard motors) Mounting DIN Rail (35 mm) Standards Compliance IEC/EN 60947-2, IEC/EN 60947-4-1

Technical Parameters Parameter Typical Specification Product Series Eaton M22 Product Type Rugged Industrial Display / Monitor Screen Size Common sizes: 15.6", 21.5" (To be confirmed) Resolution Full HD (1920 x 1080) or higher Brightness High Brightness, e.g., ≥ 1000 cd/m² (nits) Touch Technology Projected Capacitive (PCAP) Multi-Touch Front Surface Glass (GR) Ingress Protection (IP) IP65 (for front panel, when properly installed) Operating Temperature -30°C to +60°C (or similar wide range) Video Inputs DisplayPort, HDMI Power Supply 24 V DC (standard for industrial environments) Mounting VESA mount (e.g., 100mm x 100mm), panel mount Certifications CE, UL, cULus for industrial equipment

Technical Parameters Parameter Typical Specification Product Series Eaton M22 Product Type Rugged Industrial Computer / Box PC Processor (CPU) Intel Core i5 or i7 (or similar performance class) Memory (RAM) 4 GB - 16 GB DDR3/DDR4 (expandable) Storage Solid State Drive (SSD), e.g., 128 GB - 1 TB Video Outputs DisplayPort (Likely 2 ports for dual display support) Network Connectivity 2 x Gigabit Ethernet (RJ-45) Other I/O Ports Multiple USB ports (2.0/3.0), Serial ports (RS-232/422/485) Expansion Slots Mini-PCIe or PCI slots for additional I/O cards Power Supply 24 V DC (standard for industrial environments) Operating Temperature -20°C to +60°C (or wider range) Ingress Protection (IP) IP65 (for front panel, when properly installed) Mounting Wall-mount, DIN rail, or VESA mount Certifications CE, UL, cULus for industrial equipment

Technical Parameters Parameter Specification Product Series Eaton M22 Product Type Workstation / Rackmount Integration Kit (Accessory) Compatibility Designed for specific Eaton M22 series industrial computers and monitors Mounting Options • 19-inch rack mounting (typically 1U or 2U height) • VESA mount compatibility (e.g., 75mm x 75mm or 100mm x 100mm pattern) Included Components Rackmount shelf/bracket, VESA adapter plate, screws, and other necessary hardware (exact contents may vary) Rack Space (U) 1U or 2U (To be confirmed from datasheet) Material Typically steel or other robust metal Finish Powder-coated or similar for durability

Technical Parameters Parameter Specification Product Series Eaton 93E Product Type Metered, Switched (by branch) PDU, Vertical (0U) Nominal Input Power 60 kVA / 60 kW Input Type 3-Phase + Neutral + Ground Input Voltage 200/208V AC or 400/415V AC (Specific voltage to be confirmed) Input Current Typically 150A or 100A (depending on the specific voltage rating) Frequency 50/60 Hz Output Outlets Multiple outlet banks (Typically IEC C13/C19, NEMA, or a combination) Branch Circuit Breakers Multiple branches (e.g., 1P or 3P breakers, 16A, 20A, or 32A) Monitoring & Control Metering: Input current (per phase), voltage (L-N, L-L), power (kW), energy (kWh), power factor Switching: Individual branch circuit control (ON/OFF/reboot) Communication: Built-in Network Card (10/100/1000 Ethernet) Protocols: Web, SSH, SNMP, Telnet Display Local LCD for status and basic metrics Form Factor Vertical (0U) Mounting Zero U, vertical mounting in 19-inch rack Management Features Power sequencing, alarm thresholds, event logging, user access control Standards Compliance UL 60950-1, cULus, CE, RoHS
