Technical Parameters Parameter Specification Product Series Eaton DIL (DILH Series) Product Type Modular Industrial Control Relay Contact Configuration (from /22) 4 Changeover (CO) contacts (Typically equivalent to 2 NO + 2 NC) Rated Operational Current (Ie) Typically 6 A to 10 A per contact (e.g., at 250V AC) Rated Thermal Current (Ith) 10 A Rated Operational Voltage (Ue) Up to 250 V AC / 300 V AC Control Coil Voltage 250 V AC (from (RAW250)) Mechanical Life Typically 10 - 30 million operations Electrical Life Typically 1 - 3 million operations (at rated load) Terminal Type Screw Clamp Mounting DIN Rail (35 mm) Standards Compliance IEC 60947-5-1, UL 508, CSA C22.2 No. 14

Technical Parameters Parameter Specification Product Series Eaton 9SX EBM (External Battery Module) Product Type External Battery Module / Pack Compatibility Designed for specific Eaton 9SX UPS models (e.g., 3kVA, 6kVA, 10kVA models). Must be verified with compatibility chart. Nominal Battery Voltage 384 V DC (This is a typical voltage for EBMs supporting higher-power UPS systems) Form Factor 6U Rackmount Mounting 19-inch server rack (6 Rack Units high) Battery Type Sealed, maintenance-free Lead-Acid batteries (VRLA) Battery Configuration Multiple internal battery trays or strings Communication Connects to the host UPS for monitoring battery status and health Typical Use Extending the runtime of 9SX UPS systems

Technical Parameters Parameter Specification Product Series Eaton EL Series Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 1200 VA Nominal Output Power in Watts 720 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: Multiple IEC 60320 C13 outlets (typically 6-8) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on load; longer at lower loads) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable, hot-swappable cartridge Automatic Voltage Regulation (AVR) Yes (Corrects brownouts and overvoltages without using the battery) Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for power and battery status Form Factor Compact Tower Typical Applications Desktop Workstations, Entry-level Servers, POS Systems, Network Devices

Technical Parameters Parameter Specification Product Series Eaton EL Series Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 800 VA Nominal Output Power in Watts 480 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: Multiple IEC 60320 C13 outlets (typically 6-8) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on load; longer at lower loads) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable, hot-swappable cartridge Automatic Voltage Regulation (AVR) Yes (Corrects brownouts and overvoltages without using the battery) Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for power and battery status Form Factor Compact Tower Typical Applications Desktop Workstations, Entry-level Servers, POS Systems, Network Devices

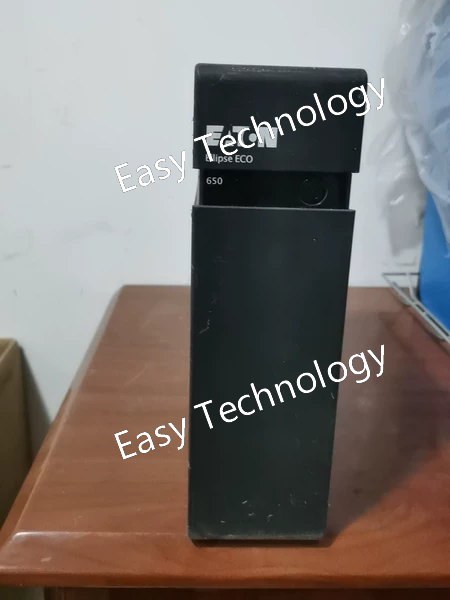

Technical Parameters Parameter Specification Product Series Eaton Ellipse Eco Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 650 VA Nominal Output Power in Watts 390 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: Multiple IEC 60320 C13 outlets (typically 4-6) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on the connected load) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable, hot-swappable cartridge Automatic Voltage Regulation (AVR) Yes Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for On Line, On Battery, and Replace Battery Form Factor Compact Desktop/Tower Typical Applications Desktop Computers, Workstations, Monitors, Network Routers, Switches, Gaming Consoles Warranty Typically 2 years

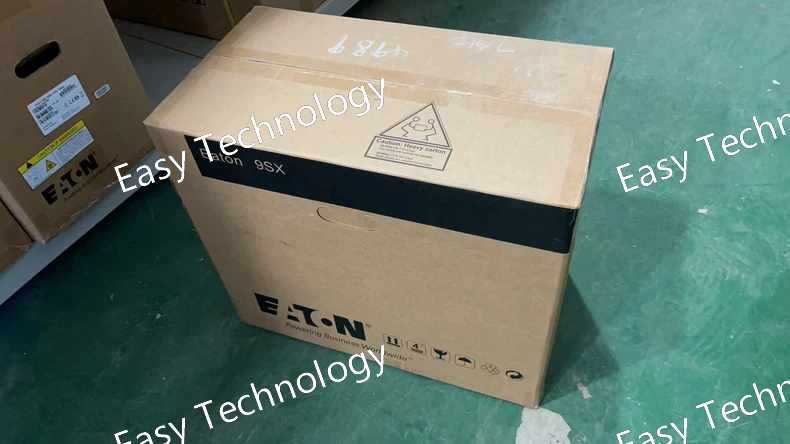

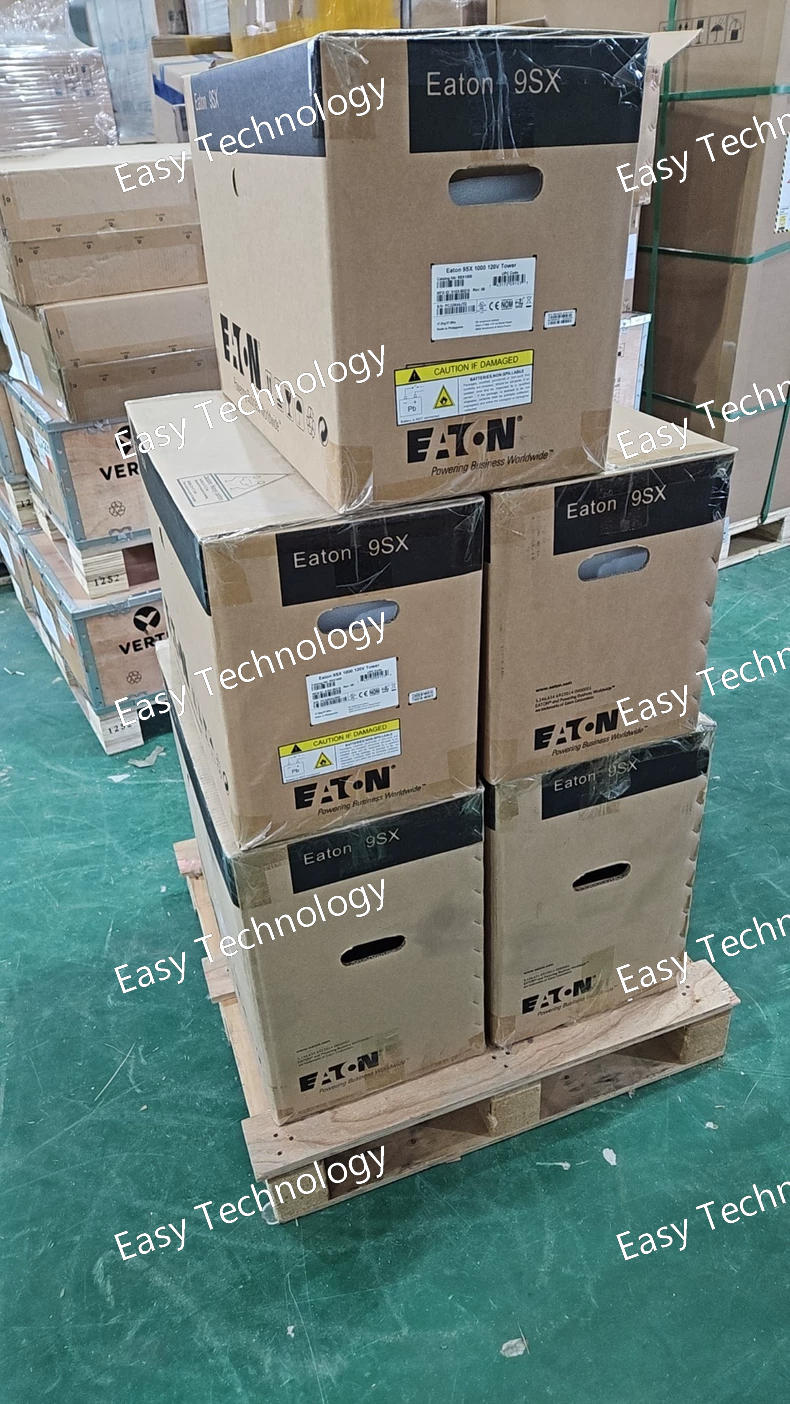

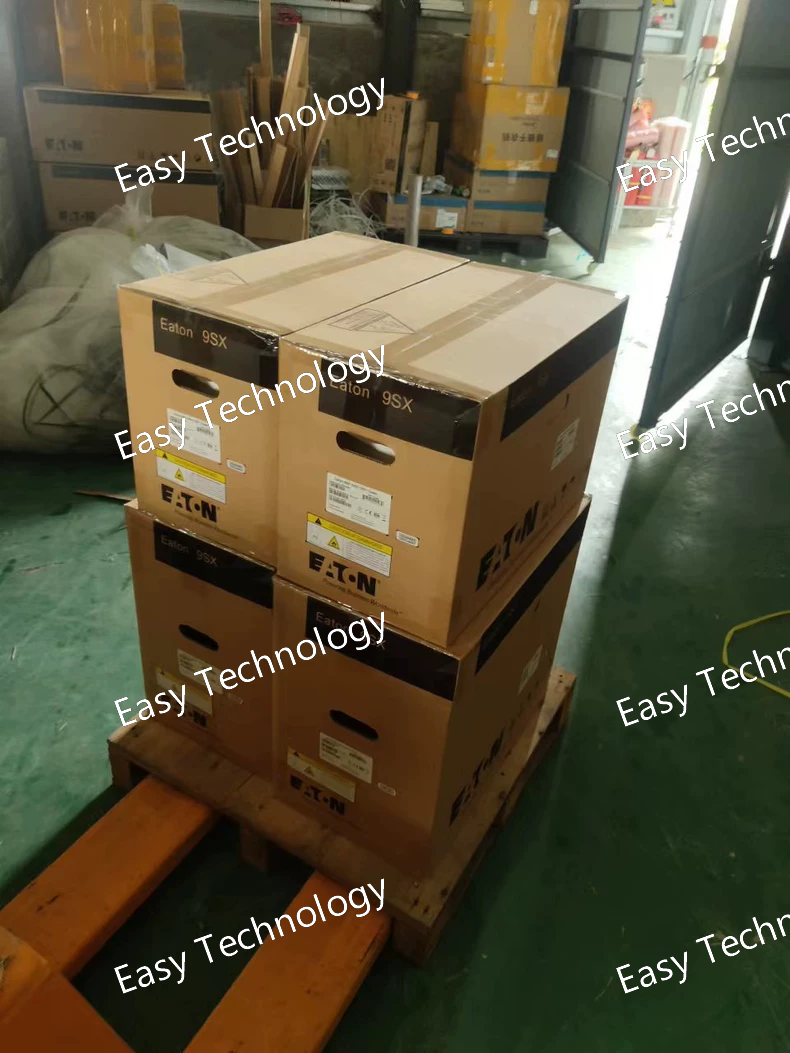

Technical Parameters Parameter Specification Product Series Eaton 9SX Product Type Double Conversion Online UPS Topology Online Double Conversion Nominal Output Power 1000 VA / 1 kVA Nominal Output Power in Watts 900 W (at 0.9 Output Power Factor) Input Voltage: 200/208/220/230/240 V AC (Auto-sensing) Frequency: 50/60 Hz (Auto-sensing) Connector: IEC 60320 C14 Output Voltage: 200/208/220/230/240 V AC (User-selectable) Waveform: Pure Sine Wave Output Power Factor: 0.9 Typical Runtime Varies by load (e.g., 5-10 minutes at full load with standard internal batteries). Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable, user-replaceable modules Expansion: Supported via external battery packs (e.g., EBM series) Efficiency >93% in online mode (at full load) Communications Standard: USB, RS-232, Dry Contact Display & Interface Graphical LCD with status indicators Form Factor Tower or Rackmount (2U) Typical Applications Entry-level Servers, Network Devices, Workstations Warranty Typically 2 years

Technical Parameters Parameter Specification Product Series Eaton 9SX Product Type Double Conversion Online UPS Topology Online Double Conversion Nominal Output Power 1000 VA / 1 kVA Nominal Output Power in Watts 900 W (at 0.9 Output Power Factor) Input Voltage: 200/208/220/230/240 V AC (Auto-sensing) Frequency: 50/60 Hz (Auto-sensing) Connector: IEC 60320 C14 Output Voltage: 200/208/220/230/240 V AC (User-selectable) Waveform: Pure Sine Wave Output Power Factor: 0.9 Typical Runtime Varies by load (e.g., 5-10 minutes at full load with standard internal batteries). Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable, user-replaceable modules Expansion: Supported via external battery packs (e.g., EBM series) Efficiency >93% in online mode (at full load) Communications Standard: USB, RS-232, Dry Contact Display & Interface Graphical LCD with status indicators Form Factor Tower or Rackmount (2U) Typical Applications Entry-level Servers, Network Devices, Workstations

Technical Parameters Parameter Specification Product Series Eaton 9SX Product Type Double Conversion Online UPS Topology Online Double Conversion Nominal Output Power 3000 VA / 3 kVA Nominal Output Power in Watts 2700 W (at 0.9 Output Power Factor) Input Voltage: 200/208/220/230/240 V AC (Auto-sensing) Frequency: 50/60 Hz (Auto-sensing) Connector: Hardwired or IEC 60320 C14 (depends on specific model) Output Voltage: 200/208/220/230/240 V AC (User-selectable) Waveform: Pure Sine Wave Output Power Factor: 0.9 Typical Runtime Varies by load and specific battery configuration (e.g., 5-10 minutes at full load with standard internal batteries). Battery Type: Sealed, maintenance-free Lead-Acid batteries (internal) Replacement: Hot-swappable, user-replaceable modules Expansion: Supported via external battery packs (e.g., EBM series) Efficiency >95% in online mode (at full load); >98% in Energy Saver System (ESS) mode Communications Standard: USB, RS-232, Dry Contact Optional: Slot for Network Management Card (e.g., IPM) Display & Interface Graphical LCD with status indicators Form Factor Tower or Rackmount (2U) Typical Applications Server Racks, Network Closets, Data Centers, Medical & Industrial Equipment Warranty Typically 2 or 3 years

Technical Parameters Parameter Specification Product Series Eaton EATS Product Type Automatic Transfer Switch (ATS) Rated Operational Current (Ie) 16 A Poles 2 Poles Rated Operational Voltage (Ue) 240 V AC (Single-Phase, Split-Phase) Withstand Rating (Icm) Typically 3 kA (Please verify from datasheet) Switching Mechanism Motor-Driven Control Voltage Typically 24 V DC (sourced from the generator start circuit) Time Delays Time Delay on Engine Start (TDES): Adjustable Time Delay on Transfer to Emergency (TDEE): Adjustable Time Delay on Retransfer to Normal (TDRN): Adjustable Time Delay on Engine Cool Down (TDCD): Adjustable Electrical Life Several thousand operations (at rated current) Mechanical Life Tens of thousands of operations Mounting Suitable for panel or wall mounting Standards Compliance UL 1008, CSA C22.2 No. 178

Technical Parameters Parameter Specification Product Series Eaton EATS Product Type Automatic Transfer Switch (ATS) Rated Operational Current (Ie) 16 A Poles 2 Poles Rated Operational Voltage (Ue) 240 V AC (Single-Phase, Split-Phase) Withstand Rating (Icm) Typically 3 kA (Please verify from datasheet) Switching Mechanism Motor-Driven Control Voltage Typically 24 V DC (sourced from the generator) Time Delays Time Delay on Engine Start (TDES): Adjustable Time Delay on Transfer to Emergency (TDEE): Adjustable Time Delay on Retransfer to Normal (TDRN): Adjustable Time Delay on Engine Cool Down (TDCD): Adjustable Electrical Life Several thousand operations (at rated current) Mechanical Life Tens of thousands of operations Mounting Suitable for panel or wall mounting Standards Compliance UL 1008
