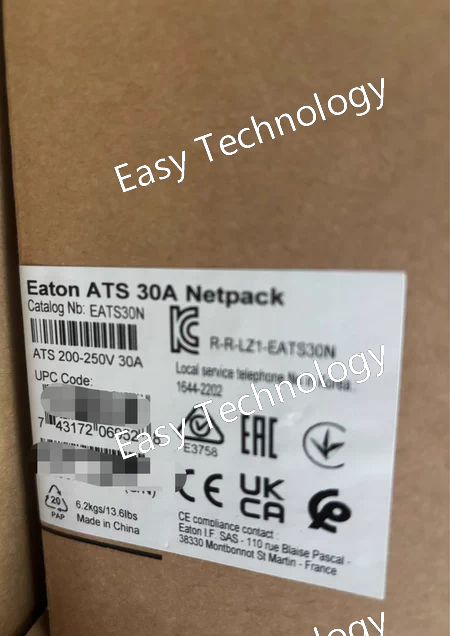

Technical Parameters Parameter Specification Product Series Eaton EATS Product Type Automatic Transfer Switch (ATS) Rated Operational Current (Ie) 30 A Poles 2 Poles Rated Operational Voltage (Ue) 240 V AC (Single-Phase, Split-Phase) Withstand Rating (Icm) Typically 3 kA or 5 kA (Please verify from datasheet) Switching Mechanism Motor-Driven Control Voltage Typically 24 V DC (sourced from the generator start circuit or an external supply) Time Delays Time Delay on Engine Start (TDES): Adjustable Time Delay on Transfer to Emergency (TDEE): Adjustable Time Delay on Retransfer to Normal (TDRN): Adjustable Time Delay on Engine Cool Down (TDCD): Adjustable Electrical Life Typically 5,000 operations (at rated current) Mechanical Life Typically 25,000 operations Mounting Suitable for panel or wall mounting Standards Compliance UL 1008, CSA C22.2 No. 178

Technical Parameters Parameter Specification Product Series Eaton 744 / A Series Product Type General Purpose Power Contactor Number of Poles 4 (Main Poles) Rated Operational Current (Ie) 40 A Rated Operational Voltage (Ue) Up to 690 V AC Rated Thermal Current (Ith) 40 A Motor Load Rating (AC-3) 15 kW / 20 HP at 400V AC Rated Insulation Voltage (Ui) 1000 V AC Control Coil Voltage Varies (e.g., 24V AC/DC, 110V AC, 230V AC). Must be specified when ordering. Mechanical Life Typically 10 - 30 million operations Electrical Life (AC-3) Typically 1 - 3 million operations Terminal Type Screw Clamp Mounting DIN Rail (35mm) or Panel Mount Standards Compliance IEC 60947-4-1, UL 508, CSA C22.2 No. 14

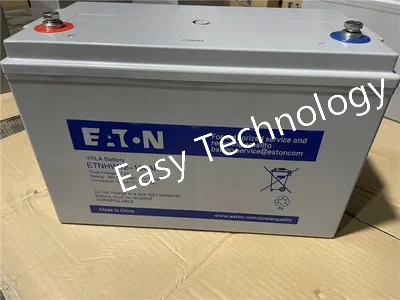

Technical Parameters Parameter Specification Product Type Valve-Regulated Lead-Acid (VRLA), AGM, Deep Cycle Nominal Voltage 12 V Nominal Capacity 100 Ah (Typically at the 20-hour discharge rate, C/20, to 10.5V) Terminal Type Standard (e.g., M8 Stud Terminals) Approximate Dimensions (L x W x H) ~ 330 x 172 x 215 mm (13.0" x 6.8" x 8.5") [Verify for exact model] Approximate Weight ~ 28 - 31 kg (62 - 68 lbs) Design Life 5 - 10 years (at 25°C / 77°F, highly dependent on cycle depth and charging) Max. Discharge Current Typically 500A for 5 seconds Self-Discharge < 3% per month at 25°C (77°F) Operating Temperature Range Discharge: -15°C to 50°C (5°F to 122°F) Charge: -15°C to 40°C (5°F to 104°F) Storage: -15°C to 40°C (5°F to 104°F) Recommended Charge Voltage Float/Standby Use: 13.5 - 13.8 V DC @ 25°C Cycle Use: 14.4 - 15.0 V DC @ 25°C

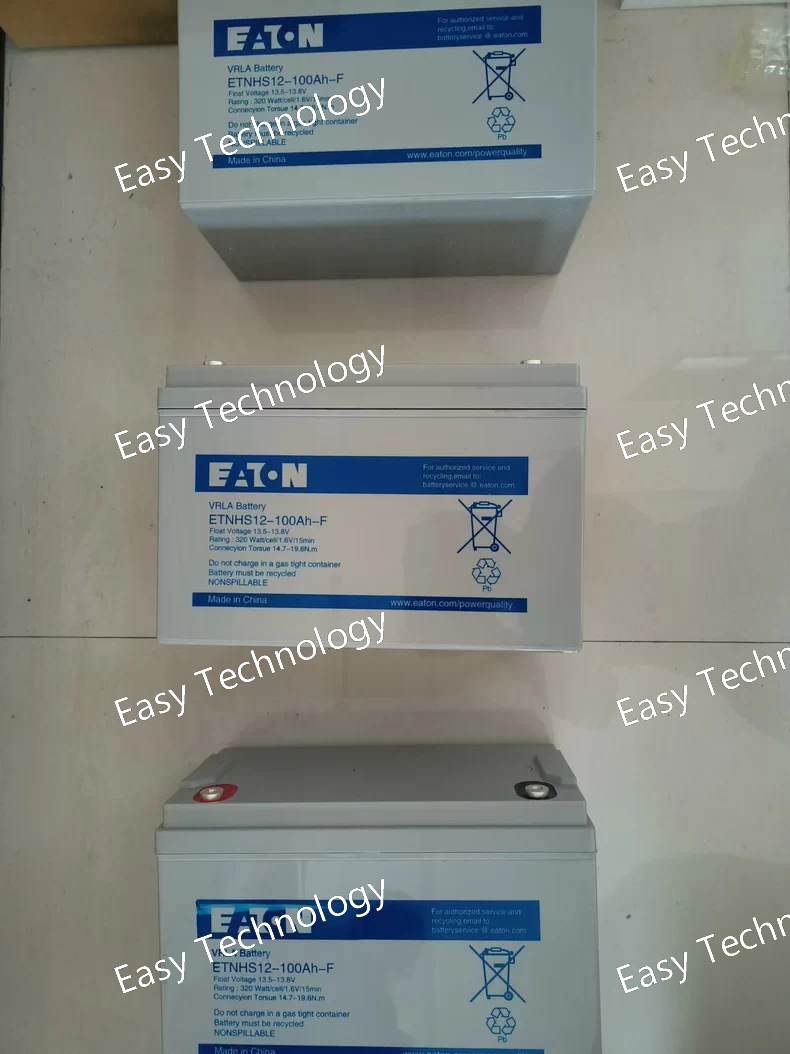

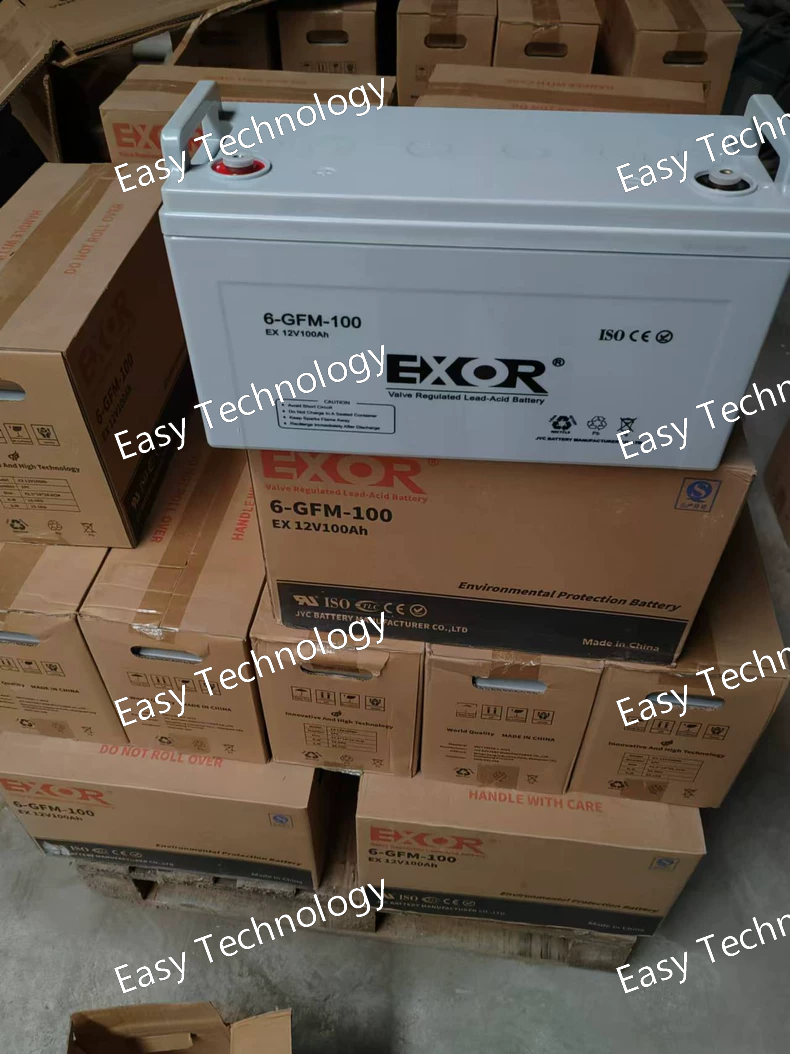

Technical Parameters Parameter Specification Product Type Valve-Regulated Lead-Acid (VRLA), GFM/AGM, Maintenance-Free Nominal Voltage 12 V Nominal Capacity 100 Ah (Typically rated at the 20-hour discharge rate, C/20, to 10.5V) Terminal Type Standard (e.g., M8 stud terminals or F10 fast-on tabs) Approximate Dimensions (L x W x H) ~ 330 x 172 x 215 mm (12.99" x 6.77" x 8.46") [Must verify from datasheet] Approximate Weight ~ 28 - 31 kg (62 - 68 lbs) Design Life 5 - 10 years (at 25°C / 77°F, highly dependent on cycle depth and charging) Max. Discharge Current Typically 500A for 5 seconds Self-Discharge ≤ 3% per month at 25°C (77°F) Operating Temperature Range Discharge: -15°C to 50°C (5°F to 122°F) Charge: -15°C to 40°C (5°F to 104°F) Storage: -15°C to 40°C (5°F to 104°F) Float Charge Voltage 13.5 - 13.8 V DC (at 25°C / 77°F) Cycle Use Charge Voltage 14.4 - 15.0 V DC (at 25°C / 77°F)

Technical Parameters) Parameter Specification Product Type Sealed Lead-Acid (SLA), AGM, Deep-Cycle Nominal Voltage 12 V Nominal Capacity 100 Ah (Typically rated at the 20-hour discharge rate, C/20) Terminal Type Standard (e.g., M8 stud terminals or similar) Approximate Dimensions (L x W x H) ~ 330 x 172 x 215 mm (12.99" x 6.77" x 8.46") [Must verify from datasheet] Approximate Weight ~ 28 - 31 kg (62 - 68 lbs) Design Life 5 - 10 years (at 25°C / 77°F, depending on cycle depth and charging) Max. Discharge Current Typically 500A for 5 seconds Self-Discharge ≤ 3% per month at 25°C (77°F) Operating Temperature Range Discharge: -15°C to 50°C (5°F to 122°F) Charge: -15°C to 40°C (5°F to 104°F) Storage: -15°C to 40°C (5°F to 104°F) Float Charge Voltage 13.5 - 13.8 V DC (at 25°C / 77°F) Cycle Use Charge Voltage 14.4 - 15.0 V DC (at 25°C / 77°F)

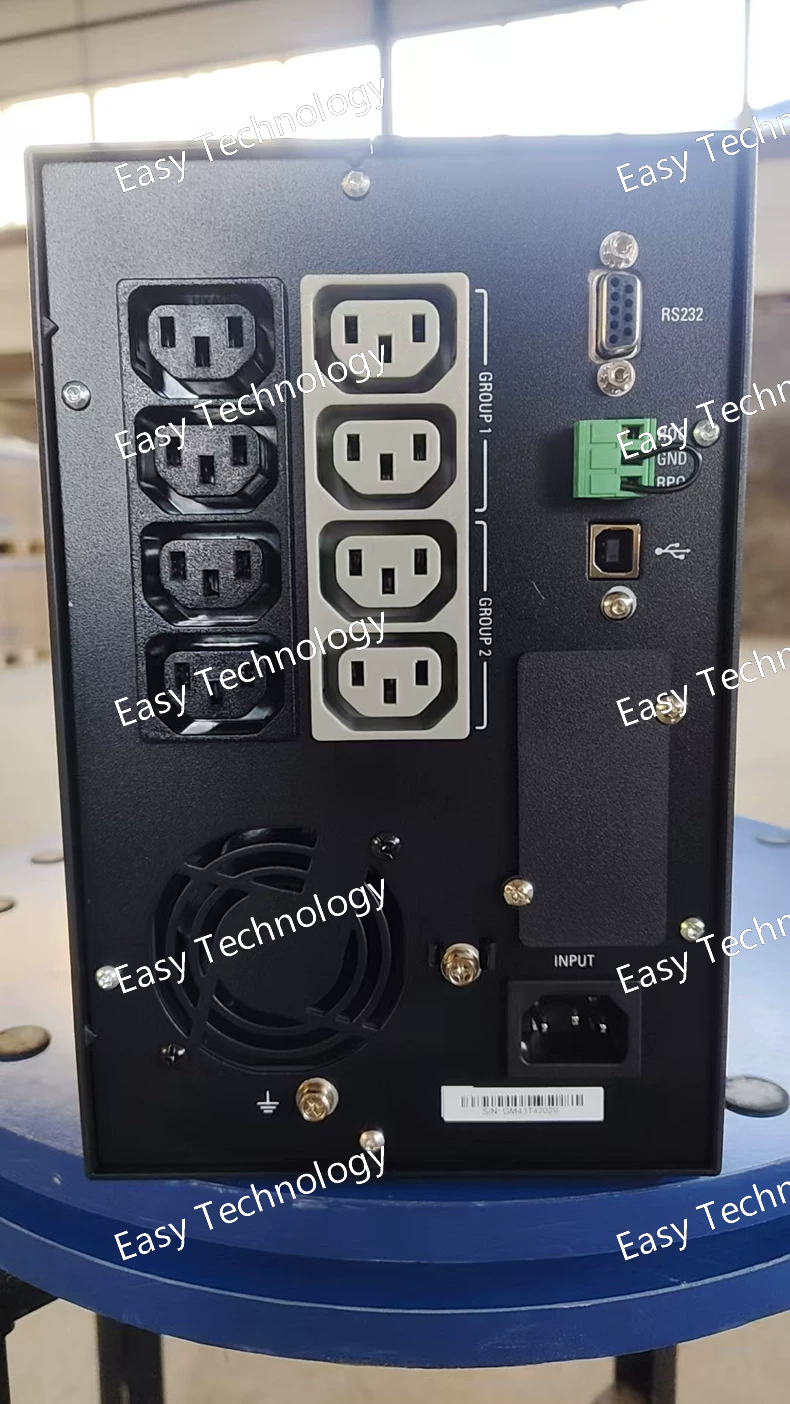

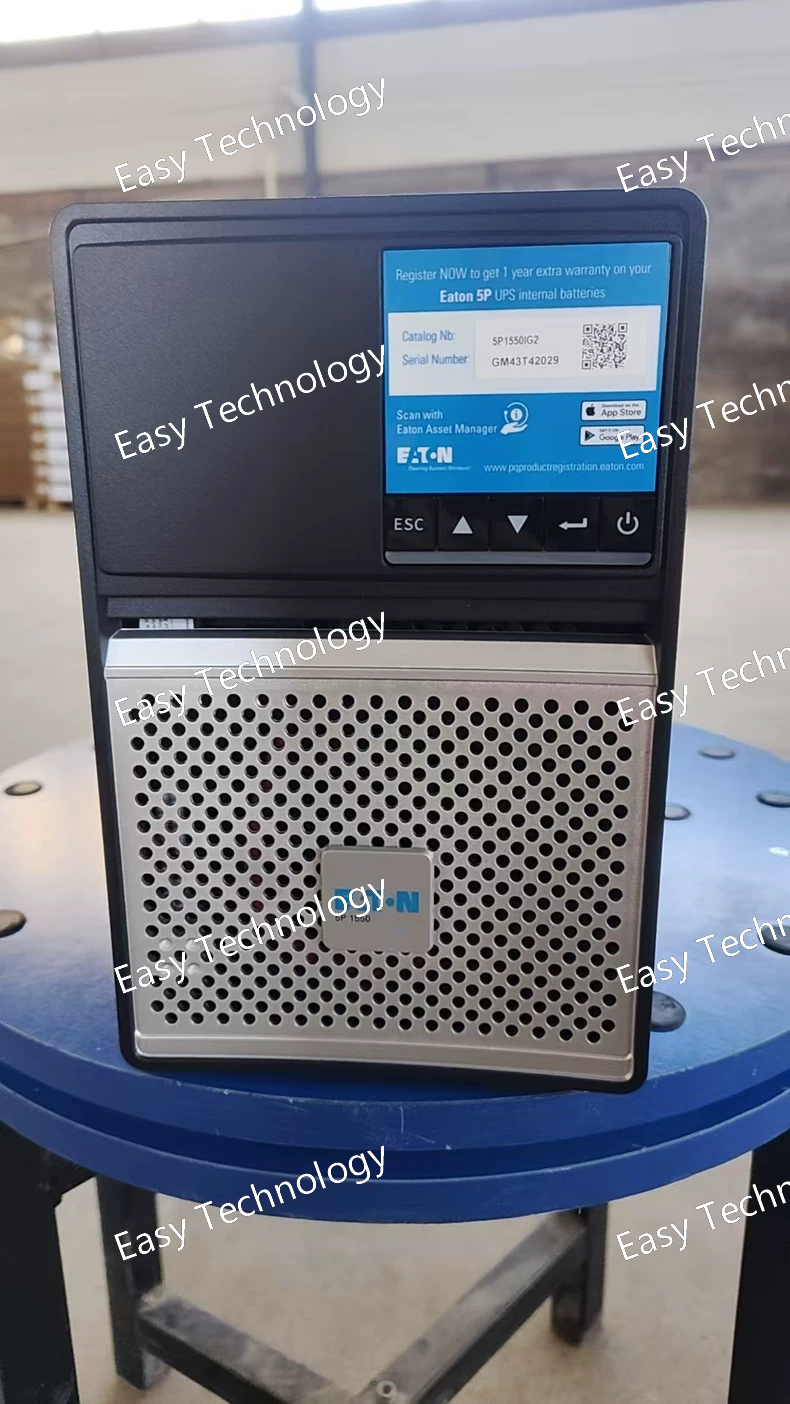

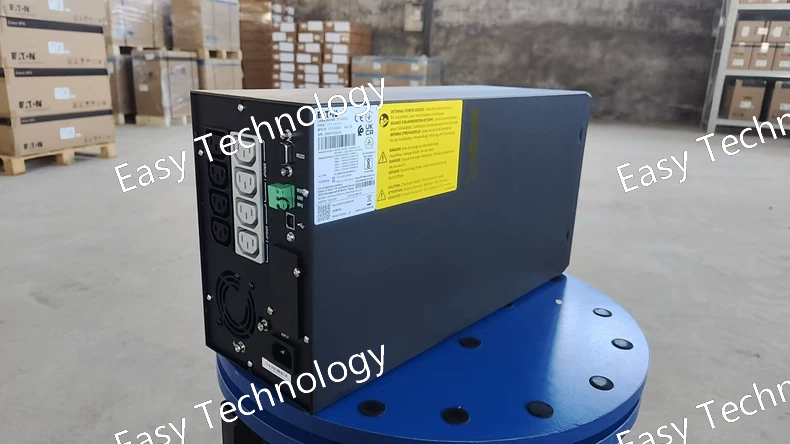

Technical Parameters Parameter Specification Product Series Eaton 5P Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 1550 VA Nominal Output Power in Watts 930 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: IEC 60320 C13 outlets (typically 6-8) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on load) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable Automatic Voltage Regulation (AVR) Yes (Corrects brownouts and overvoltages without using the battery) Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for power and battery status Form Factor Compact Tower Typical Applications Workstations, POS Systems, Network Devices (routers, switches), Home Office

Technical Parameters Parameter Specification Product Series Eaton 5P Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 1150 VA Nominal Output Power in Watts 690 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: IEC 60320 C13 outlets (typically 6-8) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on load) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable Automatic Voltage Regulation (AVR) Yes (Corrects brownouts and overvoltages without using the battery) Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for power and battery status Form Factor Compact Tower Typical Applications Workstations, POS Systems, Network Devices (routers, switches), Home Office

Technical Parameters) Parameter Specification Product Series Eaton 5P Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 850 VA Nominal Output Power in Watts 510 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: Multiple IEC 60320 C13 outlets (typically 6-8) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on load; longer at lower loads) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable, hot-swappable cartridge Automatic Voltage Regulation (AVR) Yes (Corrects brownouts and overvoltages without using the battery) Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for power and battery status Form Factor Compact Tower Typical Applications Desktop Workstations, Entry-level Servers, POS Systems, Network Devices

Technical Parameters Parameter Specification Product Series Eaton 5P Product Type Line-Interactive UPS Topology Line-Interactive Nominal Output Power 650 VA Nominal Output Power in Watts 390 W (at a typical power factor of 0.6) Input Voltage: 230 V AC (for specific regional variants) Frequency: 50 Hz (for specific regional variants) Connector: IEC 60320 C14 Output Voltage on Battery: Simulated Sine Wave Output Connectors: IEC 60320 C13 outlets (typically 4-6) Typical Runtime at Full Load A few minutes (e.g., 5-10 minutes, exact time depends on load) Battery Type: Sealed, maintenance-free Lead-Acid battery Replacement: User-replaceable Automatic Voltage Regulation (AVR) Yes (Corrects brownouts and overvoltages without using the battery) Communications USB port for connection to a computer for graceful shutdown Display & Interface LED status indicators for power and battery status Form Factor Compact Tower Typical Applications Workstations, POS Systems, Network Devices (routers, switches), Home Office Warranty Typically 2 years

Technical Parameters Parameter Typical Specification (To be verified from datasheet) Product Type Fixed, Polarized Electrolytic Capacitor Capacitance 1000 µF (Microfarads) Capacitance Tolerance Typically ±20% (e.g., M tolerance) Rated Voltage (WV) e.g., 16V DC, 25V DC, 35V DC, 50V DC (This is a CRITICAL parameter to confirm) Operating Temperature Range Typically -40°C to +85°C or +105°C Leakage Current Specified by the manufacturer's formula (e.g., I ≤ 0.01CV or 3 µA, whichever is greater) Dissipation Factor (tan δ) Specified at 120 Hz and 20°C (e.g., 0.12 max) Lead Spacing e.g., 3.5 mm, 5 mm, 10 mm (Standard radial distances) Polarization Polarized (Negative lead is typically marked by a stripe on the casing) Lifetime Typically 1000 to 5000 hours at maximum rated temperature
