Technical Parameters Parameter Specification Product Series Eaton NZM1 Product Type Electronic Trip Unit (Release) for Air Circuit Breaker Rated Current (In) of Frame 4 A (This is the fixed rating for the breaker frame) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time Overload), S (Short-time), I (Instantaneous), G (Ground Fault) Ground Fault Protection (Iₙ) Adjustable range (e.g., 0.2 - 0.8 x In or similar, specific to setting) Short-Circuit Breaking Capacity (Icu) Dependent on the complete breaker assembly, typically high (e.g., 50kA to 100kA at 400V) Trip Setting Adjustment Via DIP switches and potentiometers on the release unit Communication Capability No (The "XFIR" version is typically a standard electronic release without communication. Versions with "C" often have communication). Mounting Integrated into an NZM1 circuit breaker frame Standards Compliance IEC 60947-2, UL 1066, CSA 22.2

Technical Parameters Parameter Specification Product Series Eaton EASY Expansion Product Type Digital I/O Expansion Module Compatibility EASY500, EASY600, EASY700 series base units Number of Digital Inputs 8 Input Voltage 24 V DC (sourced from the base unit via bus connection) "1" Signal Level ≥ 13 V DC "0" Signal Level ≤ 5 V DC Number of Outputs 8 Output Type Electromechanical Relays (Changeover Contacts) Contact Configuration SPDT (1 Form C) - Each output has one Normally Open (NO) and one Normally Closed (NC) contact. Rated Load Current per Output 5 A (at 250 V AC, Resistive) Max. Switching Power per Output AC-15: 1250 VA DC-13: 90 W (at 24 V DC) Min. Switching Load 10 mA at 5 V DC Electrical Life ≥ 100,000 cycles (at rated load) Mechanical Life ≥ 10,000,000 cycles Connection Removable screw terminal blocks Power Supply Via bus connection from the base unit (no external power required) Mounting DIN Rail (35 mm, EN 60715) Standards Compliance UL 508, CSA C22.2 No. 14, IEC 61131-2, CE

Technical Parameters Parameter Specification Product Series Eaton ESR5 Product Type Miniature General Purpose Relay Contact Configuration 1 Pole, Normally Open (1NO / SPST-NO) Coil Voltage 24 V DC Nominal Power Consumption Approximately 0.9 W Rated Thermal Current (Ith) 16 A Rated Operating Voltage (Ue) 250 V AC / 400 V AC (for resistive loads) Max. Switching Power AC Loads: 3000 VA (at 250V AC) DC Loads: 90 W (at 24V DC) Rated Carry Current 20 A Electrical Life > 100,000 operations (at rated load) Mechanical Life > 10,000,000 operations Dielectric Strength Between coil and contacts: 4000 V AC Connection Type Screw terminal (6.3 x 0.8 mm) Mounting DIN Rail (with optional adapter), Panel Mount, or PCB Mount Status Indication Mechanical flag indicator Standards Compliance IEC/EN 61810-1, UL 508, CSA C22.2 No. 14, cULus

Technical Parameters Parameter Specification Product Series Eaton FRCmM Product Type Residual Current Operated Circuit Breaker (RCBO) Number of Poles 1 Pole + Neutral (1P+N) Rated Current (In) 63 A Rated Voltage 230 V AC Rated Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to AC and pulsating DC residual currents) Rated Breaking Capacity (Icn) 4.5 kA (4,500 A) according to IEC/EN 60898-1 Tripping Characteristic (MCB) C (Instantaneous trip: 5 to 10 x In) [Note: Common for this series, verify from datasheet] Mechanical Life ≥ 20,000 cycles Electrical Life ≥ 10,000 cycles Terminal Connection Suitable for rigid and flexible copper conductors Mounting DIN Rail Mounting (35 mm, EN 60715) Standards Compliance IEC/EN 61009-1, IEC/EN 60898-1

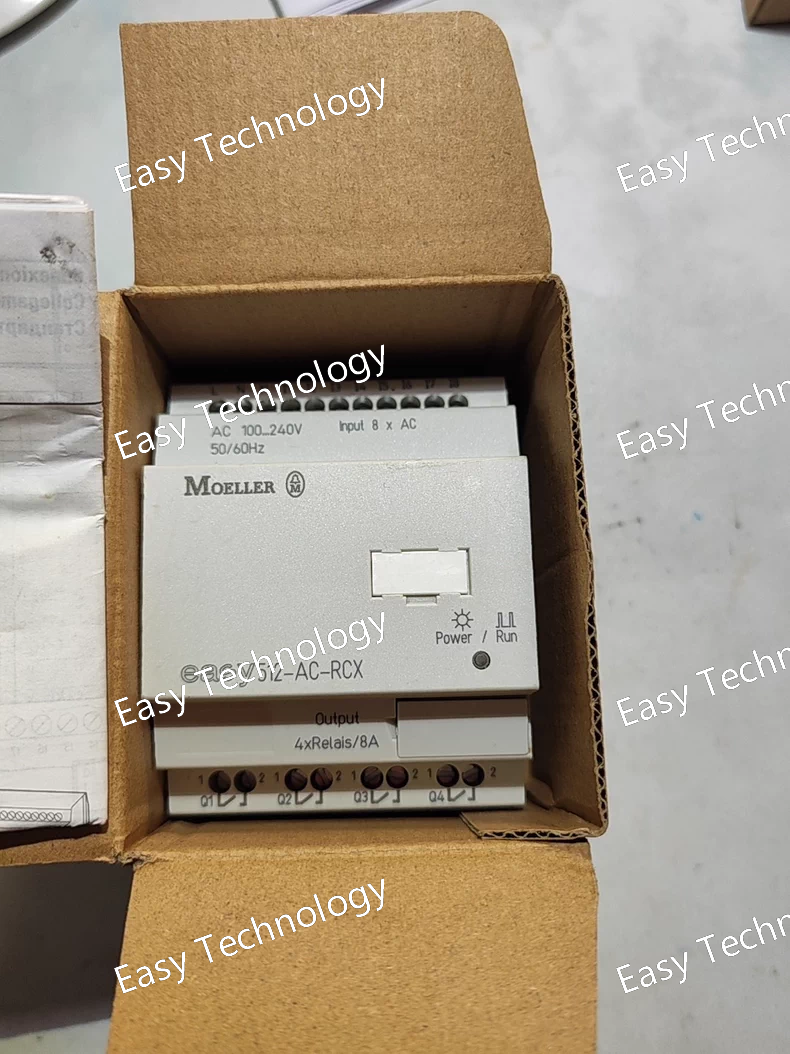

Technical Parameters Parameter Specification Product Series Eaton EASY500 Product Type Programmable Relay (Smart Relay) Power Supply Voltage 100 - 240 V AC, 50/60 Hz Rated Current from Supply Typically < 50 mA (at 230V AC) Digital Inputs 12 (The exact number is part of the "512" code. Verify with datasheet) Input Type Digital, AC or DC version depending on specific model Input Voltage Typically 24V DC or 110/230V AC (depending on model) Relay Outputs 8 (The exact number is part of the "512" code. Verify with datasheet) Output Type Electromechanical Relays (with NO/NC contacts) Rated Load per Relay Output Typically 5 A / 250 V AC (Resistive) Program Memory Varies, but sufficient for several hundred network elements Program Language EASY-SOFT (Ladder Diagram / Function Block style) Integrated Display Yes, LCD with backlight Integrated Interface Yes, tactile buttons Expansion Modules Supported (EASY-...-EXP) Real-Time Clock Yes (for time-switching functions) Mounting DIN Rail (EN 60715) Standards Compliance UL 508, CSA C22.2 No. 14, IEC 61131-2, CE, cULus

Technical Parameters Parameter Specification Product Series Eaton XNE (Moeller Series) Product Type Digital Input Module Number of Channels 8 Channel Type Digital Input (DI) Input Type Sinking (compatible with PNP sensors) Rated Input Voltage 24 V DC Operating Voltage Range Typically 19.2 - 30 V DC Input Current per Channel Typically 3-5 mA @ 24V DC "1" Signal Level ≥ 15 V DC (Logic High) "0" Signal Level ≤ 5 V DC (Logic Low) Connection Type Removable screw terminal block Isolation Between field side and system side Status Indication LED per channel (green) Mounting DIN Rail (35 mm, EN 60715) Compatibility Eaton XNE PLC Systems (e.g., with XNExx CPU or BUS Coupler) Standards Compliance IEC 61131-2, UL 508, CE, cULus

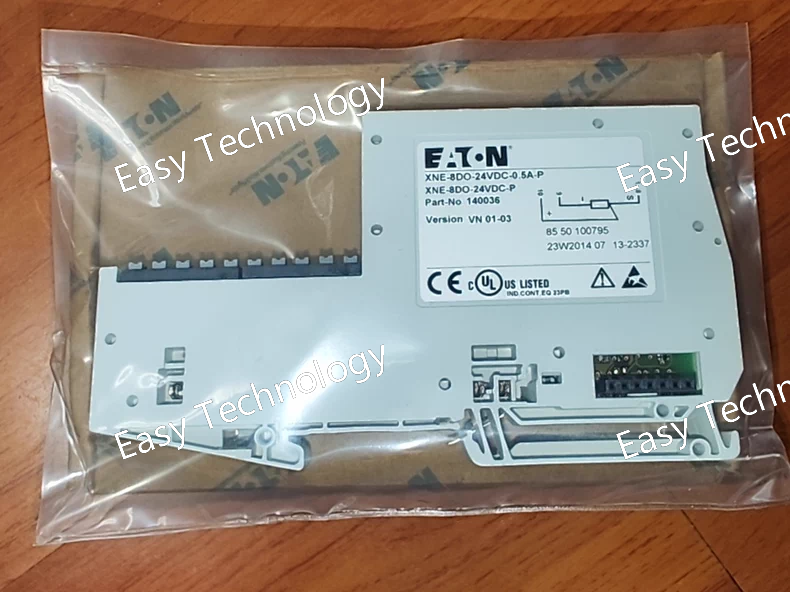

Technical Parameters Parameter Specification Product Series Eaton XNE (Moeller Series) Product Type Digital Output Module Number of Channels 8 Channel Type Digital Output (DO) Output Type Sourcing (P-Switching) Rated Load Voltage 24 V DC Rated Output Current per Channel 0.5 A Total Max. Current per Module Typically ~4 A (for all 8 channels combined, subject to derating) Power Supply Voltage 24 V DC (via system backplane) Switching Element Transistor (MOSFET) Load Type Resistive, Inductive, Lamp Load Connection Type Removable screw terminal block Isolation Between field side and system side Status Indication LED per channel (green) Mounting DIN Rail (35 mm, EN 60715) Compatibility Eaton XNE PLC Systems (e.g., with XNExx CPU or BUS Coupler) Standards Compliance IEC 61131-2, UL 508, CE, cULus

Technical Parameters Parameter Specification Product Series Eaton EASY719 Product Type Electronic Soft Starter with Integrated Bypass Contactor Rated Operational Voltage (Ue) 208 - 690 V AC, 50/60 Hz Motor Power Range At 400V: 5.5 kW / 7.5 HP (Please verify for other voltages, e.g., 4 kW @ 230V, 7.5 kW @ 480V, 11 kW @ 690V) Rated Operational Current (Ie) 12 A to 18 A (Depending on cooling condition and application) Setting Range Current 1 - 18 A (Adjustable) Starting Current (Limit) 150% - 500% of set current (Adjustable) Starting Time 1 - 30 seconds (Adjustable) Stopping Time 1 - 30 seconds (Adjustable for "Soft Stop") Control Connections 3 x Main Power (L1, L2, L3) 3 x Motor Output (T1, T2, T3) Screw terminal block for control wiring (Start, Stop, Relay outputs, etc.) Bypass Contactor Integrated Protection Features Overload, Phase Loss / Unbalance, Anti-jamming / Stall, Over-temperature Status Indication LED Indicators (Power, Run, Bypass, Fault) Mounting DIN Rail Mounting (EN 60715) Standards Compliance IEC/EN 60947-4-2, UL 508, CE

Technical Parameters Parameter Specification Product Series Eaton MFD Product Type Miniature Circuit Breaker (MCB) Number of Poles Single Pole (1P) Rated Current (In) 80 A Rated Voltage (Ue) 230/400 V AC Tripping Characteristic Type B (Instantaneous trip: 3 to 5 x In) Breaking Capacity (Icn) 10 kA (10,000 A) at 400V AC (Please verify specific catalog, as it may be 6kA or 10kA depending on the market) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Electrical Life ≥ 10,000 cycles Mechanical Life ≥ 20,000 cycles Terminal Connection Suitable for copper and aluminum cables (torque specifications to be checked in manual) Mounting DIN Rail Mounting (EN 60715) Width (Modular Size) 17.5 mm (1 module)

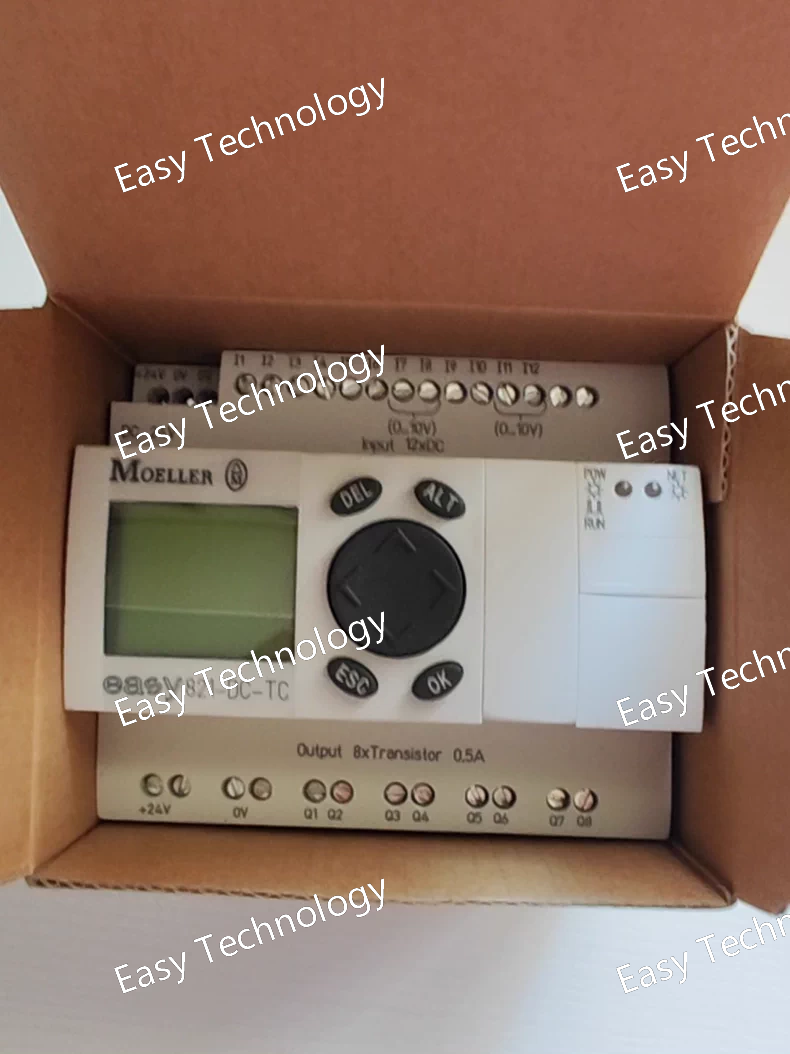

Technical Parameters Category Specification Product Model EASY821-DC-TC Product Line EASY800 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 24 V DC (Range: 19.2 - 28.8 V DC) Power Consumption Typically 12 W (including loads) Core Processor 8-bit microcontroller User Program Memory 1,000 function blocks (non-volatile) Data Memory 128 flags (non-volatile) Real-Time Clock (RTC) Integrated (buffered for approx. 80 hours at 25°C) Digital Inputs 8 x Digital Inputs • 24 V DC (sinking/sourcing) • 2 inputs are multi-functional and can be used as analog inputs (0-10 V) or high-speed counters (5 kHz) Digital Outputs 6 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs 2 x Analog Inputs (shared with 2 multi-functional digital inputs) • Voltage Range: 0 - 10 V DC • Resolution: 8 bit High-Speed Counters 2 x High-Speed Counters (shared with 2 multi-functional digital inputs) • Frequency: up to 5 kHz Display & Operation Integrated Text Display (TC) • 2-line, 16-character backlit LCD • 4 navigation keys for programming and operation Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY800 devices (via RJ12) • PC Connection: For programming with EASY-SOFT software Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 126 x 90 x 64 mm
