Technical Parameters Parameter Specification Product Series Eaton IQ100 Product Type RCBO (Residual Current Breaker with Overcurrent) Number of Poles 1 Pole + Neutral (1P+N) Rated Current (In) 25 A Rated Voltage 230 V AC Rated Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to AC and pulsating DC residual currents) Tripping Characteristic (MCB) Type C (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) 10 kA (10,000 A) Standards Compliance IEC 61009-1, IEC 60898-1 Mechanical Life ≥ 20,000 cycles Mounting DIN Rail Mounting (35 mm) Width (Modular Size) 18 mm (1 module)

Technical Parameters Parameter Specification Product Series Eaton IQ200 Product Type RCBO (Residual Current Breaker with Overcurrent) Number of Poles 1 Pole + Neutral (1P+N) Rated Current (In) 16 A Rated Voltage 230 V AC Rated Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to AC and pulsating DC residual currents) Tripping Characteristic (MCB) Type C (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) 10 kA (10,000 A) Standards Compliance IEC 61009-1, IEC 60898-1 Mechanical Life ≥ 20,000 cycles Mounting DIN Rail Mounting (35 mm) Width (Modular Size) 18 mm (1 module)

Technical Parameters Parameter Specification Product Series Eaton IQ100 Product Type RCBO (Residual Current Breaker with Overcurrent) Number of Poles 1 Pole + Neutral (1P+N) Rated Current (In) 16 A Rated Voltage 230 V AC Rated Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to AC and pulsating DC residual currents) Tripping Characteristic (MCB) Type C (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) 10 kA (10,000 A) Standards Compliance IEC 61009-1, IEC 60898-1 Mechanical Life ≥ 20,000 cycles Mounting DIN Rail Mounting (35 mm) Width (Modular Size) 18 mm (1 module)

Technical Parameters Parameter Typical Specification / Description Product Series Eaton ZP (Accessories for Power Distribution) Product Type Insulated Hub Kit / Cable Gland Kit Material Polyamide (PA) or other robust, insulating plastic Sealing Ring Material EPDM or NBR IP Rating (when properly installed) IP66 / IP67 Temperature Range e.g., -40°C to +100°C Nominal Entry Size Specific metric or PG thread size (e.g., M25, M32, PG21) [Must be confirmed from the specific kit] Suitable Cable Diameter Range Specified for each hub size (e.g., for cables from 8mm to 13mm) Standards Compliance IEC 60947-7-2, UL, CSA

Technical Parameters Parameter Specification Product Series Eaton NZM4 Product Type Electronic Trip Unit with Communication Rated Current (In) of Frame 1100 A (This is the fixed rating for this specific trip unit) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time), S (Short-time), I (Instantaneous), G (Ground Fault) Communication Protocol Modbus RTU (via RS-485 interface) - Verify specific protocol from datasheet Setting Adjustment Programmable via front interface or communication network Display Typically includes an LCD for status and fault indication Mounting Integrated into a compatible NZM4 circuit breaker frame Standards Compliance IEC 60947-2

Technical Parameters Parameter Specification Product Series Eaton NZM4 Product Type Programmable Electronic Trip Unit with Metering & Communication Rated Current (In) of Frame The specific current rating is not defined by "XTVD-NA" alone. It must be matched with a compatible NZM4 breaker frame (e.g., 800A, 1600A, 3200A). Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time), S (Short-time), I (Instantaneous), G (Ground Fault) Measurement Parameters Current, Voltage, Power, Power Factor, Frequency, Energy, etc. Communication Protocol Modbus RTU (via RS-485 interface) - Verify specific protocol from datasheet Display Integrated LCD Setting Adjustment Programmable via front interface or communication network Mounting Integrated into a compatible NZM4 circuit breaker frame Standards Compliance IEC 60947-2

Technical Parameters Parameter Specification Product Series Eaton NZM3 Product Type Electronic Trip Unit (Release) for Air Circuit Breaker Rated Current (In) of Frame 100 A (This is the fixed rating for this specific trip unit) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time Overload), S (Short-time), I (Instantaneous), G (Ground Fault) Communication Capability No (The "XKA" version is a standard electronic release without communication) Trip Setting Adjustment Via DIP switches and potentiometers on the release unit Display Typically includes an LED or LCD display for status and fault indication Mounting Integrated into a compatible NZM3 circuit breaker frame Standards Compliance IEC 60947-2

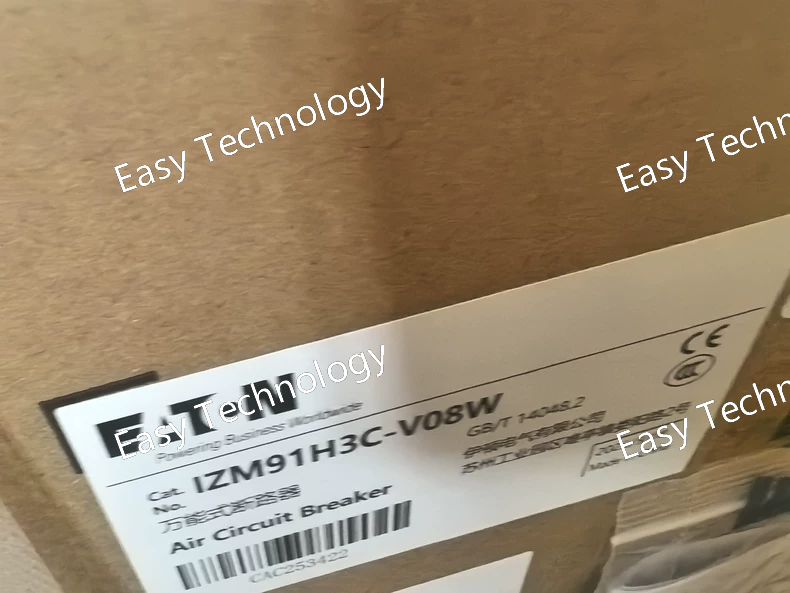

Technical Parameters Parameter Specification Product Series Eaton IZM91 Product Type Fixed Mounted Air Circuit Breaker (ACB) Rated Operational Current (Ie) 1250 A Rated Ultimate Breaking Capacity (Icu) Typically 85 kA to 100 kA at 415V AC (IEC 60947-2). Must be verified from the specific catalog/datasheet. Rated Service Breaking Capacity (Ics) Typically a high percentage of Icu (e.g., 100%) Poles 3 Rated Insulation Voltage (Ui) 1000 V Rated Operational Voltage (Ue) 690 V AC Trip Unit Type Electronic (V08W) Protection Functions L (Long-time), S (Short-time), I (Instantaneous), G (Ground-fault) - all adjustable Mounting Fixed Standards Compliance IEC 60947-2

Technical Parameters Parameter Specification Product Series Eaton SL4 Product Type Switched-Mode Power Supply (SMPS) Output Voltage 24 V DC Output Current 2.5 A Output Power 60 W Input Voltage Range 100 - 240 V AC (50/60 Hz) Efficiency Typically >89% Power Factor (λ) Typically >0.65 Protections Overload, Overvoltage, Short-circuit Cooling Natural convection (fanless) Mounting DIN Rail (35 mm) Operating Temperature -25°C to +70°C (with derating) Safety Standards UL 508, CSA C22.2 No. 107.1, IEC 62368-1 EMC Standards complies with IEC 61000-6-2, IEC 61000-6-3

Technical Parameters Parameter Specification Product Series Eaton PKW (Busbar Trunking System Accessory) Product Type Remote Control and Signaling Unit / Switch-Disconnector Module Function Remote ON/OFF control and status indication for busbar tap-offs Rated Operational Voltage (Ue) e.g., 400/690 V AC Rated Control Supply Voltage (Us) A standard control voltage (e.g., 24V DC or 230V AC). Must be confirmed from datasheet. Auxiliary Contacts Typically 1 Changeover (CO) contact (SPDT - 1 NO + 1 NC) Rated Current of Auxiliary Contacts e.g., 6 - 10 A Status Indication LED(s) for ON/OFF state Mounting Designed for attachment to PKW busbar systems Standards Compliance IEC 61439-6, etc.
