Technical Parameters Parameter Specification Product Series Eaton EIS Product Type Load Break Switch / Disconnector Rated Operational Current (Ie) 63 A Number of Poles 4 (3 phases + neutral) Rated Operational Voltage (Ue) 400 V AC Rated Insulation Voltage (Ui) 500-690 V AC Utilization Category AC-22A / AC-23A Mechanical Life ≥ 20,000 operations Electrical Life ≥ 5,000 operations at rated current Protection Degree IP20 (when properly installed in enclosure) Mounting DIN Rail (35 mm) Terminal Type Screw clamp Torque Requirement Typically 2.5-3.0 Nm Standards Compliance IEC 60947-3

Technical Parameters Parameter Specification Product Series Eaton EIS Product Type Load Break Switch / Disconnector Rated Operational Current (Ie) 63 A Number of Poles 3 Rated Operational Voltage (Ue) 400 V AC Rated Insulation Voltage (Ui) 500 V AC Utilization Category AC-22A or AC-23A Mechanical Life Typically 20,000 operations Electrical Life Typically 5,000 operations at rated current Protection Degree IP20 (when mounted in appropriate enclosure) Mounting DIN Rail (35 mm) Terminal Type Screw clamp Standards Compliance IEC 60947-3

Technical Parameters Parameter Specification Product Series Eaton NZN2 / NZN3 Product Type Undervoltage Release (UVR) / Shunt Release Rated Control Supply Voltage (Us) 24 V DC Trip Voltage Range Typically trips between 70% and 35% of Us (e.g., ~16.8V to ~8.4V) Power Consumption Typically <15 W Mounting Integrated into a compatible NZN2/NZN3 circuit breaker Function Trips the breaker when control voltage is lost; prevents closing when de-energized Standards Compliance IEC 60947-2

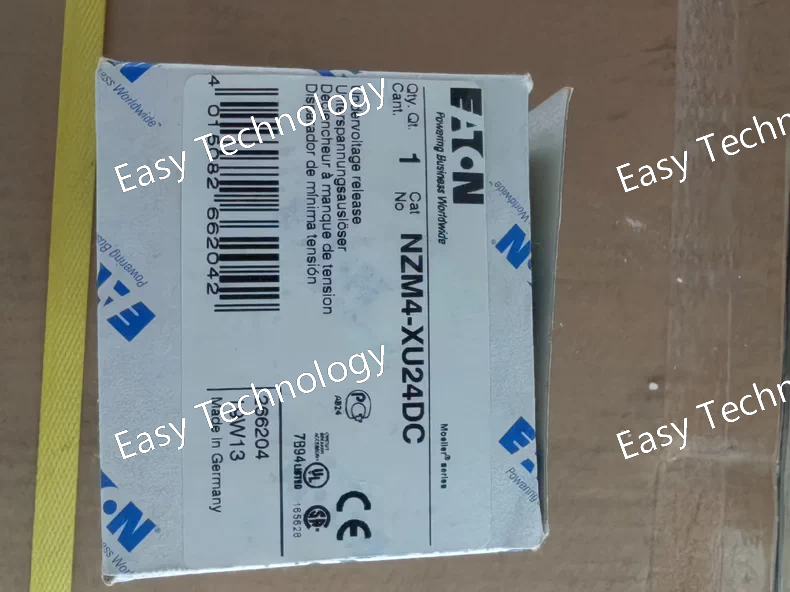

Technical Parameters Parameter Specification Product Series Eaton NZM4 Product Type Undervoltage Release (UVR) / Shunt Release Rated Control Supply Voltage (Us) 24 V DC Trip Voltage Range Typically trips between 70% and 35% of Us (e.g., ~16.8V to ~8.4V) Mounting Integrated into a compatible NZM4 circuit breaker frame Function Trips the breaker when control voltage is lost; prevents closing when de-energized Standards Compliance IEC 60947-2

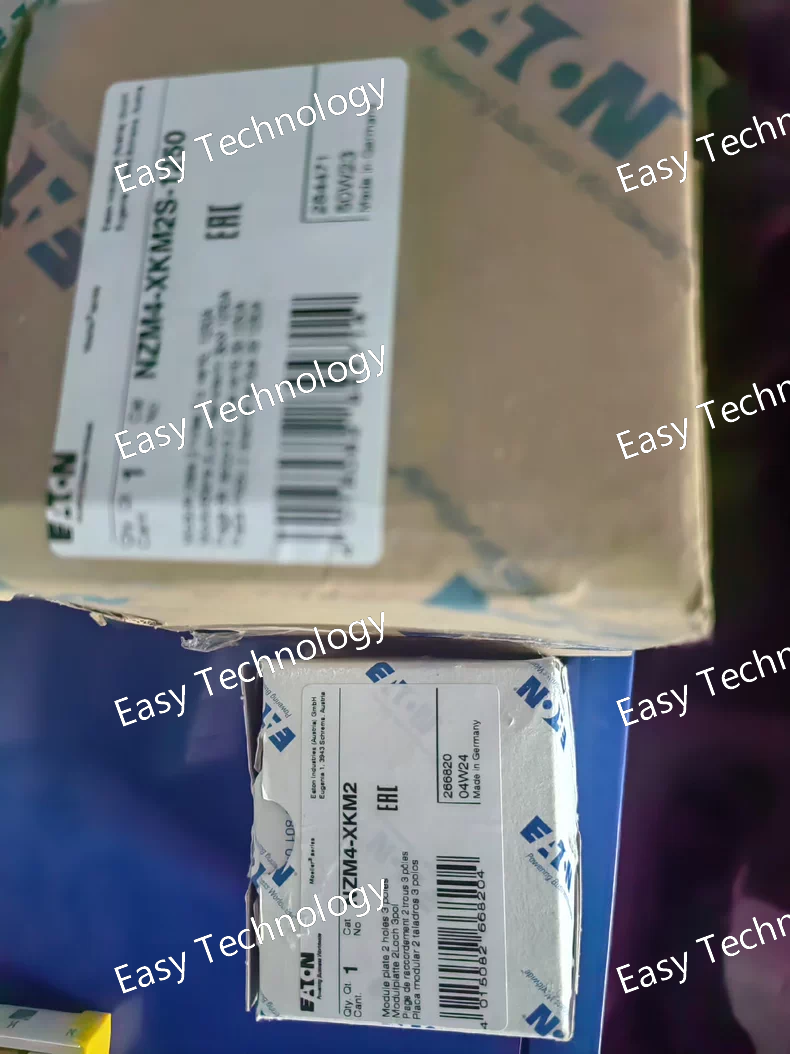

Technical Parameters Parameter Specification Product Series Eaton NZM4 Product Type Electronic Trip Unit (Release) for Air Circuit Breaker Rated Current (In) of Frame 100 A (This is the fixed rating for this specific trip unit) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time Overload), S (Short-time), I (Instantaneous), G (Ground Fault) Communication Capability No (The "XKM" version is a standard electronic release without communication) Trip Setting Adjustment Via DIP switches and potentiometers on the release unit Display Typically includes an LED or LCD display for status and fault indication Mounting Integrated into a compatible NZM4 circuit breaker frame Standards Compliance IEC 60947-2

Technical Parameters Parameter Specification Product Series Eaton NZM3 Product Type Electronic Trip Unit with Communication Rated Current (In) of Frame 700 A (This is the fixed rating for this specific trip unit) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Protection Functions L (Long-time), S (Short-time), I (Instantaneous), G (Ground Fault) Communication Protocol Modbus RTU (via RS-485 interface) - Verify specific protocol from datasheet Setting Adjustment Programmable via front interface or communication network Display Typically includes an LCD for status and fault indication Mounting Integrated into a compatible NZM3 circuit breaker frame Standards Compliance IEC 60947-2

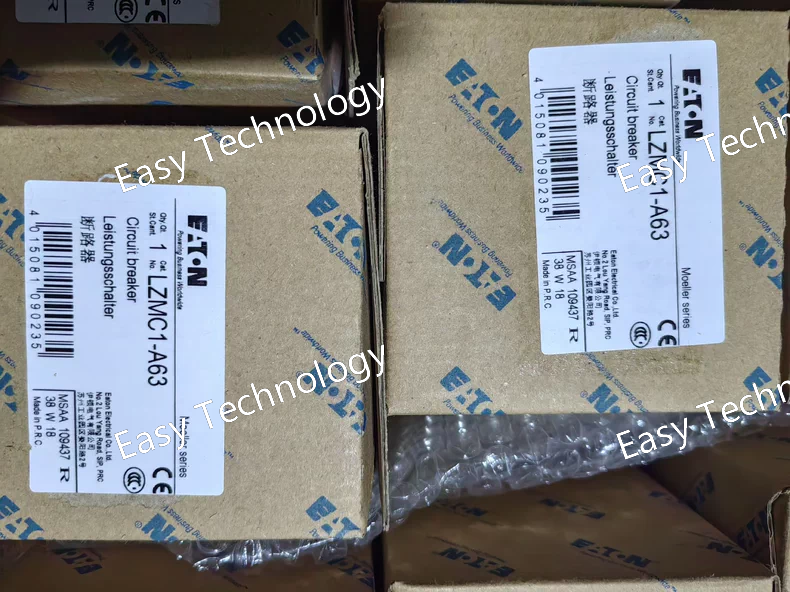

Technical Parameters Parameter Specification Product Series Eaton LZMC1 Product Type Molded Case Circuit Breaker (MCCB) Rated Operational Current (Ie) 63 A Poles 3 Trip Unit Type Fixed Thermal-Magnetic Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 800 V AC Rated Frequency 50/60 Hz Short-Circuit Breaking Capacity (Icu) Typically 10 kA to 25 kA (e.g., at 400V AC per IEC 60947-2). Must be verified from the specific catalog/datasheet. Mounting Fixed Mounting (on DIN Rail or panel) Standards Compliance IEC 60947-2, UL 489, CSA C22.2 No. 5

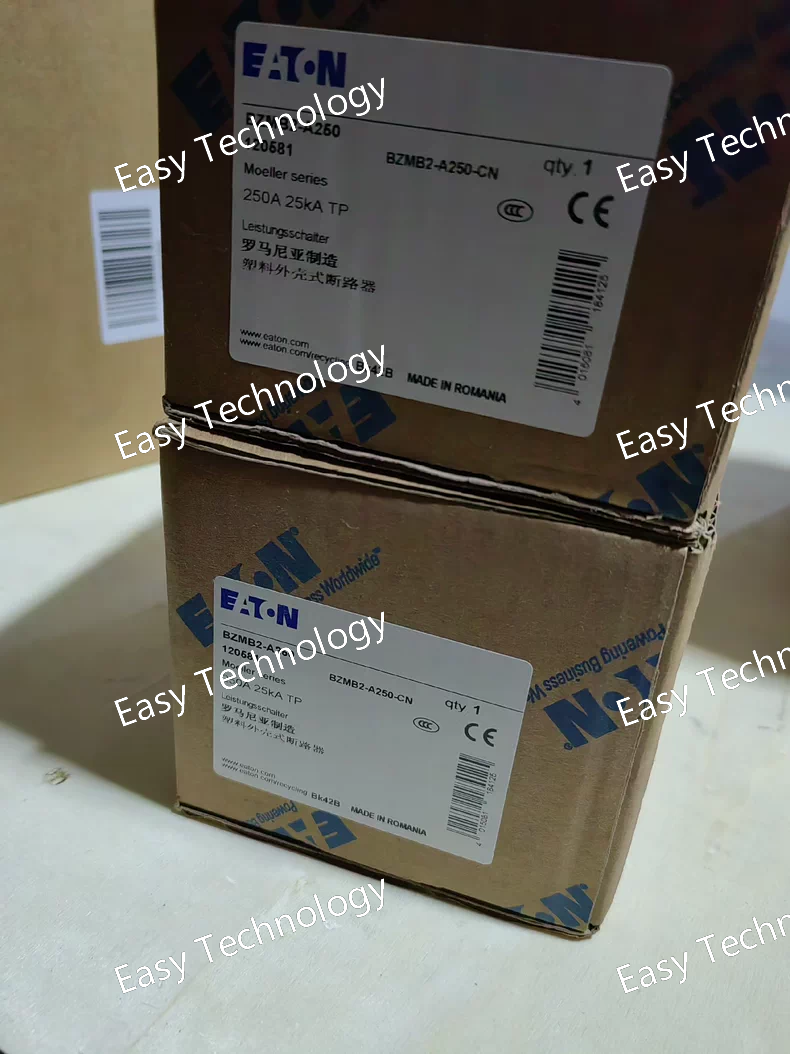

Technical Parameters Parameter Specification Product Series Eaton BZMB2 Product Type Molded Case Circuit Breaker (MCCB) Rated Operational Current (Ie) 250 A Poles 3 Trip Unit Type Fixed Thermal-Magnetic Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Frequency 50/60 Hz Short-Circuit Breaking Capacity (Icu) Typically 25 kA to 36 kA at 415V AC (IEC 60947-2). Must be verified from the specific catalog/datasheet. Mounting Fixed Mounting Standards Compliance IEC 60947-2, UL 489, CSA C22.2 No. 5

Technical Parameters Parameter Specification Product Series Eaton IQ100 Product Type RCBO (Residual Current Breaker with Overcurrent) Number of Poles 1 Pole + Neutral (1P+N) Rated Current (In) 16 A Rated Voltage 230 V AC Rated Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to AC and pulsating DC residual currents) Tripping Characteristic (MCB) Type C (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) 10 kA (10,000 A) Standards Compliance IEC 61009-1, IEC 60898-1 Mechanical Life ≥ 20,000 cycles Mounting DIN Rail Mounting (35 mm) Width (Modular Size) 18 mm (1 module)

Technical Parameters Parameter Specification Product Series Eaton IQ200 Product Type RCBO (Residual Current Breaker with Overcurrent) Number of Poles 1 Pole + Neutral (1P+N) Rated Current (In) 25 A Rated Voltage 230 V AC Rated Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to AC and pulsating DC residual currents) Tripping Characteristic (MCB) Type C (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) 6 kA (6,000 A) Standards Compliance IEC 61009-1, IEC 60898-1 Mechanical Life ≥ 20,000 cycles Mounting DIN Rail Mounting (35 mm) Width (Modular Size) 18 mm (1 module)
