Technical Parameters Parameter Value / Description for 167DA-85 Fisher Model Number 167DA-85 Type Direct-Operated Pressure Reducing Regulator Orifice Size / Connection 1/2 inch Female NPT - This is the key identifier for the -85 suffix. Body Material Diecast Zinc Trim Materials Typically includes EPDM gaskets, Neoprene diaphragm, and reinforced elastomer valve head. Max Inlet Pressure (P1) 400 psig (28 bar) Outlet Pressure Range (P2) 5 to 125 psig (0.3 to 8.6 bar) - This is the most common spring range for this model. Temperature Range -20°F to +150°F (-29°C to +66°C) Flow Coefficient (Cv) Approximately 3.0 (varies with specific pressure drop)

Technical Parameters Parameter Value / Description Fisher Model Number 1V659905092 Type Pilot-Operated Pressure Reducing Regulator Valve Size (Pipe Size) 4 inch (4") Orifice Size Correlated to valve size (e.g., 4 inch) End Connections Flanged (Typically RF or RTJ) Pressure Rating (ANSI Class) Class 300 Body Material Carbon Steel (e.g., WCB) Trim Material Standard Trim (Typically 304 Stainless Steel) Diaphragm Material Typically Nitrile (Buna-N) for standard service. Max Inlet Pressure (P1) Up to 720 psig (50 bar) approximately (based on Class 300 rating). Outlet Pressure Range (P2) Determined by the spring range. Common examples: 20-125 psig, 50-250 psig, or other ranges. Must be confirmed from order records. Temperature Range Standard: -20°F to +150°F (-29°C to +66°C) with standard elastomers.

Technical Parameters Parameter Value / Description Fisher Model Number 1V711606242 Type Pilot-Operated Pressure Reducing Regulator Valve Size (Port Size) 2 inch (2") - Note: This is the port size, not necessarily the pipe size. Orifice Size Typically 2 inch (Depending on trim) End Connections Flanged (RF or RTJ are common) Pressure Rating (ANSI Class) Class 300 (or as specified) Body Material Carbon Steel (e.g., WCB) Trim Material Standard Trim (e.g., 304 Stainless Steel) Main Diaphragm Material Typically Nitrile (Buna-N) for standard service. Max Inlet Pressure (P1) Varies with body rating, e.g., up to 750 psig (51.7 bar) for Class 300. Outlet Pressure Range (P2) Depends on the installed spring range. Example Ranges: 3 to 9 psig, 8 to 30 psig, 20 to 60 psig, etc. Temperature Range Standard: -20°F to +150°F (-29°C to +66°C) with standard elastomers.

Technical Parameters Parameter Value / Description Fisher Model Number 1V711606242 Type Pilot-Operated Pressure Reducing Regulator Valve Size (Port Size) 2 inch (2") Orifice Size Typically 2 inch (Depending on trim) End Connections Flanged (RF or RTJ are common) Pressure Rating (ANSI Class) Class 300 (or as specified) Body Material Carbon Steel (e.g., WCB) Trim Material Standard Trim (e.g., 304 Stainless Steel) Main Diaphragm Material Typically Nitrile (Buna-N) or other elastomers for standard service. Pilot Diaphragm Material Typically Nitrile (Buna-N) Max Inlet Pressure (P1) Varies with body rating, e.g., up to 750 psig (51.7 bar) for Class 300. Outlet Pressure Range (P2) Depends on the specific spring range installed. Example Spring Ranges: 3 to 9 psig, 8 to 30 psig, 20 to 60 psig, etc. Temperature Range Standard: -20°F to +150°F (-29°C to +66°C) with standard elastomers. Higher temperatures with special materials. Pilot Connection Size 1/2 inch NPT Leakage Class Class IV (Metal-to-metal seat) or Class VI (Soft seat) depending on trim.

Key Specifications / Parameters Part Number: 2E800002202 Product Type: Diaphragm (actuator component) Compatible Actuator Series: Fisher Type 667 Actuator Size Fitment: Size 30 Material: Nitrile elastomer (NBR) Approximate Diameter: ~30 inches for the diaphragm (as listed for size 30) Application: Replacement diaphragm for size 30 pneumatic actuator in valve systems Status: Discontinued/Legacy part (as indicated in some listings)

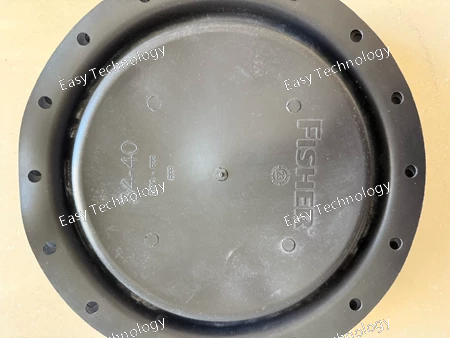

Key Specifications / Parameters Part Number: 2E 669902202 Product Type: Actuator diaphragm Material: Nitrile elastomer (NBR) Compatible Actuator Model: Fisher Type 667, size range 34/40 Diameter: ~13.125 inches (13‑1/8″) Mounting Hole Count: 16 holes around the periphery Weight: ~0.65 lbs (as listed) Status: Discontinued by manufacturer (legacy spare part)

Key Specifications / Parameters Part Number: 2E859802202 Product Type: Actuator diaphragm Compatible Actuator Series: Fisher Type 667 Actuator Size Fitment: Size 60 Material: Nitrile elastomer (NBR) Diameter Approximate: 18 5/8 inches (~473 mm) Mounting Hole Count: 24 holes around the periphery (for Size 60) Application: Replacement part for industrial process control valve actuators where a properly functioning diaphragm is required for accurate valve actuation and response.

Key Specifications / Parameters Part Number: 2E859702202 Product Type: Diaphragm (actuator component) Compatible Actuator Model: Fisher Model 657, Size 60 Material: Nitrile (NBR) elastomer Diameter: ~18.625 inches (18‑5/8″) Hole Count: 24 mounting holes Application: Used to actuate sliding‑stem control valves by converting air pressure to mechanical movement through the actuator diaphragm

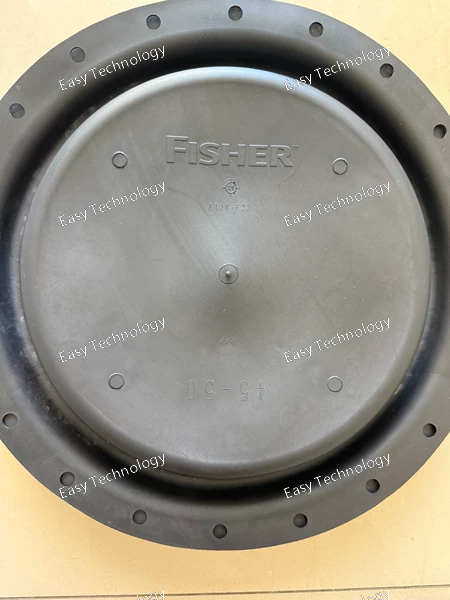

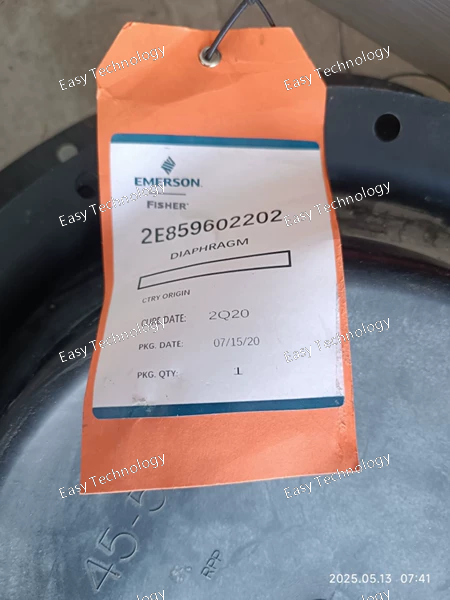

Key Specifications / Parameters Parameter Description / Value Part Number 2E859602202 Product Type Diaphragm (actuator component) Material Nitrile rubber (NBR) Compatible Actuator Fisher Type 667 (and also cited for Type 657) Actuator Size Size 45/50 (as indicated) Dimensions Diameter approx 16″ (≈406 mm), with 20 holes across the periphery Application Replacement part for piston‑style/bellows‑style pneumatic actuators in control valves

Typical Technical Parameters Parameter Specification / Note Product Line FIELDVUE DVC6200 Assembly Model 2E859502202 Input Signal 4-20 mA HART or Foundation Fieldbus (Specific type defined by full order code) Supply Air Pressure 20 to 150 psi (1.4 to 10.3 bar) - Actuator Dependent Air Consumption Very low quiescent flow Enclosure Rating NEMA 4X (IP66/67) Ambient Temperature -40° to 185°F (-40° to 85°C) Travel Range Actuator Dependent. Defined by the specific actuator in the assembly. Valve Shutoff Rating Valve Dependent. Defined by the specific valve body included in the assembly. Mounting Directly on linear or rotary actuators (Pre-assembled unit)
