Technical Specifications Parameter Specification Part Number HSR-1628-87775 Description Handwheel Assembly Compatible Actuators Fisher 657/667 Series Pneumatic Actuators (verify specific model compatibility) Function Manual override for valve stem positioning Operation Manual rotation of handwheel to drive valve stem Mounting Bolted connection to actuator yoke Materials - Handwheel/Bracket: Coated carbon steel or aluminum - Lead Screw/Yoke Nut: Stainless steel - Hardware: Zinc-plated or stainless steel Environmental Rating Standard industrial grade (suitable for indoor/outdoor use)

Technical Specifications Parameter Specification Model LOC 870 Type Limit Switch and Solenoid Valve Enclosure Enclosure Rating NEMA 4X / IP66 (Weatherproof, dust-tight, and corrosion-resistant) Material Fiberglass-Reinforced Polyester or Stainless Steel (depending on variant) Electrical Compatibility Compatible with Fisher limit switches (e.g., LSB/LSC series) and solenoid valves Mounting Designed for direct attachment to Fisher rotary or linear actuators Temperature Range -40°F to 180°F (-40°C to 82°C) (standard) Electrical Connections Conduit openings with sealing glands (e.g., 1/2" NPT) Internal Components - Terminal blocks for wiring - Mounting rails for switches/solenoids - Optional heater/thermostat

Technical Specifications Parameter Specification Model DLC3010 Type Digital Level Controller Input Signals • 4-20 mA analog input • HART protocol compatibility • Discrete inputs for status monitoring Output Signals • Dual 4-20 mA outputs • Relay outputs (configurable for alarm or control) • Digital communication (optional) Control Functions • Proportional (P) • Proportional-Integral (PI) • On-Off control • Pump control/lead-lag Display Backlit LCD for level reading, setpoints, and configuration parameters Power Supply 24 VDC or 100-240 VAC (depending on model variant) Enclosure Rating NEMA 4X / IP66 (for harsh environments) Communication • HART protocol • Optional Foundation Fieldbus or PROFIBUS PA Ambient Temperature -40°F to 185°F (-40°C to 85°C) Mounting Panel mount, DIN rail, or field mounting

Technical Specifications Parameter Specification Model 2052/2 Type Pneumatic Pressure Transmitter Measurement Principle Force-Balance Mechanism Input Pressure Varies by specific configuration (e.g., 0-100 psi, other ranges available) Output Signal 3-15 psi standard pneumatic signal Supply Air Pressure 20-30 psi clean, dry instrument air Accuracy ±0.5% of span (typical for this series) Sensing Element Bourdon tube or diaphragm (depending on pressure range) Case Material Cast aluminum with corrosion-resistant coating Process Connection 1/2" NPT or other standard connections Ambient Temperature -20°F to 140°F (-29°C to 60°C) Enclosure Rating NEMA 4 (weatherproof)

Technical Specifications Parameter Specification Model 2052/1 Type Pneumatic Pressure Transmitter Measurement Principle Force-Balance Mechanism Input Pressure Range Specific range to be verified (e.g., 0-50 psi, 0-200 psi, etc.) Output Signal 3-15 psi standard pneumatic signal Supply Air Pressure 20-30 psi clean, dry instrument air Accuracy ±0.5% of span (typical) Sensing Element Bourdon tube or diaphragm (configuration dependent) Case Material Cast aluminum with corrosion-resistant coating Process Connection 1/2" NPT standard (other connections available) Ambient Temperature -20°F to 140°F (-29°C to 60°C) Enclosure Rating NEMA 4 (weatherproof)

Technical Specifications Parameter Specification Model FV-CT04-PU-8D Type Digital Valve Controller Accessory Package Compatibility Fisher Fieldvue DVC6000/DVC2000 Series Digital Valve Controllers Communication Interface HART Protocol Max Device Connections 8 devices simultaneously Power Supply Built-in rechargeable battery or external power adapter Display Backlit LCD for configuration and diagnostics Enclosure Rating IP54 (Dust and water splash resistant) Operating Temperature 14°F to 122°F (-10°C to 50°C) Communication Ports HART communication terminals, USB (for data transfer)

Technical Specifications Parameter Specification Model R622-DC1 Type Eccentric Rotary Control Valve Valve Body Style Angle Pattern, Flanged Valve Size 2-inch (DN50) - from "62" code Pressure Class ANSI Class 300 - from "62-2" code Actuator Type Pneumatic Spring-Diaphragm - "DC1" configuration Actuator Action Spring-Return (Single-Acting) - Fail-safe (air-to-open or air-to-close) Air Signal 3-15 psig (0.2-1.0 bar) standard Travel Approximately 50° of rotation Flow Characteristic Approximately Equal Percentage - standard for eccentric plug Leakage Class ANSI Class IV (metal seats) or better Temperature Range -50°F to +450°F (-46°C to +232°C) - standard, extendable with special seals

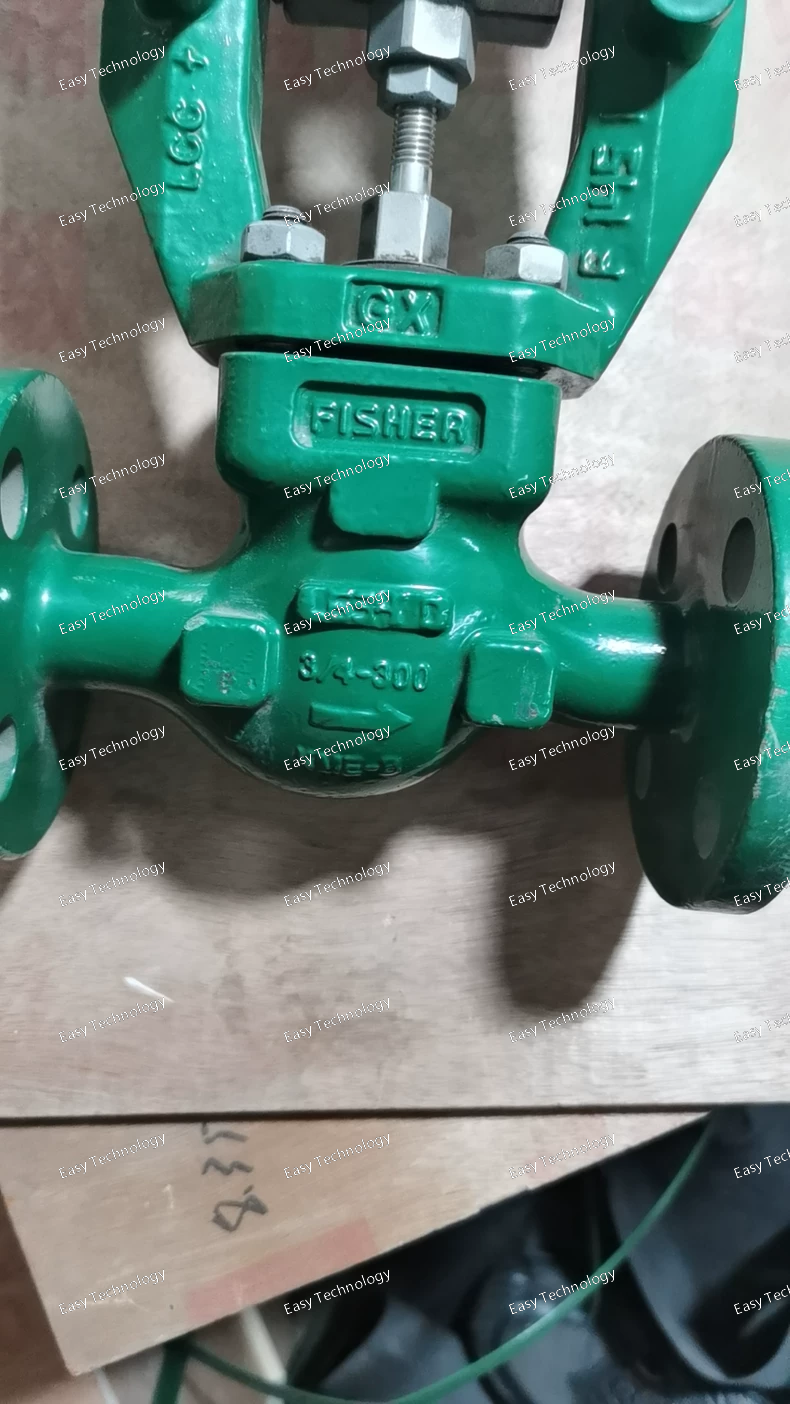

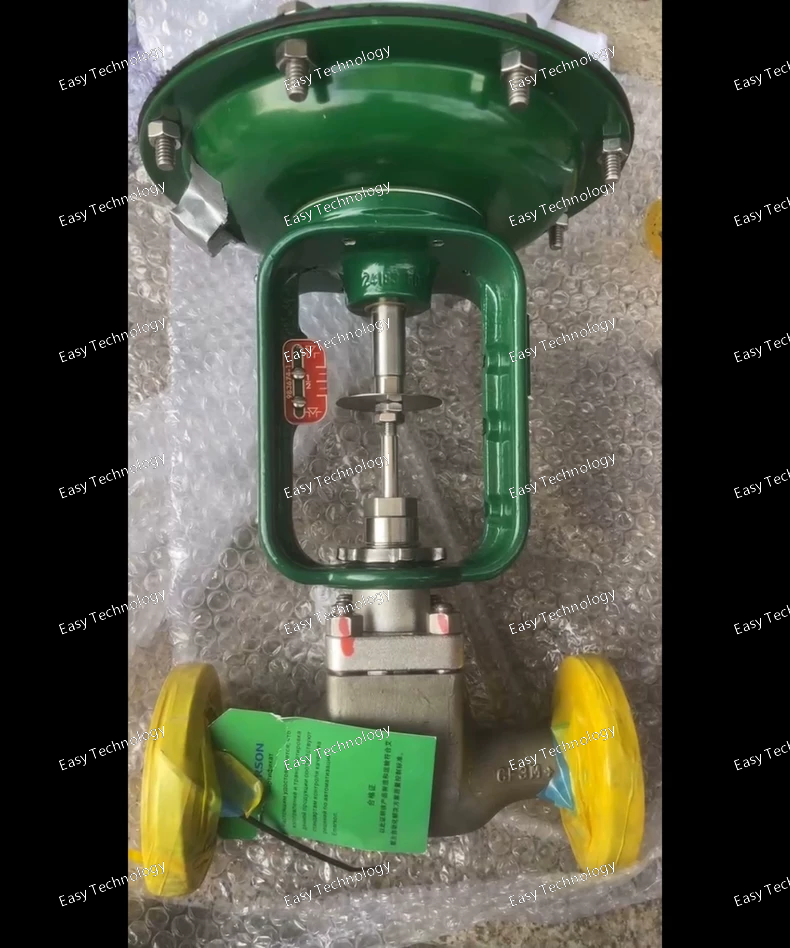

Technical Specifications Parameter Specification Model SVF24000 Type Sliding Stem Control Valve (Globe Style) Valve Size 1/2 inch (DN15) to 2 inch (DN50) - specific size varies by configuration Pressure Class ANSI Class 150 to 300 - depending on body style End Connections Screwed (NPT) or Flanged - configuration dependent Flow Characteristic Equal Percentage or Linear - trim dependent Leakage Class ANSI Class IV (standard metal seats) or Class VI (soft seats) Temperature Range -20°F to +450°F (-29°C to +232°C) - standard Body Materials Carbon Steel (WCB) standard, with stainless steel and other alloys available Trim Materials Stainless Steel standard

Technical Specifications Parameter Specification Model LCC-4 Type Mechanical Liquid Level Controller Measurement Principle Displacer/Buoyancy Principle Control Action Direct-acting or Reverse-acting (configuration dependent) Level Range Standard ranges available (e.g., 12", 24", 36" - specific to application) Process Connection 2-inch NPT standard (other sizes available) Maximum Working Pressure 250 psig (17.2 bar) - standard Temperature Range -20°F to +400°F (-29°C to +204°C) - standard Materials of Construction Chamber: Carbon steel Displacer: Stainless steel Internal Components: Stainless steel Control Output Mechanical linkage to control valve or switch

Technical Specifications Parameter Specification Model PF-67CFR-P275 Type Filter Regulator with Automatic Drain Port Size 1/4" NPT (standard) Maximum Inlet Pressure 300 psig (20.7 bar) Outlet Pressure Range 0-150 psig (0-10.3 bar) adjustable Filter Element 5 micron (standard) Bowl Material Polycarbonate (transparent) Drain Type Automatic float-operated drain Flow Capacity 50 SCFM (85 m³/h) at 100 psig Body Material Die-cast aluminum Temperature Range 35°F to 140°F (2°C to 60°C)
