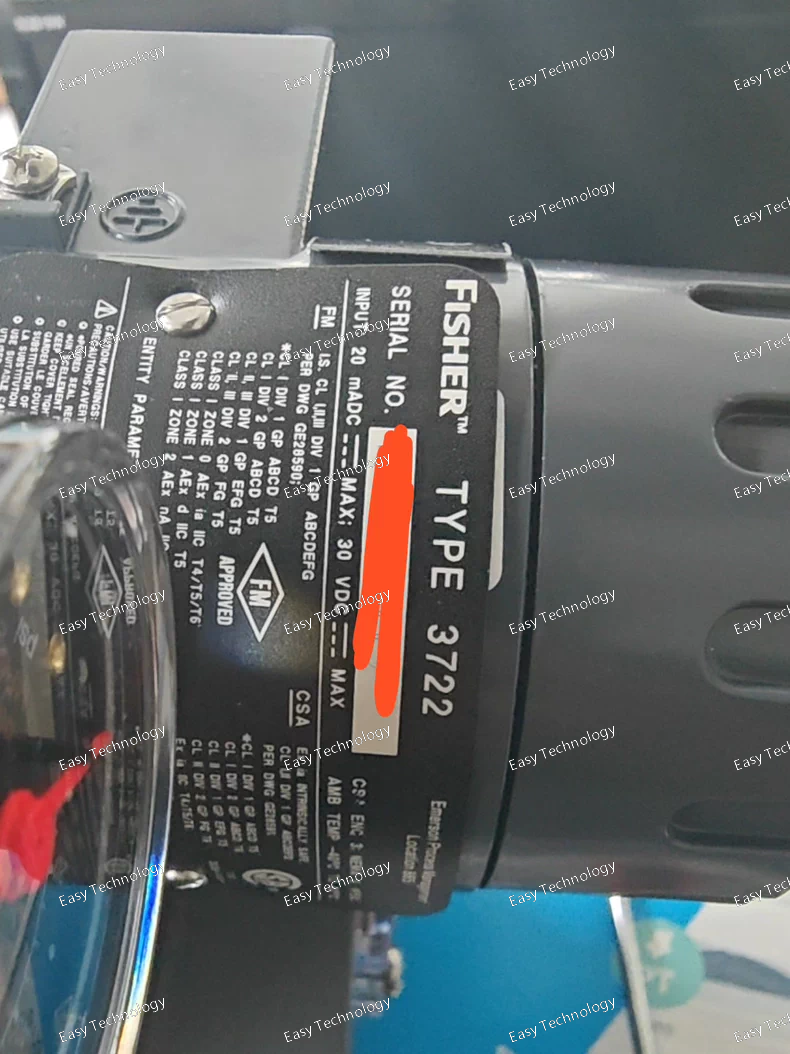

Key Specifications / Parameters Parameter Detail Model 3722 Function Electro‑pneumatic converter (4‑20 mA → pneumatic) Input Signal Standard: 4‑20 mA DC (with maximum compliance ≤ 30 VDC) Pneumatic Output Signal 0.2 to 1.0 bar (3 to 15 psig) typically Supply (Pneumatic) Pressure Up to ~10.3 bar (150 psig) or maximum pressure rating of actuator, whichever is lower Operating Temperature Standard ambient; versions with hazardous‑area approvals rated for about –40 °C to +82 °C Hazardous‑Area Ratings Certified for ATEX, FM, CSA, IECEx depending on build Mounting Mounts on the base of the 3710 pneumatic positioner Materials Case and internal parts built for industrial service, resistant to environment and vibration Usage/Application For precise valve positioning in process control systems (pneumatic actuator + positioner combo)

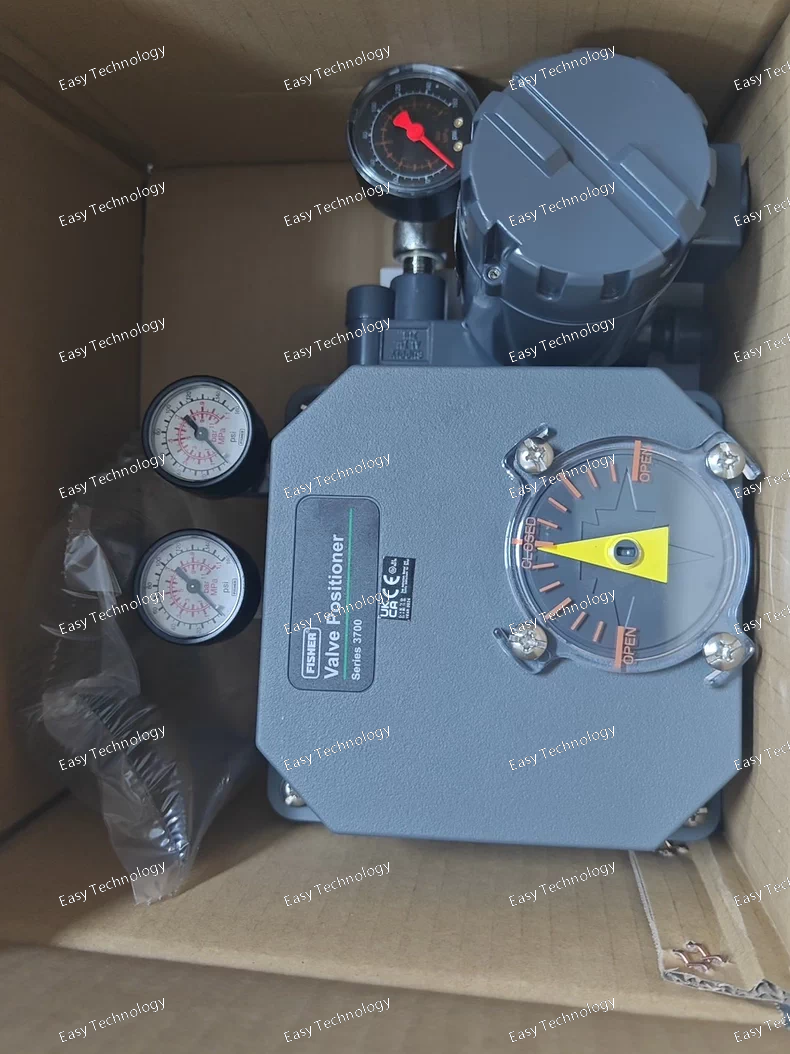

Key Specifications / Parameters Parameter Detail Model 3700 Mounting Type Wall‑mount, single‑hole installation Outlet/Stem Swivel outlet and swivel stem for flexible orientation Handle Type Lever handle Material Brass body (chrome or other finish variant) Connection Inlet ½″ female inlet (typical variant) Weight Approximately ~1.75 lbs (~0.8 kg) (typical) Typical Use Commercial plumbing, foodservice, utility sink or appliance inlet

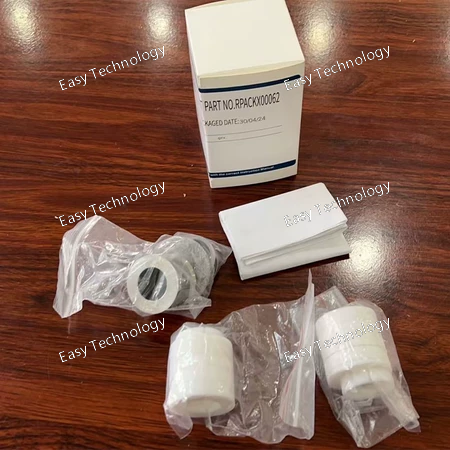

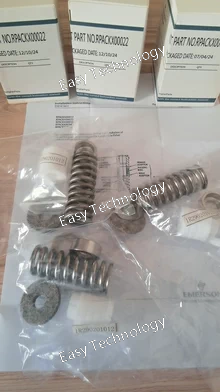

Key Specifications / Parameters Part Number: RPACKX00062 Stem Size (Nominal): ¾ inch (~19.1 mm) Boss (Yoke Boss / Packing Bore) Size: ~3‑9/16 inch (~90.5 mm) Packing Type: Double PTFE (V‑ring style) packing system Kit Contents: Packing rings, box ring, upper wiper, lantern ring Material: PTFE for packing rings; metal parts for wiper and lantern ring Application: Maintenance of sliding-stem valves to restore proper stem sealing

Key Specifications / Parameters Parameter Description / Value Part Number RPACKX00052 Stem Diameter (Nominal) ½ inch (12.7 mm) Packing Type Double PTFE V‑ring packing Material PTFE (polytetrafluoroethylene) Compatible Boss/Yoke Diameter Yoke boss approx 2‑13/16 inch (≈71 mm) Max. Service Temperature* Approximately 450 °F (≈232 °C) Application Packing kit for stem sealing in sliding‑stem valves with ½″ stem size

Key Specifications / Parameters Parameter Description / Value Part Number RPACKX00042 Packing Type Double PTFE V‑ring assembly Compatible Stem Diameter ⅜″ (9.5 mm) Material PTFE (TFE) V‑ring packing rings Kit Contents Packing rings, upper wiper, packing box ring, lantern ring (and an extra packing ring in kit) Application Stem sealing/packing replacement in Fisher sliding‑stem control valves Additional Notes The installation instructions note the kit “contains one extra packing ring (key 7)” which is to be discarded during assembly.

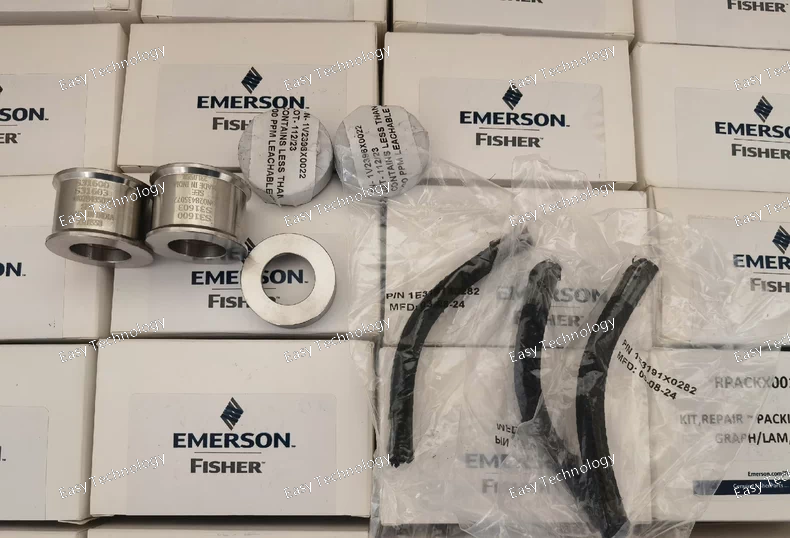

Key Specifications / Parameters Parameter Description / Value Part Number RPACKX00542 Stem Size (Nominal) 1¼ inch (1.25 in) Packing Type Single graphite ribbon + graphite filament packing Material Graphite ribbon/filament (low‑chloride, high‑temperature capable) Application Repair/overhaul of valve stem packing for sliding‑stem valves Kit Contents Includes the necessary rings: graphite filament rings, graphite ribbon rings, packing box ring, gland follower and associated hardware

Key Specifications / Parameters Parameter Description / Value Part Number RPACKX00532 Stem Size (Nominal) 1 inch (25.4 mm) Packing Type Single graphite ribbon + graphite filament packing Material Graphite ribbon/filament (low‑chloride, high temperature‑capable) Kit Contents Includes multiple rings: e.g., braided graphite rings, laminate graphite rings, packing box ring, gland follower, gland flange, gland studs/nuts (per instruction sheet) Application Repair/overhaul of valve stem packing for sliding‑stem valves Installation Note Designed for a specific boss (yoke boss) diameter and gland assembly; typically requires correct clearance, stem finish and follower torque for proper sealing Related Documentation Installation instructions available for RPACKX00532 listing rings and filler stack for 1” stem size

Key Specifications / Parameters Parameter Description / Value Part Number RPACKX00102 Stem Size (Nominal) ⅜″ (9.5 mm) Packing Type Single graphite ribbon + graphite filament packing Material Graphite ribbon/filament Included Components Graphite filament ring, graphite ribbon ring, lantern ring, packing box ring, packing follower Special Requirement Use one sacrificial zinc washer (0.004″ / 0.102 mm) beneath each graphite ribbon ring Application Valve stem sealing in sliding‑stem valves

Typical Technical Parameters Parameter Specification / Note Product Line FIELDVUE DVC6200 Assembly Model 1E9447X0112 Input Signal 4-20 mA HART or Foundation Fieldbus (Specific type defined by full order code) Supply Air Pressure 20 to 150 psi (1.4 to 10.3 bar) - Actuator Dependent Air Consumption Very low quiescent flow Enclosure Rating NEMA 4X (IP66/67) Ambient Temperature -40° to 185°F (-40° to 85°C) Travel Range Actuator Dependent. Defined by the specific actuator in the assembly. Valve Shutoff Rating Valve Dependent. Defined by the specific valve body included in the assembly. Mounting Directly on linear or rotary actuators (Pre-assembled unit)

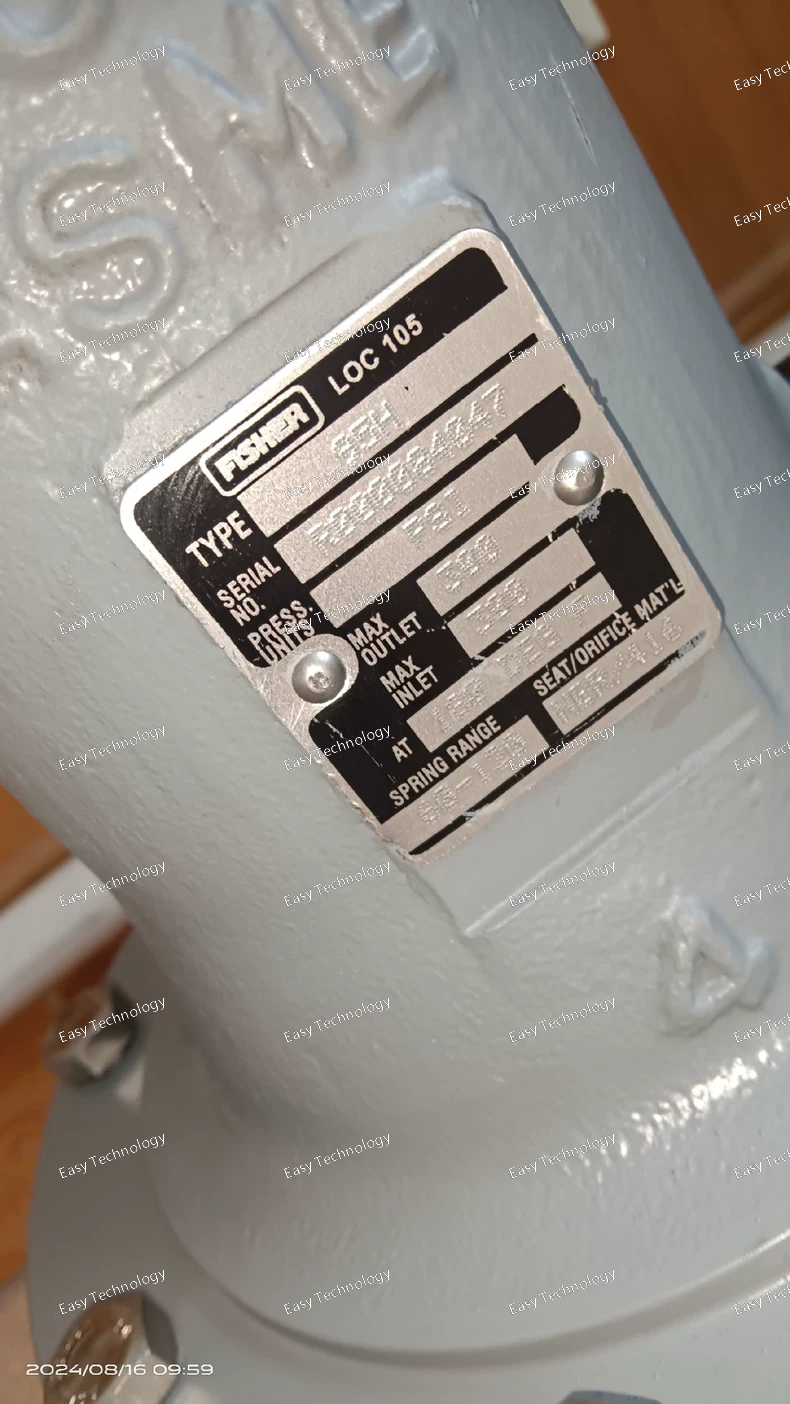

Key Specifications / Parameters Specification Value / Description Product Series Fisher LOC 105 locking/switching valve module Function Provides switching or locking actuation in a control valve or regulator system (e.g., hold position, switch flow path) Typical Use Pneumatic control systems, regulators, pilot modules where lock/switch functionality is required Maximum Supply Pressure Around 125 psi for certain LOC 105‑labeled models (for example switching valve models) Operating Spring Range Some units show spring ranges such as 40‑90 psi for actuation control Ports / Connections Often ¼ in NPT pilot/control ports (varies by specific variant) Application Size Range Modular accessory — size depends on main valve/regulator it’s paired with Materials Standard industrial materials for valve modules (body, pilot, actuator)
