Technical Specifications Parameter Specification Part Number FS-67CFR-601 Description Filter Regulator Mounting Kit Compatible Components Fisher 67CFR Series Actuator Pilots and related pneumatic systems Mounting Type Bolt-on bracket system Kit Contents • Mounting bracket • Bolts and fasteners • Gaskets • Connecting fittings Bracket Material Galvanized steel or stainless steel (corrosion-resistant) Hardware Material Stainless steel (for corrosion resistance) Installation Tool-based assembly requiring standard wrenches

Technical Specifications Parameter Specification Model CS820IN-9E Type Electronic Process Transmitter Input Type Configurable for pressure, level, flow, or other process variables Output Signal 4-20 mA with HART protocol communication Power Supply 12-45 VDC standard (loop powered) Accuracy ±0.1% of calibrated span (typical) Display LCD with process variable and configuration display Enclosure Rating NEMA 4X (IP67) Process Connection 1/2" NPT or other standard process connections Ambient Temperature -40°F to 185°F (-40°C to 85°C) Certifications ATEX, IECEx for hazardous areas (intrinsic safety)

Technical Specifications Parameter Specification Model 299HS Type Pilot-Operated Safety Relief Valve Operation Pop-action, full lift Orifice Designation Various sizes available (e.g., P, Q, R per API 526) Set Pressure Range 50-600 psig (3.4-41.4 bar) - depending on specific configuration Maximum Inlet Pressure 600 psig (41.4 bar) or higher based on design Blowdown Adjustable (typically 2-7%) Temperature Range -20°F to 1000°F (-29°C to 538°C) - depending on materials Body Materials Carbon Steel (WCB) standard, with Stainless Steel and other alloys available End Connections Flanged (ANSI Class 150-600) Pilot System Diaphragm-operated with stainless steel components

Technical Specifications Parameter Specification Model LOC105 Type Limit Switch and Solenoid Valve Enclosure Enclosure Rating NEMA 4X / IP66 (Weatherproof, dust-tight, and corrosion-resistant) Material Fiberglass-Reinforced Polyester or Stainless Steel (depending on variant) Electrical Compatibility Compatible with Fisher limit switches and solenoid valves Mounting Designed for direct attachment to Fisher actuators Temperature Range -40°F to 180°F (-40°C to 82°C) Electrical Connections Conduit openings with sealing glands Internal Space Sufficient for mounting multiple limit switches and solenoid valves

Technical Specifications Parameter DN40 DN50 DN65 Nominal Diameter 40 50 65 Imperial Equivalent 1½ inch 2 inch 2½ inch Pipe Outer Diameter ≈ 48.3 mm (1.90 in) ≈ 60.3 mm (2.37 in) ≈ 76.1 mm (3.00 in) Flange Standards ISO 6162, ANSI B16.5 ISO 6162, ANSI B16.5 ISO 6162, ANSI B16.5 Typical Valve Types Control valves, Regulating valves, Ball valves Control valves, Regulating valves, Gate valves High-pressure control valves, Large-size regulating valves

Technical Specifications Parameter Specification Part Number FS-67CFR-362 Description Filter Regulator Mounting Kit Compatible Components Fisher 67CFR Series Actuator Pilots and related pneumatic systems Mounting Type Bolt-on bracket system Kit Contents • Precision mounting bracket • Stainless steel bolts and fasteners • Sealing gaskets • Pneumatic connecting fittings Bracket Material Galvanized carbon steel (standard) or stainless steel (optional) Hardware Material Stainless steel (for corrosion resistance) Surface Treatment Anti-corrosion coating Installation Tool-based assembly requiring standard wrenches

Technical Specifications Parameter Specification Nominal Diameter DN25 (1 inch) Pressure Class 150 LB (ANSI B16.5) Flange Type Raised Face (RF) - standard Max Working Pressure 285 psi @ 100°F (19.7 bar) Bolt Circle Diameter ≈ 3.25 inches (82.6 mm) - for 150LB RF flange Flange Thickness ≈ 0.56 inches (14.3 mm) - for 150LB RF flange Number of Bolts 4 - for 150LB DN25 flange Bolt Size 0.62 inch (15.7 mm) diameter

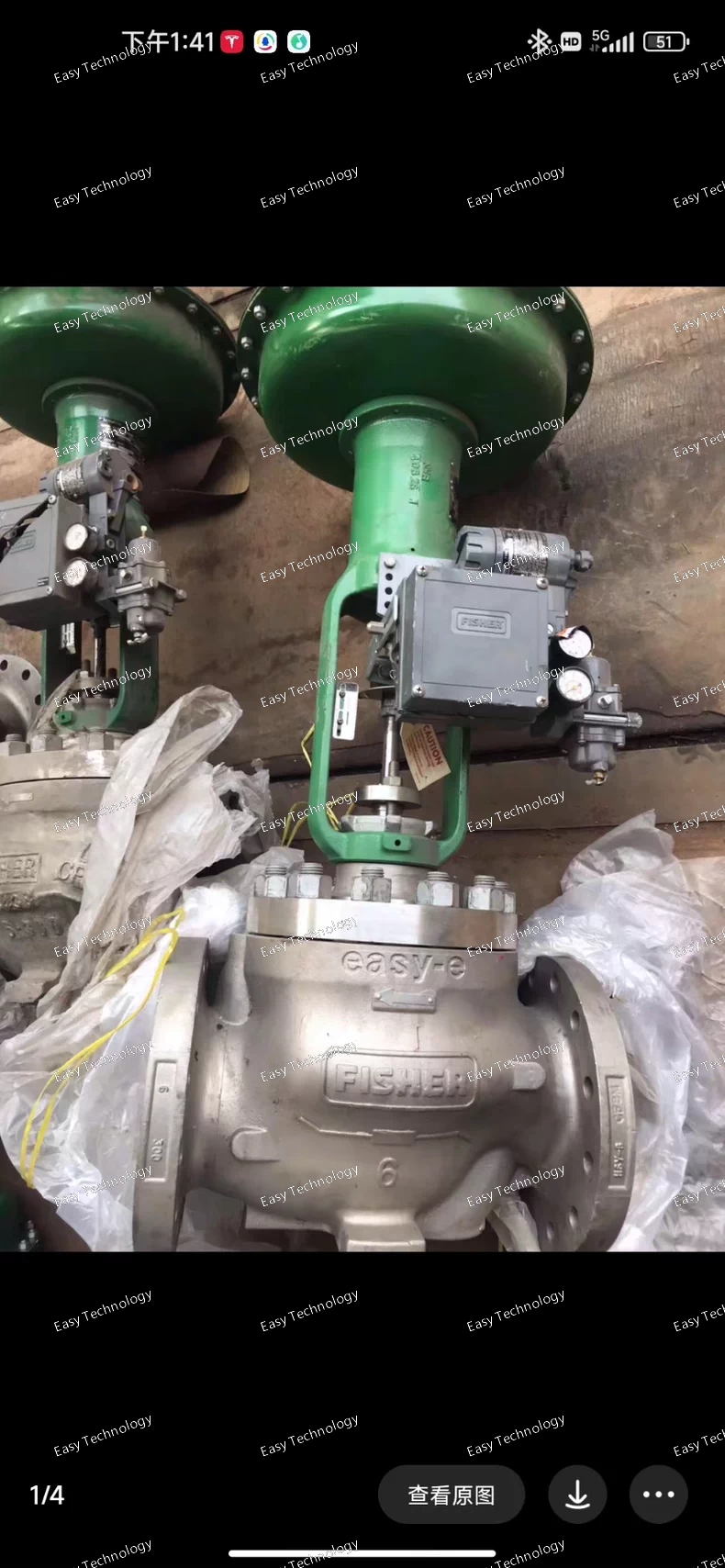

Technical Specifications Parameter Specification Valve Type Diaphragm Control Valve Inlet Size DN65 (2½ inch) Outlet Size DN50 (2 inch) Pressure Rating ANSI Class 150 or 300 (specific to order) Flow Characteristic Equal Percentage or Linear (trim dependent) Actuator Type Diaphragm Actuator Body Material Carbon Steel (WCB) or other specified materials Trim Material Stainless Steel (standard) Temperature Range -20°F to 400°F (-29°C to 204°C) - standard End Connections Flanged (RF facing standard)

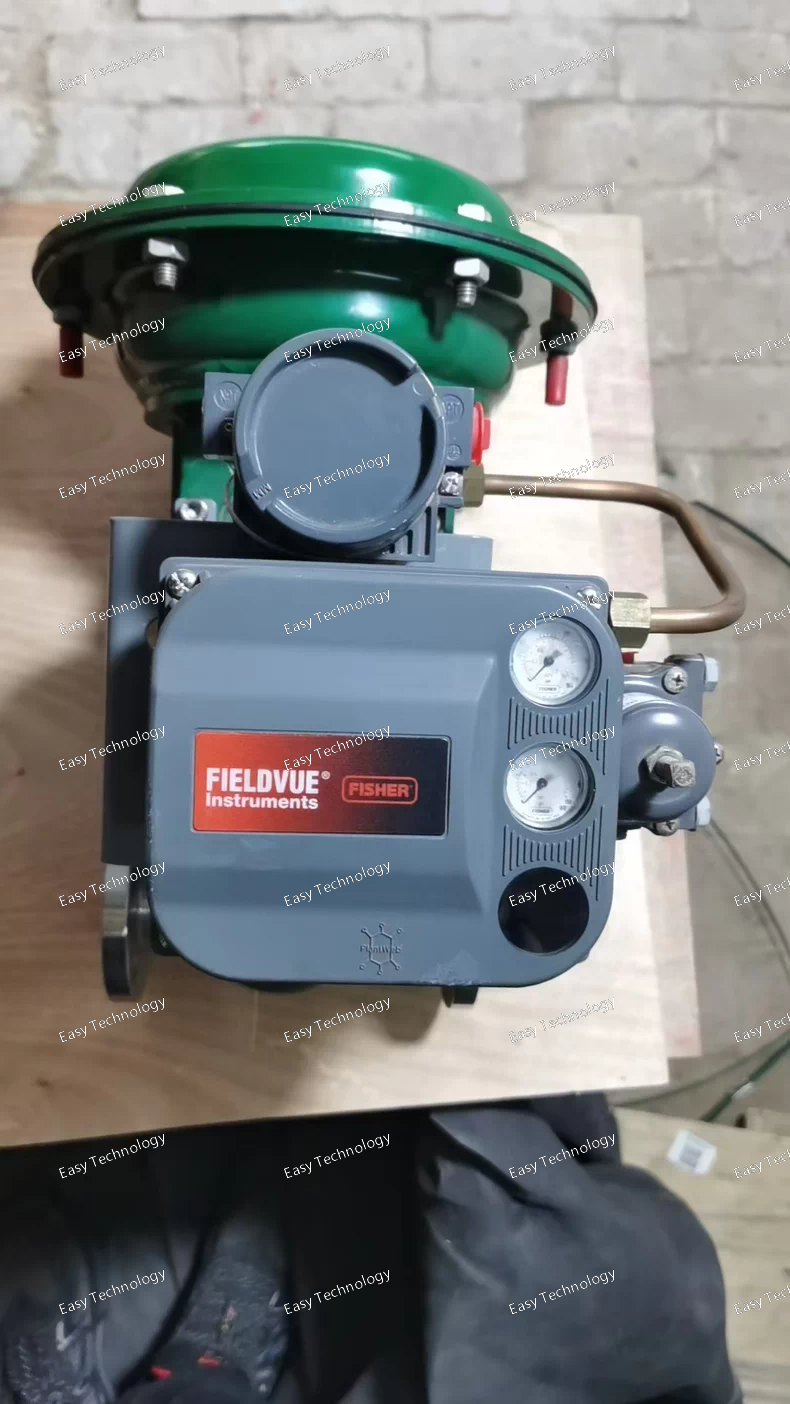

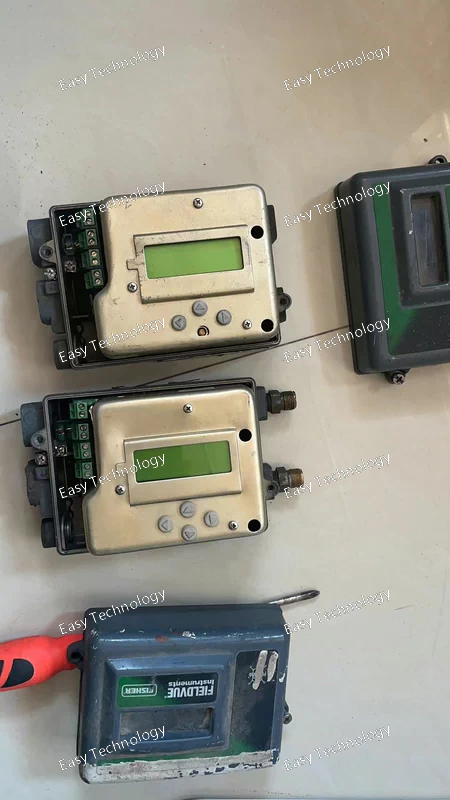

Technical Specifications Parameter Specification Model DVP-2000 Type Digital Valve Positioner Input Signal 4-20 mA (2-wire) with HART protocol Output Signal Pneumatic pressure to actuator (3-15, 6-30 psi or other ranges) Supply Air Pressure 20-150 psig (1.4-10.3 bar) Air Consumption < 0.15 SCFM (4.2 NLPM) at steady state Accuracy ≤ 0.5% of span (including linearity, dead band, hysteresis) Travel Feedback Non-contact magnetic position sensing Enclosure Rating NEMA 4X (IP66/67) Ambient Temperature -40°F to 185°F (-40°C to 85°C) Mounting Direct mount to Fisher and other manufacturers' actuators Communication HART 5/7 protocol

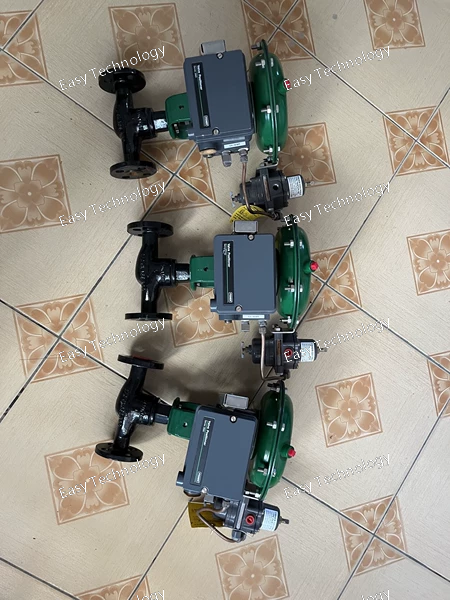

Technical Specifications Parameter Specification Model KJ1501x1-BC1 Type Control Valve Assembly Valve Style Globe Valve (typical for KJ series) Valve Size Specific size encoded in "KJ1501x1" (e.g., 1.5 inch or similar) Pressure Class ANSI Class 150 or 300 (encoded in model number) Actuator Type Pneumatic Spring-Diaphragm ("BC1" configuration) Actuator Action Spring-Return (fail-safe) Air Signal 3-15 psig (0.2-1.0 bar) standard Flow Characteristic Equal Percentage or Linear (trim dependent) End Connections Flanged (RF facing standard) Temperature Range -20°F to 450°F (-29°C to 232°C) - standard
