Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG5VH High-Capacity Solenoid Valve Series Model Number DG5VH-8-6C-T-V-M-U-H5-30 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D08 (Size 08) ISO 4401 standard Port Thread 1-1/16"-12 UNF Common for D08 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 6C: Float Center A → T and B → T, P blocked. Valve Options -T-V-: Specific notching/spool timing for controlled shifting and reduced shock. Solenoid Power -M-U-: High-performance solenoids. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector with manual override. Spool Type -30: Specific metering characteristics. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate Up to ~110 L/min (29 US gpm) A key feature of the size 08 valve. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

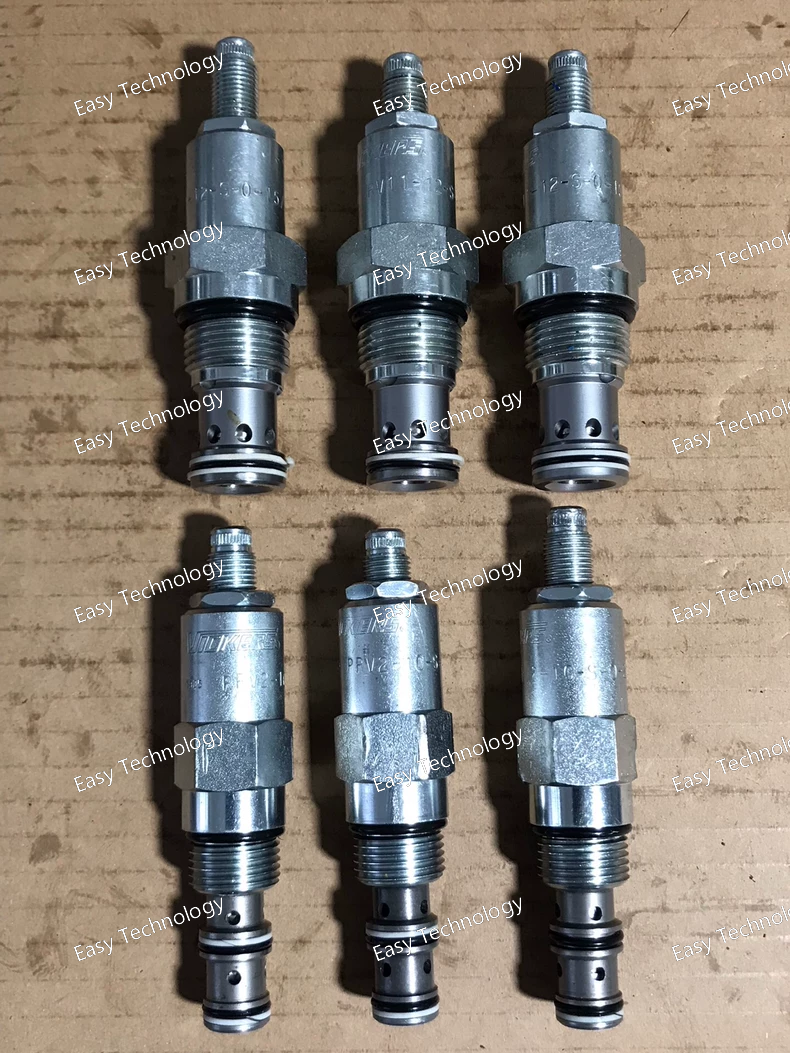

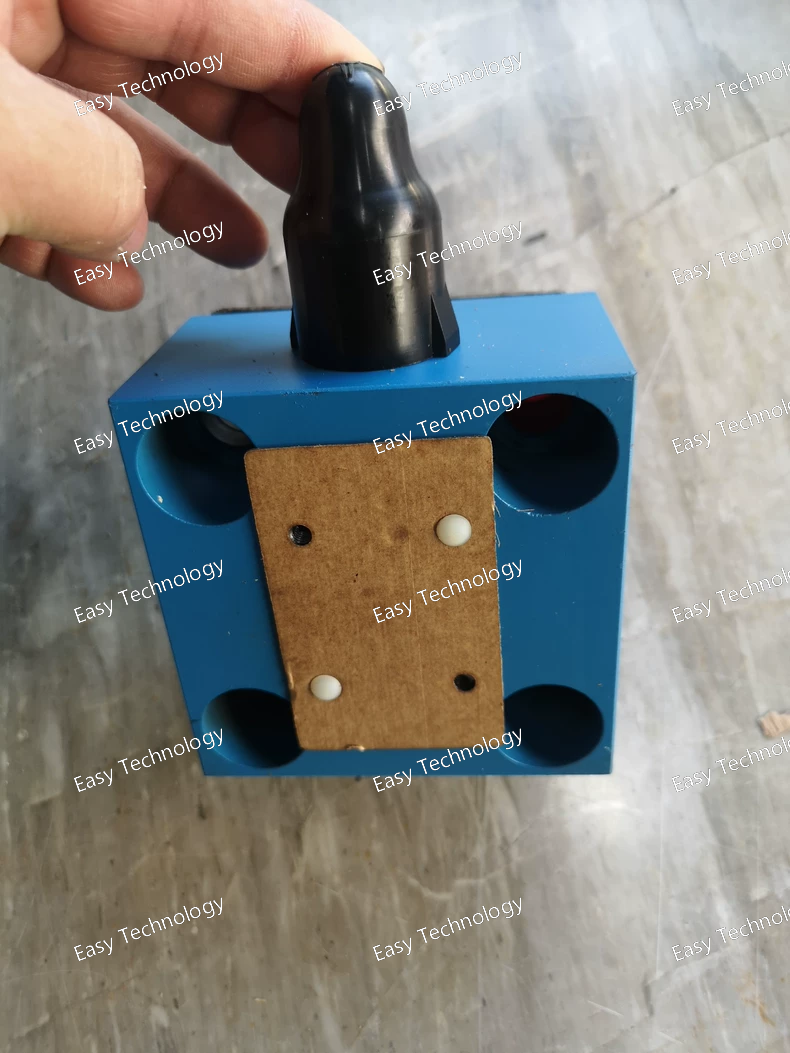

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton CVC(S) Cartridge Valve, Pressure Control Model Number CVCS-32-C-3-W-350-20 Valve Type Pilot-Operated Relief Valve Mounting Style Manifold Mounting (Cartridge Style) Requires a specific ISO 7368 cavity. Cavity Code C-3 ISO 7368 CETOP C-03-3 cavity. Critical for installation. Adjustment Type -W-: External Adjustable with locknut Allows for precise pressure setting via a hex key or similar tool. Pressure Adjustment Range -350-: 35 to 350 bar (500 to 5,000 psi) This is the key parameter defined by the code. Maximum Flow Capacity Up to ~ 150 L/min (40 US gpm) Suitable for high-flow systems. Pressure Override Typically < 10% of set pressure Excellent performance characteristic of pilot-operated valves. Seal Material Nitrile (NBR) Standard. Other options like Fluorocarbon (FKM) may be available. Body Material Steel

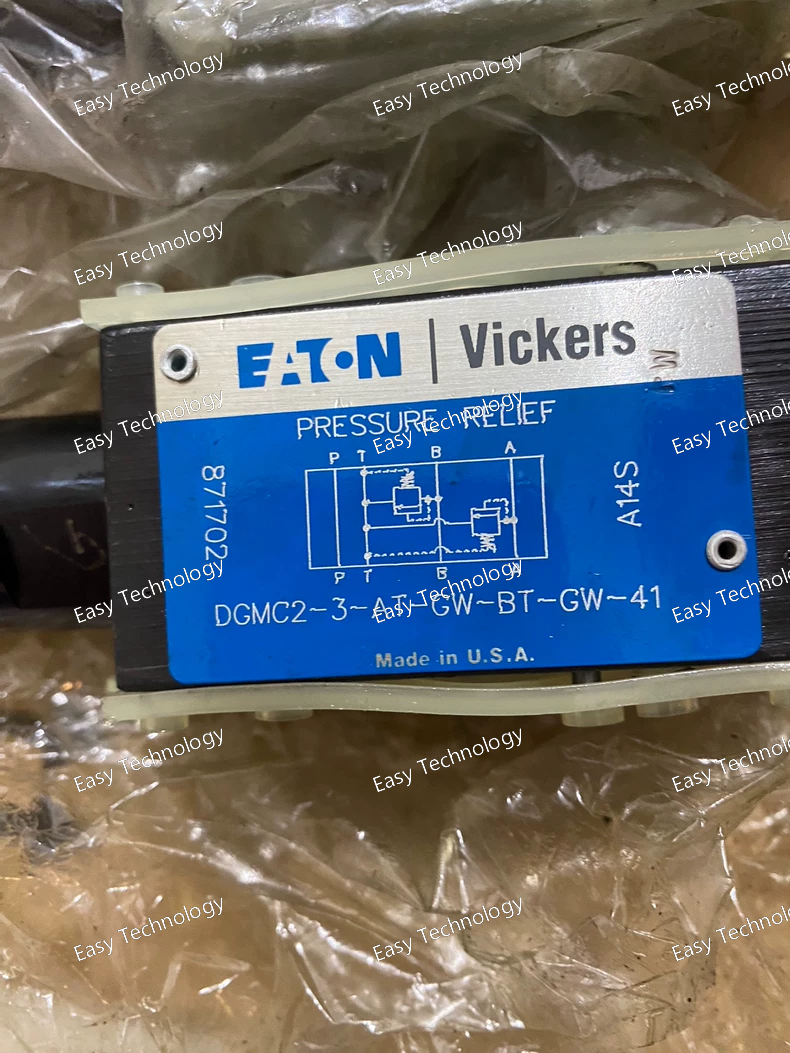

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-2-3-AT-CW-BT-BW-41 Product Type Integrated Hydraulic Manifold Block Port Size (P, A, B, T) D02 (NG4) and D03 (NG6) The "-2-" and "-3-" likely denote different port sizes for different functions (e.g., P/T ports vs. A/B work ports). Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate ~ 38 - 75 L/min (10 - 20 US gpm) Dependent on internal restrictions and port sizes.

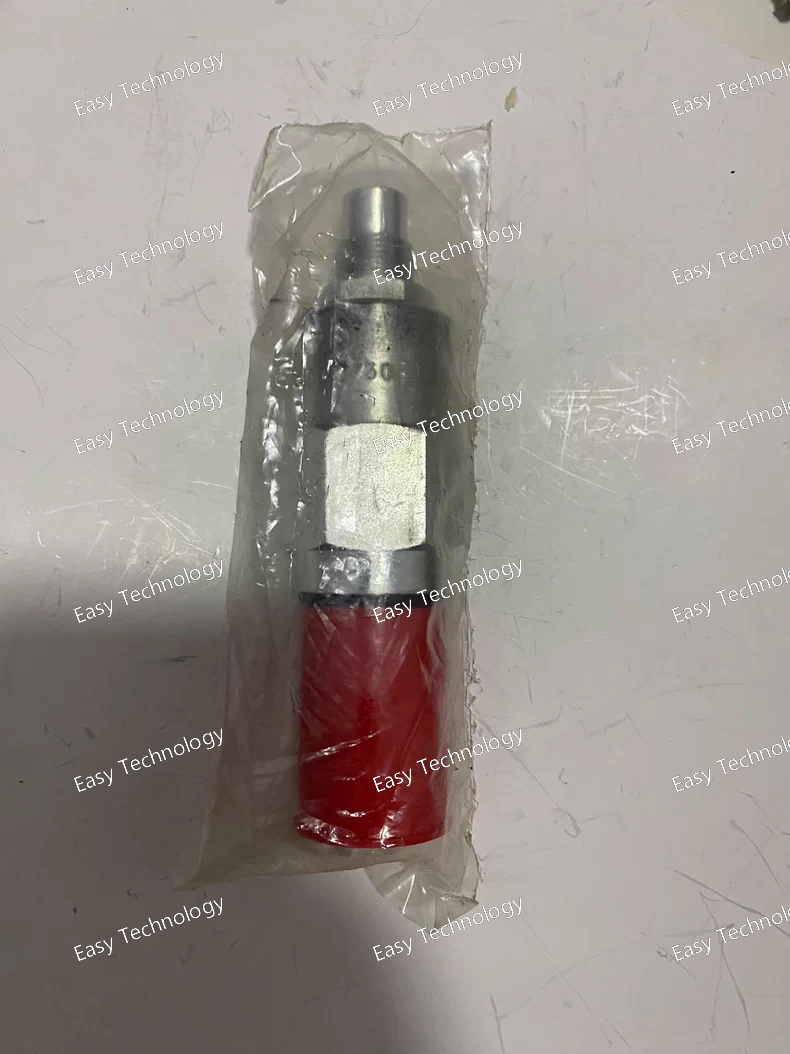

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton RV11 Cartridge Style Relief Valve Series Model Number RV11-12-S-0-15 Valve Type Direct-Acting, Adjustable Relief Valve Mounting Style Manifold Mounting (Cartridge Style) Requires a specific ISO 7368 cavity. Cavity Code ISO 7368 Form E The cavity type is typically defined by the "12" size code. Critical for installation. Adjustment Type -S-: Internal Hex Key Adjustment with Locking Set pressure is adjusted via an Allen key and can be locked. Pressure Adjustment Range -15: 15 to 250 bar (215 to 3,625 psi) The "-15" suffix defines the specific adjustment range. Maximum Flow Capacity Up to ~ 75 L/min (20 US gpm) Dependent on pressure setting and pressure drop. Pressure Override Higher than pilot-operated types Characteristic of direct-acting valves; pressure at full flow will be higher than the cracking pressure. Seal Material Nitrile (NBR) Standard. Other options like Fluorocarbon (FKM) may be available. Body Material Steel

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton RV3 Cartridge Style Relief Valve Series Model Number RV3-16-S-0-35/30 Valve Type Direct-Acting, Adjustable Relief Valve Mounting Style Manifold Mounting (Cartridge Style) Requires a specific ISO 7368 cavity. Cavity Code ISO 7368 Form E The "16" size code corresponds to a specific cavity. Critical for installation. Adjustment Type -S-: Internal Hex Key Adjustment with Locking Set pressure is adjusted via an Allen key and can be locked to prevent tampering. Pressure Adjustment Range -35: 35 to 350 bar (500 to 5,000 psi) The "-35" suffix defines the primary pressure adjustment range. Variant Code /30 This typically indicates a specific sub-variant, such as a different spring rate, seal material, or a minor functional revision. Maximum Flow Capacity Up to ~ 115 L/min (30 US gpm) Dependent on pressure setting and pressure drop. Suitable for the size "16". Pressure Override Higher than pilot-operated types Characteristic of direct-acting valves. Seal Material Nitrile (NBR) Standard. The "/30" code might specify a different material. Body Material Steel

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D05 / NG10 interface Model Number DG4V-5-2A-J-V-M-U-H6-20 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D05 (NG10) ISO 4401 standard Port Thread 3/4"-16 UNF Common for D05 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2A: All Ports Blocked (Closed Center) A, B, P, T all blocked. Ideal for positive load holding. Special Option -J-V-: Hardened Spool and Sleeve Provides increased resistance to wear and abrasion. Spool Type -20: Industrial Spool Standard spool with critical center tolerances. Electrical Connection -H6: DIN 43650 Form A IP65-rated connector with manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D05 / NG10 interface Model Number DG4V-5-2N-J-V-M-U-H6-20 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D05 (NG10) ISO 4401 standard Port Thread 3/4"-16 UNF Common for D05 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2N: Motor Spool (A&B Connected, P & T Blocked) A ↔ B, P blocked, T blocked. Allows motor to freewheel. Special Option -J-V-: Hardened Spool and Sleeve Provides increased resistance to wear and abrasion. Spool Type -20: Industrial Spool Standard spool with critical center tolerances. Electrical Connection -H6: DIN 43650 Form A IP65-rated connector with manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-3-BT-GW-41 Product Type Integrated Hydraulic Manifold Block Port Size D03 (NG6) The "-3-" denotes the interface size, ISO 4401. Port Thread 7/16"-20 UNF Common for D03 size. Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on internal restrictions.

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton CG5V Proportional Control Valve Series Model Number CG5V-6-FW-O-F-M-U-H5-20 Valve Type Proportional, 4-Way, 3-Position Directional Valve Porting Size Size 06 (D06) ISO 4401 standard Actuation Type Proportional Solenoid Spool Type -FW-: Flow Control Spool Designed for precise flow regulation. Compensator Type -O-F-: Pressure Compensator Maintains a constant pressure drop across the metering orifice for consistent flow. Solenoid Type -M-U-: Proportional Solenoids (2x) Wet-pin, DC versions. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector. Electronics -20: Specific onboard electronics (OBC) version. Defines the signal type and control response. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate Up to ~ 60 L/min (16 US gpm) Dependent on the "FW" spool and compensator. Input Signal Typically ±9 VDC, ±10 VDC, or 0-20 mA Defined by the "-20" electronics. Hysteresis < 3% Typical for high-performance proportional valves. Linearity < 5%

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3-33C-M-U-BX5-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Centered + Detented Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Offset from one side, Detented from the other Complex actuation. Solenoid Type Dual Solenoids Both are single solenoids. Spool Configuration -33C-: Spring Offset, Solenoid Center, Detented Pos1 (Spring): P→B & A→T Pos2 (Solenoid A): Defined by 'C' Pos3 (Solenoid B): Detented, flow path is typically P→A & B→T Center Position (when Solenoid A is energized) C: Likely a Tandem or Float type center The "C" often indicates P is connected to T in the center position, but the exact configuration of A and B ports must be verified. Spool Type -60: Critical Center with Bypass Provides the main spool functionality with internal leakage paths to reduce shock. Electrical Connection -BX5-: Sealed, flying lead cable with a 5-pin connector This is different from the standard DIN connector, providing a direct cable connection. Voltage Typically 12 VDC Defined by the coil ordered with the -BX5- connector. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Fluid Type Mineral-based hydraulic oils, synthetics
