Parameter Specification Product Model MTL5043 Product Line Eaton MTL5000 Series Signal Conditioners Function Single-channel signal isolator & converter Input Signal 4-20 mA Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Accuracy ±0.1% of span Line Fault Detection Configurable for open/short circuit indication Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C Compliance & Certifications CE, ATEX (for non-hazardous areas [Ex n])

Parameter Specification Product Model MTL5546 Product Line Eaton MTL5500+ Series Function Single-channel 2-wire transmitter isolator & power supply Input Signal 4-20 mA from hazardous-area transmitters Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA Line Fault Detection Open/short circuit detection Accuracy ±0.1% of span Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model EMPDT1H1C2 Product Line Eaton EMP Series Timer Relays Supply Voltage 24–240 V AC/DC (wide range) Timing Range 0.1 sec – 100 hours (adjustable) Output Contacts 1 CO (Changeover) Contact Rating 8 A at 250 V AC Accuracy ±0.5% of set time + 10 ms Display Digital LCD with status LEDs Mounting DIN-rail (35 mm) Operating Temperature -20°C to +55°C Protection Rating IP50 (front panel) Standards Compliance UL 508, IEC 61812-1

Parameter Specification Product Model 9122-IS Product Line Eaton Pressure Transmitters Measurement Type Gauge, absolute, or sealed gauge pressure Pressure Range Selectable (e.g., 0–100 bar) Output Signal 4–20 mA (2-wire) Intrinsic Safety (IS) Certification ATEX, IECEx (Entity Parameters: e.g., Vmax = 30 V, Imax = 100 mA) Accuracy ±0.25% of span (typical) Process Connection 1/2" NPT or G1/2 Electrical Connection 1/2" NPT conduit Housing Material 316 stainless steel Operating Temperature -40°C to +85°C (environment) Protection Rating IP67

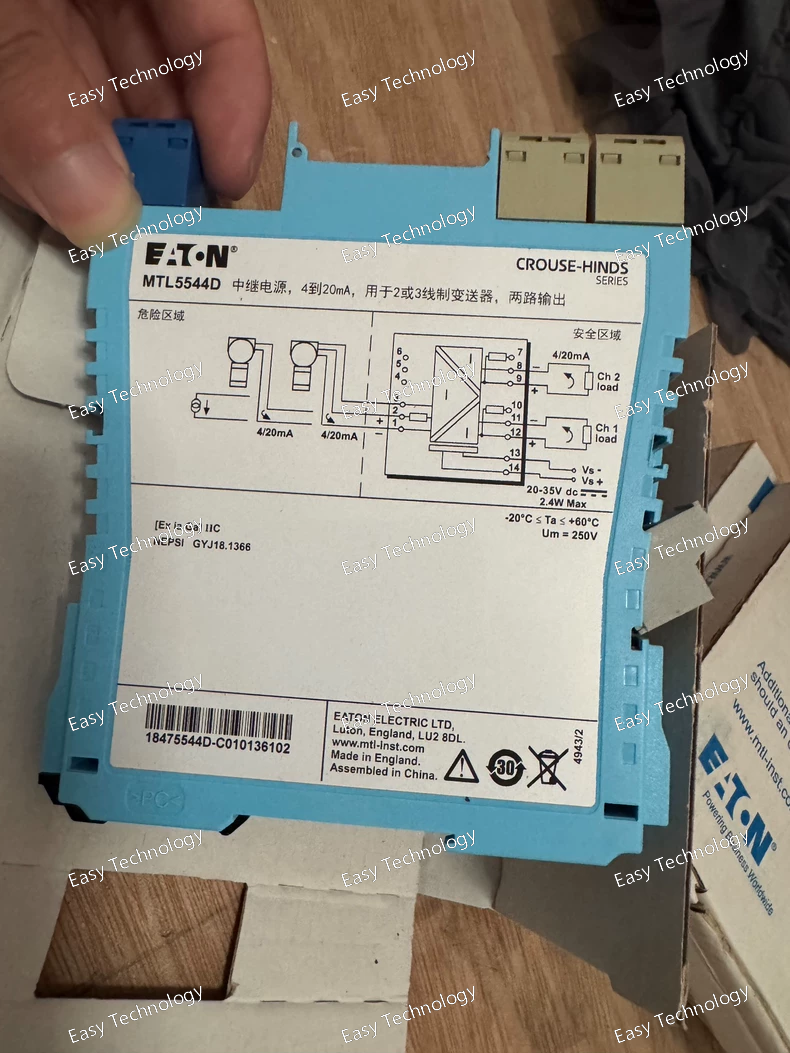

Parameter Specification Product Model MTL5544D Product Line Eaton MTL5500+ Series Function Single-channel 2-wire transmitter isolator with dual outputs/diagnostics Input Signal 4-20 mA from hazardous-area transmitters Output Signal Dual isolated 4-20 mA (or configurable outputs) Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA Line Fault Detection Open/short circuit detection with detailed diagnostics Accuracy ±0.1% of span Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model NZM1-XIPK Product Line Eaton NZM MCCB Series Rated Operational Current Up to 63 A (frame-dependent) Rated Voltage 690 V AC Number of Poles 3 Poles Trip Unit Type Thermal-magnetic with motor protection features Breaking Capacity ~25 kA (at 415 V AC, specific value depends on variant) Auxiliary Contacts 1 NO + 1 NC (typical for -XIPK variant) Shunt Trip Included (for remote tripping) Mounting Fixed or plug-in Standards Compliance IEC 60947-2, UL 489

Parameter Specification Product Model MTL5541 Product Line Eaton MTL5500+ Series Function Single-channel 2-wire transmitter isolator & power supply Input Signal 4-20 mA from hazardous-area transmitters Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA Line Fault Detection Open/short circuit detection Accuracy ±0.1% of span Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Series AE Series Limit Switch Actuator Type Rotating lever arm (code: 80) Contact Configuration 1 NO + 1 NC (code: 5,0) Rated Operational Current 10 A at 600 V AC Electrical Life >1 million operations (at rated load) Mechanical Life >10 million operations Enclosure Rating NEMA 4, 4X, 13; IP67 Housing Material Zinc die cast Terminal Type Screw terminals Operating Temperature -20°C to 120°C Standards Compliance UL, cULus, CE

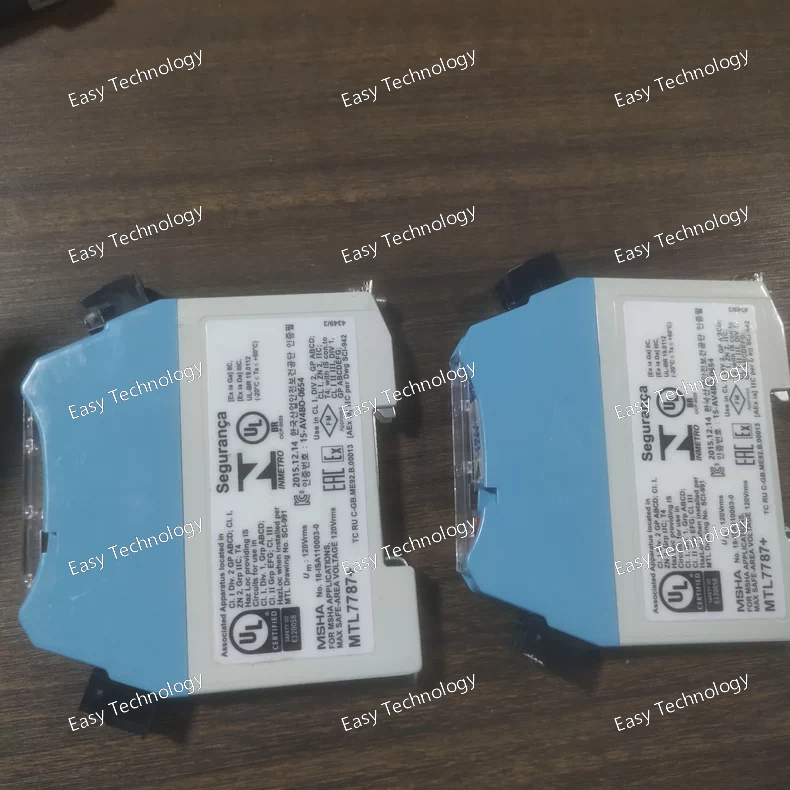

Parameter Specification Product Model MTL7787+ Product Line Eaton MTL Signal Conditioners & Isolators Function Dual-channel 2-wire transmitter isolator & power supply Input Signal 4-20 mA from hazardous-area transmitters Output Signal Isolated 4-20 mA (dual channels) Power Supply 20-30 V DC (typical) Isolation Galvanic isolation (input/output/power) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA (entity parameters required for design) Line Fault Detection Open/short circuit detection Accuracy ±0.1% of span (typical) Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model CMS1-7-R Product Line Eaton CMS Rotary Isolator Switches Rated Operational Current 32 A (at 400 V AC) Rated Insulation Voltage 690 V AC Number of Poles 1 Pole (1P) Contact Configuration 1 NO (Normally Open) or 1 NC (Normally Closed) Mechanical Life > 10,000 cycles Protection Rating IP65 (dust-tight and water-resistant) Mounting Panel-mounted with front seal Operating Temperature -25°C to +55°C Standards Compliance IEC 60947-3, UL 508
