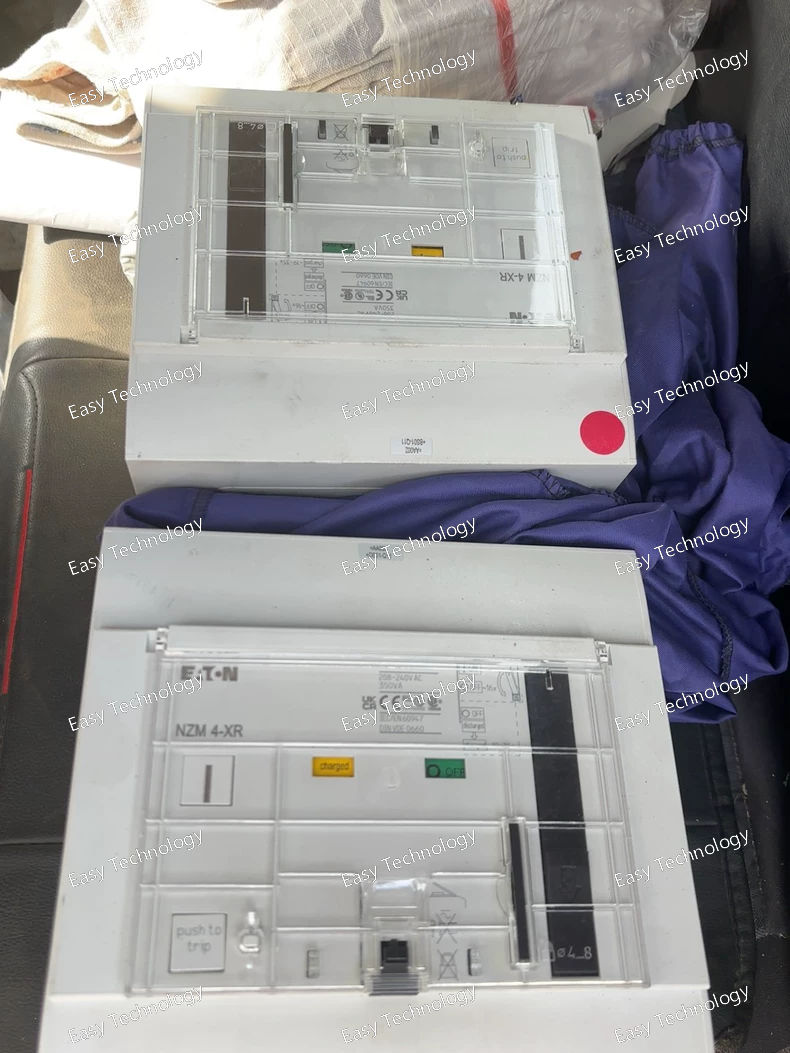

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Designation NZM4-XR Product Type Drawout Mounted Air Circuit Breaker (ACB) Mounting Style Drawout (Can be racked in/out) Frame Size NZM4 Frame Rated Current (In) Up to 3200 A or 4000 A (Depending on specific configuration) Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Breaking Capacity (Icu/Ics) Extra High (e.g., 100 kA, 120 kA, or 150 kA at 415V AC). This is the defining feature of the "XR" version and must be verified from the datasheet. Trip Unit Electronic Trip Unit (e.g., PR221, PR222, PR223 series) Protection Functions Adjustable L-S-I-G (Long-Time, Short-Time, Instantaneous, Ground Fault) Standards Compliance IEC 60947-2

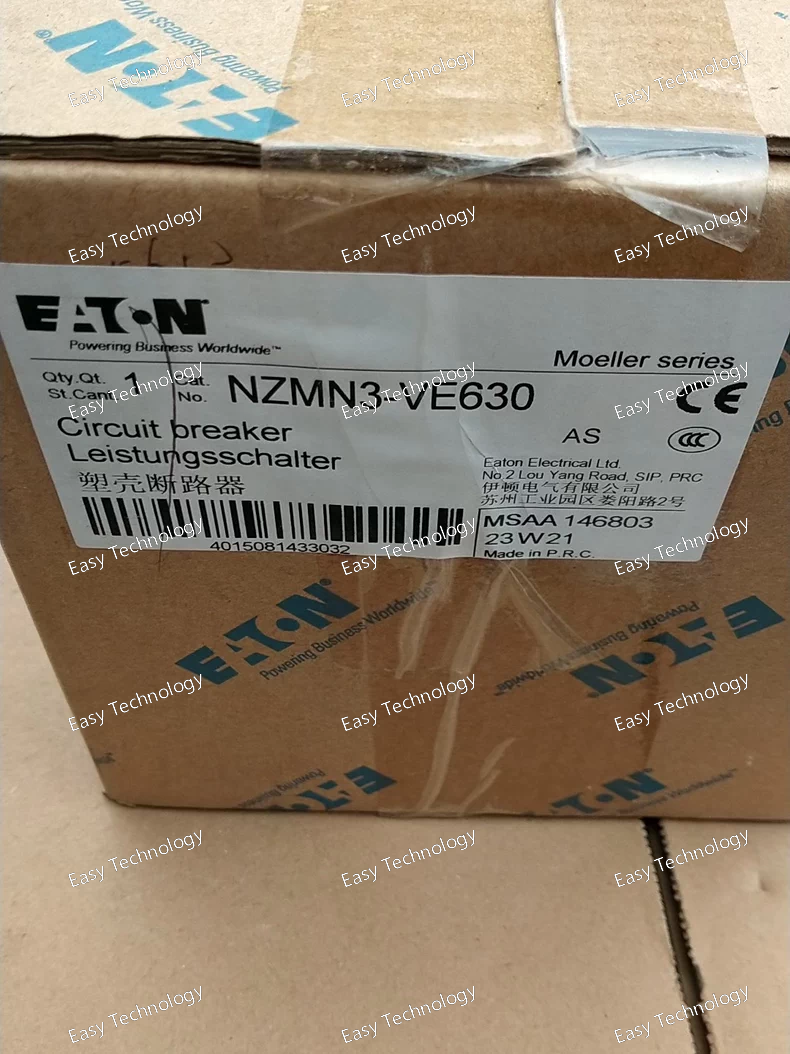

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN3-VE630 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 3-Pole Rated Current (In) 630 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("V" - Versatile) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.

Parameter Specification Manufacturer / Series Eaton, PDC Series (Combination Motor Controller) Model Number PDC13N0100MSAJ Product Type Combination Motor Controller (Soft Starter + Protector) Rated Current 100 Amps Motor Power Rating Approximately 50 HP / 37 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Short-Circuit Withstand High, typically 65 kA or 100 kA (Must verify from datasheet) Control Method Digital, microprocessor-based solid-state soft starting Key Features • Integrated Molded Case Switch (Disconnect) • Solid-State Soft Start/Stop • Advanced Motor Protection (Overload, Phase Loss, etc.) • Diagnostic Capabilities Communication Integrated communication capabilities (e.g., DeviceNet, Modbus) are typically standard. Mounting Fixed Mounting Standards Compliance UL 508, IEC 60947-4-2, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, IZMX Series Model Number IZMX16H3-V16W Product Type 1-Pole + N RCBO (MCB with Integrated RCD) Pole Configuration 1P + N Rated Current (In) 16 A Trip Curve C Characteristic (5-10 x In) Rated Voltage 230V AC Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to both AC and pulsating DC residual currents) Breaking Capacity (Icn) 10 kA (High Performance) Standards Compliance IEC 61009-1, IEC 60898-1

Parameter Specification Manufacturer / Series Eaton, QC Series Model Number QC3020HT Product Type Heavy-Duty Power Factor Correction Capacitor Rated Output 20 kVAR (Kilo Volt-Ampere Reactive) Rated Voltage Typically 480V AC or 525V AC (Must verify from datasheet) Frequency 50/60 Hz Duty Rating Heavy Duty (HT) - Suitable for environments with harmonic distortion Connection 3-Phase Dielectric Fluid Typically non-PCB, biodegradable fluid Protection Features Overpressure disconnector, internal discharge resistors Mounting Suitable for cabinet or frame mounting Standards Compliance UL 810, IEC 60831

Parameter Specification Manufacturer / Series Eaton, PDC Series (Combination Motor Controller) Model Number PDC23N0250TAAS Product Type Combination Motor Controller (Soft Starter + Protector) Rated Current 250 Amps Motor Power Rating Approximately 125 HP / 93 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Short-Circuit Withstand High, typically 65 kA or 100 kA (Must verify from datasheet) Control Method Digital, microprocessor-based solid-state soft starting Key Features • Integrated Molded Case Switch (Disconnect) • Solid-State Soft Start/Stop • Advanced Motor Protection (Overload, Phase Loss, etc.) • Diagnostic Capabilities Communication Integrated communication capabilities (e.g., DeviceNet, Modbus) are typically standard. Mounting Fixed Mounting Standards Compliance UL 508, IEC 60947-4-2, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, HMDL Series Model Number HMDL-DCW 3800W Product Type Programmable DC Power Supply Output Power 3800 W Input Voltage Typically 85-264 V AC (universal input) Output Voltage Programmable, typical range 24 V DC (or other standard DC voltages) * Output Current Up to ~158 A (for a 24V DC output) - Must verify from datasheet Efficiency High, typically >90% Programming Interface Analog (0-10V/4-20mA) and/or Digital (Modbus RTU) Mounting DIN-rail mount (TH35-7.5 or TH35-15) Cooling Integrated fan Protection Features Overload, overvoltage, overtemperature, short-circuit Standards Compliance UL 508, CE, cULus

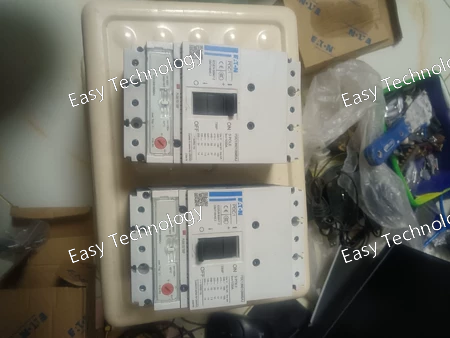

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN3-ME350 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 3-Pole Rated Current (In) 350 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("M" - Modular) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.

Parameter Specification Manufacturer / Series Eaton, PDC Series (Combination Motor Controller) Model Number PDC23K0160E2MS Product Type Combination Motor Controller (Soft Starter + Protector) Rated Current 160 Amps Motor Power Rating Approximately 75 HP / 55 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Short-Circuit Withstand High, typically 65 kA or 100 kA (Must verify from datasheet) Control Method Digital, microprocessor-based solid-state soft starting Key Features • Integrated Molded Case Switch (Disconnect) • Solid-State Soft Start/Stop • Advanced Motor Protection (Overload, Phase Loss, etc.) • Diagnostic Capabilities Communication Integrated communication capabilities (e.g., DeviceNet, Modbus) are typically standard. Mounting Fixed Mounting Standards Compliance UL 508, IEC 60947-4-2, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN2-ME220 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 2-Pole Rated Current (In) 220 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("M" - Modular) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.
