Technical Parameters Category Specification Model M22-IY1 Product Type Inductive Proximity Sensor Housing Thread M22 x 1 Sensing Distance 4 mm (Nominal) Output Type NPN, Normally Open (NO) (Must be verified from datasheet) Output Configuration 3-wire (Brown: +V, Blue: 0V, Black: Output) Supply Voltage 10-30V DC Rated Current Typically ≤ 200 mA Connection Type Fixed Cable Housing Material Nickel-plated brass Target Material Ferrous and Non-ferrous Metals (with different reduction factors) IP Rating IP67 (Dust-tight and protected against temporary immersion)

Technical Parameters Category Specification Model M22-WRK-K10 Product Type Ultrasonic Proximity Sensor Housing Thread M22 x 1 Sensing Range Up to 100 mm (0.1 meter), programmable. Sensing Object Virtually any solid or liquid material (sound-reflective). Output Type Programmable PNP and/or NPN output(s). Output Configuration 3-wire or 4-wire (depending on specific variant). Supply Voltage 10-30V DC Current Consumption Typically < 30 mA Connection Type Defined by "K10" (e.g., Fixed Cable). Housing Material Typically brass or stainless steel. IP Rating IP67 (Dust-tight and protected against temporary immersion) Key Features Programmability Teach-in function for easy setting of switching points. Temperature Compensation Built-in for stable performance in varying temperatures.

Technical Parameters Category Specification Model A22-I4M Product Type Illuminated Pushbutton (Momentary Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Round, Momentary Lens Color Yellow Illumination Incandescent Bulb Contact Block Not Included. This is only the operator (button and lamp assembly). A separate contact block (e.g., A22-C) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 12V, 24V, 48V, 100V, 110V, 120V, 200V, 220V, 240V). Must be specified separately.

Technical Parameters Category Specification Model A22-RLT-WS Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color White (Actuator) Lens Color Red (Illumination) Illumination Incandescent Bulb Contact Block Not Included. A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-QDDL-32/32 Product Type Illuminated 2-Position Selector Switch Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Switch Positions 2 Lens Color (Position 1 & 2) Green / Green Illumination Incandescent Bulbs (one for each position) Contact Block Not Included. One or more separate contact blocks (e.g., A22-C series) must be purchased and stacked to provide the required switching logic. Voltage for Lamps Depends on the specific bulbs installed (e.g., 24V, 110V, 220V). Must be specified separately for each lamp.

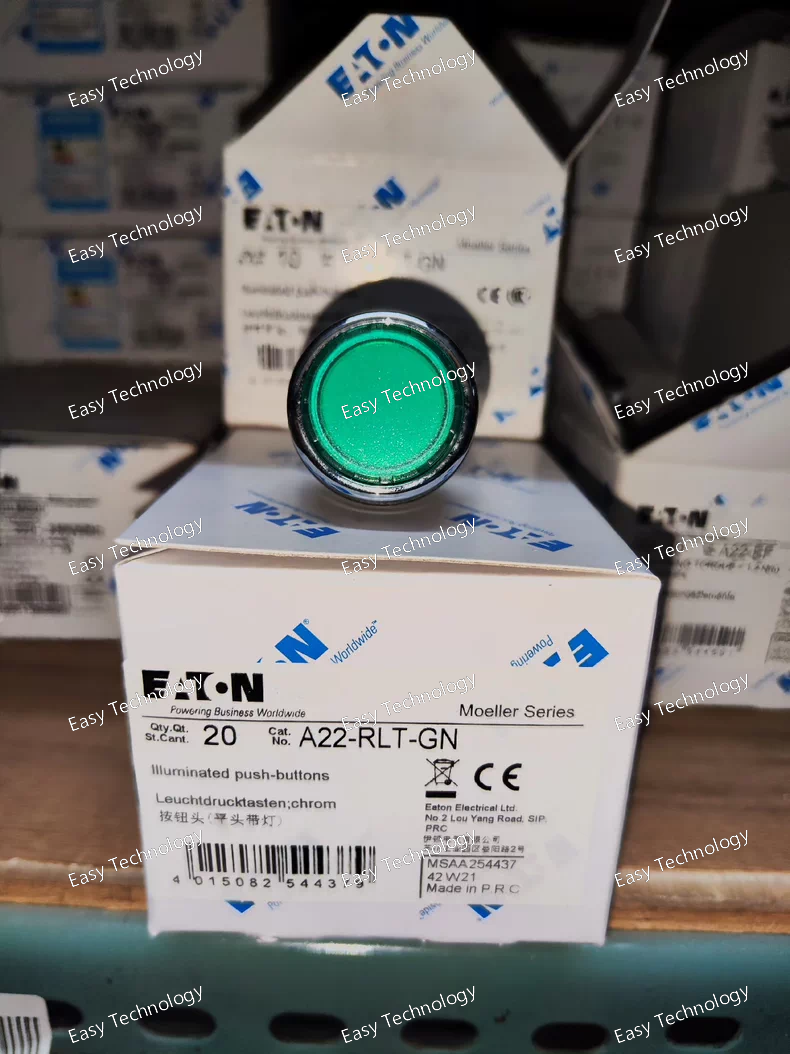

Technical Parameters Category Specification Model A22-RLT-GN Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color Green (Actuator) Lens Color Red (Illumination) Illumination Incandescent Bulb Contact Block Not Included. A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-LED-W Product Type LED Pilot Light / Indicator Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Function Indicator Only (Non-Operated) Lens Color White Illumination Technology Light Emitting Diode (LED) Supply Voltage A wide range of DC or AC voltages depending on the specific internal resistor installed (e.g., 12V DC, 24V DC, 110V AC, 230V AC). This is a critical ordering parameter. Connection Not Included. A separate holder/terminal base (e.g., A22-T) must be purchased.

Technical Parameters Category Specification Model M22-DL-B Product Type 2-Wire AC Inductive Proximity Sensor Housing Thread M22 x 1 Sensing Distance 5 mm (Nominal) Output Type 2-wire AC Supply Voltage 20-253V AC, 50/60 Hz Rated Current Typically 5-200 mA (depending on model) Leakage Current Typically < 1.8 mA Connection Type Fixed Cable Housing Material Nickel-Plated Brass Target Material Ferrous Metals (e.g., Steel) IP Rating IP67 (Dust-tight and protected against temporary immersion)

Technical Parameters Category Specification Model A22-QDDL-11/10 Product Type Illuminated 2-Position Selector Switch Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Switch Positions 2 Lens Color (Position 1 / Position 2) Red / Green Illumination Incandescent Bulbs (one for each position) Contact Block Not Included. One or more separate contact blocks (e.g., A22-C series) must be purchased and stacked to provide the required switching logic. Voltage for Lamps Depends on the specific bulbs installed (e.g., 24V, 110V, 220V). Must be specified separately for each lamp.

Technical Parameters Category Specification Model A22-RWK1V Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color White (Actuator) Lens Color Green (Illumination) Illumination Incandescent Bulb Contact Block Not Included. This is only the operator (button and lamp assembly). A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.
