Technical Parameters Category Specification for MCS11 Series Model / Series MCS11 Product Type Modular Control and Signalling Station Mounting Panel Mount (Base frame snaps into a rectangular cutout) Front Panel Protection Typically IP65 (Dust-tight and protected against water jets) when properly installed. Module Types Actuators Pushbuttons (illuminated/non-illuminated), selector switches, key-operated switches, emergency stop. Contact Blocks Various contact configurations (e.g., 1NO, 1NC, 1NO+1NC). Pilot Lights Various lens colors and voltages for status indication. Contact Rating (Typical) 10A @ 250V AC (for contact blocks) Electrical Life Typically > 1,000,000 mechanical operations. Material Thermoplastic (PA) for high mechanical strength and chemical resistance. Agency Approvals UL Listed, CSA Certified, CE Marked

Technical Parameters Category Specification Model M22-WRLK3-W Product Type Ultrasonic Proximity Sensor Housing Thread M22 x 1 Sensing Range Typically up to 600 mm (0.6 meters) or similar, programmable. Sensing Object Virtually any solid or liquid material (sound-reflective). Output Type Typically 1 PNP and 1 NPN output, programmable for NO/NC operation. Output Configuration 4-wire (2 for power supply, 1 PNP output, 1 NPN output). Supply Voltage 10-30V DC Current Consumption Typically < 30 mA Connection Type Quick-Disconnect (Connector) (W), allowing for easy sensor replacement. Housing Material Typically brass or stainless steel with PTFE/POM sensing face. IP Rating IP67 (Dust-tight and protected against temporary immersion) Key Features Programmability Teach-in function for easy setting of switching points. Temperature Compensation Built-in for stable performance in varying temperatures.

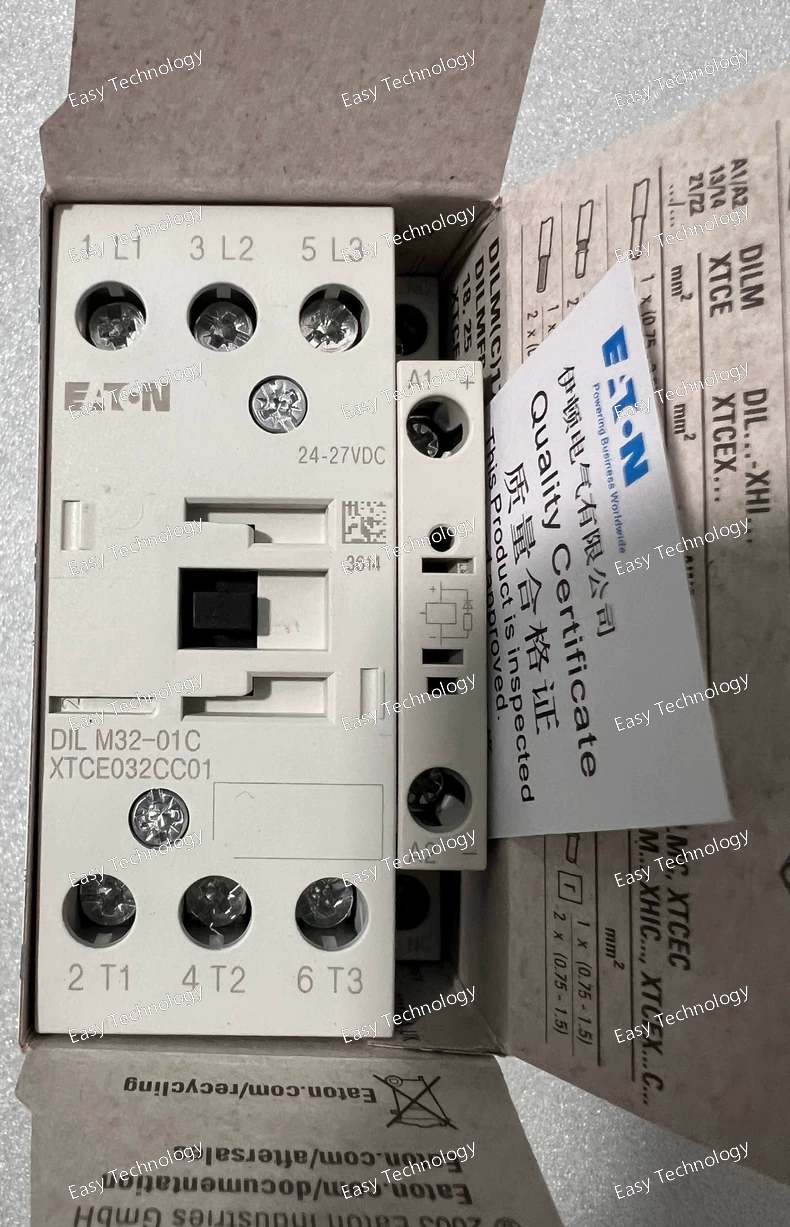

Technical Parameters Category Specification Model DILM32-01C (XTCE032CC01) Product Type Contactor Rated Operational Current (Ie) 32 A at AC-3, 400V Rated Operational Voltage (Ue) 690V AC Poles 3 (Main Contacts) Auxiliary Contacts 1 NO + 1 NC (Convertible) Coil Voltage 24V AC, 50/60 Hz (for "01C" variant) Rated Power Consumption Typically 9 VA (AC) Electrical Durability Typically 1.5 million operations at rated current Mechanical Durability Typically 10-15 million operations Mounting DIN Rail (35mm) or Screw Mount Standards IEC/EN 60947-4-1, UL 508

Technical Parameters Category Specification Model M22WRLK-W Product Type Ultrasonic Proximity Sensor Housing Thread M22 x 1 Sensing Range Typically up to 600 mm (0.6 meters) or similar, programmable. Sensing Object Virtually any solid or liquid material (sound-reflective). Output Type Typically 1 PNP and 1 NPN output, programmable for NO/NC operation. Output Configuration 4-wire (2 for power supply, 1 PNP output, 1 NPN output). Supply Voltage 10-30V DC Current Consumption Typically < 30 mA Connection Type Quick-Disconnect (Connector) (W), allowing for easy sensor replacement. Housing Material Typically brass or stainless steel with PTFE/POM sensing face. IP Rating IP67 (Dust-tight and protected against temporary immersion) Key Features Programmability Teach-in function for easy setting of switching points. Temperature Compensation Built-in for stable performance in varying temperatures.

Technical Parameters Category Specification Model LSM-11D Product Type Linear Position Sensor / String Potentiometer Measurement Range Specific to model variant (e.g., 100mm to 2000mm) Output Signal Potentiometer (e.g., 0-5kΩ, 0-10kΩ) Linearity Typically ±0.1% to ±0.5% of full scale Repeatability Very high, typically < 0.01 mm Supply Voltage N/A (as a passive potentiometer, it requires an external excitation voltage if used for voltage output) Cable Speed Typically up to 2 m/s Electrical Connection Pre-wired cable or connector (specific to variant) Housing Material Anodized aluminum IP Rating Typically IP54 or higher Operating Temperature -20°C to +80°C

Technical Parameters Category Specification Model M22-WRK3Q Product Type Ultrasonic Proximity Sensor Housing Thread M22 x 1 Sensing Range Typically up to 200 mm (0.2 meters) or similar, programmable. Sensing Object Virtually any solid or liquid material (sound-reflective). Output Type Typically 1 PNP and 1 NPN output, programmable for NO/NC operation. Output Configuration 4-wire (2 for power supply, 1 PNP output, 1 NPN output). Supply Voltage 10-30V DC Current Consumption Typically < 30 mA Connection Type Quick-Disconnect (Connector), likely a standard M12 connector. Housing Material Typically brass or stainless steel with PTFE/POM sensing face. IP Rating IP67 (Dust-tight and protected against temporary immersion) Key Features Programmability Teach-in function for easy setting of switching points. Temperature Compensation Built-in for stable performance in varying temperatures.

Technical Parameters Category Specification Model M22-WLK3-W Product Type Ultrasonic Proximity Sensor Housing Thread M22 x 1 Sensing Range Typically up to 200 mm (0.2 meters) or similar, programmable. Sensing Object Virtually any solid or liquid material (sound-reflective). Output Type Typically 1 PNP and 1 NPN output, programmable for NO/NC operation. Output Configuration 4-wire (2 for power supply, 1 PNP output, 1 NPN output). Supply Voltage 10-30V DC Current Consumption Typically < 30 mA Connection Type Quick-Disconnect (Connector), likely a standard M12 connector. Housing Material Typically brass or stainless steel with PTFE/POM sensing face. IP Rating IP67 (Dust-tight and protected against temporary immersion) Key Features Programmability Teach-in function for easy setting of switching points. Temperature Compensation Built-in for stable performance in varying temperatures.

Technical Parameters Category Specification Model A22-EK10P Product Type Key-operated Selector Switch Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Actuator Type Key-operated Contact Block Defined by "10P" (Typically a specific configuration, e.g., 2 positions, 1 or 2 contacts) Contact Rating Typically 5A @ 250V AC Electrical Life Typically > 100,000 electrical operations Mechanical Life Typically > 1,000,000 mechanical operations Key Removable in specified positions

Technical Parameters Category Specification Model M22-WLK-W Product Type Ultrasonic Proximity Sensor Housing Thread M22 x 1 Sensing Range Typically up to 200 mm (0.2 meters) or similar, programmable. Sensing Object Virtually any solid or liquid material (sound-reflective). Output Type Typically 1 PNP and 1 NPN output, programmable for NO/NC operation. Output Configuration 4-wire (2 for power supply, 1 PNP output, 1 NPN output). Supply Voltage 10-30V DC Current Consumption Typically < 30 mA Connection Type Quick-Disconnect (Connector), likely a standard M12 connector. Housing Material Typically brass or stainless steel with PTFE/POM sensing face. IP Rating IP67 (Dust-tight and protected against temporary immersion) Key Features Programmability Teach-in function for easy setting of switching points. Temperature Compensation Built-in for stable performance in varying temperatures.

Technical Parameters Category Specification Model M22-D-R-X0/K01 Product Type 2-Wire AC Inductive Proximity Sensor Housing Thread M22 x 1 Sensing Distance 8 mm (Nominal) Output Type 2-wire AC Supply Voltage 20-253V AC, 50/60 Hz Rated Current Typically 5-200 mA (depending on model) Leakage Current Typically < 1.8 mA Connection Type Fixed Cable Housing Material Nickel-Plated Brass Target Material Ferrous Metals (e.g., Steel) IP Rating IP67 (Dust-tight and protected against temporary immersion)
