Core Functionality:
• Industrial eddy current displacement sensor
• Non-contact vibration measurement solution
• API 670 compliant for machinery protection

Key Specifications:
▸ Sensitivity: 8.0 mV/µm (standard -010 calibration)
▸ Measuring Range: 0-1.0 mm (1000 µm)
▸ Frequency Response: DC to 10 kHz
▸ Output: -2 to -20V linear analog signal

Mechanical Details:
• 8mm diameter probe with M10×1 thread
• Operating Temp: -30°C to +120°C (sensor head)
• Vibration resistant up to 20g

Typical Applications:
✓ Turbine shaft vibration monitoring
✓ Compressor axial displacement
✓ Rotating equipment protection systems

System Integration:
• Compatible with EPRO MMS6000 monitors
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Core Functionality:
A 4-channel industrial monitoring system designed for comprehensive machinery protection, measuring:
✓ Vibration
✓ Displacement
✓ Speed
✓ Temperature (optional)

Key Technical Specs:
• Inputs: Accepts signals from eddy current probes, velocity sensors, tachometers, and RTD/TCs
• Measurement Ranges:

Vibration: 0-500 µm

Displacement: 0-2.0 mm

Speed: 0-20,000 RPM
• Outputs: 4x 4-20mA + 8 alarm relays
• Communications: RS-485 (Modbus) + Ethernet options

Industrial Features:
• Complies with API 670 standards
• -20°C to +70°C operation
• Panel-mounted IP20 enclosure

Typical Deployment:
Ideal for turbine/compressor monitoring in:

Power generation

Oil & gas

Heavy industrial applications

Configuration:
Programmable via front panel or CMS 2000 software

Key Features:
✔ Dual Monitoring Channels – Supports eddy current probes (e.g., PR6426) and velocity sensors
✔ Wide Measurement Range – Vibration (0–500 µm), Displacement (0–2.0 mm), Speed (0–20,000 RPM)
✔ Programmable Alarms – 4 relay outputs (Danger/Warning) with SPDT contacts
✔ Analog & Digital Outputs – 4–20 mA signals + RS-485/Modbus communication
✔ Robust Design – Operates in -20°C to +70°C, compliant with API 670

Typical Applications:
Turbine/compressor protection systems

Bearing condition monitoring

Integration with DCS/PLC controls

Key Features:
Sensitivity: 7.87 mV/µm (factory-calibrated)

Measurement Range: 0–1.3 mm (1300 µm)

Output: -2 to -20V DC (linear analog signal)

Frequency Response: 0–10 kHz (suitable for dynamic measurements)

Robust Design: Operates in -30°C to +120°C environments

Typical Applications:
Shaft vibration monitoring (turbines, compressors)

Axial displacement measurement

Machinery protection systems (compatible with EPRO MMS6000)

Compatibility:
8mm probe with CON021 connector options

Meets API 670 standards for industrial reliability

A trusted solution for accurate, real-time machinery health monitoring.

Key Features:
✔ 4 Independent Channels – Supports eddy current probes (e.g., PR6423) and speed sensors
✔ Wide Measurement Range – Displacement (0–2000 µm), Vibration (0–500 µm pk-pk), Speed (0–20,000 RPM)
✔ High Accuracy – ±1% FS with 0.5 Hz–10 kHz frequency response
✔ Programmable Alarms – 8 relay outputs for over-limit protection
✔ Flexible Outputs – 4–20 mA, 0–10V analog & RS-485/Modbus communication
✔ Robust Design – Operates in -20°C to +60°C, IP20 enclosure

Typical Applications:
Turbine/compressor condition monitoring

Bearing vibration & shaft displacement protection

Integration with DCS/PLC systems

A reliable solution for predictive maintenance & machinery safety.

Key Specifications:

Measurement Range: 0-2.54mm (0-100 mils)

Output: -2 to -18VDC linear analog signal

Sensitivity: 8.0mV/µm (200mV/mil)

Frequency Response: DC to 10kHz

Power Supply: -24VDC ±10%

Construction Features:

8mm diameter probe tip

316 stainless steel housing

M10×1 mounting thread

Integral armored cable (standard length varies)

Performance Characteristics:

±1% linearity of full scale

0.1µm resolution

AISI 4140 steel target standard

20g vibration resistance

Environmental Ratings:

Operating temperature: -30°C to +120°C

Storage temperature: -40°C to +150°C

Typical Applications:

Turbine shaft monitoring

Compressor vibration measurement

Rotor position detection

API 670 compliant machinery protection systems

Key Features:
Sensitivity: 4.0 mV/µm (optimized for wider measurement ranges)

Measurement Range: 0 to 2.0 mm (2000 µm)

Output: -2 to -20V DC (linear analog signal)

Frequency Response: 0–10 kHz (suitable for dynamic vibration analysis)

Robust Design: Operates in -30°C to +120°C environments

Typical Applications:
Shaft vibration monitoring in turbines & compressors

Axial position measurement (thrust monitoring)

Condition-based maintenance systems

Compatibility:
Integrates with EPRO MMS6000 monitoring systems

Standard 8mm probe with CON021 connector options

Key Features:
Robust Construction: Stainless steel or high-grade plastic housing with IP65/IP67 protection.

Secure Connection: Screw-locking mechanism for vibration-resistant performance.

Electrical Reliability: Gold-plated contacts ensure stable signal transmission.

Wide Compatibility: Works with PR 6000 series probes and EPRO monitoring systems.

Operating Range: -40°C to +120°C, suitable for harsh industrial environments.

Typical Use:
Connects proximity probes to EPRO MMS6000 and other condition monitoring systems.

Ensures reliable signal transfer in turbines, compressors, and rotating machinery.

Key Features:
Operating Principle: Eddy current technology for precise gap measurement.

Output Signal: -2 to -20V DC (linear with displacement).

Sensitivity: Typically 8 mV/µm (or as per -010 calibration).

Measurement Range: Up to 1.0 mm (1000 µm) depending on setup.

Frequency Response: 0–10 kHz, suitable for dynamic vibration monitoring.

Robust Design: Operates in harsh environments (-30°C to +120°C).

Standard Probe Diameter: 8 mm.

Typical Applications:
Shaft vibration monitoring in power plants and industrial machinery.

Axial position measurement (thrust monitoring).

Condition monitoring systems (compatible with EPRO MMS6000 and other protection systems).

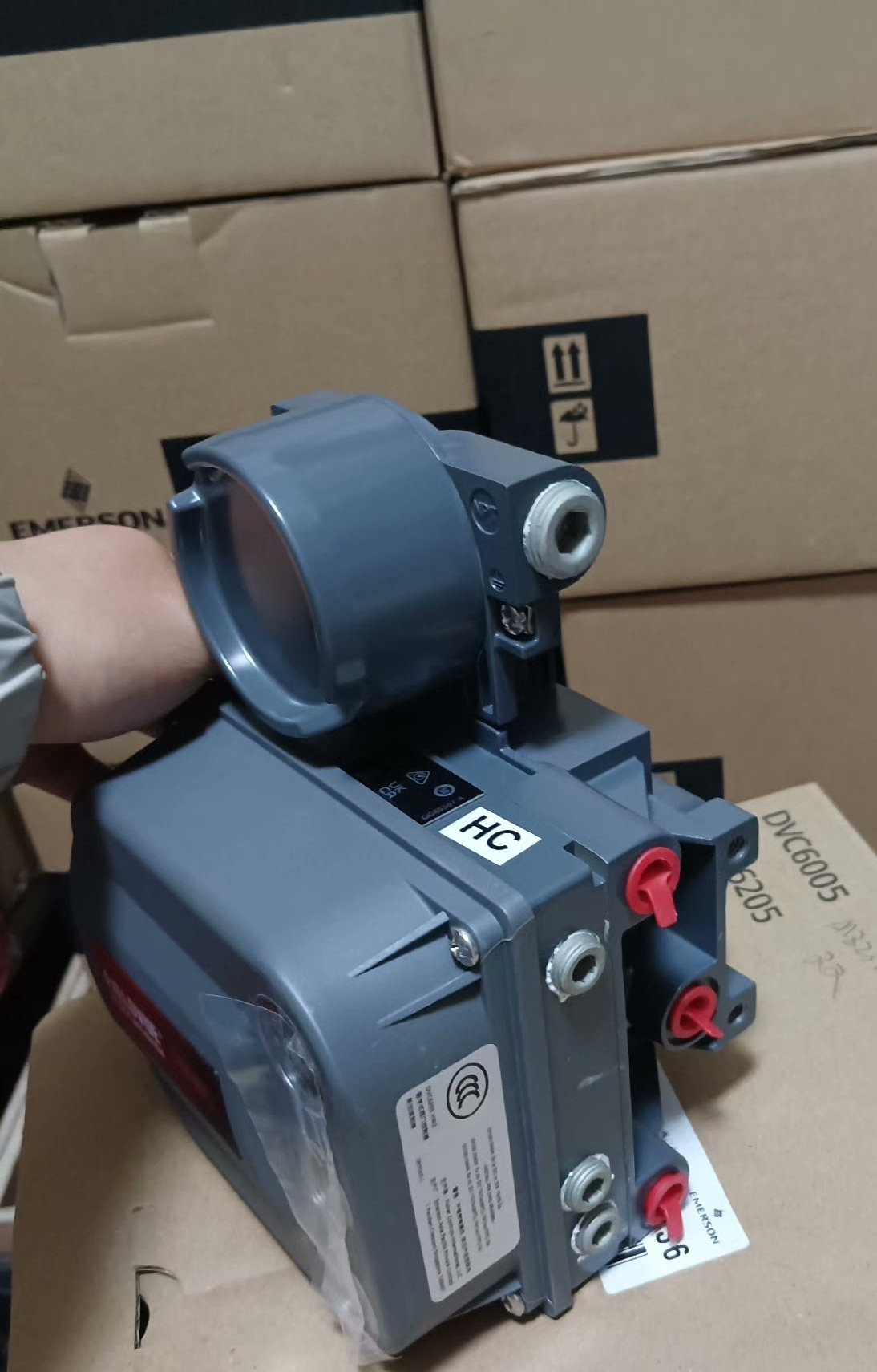

The Fisher FIELDVUE DVC6200 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.
