Emerson EV3000

Premium VFD (0.4-450kW)

380V/480V 3-phase

Built-in PLC & EMC filter

Emerson UF90 STM

Vortex flow meter

Liquid/steam/gas

4-20mA/pulse output

Emerson TD1000-4T0055G – 5.5kW, 380V 3-phase VFD for motor control. Compact design, basic functions.

Emerson MEV2000-40007-000

7.5kW

400V AC Drive

Industrial Grade

Emerson EV1000-4T0015G

1.5kW

380V 3-phase

Compact VFD

Emerson SKA1200055

55kW

Industrial Drive

High Performance

Emerson TD1000-4T0037G

3.7kW (5HP)

380V 3-phase VFD

Basic motor control

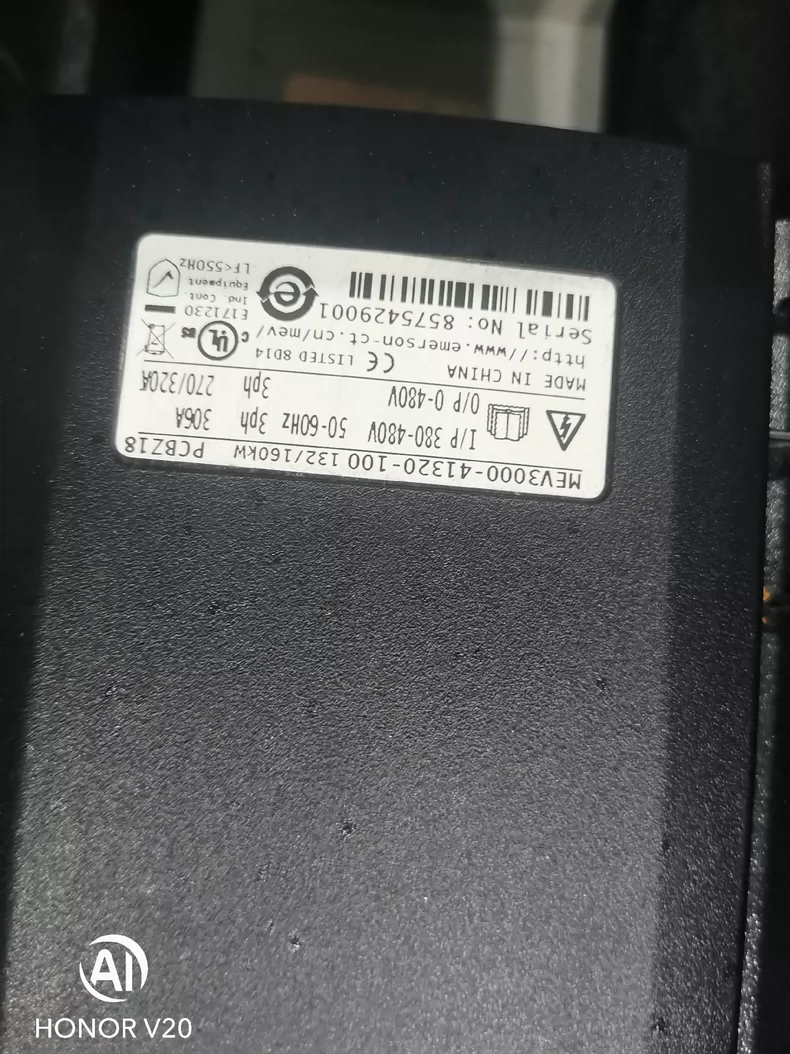

The Emerson MEV3000 - 41320 - 100 is a high - performance inverter. Rated for 132KW continuous operation and capable of handling up to 160KW under certain conditions, it is designed for industrial motor control. It accepts a three - phase input voltage of 380 - 440VAC (with a tolerance of 320 - 460VAC) at a nominal frequency of 50/60Hz. The output frequency can be adjusted from 0Hz to 650Hz. It uses advanced control methods like vector control (both with - speed and without - speed) and V/F control. The control accuracy reaches ±0.05% with speed feedback and ±0.5% without. It has a wide speed control range: 1:1000 with speed feedback and 1:100 without. Offering a high starting torque, it can achieve 200% at 0rpm with speed feedback and 150% at 0.5Hz without. With an overload capacity of 150% of the rated current for 60 seconds, it ensures reliable operation during peak loads. Equipped with an RS - 485 interface supporting Modbus protocol, it allows for seamless integration into industrial control systems.

The Emerson MEV3000 - 40900 - 000 is a high - performance general - purpose inverter suitable for a wide range of industrial applications. With a power rating spanning 90/110KW, it can drive motors of significant size. It features excellent input voltage adaptability, working well within 320 - 460 VAC for three - phase power. By using advanced vector control, it ensures accurate and stable motor operation, delivering high torque even at low speeds. The inverter can handle overloads effectively, which is crucial for applications with fluctuating load demands. Its RS - 485 communication interface with Modbus support allows for easy connection to PLCs and other control devices in industrial automation setups, making it a versatile and reliable choice for industrial motor control.

The Emerson 5X00109G02 is a high - performance analog output module. It has 4 channels, supporting output ranges like 4 - 20 mA (default), 0 - 20 mA, and 0 - 10 VDC, which are software - configurable. With 16 - bit resolution and ±0.1% accuracy at 25°C, it ensures precise output. It's HART 7.0 compatible for enhanced communication. Fast - settling (≤10 ms for 0 - 95% step), it can drive loads up to 750 Ω for current output and ≥10 kΩ for voltage. Operating from - 40°C to + 85°C in 5 - 95% non - condensing humidity, it consumes ≤2.5 W. Compact in size (121×51×152 mm) and weighing about 300 g, it's easily DIN - rail mountable, fitting well in industrial control setups.
