Parameter Specification Manufacturer / Series Eaton / DG4V-3 Part Number / Model DG4V-3S-2A-M-FW-B5-60 Valve Type Solenoid Operated, Directional Control Valve Configuration 4-Port, 3-Position (4/3) Actuation Type Double Solenoid, Spring-Centered Spool Type 2A (This defines the internal flow path geometry in the actuated positions) Middle Position Float (FW) - In center position: P to T, A to T, B to T Mounting Style Subplate Mounting (ISO 4401-03 (CETOP 3) interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage -B5- typically denotes a 12V DC coil. Always confirm with supplier or datasheet. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 60 L/min (15.8 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Solenoid Characteristics Solenoid Type Wet Pin DC Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~2.0 kg (4.4 lbs) - (varies with coil and options)

Parameter Specification Manufacturer / Series Eaton / 93PM Part Number / Model 300AA00126A Product Type Three-Phase, Double-Conversion On-Line UPS Power Rating 300 kVA / 300 kW (Unity Power Factor, PF=1) Input Input Voltage 400 V AC (3Ph+N+E) Input Voltage Range Adjustable via dip switches (e.g., -15% to +10%) Input Frequency 50/60 Hz (Auto-sensing) Input Power Factor >0.99 Output Output Voltage 400/230 V AC (3Ph+N+E) Output Voltage Regulation ±1% Output Frequency 50/60 Hz (Synchronized to bypass within range) Output Power Factor 1.0 Battery Battery Voltage Typically 480 V DC (Specific string configuration required) Standard Battery Runtime Typically 5-10 minutes at full load (varies based on external battery cabinets) Performance Efficiency at Full Load Up to 96.5% in Double Conversion mode Efficiency in Eco Mode Up to 99% Physical & Environmental Form Factor Tower / Free-Standing Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Communication Interfaces Standard (X-Slot for network management cards, SNMP, USB) Standards & Certifications IEC 62040-1, CE Mark, UL, cUL, RoHS

Parameter Specification Manufacturer / Series Eaton / DG4V-3 Part Number / Model DG4V-3C-2C-M-U-H5-13 Valve Type Solenoid Operated, Directional Control Valve Configuration 4-Port, 3-Position (4/3) Actuation Type Single Solenoid, Spring-Centered (-3C-) Spool Type 2C (This defines the internal flow path geometry in the actuated position) Middle Position Closed Center (M) - In center position: All ports (P, T, A, B) are blocked. Mounting Style Subplate Mounting (ISO 4401-03 (CETOP 3) interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage -H5- typically denotes a 12V DC coil. Always confirm with supplier or datasheet. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 13 L/min (3.4 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Solenoid Characteristics Solenoid Type Wet Pin DC Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~1.8 kg (4.0 lbs) - (varies with coil and options)

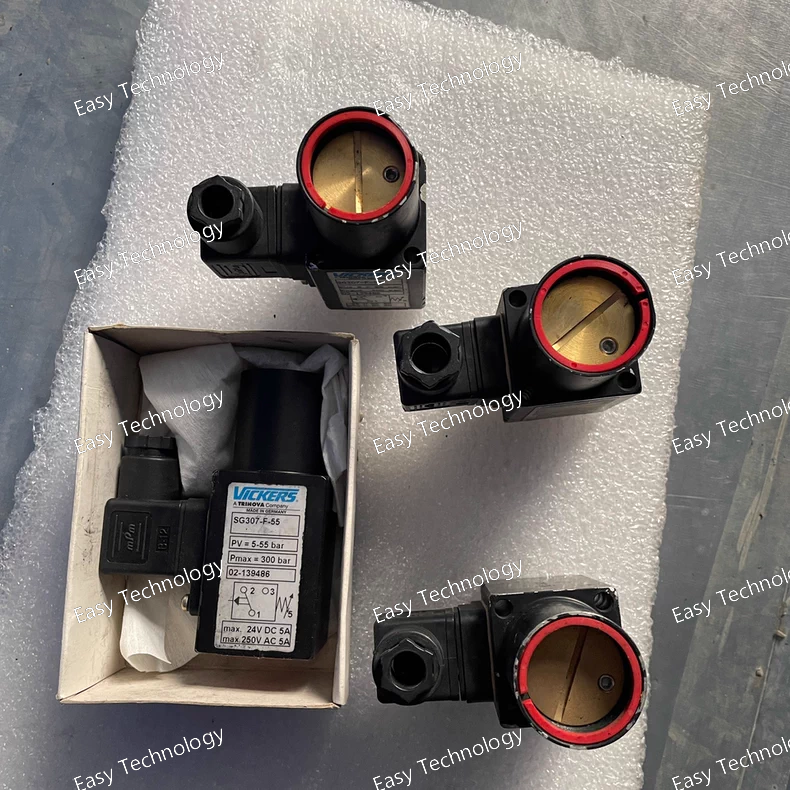

Parameter Specification Manufacturer / Series Eaton / SG307 Part Number / Model SG307-F-55 Product Type Pressure Transducer (Strain Gauge) Pressure Type Gauge Pressure Pressure Range 0 to 350 bar 0 to 5000 psi Output Signal 4...20 mA (2-wire) (This is the standard output for this series) Supply Voltage 10...30 V DC Electrical Connection M12x1, 4-pin connector (Typical for "-F-" variant) Pressure Port G1/4" female (ISO 1179-2) (Typical, confirm with datasheet) Performance Full Scale Span (FSS) ±0.5% (Includes Non-Linearity, Hysteresis, Non-Repeatability) Null Offset ±0.5 mV/V Long-Term Stability < ±0.2% FSO per year Operating Conditions Proof Pressure 2 x Full Scale (700 bar / 10000 psi) Burst Pressure 3 x Full Scale (1050 bar / 15000 psi) Media Temperature -40 °C to +125 °C (-40 °F to +257 °F) Compensation Temperature -20 °C to +85 °C (-4 °F to +185 °F) Environmental Protection Class IP66 / IP67 (with connector mated) Media Compatibility Hydraulic fluids, oils, water, and other media compatible with 17-4PH SS and Viton.

Parameter Specification Manufacturer / Series Eaton / 9PX Part Number / Model 300AA00135A Product Type Single-Phase, Double-Conversion On-Line UPS (Tower) Power Rating 11 kVA / 11 kW (Unity Power Factor, PF=1) Input Input Voltage 230 V AC (1Ph + N + E) Input Voltage Range 115 - 286 V AC (Sag compensation up to 138 V) Input Frequency 50/60 Hz (Auto-sensing) Output Output Voltage 230 V AC (1Ph + N + E) Output Voltage Regulation ±2% Output Frequency 50/60 Hz (±0.5% in battery mode) Output Power Factor 1.0 Battery Battery Type Sealed, maintenance-free Lead-Acid (VRLA) Standard Battery Runtime Typical 5-10 minutes at full load (Varies with load and battery cartridge) Performance Efficiency at Full Load >96% Physical & Environmental Form Factor Tower Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Communication Interfaces USB, Serial (RS-232), SmartSlot (for network management cards like EBM) Standards & Certifications IEC 62040-1, CE Mark, cUL, RoHS

Parameter Specification Manufacturer / Series Eaton / ST307 Part Number / Model ST307-350-B Product Type Pressure Transmitter (Strain Gauge) Pressure Type Gauge Pressure Pressure Range 0 to 350 bar 0 to 5000 psi Output Signal 4...20 mA (2-wire) Supply Voltage 10...30 V DC Electrical Connection M12x1, 4-pin connector Pressure Port G1/4" female (ISO 1179-2) Performance Overall Accuracy (at 25°C) ±0.25% FSO (Includes Non-Linearity, Hysteresis, Non-Repeatability) Thermal Effects ±1.0% FSO (-20°C to +85°C) Long-Term Stability < ±0.1% FSO per year Operating Conditions Proof Pressure 2 x Full Scale (700 bar) Burst Pressure 3 x Full Scale (1050 bar) Media Temperature -40 °C to +125 °C (-40 °F to +257 °F) Compensation Temperature -20 °C to +85 °C (-4 °F to +185 °F) Environmental Protection Class IP66 / IP67 (with connector mated) Media Compatibility Hydraulic fluids (petroleum-based, HFA, HFB, HFC), water, air. Wetted parts: 17-4PH SS, seals: Viton (Standard).

Parameter Specification Manufacturer / Series Eaton / DG4V-3 Part Number / Model DG4V-3-2A-M-U-H7-60 Valve Type Solenoid Operated, Directional Control Valve Configuration 4-Port, 3-Position (4/3) Actuation Type Single Solenoid, Spring Offset Spool Type 2A (Defines the internal flow path geometry in the actuated position) Middle Position Closed Center (M) - In center position: All ports (P, T, A, B) are blocked. Mounting Style Subplate Mounting (ISO 4401-03 / CETOP 3 interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage -H7- typically denotes a 24V DC coil. Always confirm with supplier or datasheet. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 60 L/min (15.8 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Solenoid Characteristics Solenoid Type Wet Pin DC Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~2.0 kg (4.4 lbs) - (varies with coil and options)

Parameter Specification Manufacturer Eaton Part Number H-507848 Product Type Solenoid Coil (Wet Pin) Compatible Valves Designed for use with specific Eaton valves (e.g., DG4V series, etc.) Electrical Specifications Voltage 24V DC Duty Cycle Continuous (100%) Insulation Class Class F (155 °C) Power Consumption Typically ~22 W (Confirm with datasheet) Inrush Power Typically ~26 VA (Confirm with datasheet) Holding Power Typically ~20 VA (Confirm with datasheet) Electrical Connection DIN 43650 Form A Environmental & Physical Protection Class IP65 (Dust tight and protected against water jets) Ambient Temperature Range -40 °C to +120 °C (including coil hotspot) Features LED Indicator (Green), Manual Override Weight (Approx.) ~0.3 kg

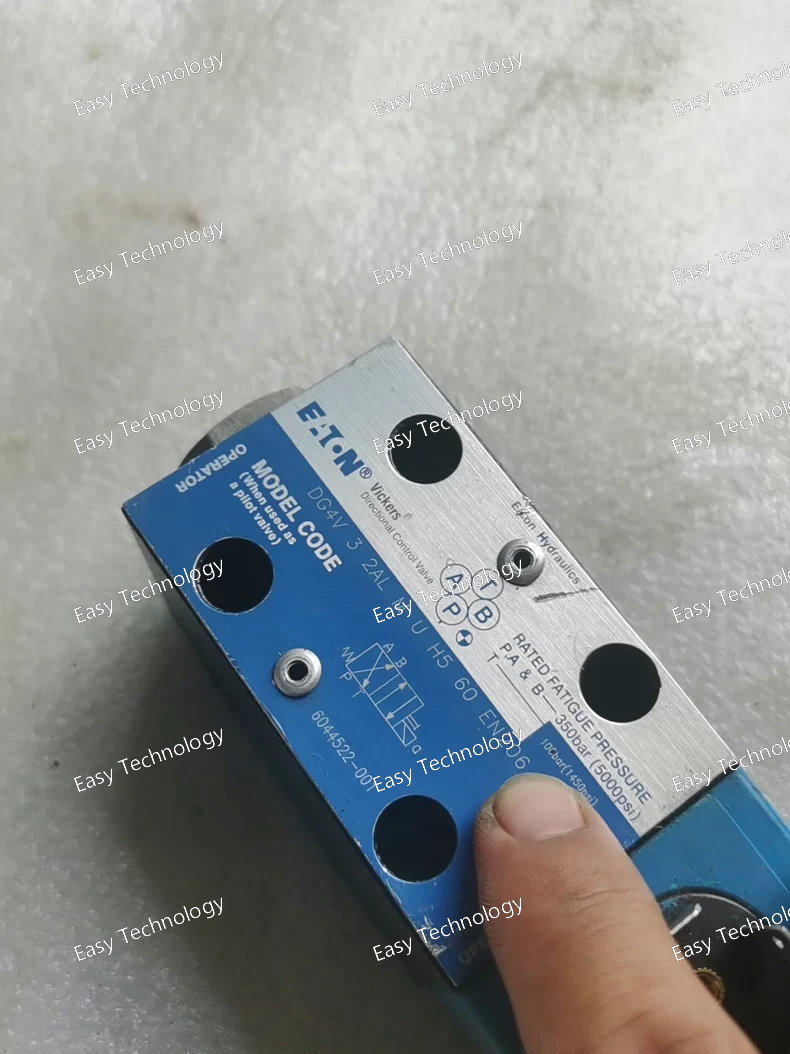

Parameter Specification / Description Manufacturer / Series Eaton / DG4V-3 Component Type Spool (Internal Valve Component) Spool Code 2AL Compatible Valve Body DG4V-3 Series Valve Bodies Function Defines the internal flow paths and metering characteristics in the actuated positions of the valve. Key Characteristic Provides metered control of flow to the work ports, allowing for smooth actuation of cylinders and motors. Typical Use Case Used in applications requiring controlled movement and speed of hydraulic actuators.

Parameter Specification Manufacturer / Series Eaton / RV3 Part Number / Model RV3-10V-S-0-3 Valve Type Pilot Operated Check Valve (Screw-in Cartridge) Cavity Standard ISO 7789 Thread 7/8"-14 SAE ORB (This is typical for size 10) Seal Kit Eaton E-KT-16 (or similar - confirm with latest datasheet) Function Allows free flow from A to B; blocks flow from B to A unless pilot pressure is applied to X. Performance Nominal Size 10 Pilot Ratio 3:1 Maximum Operating Pressure 350 bar (5,000 psi) Cracking Pressure (A to B) Typically 0.35 bar (5 psi) Maximum Flow Capacity Up to 75 L/min (20 US GPM) - Refer to performance curves for pressure drop. Leakage Bubble-tight (due to soft seat) Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14
