Key Parameters Parameter Specification / Description Valve Type Proportional directional control cartridge valve Series / Size DGMDC‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow direction proportionally based on electrical input; maintains stable operation under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type X / BK (proportional pilot-operated) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Pilot-operated pressure relief cartridge valve Function Protects hydraulic circuits by relieving excess pressure Maximum Operating Pressure 350 bar (≈ 5000 psi) Flow Capacity Up to rated flow (depends on system design, typically 20–50 L/min) Adjustment Adjustable spring for setting desired relief pressure Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Viscosity Range 10–800 cSt Operating Temperature –20 °C to +80 °C Mounting Type Screw-in cartridge or manifold mount Port Size NG6 / CETOP 3 (or as per installation requirements)

Key Parameters Parameter Specification / Description Valve Type Solenoid-operated directional control valve, 3-position, 4-way Series DSG-01 Function Controls hydraulic flow direction; closed center in neutral Maximum Flow Rate 30 L/min (approx.) Maximum Operating Pressure 210 bar (≈ 3000 psi) Actuation Solenoid, 24 V DC Spool Type 3C2 (closed-center, 3-position) Seal Material NBR/Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate mount (ISO 4401 / CETOP 3 interface) Electrical Connector DIN 43650-A / ISO 4400 standard

Key Parameters Parameter Specification / Description Valve Type Solenoid-operated directional control valve, 3-position, 4-way Series DG4V-3 Function Controls hydraulic flow direction; closed center in neutral Maximum Flow Rate 60 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Actuation Solenoid, modular type Spool Type 2AL (closed-center, 3-position) Seal Material H7 (Buna-N standard, Viton optional) Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount (ISO 4401 / CETOP 3 interface) Electrical Connector DIN 43650 / ISO 4400 standard

Parameter Specification Product Series DPS2 Ordering Code / Article No. DPS2-20-S-F0-20 Input Input Voltage (AC) 100 - 240 V AC (±10%) Input Frequency 47 - 63 Hz Input Current 0.9 A at 115V AC; 0.5 A at 230V AC Inrush Current (I²t) < 20 A²s Output Output Voltage 24 V DC Rated Output Current 0.8 A Power Output Power (at 40°C) 20 W Boost Function Boost Current 1.2 A (for up to 5 seconds) Performance & Characteristics Efficiency Up to 94.5% Power Factor (λ) >0.65 at 230V AC / >0.5 at 115V AC Ripple and Noise < 150 mVpp Line Regulation < ±0.5% Load Regulation < ±1.0% Protections Overload Protection Electronic, self-recovery (Hiccup mode) Overvoltage Protection 28 - 32 V DC (Clamping type) Short-Circuit Protection Yes, automatic recovery Environmental & Physical Operating Temperature -25 °C to +70 °C (with derating above 40°C) Storage Temperature -40 °C to +85 °C Cooling Method Natural convection (fanless) Housing Material Plastic (Polycarbonate) Mounting Standard DIN Rail (EN 60715: 35mm) Dimensions (W x H x D) 22.5 x 90 x 96 mm Weight Approx. 0.18 kg Safety & EMC Standards Safety Standards UL 508, CSA C22.2 No. 14, EN 62368-1 (CB Report) EMC Standards EN 61000-6-2, EN 61000-6-4 Certifications cULus Listed, CE Marked, RCM Marked

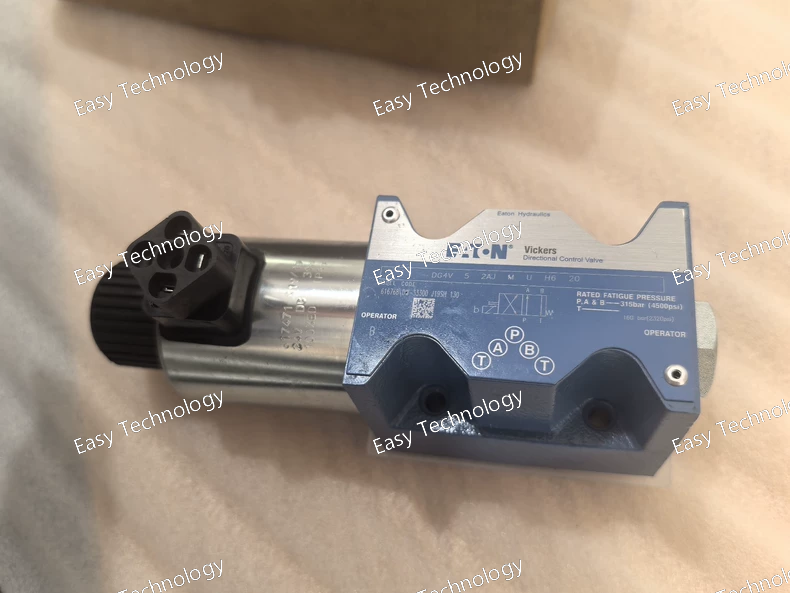

Parameter Specification Manufacturer / Series Eaton / DG4V-5 Part Number / Model DG4V-5-2AJ-M-U-H6-20 Valve Type Solenoid Operated, Directional Control Valve Configuration 5-Port, 4-Way (5/4) Actuation Type Single Solenoid, Spring Offset Spool Type 2AJ (This is a specific spool configuration. Refer to Eaton's datasheet for exact flow path characteristics). Mounting Style Subplate Mounting (ISO 4401-05 (CETOP 5) interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage (Example) Note: The "-H6-20" typically specifies the coil. H6 often denotes 12V DC. This must be confirmed with the supplier or datasheet as other voltages are available. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 20 L/min (5 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Maximum Peak Pressure 400 bar (6,000 psi) Solenoid Characteristics Solenoid Type Wet Pin AC or DC (specific to order code) Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~2.5 kg (5.5 lbs) - (varies with coil and options) Materials Housing Steel Spool Hardened Steel Seals Nitrile (Buna-N) - Standard

Parameter Specification Manufacturer / Series Eaton / CV2 Part Number / Model CV2-20-P-0-30 Valve Type Two-Port, Pilot Operated Relief Valve (Screw-in Cartridge) Cavity Standard ISO 7368 (Size 20) Thread M45x2 Seal Kit Eaton E-KT-30 (or similar - confirm with latest datasheet) Function Pressure Control / System Relief Performance Nominal Size 20 Adjustable Pressure Range 3 to 30 bar (43 to 435 psi) [Critical Feature] Maximum Operating Pressure 350 bar (5,000 psi) Flow Capacity Up to 150 L/min (40 US GPM) - Flow is dependent on pressure setting and pressure drop. Refer to performance curves. Recommended Flow Range 5 to 150 L/min Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14

Parameter Specification Manufacturer / Series Eaton / CV2 Part Number / Model CV2-20-P-0-5 Valve Type Two-Port, Pilot Operated Relief Valve (Screw-in Cartridge) Cavity Standard ISO 7368 (Size 20) Thread M45x2 Seal Kit Eaton E-KT-30 (or similar - confirm with latest datasheet) Function Pressure Control / System Relief Performance Nominal Size 20 Adjustable Pressure Range 0.5 to 5 bar (7 to 73 psi) [Critical Feature] Maximum Operating Pressure 350 bar (5,000 psi) Flow Capacity Up to 150 L/min (40 US GPM) - Flow is highly dependent on the low pressure setting and pressure drop. Refer to performance curves for accurate data at low pressures. Recommended Flow Range 5 to 150 L/min Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14

Parameter Specification Manufacturer / Series Eaton / CV2 Part Number / Model CV2-20-P-O-100 Valve Type Two-Port, Pilot Operated Relief Valve (Screw-in Cartridge) Cavity Standard ISO 7368 (Size 20) Thread M45x2 Seal Kit Eaton E-KT-30 (or similar - confirm with latest datasheet) Function Pressure Control / System Relief Performance Nominal Size 20 Adjustable Pressure Range 10 to 100 bar (145 to 1450 psi) [Critical Feature] Maximum Operating Pressure 350 bar (5,000 psi) Flow Capacity Up to 150 L/min (40 US GPM) - Actual performance depends on pressure setting and pressure drop. Consult performance curves. Recommended Flow Range 5 to 150 L/min Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14

Parameter Specification / Description Manufacturer / Series Eaton / EEA-PAM (Advanced Mobile Controller) Part Number / Model EEA-PAM-581-A-32 Product Type Programmable Mobile Electronic Control Unit (ECU) Microprocessor High-performance 32-bit RISC processor Memory Flash: 2 MB, RAM: 512 KB (Typical for this series) Communication Interfaces CAN Interfaces 2 x CAN 2.0B channels (ISO 11898) CAN Protocol J1939, Supported: UDS (KWP2000) for diagnostics Inputs / Outputs Analog Inputs Multiple, configurable (e.g., 0-5V, 5-0V, 0-32V) PWM Inputs Multiple, frequency configurable Digital Inputs Multiple, 24V capable Proportional Outputs Multiple PWM outputs for driving proportional soloids Digital Outputs Multiple low-side and high-side drivers (e.g., 5A rated) Sensor Supply 5V and 10V sensor supply outputs (short-circuit protected) Electrical Specifications Operating Voltage 9 - 32 V DC Load Dump Protection Yes, per ISO 7637-2 Reverse Polarity Protection Yes Environmental Specifications Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F) Storage Temperature -40 °C to +105 °C Enclosure Rating IP6K9K (Dust and water tight, high-pressure/steam cleanable) Software & Programming Programming Tool Eaton EVI (Eaton Vehicle Interface) with CoDeSys-based environment Compliance ISO 11898, ISO 7637, ISO 16750, SAE J1939, CE Marked
