EATON

STN0，1(400/230)

Technical Parameters Parameter Specification Model STN0.1(400/230) Product Type Multi-function Electronic Time Relay Supply Voltage 24-240 V AC/DC (wide range) Special Voltage Rating 400/230 V AC (as specified) Timing Range 0.1s - 300h (multiple sub-ranges) Accuracy ±0.5% of set value ± 20 ms Output Type 1 changeover relay contact (SPDT) Switching Capacity 8 A / 250 V AC (resistive) Number of Functions 15+ timing functions Repeat Accuracy ≤ 0.5% + 20 ms Mounting DIN Rail (35mm) Terminal Type Screw clamp Operating Temperature -20°C to +60°C Storage Temperature -40°C to +70°C Protection Degree IP40 (front), IP20 (terminals) Standards & Approvals IEC/EN 61812, UL 508, CSA, CE, cULus

More details >> Request a Quote >>

EATON

BZMX2N-3-AX63-S08

Technical Parameters Parameter Specification Model BZMX2N-3-AX63-S08 Rated Current (Iₙ) 63 A Frame Size 63 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity 35 kA (at 480 V AC) Trip Unit Type Electronic (AX type) Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Protection Functions Long-time, Short-time, Instantaneous Communication Protocol Optional communication modules Mounting Fixed Type Terminal Type Screw Clamp Wire Range 8 AWG - 2 AWG Standards & Approvals UL 489, IEC 60947-2, CSA 22.2

More details >> Request a Quote >>

EATON

BZMX2N-3-AA160-S08

Technical Parameters Parameter Specification Model BZMX2N-3-AA160-S08 Rated Current (Iₙ) 160 A Frame Size 160 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity 65 kA (at 480 V AC) Trip Unit Type Electronic (AA type) Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 8 kV Protection Functions Long-time, Short-time, Instantaneous, Ground Fault Communication Protocol Modbus, Ethernet (depending on module) Mounting Fixed Type Terminal Type Screw Clamp Wire Range 1/0 AWG - 250 kcmil Standards & Approvals UL 489, IEC 60947-2, CSA 22.2

More details >> Request a Quote >>

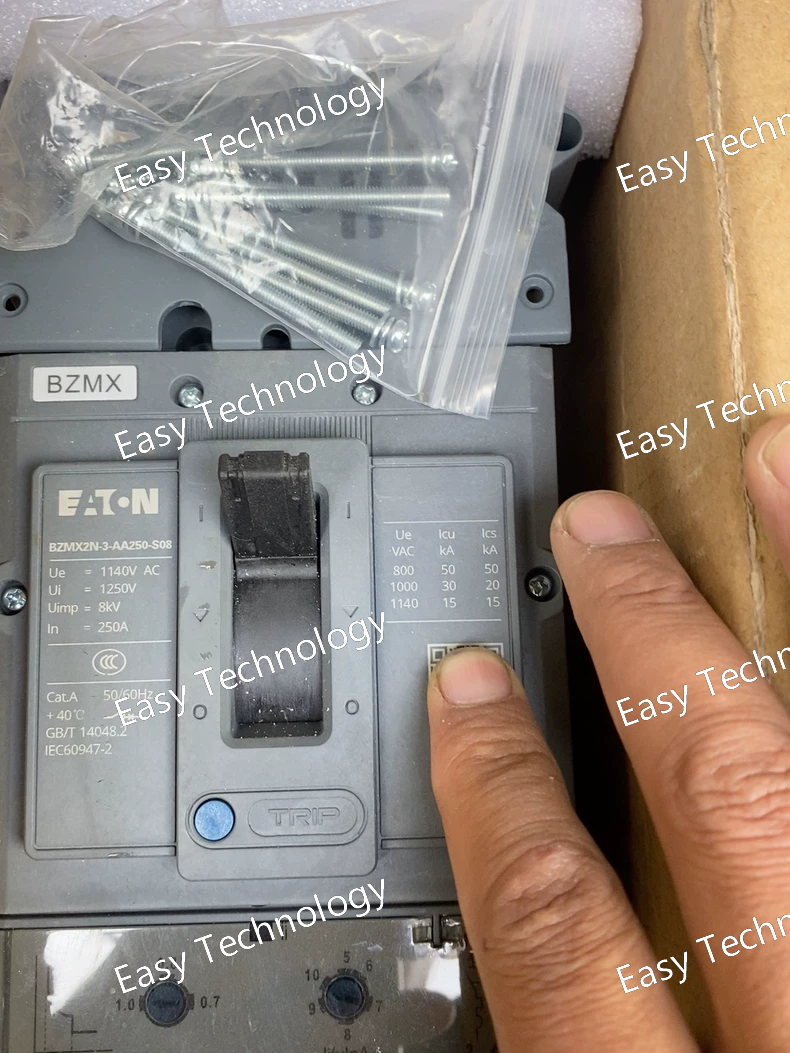

EATON

BZMX2N-3-AA250-S08

Technical Parameters Parameter Specification Model BZMX2N-3-AA250-S08 Rated Current (Iₙ) 250 A Frame Size 250 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity 65 kA (at 480 V AC) Trip Unit Type Electronic (AA type) Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 8 kV Protection Functions Long-time, Short-time, Instantaneous, Ground Fault Communication Protocol Modbus, Ethernet (depending on module) Mounting Fixed Type Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, IEC 60947-2, CSA 22.2

More details >> Request a Quote >>

EATON

NZMH2-A160 BT

Technical Parameters Parameter Specification Model NZMH2-A160 Rated Current (Iₙ) 160 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity (Iᶜᵂ) 35 kA (at 480 V AC) Trip Unit Type Thermal-magnetic (TM) Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Panel Mount (Fixed Type) Terminal Type Screw Clamp Wire Range 1/0 AWG - 250 kcmil Standards & Approvals UL 489, IEC 60947-2, CSA 22.2

More details >> Request a Quote >>

EATON

PDC33K0630P2MS

Technical Parameters Parameter Specification Model PDC33K0630P2MS Rated Current 63 A Input Voltage 200-240 V AC Input Phase 3-phase + Neutral + Ground Input Connector IEC 60309 (Pin and Sleeve) Frequency 50/60 Hz Power Capacity 26.0 kVA (at 240V AC) Output Receptacles (16) IEC C13, (4) IEC C19 (example configuration) Communication Ports Ethernet (10/100Base-T), RS-232 Monitoring Parameters Current, Voltage, Power, Power Factor, Energy Operating Temperature 0°C to +45°C Operating Humidity 0-95% non-condensing Mounting 0U Vertical / 1U Rack Mount Display Backlit LCD Standards & Approvals UL 60950-1, IEC 60950-1, CE, RoHS

More details >> Request a Quote >>

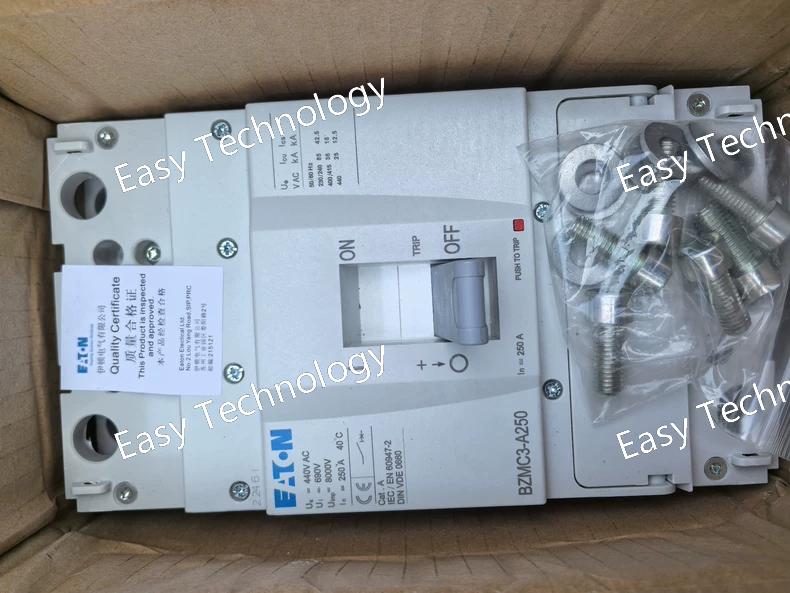

EATON

BZMC3-A250

Technical Parameters Parameter Specification Model BZMC3-A250 Rated Current (Iₙ) 250 A Number of Poles 3P (Three Pole) Rated Voltage 480V AC Rated Frequency 50/60 Hz Breaking Capacity Typically 35 kA / 65 kA (at 480V AC) Trip Unit Type Fixed thermal-magnetic Rated Insulation Voltage (Uᵢ) 600 V Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Panel Mount Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, CSA C22.2, IEC 60947-2

More details >> Request a Quote >>

EATON

PDC33K0400E2NS

Technical Parameters Parameter Specification Model PDC33K0400E2NS Rated Current 32-40 A Input Voltage 200-240 V AC Input Connection IEC 309 3-pin (or similar) Output Receptacles Multiple IEC 320 C13/C19 outlets Frequency 50/60 Hz Power Capacity 4.0 kVA (approximately) Monitoring Capabilities Current, voltage, power factor, energy consumption Communication Interface Ethernet, SNMP, Web interface Operating Temperature 0°C to +45°C Mounting 0U (Vertical) / 1U Rack Mount Display LCD/LED status display Standards & Approvals UL 60950-1, IEC 60950-1, CE, RoHS

More details >> Request a Quote >>

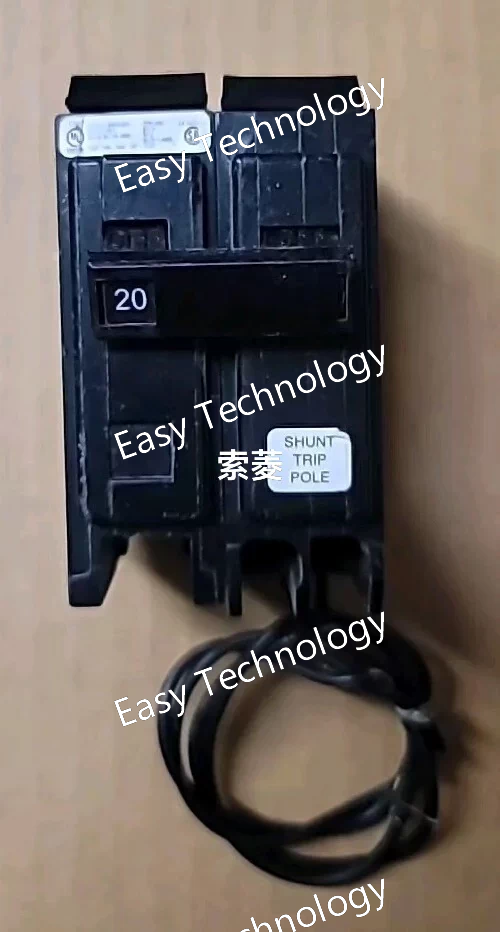

EATON

TYPE BAB

Technical Parameters Parameter Specification Range Rated Current (Iₙ) 0.5A - 125A Number of Poles 1P, 2P, 3P Rated Voltage 120/240V AC, 480Y/277V AC Rated Frequency 50/60 Hz Breaking Capacity 10kA - 25kA (depending on model) Tripping Characteristics B, C, H, K, Z curves (varies by model) Electrical Life 6,000 - 10,000 operations Mechanical Life 20,000 operations Mounting DIN Rail (35mm) Terminal Type Screw Clamp Wire Range 14 AWG - 250 kcmil (depending on current rating) Operating Temperature -25°C to +60°C Standards & Approvals UL 489, CSA C22.2, IEC 60898

More details >> Request a Quote >>

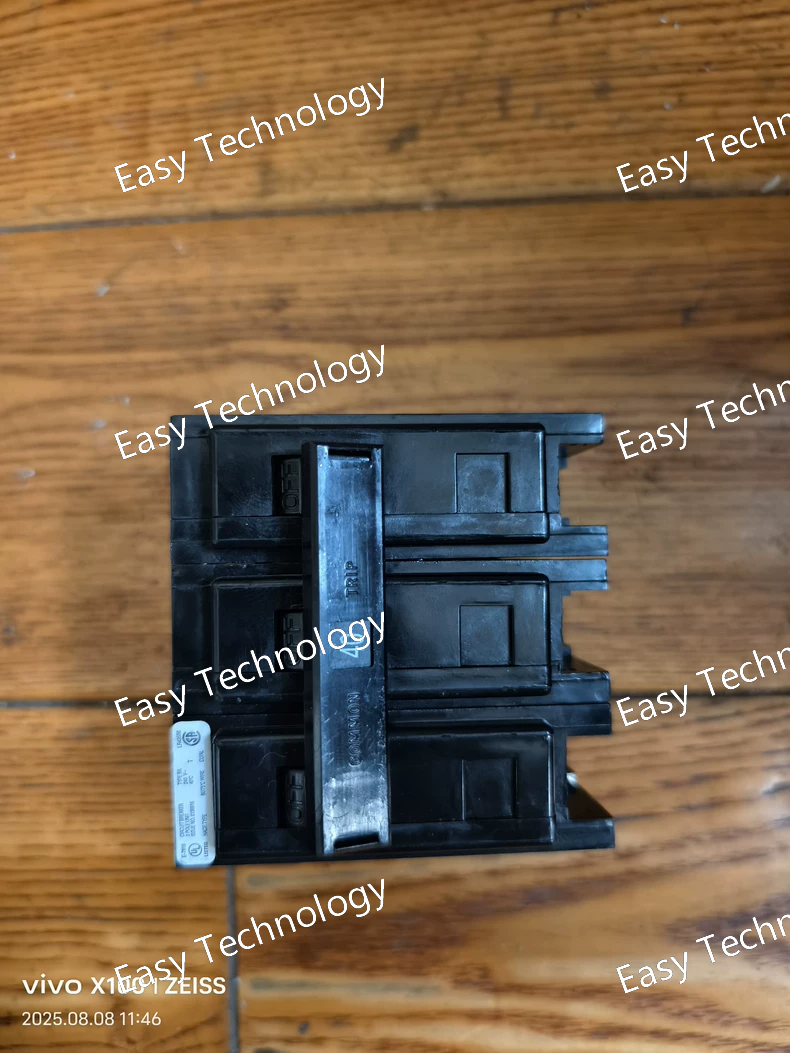

EATON

BAB3100HT

Technical Parameters Parameter Specification Model BAB3100HT Rated Current (Iₙ) 100 A Number of Poles 3P (Three Pole) Rated Voltage 480V AC (Y) / 277V AC (Δ) Rated Frequency 50/60 Hz Breaking Capacity 10 kA / 14 kA (depending on specific type) Tripping Characteristic H Curve (Heavy duty/withstand) Rated Insulation Voltage (Uᵢ) 500 V Rated Impulse Voltage (Uᵢₘₚ) 4 kV Electrical Life 6,000 operations Mechanical Life 20,000 operations Mounting DIN Rail (35mm) Terminal Type Screw Clamp Wire Range 1 AWG - 4 AWG (depending on specific model) Standards & Approvals UL 489, CSA C22.2, IEC 60898

More details >> Request a Quote >>
