Key Features Provides electromagnetic actuation for compatible hydraulic valves. Designed for continuous-duty operation with stable performance. Compatible with standard hydraulic fluids such as mineral oils and anti-wear oils. Equipped with a sealed connector (Deutsch DT04‑2P) suitable for harsh environments. Compact and robust construction for industrial and mobile applications. Operates within typical hydraulic systems up to the valve’s maximum rated pressure (up to 350 bar depending on valve).

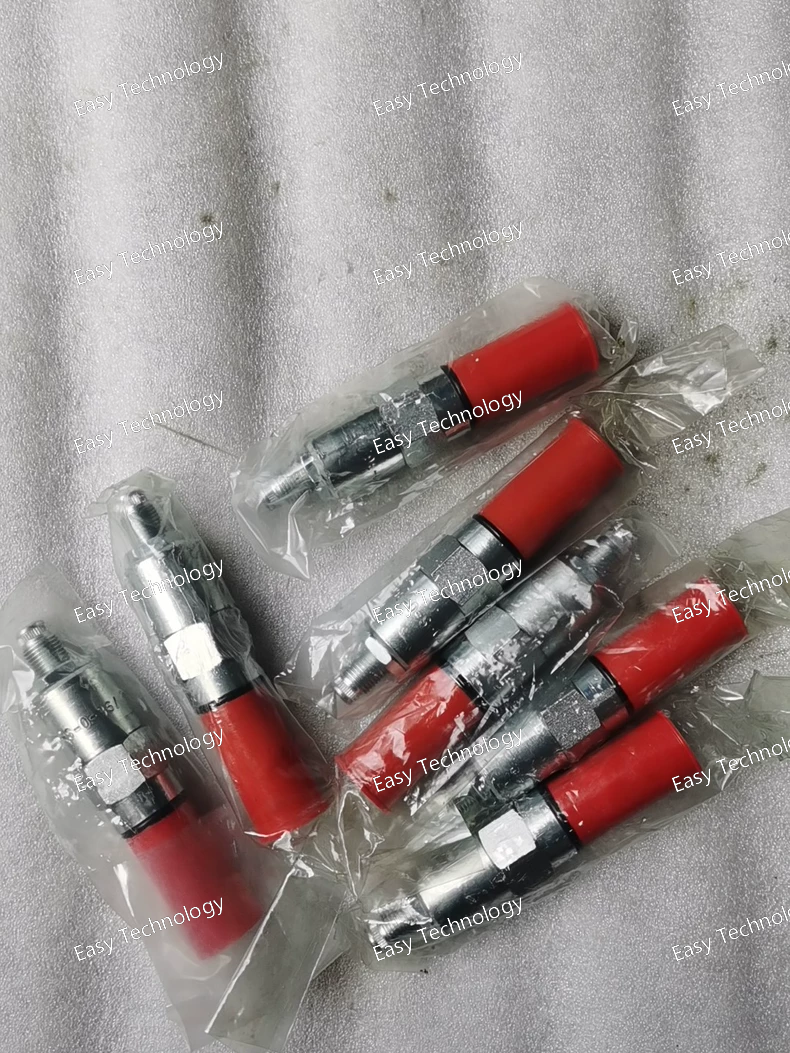

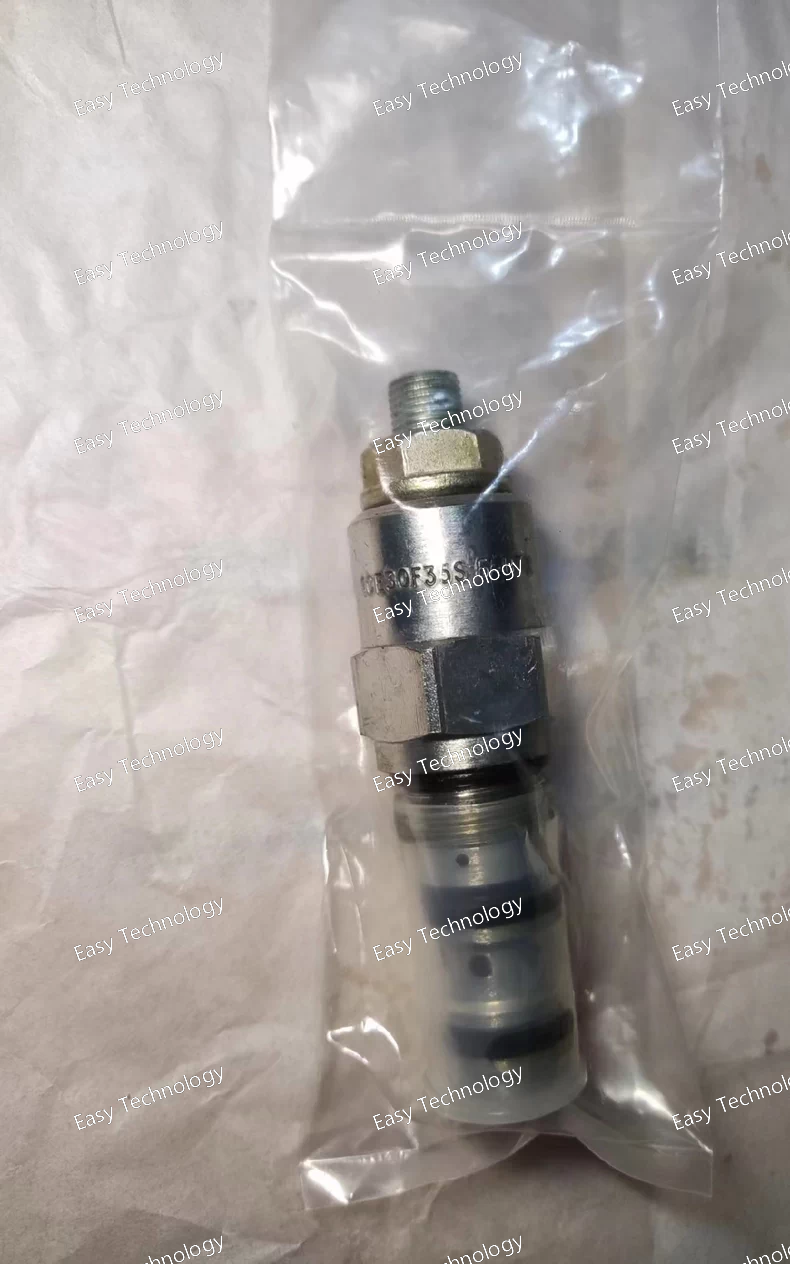

Key Parameters Item Specification / Description Valve Type Over‑centre / counterbalance cartridge valve with pilot‑assisted relief + check Installation Type Screw‑in cartridge (cartridge only — requires compatible cavity / housing) Rated Flow 30 L/min (≈ 8 US gpm) (nominal flow capacity) Maximum Relief / Working Pressure 350 bar (≈ 5000 psi) Maximum Load Induced Pressure (load holding without pilot) ~ 270 bar (≈ 3915 psi) — typical load‑holding limit Pilot Ratio 5:1 (pilot pressure to load pressure ratio for valve actuation) Seal Material Nitrile / Buna‑N (standard) Fluid Compatibility Common hydraulic fluids: e.g. MIL‑H‑5606, SAE 10, SAE 20, etc. Leakage (internal when closed) ~ 0.25 cc/min (nominal) Operating Temperature Range (fluid / ambient) –30 °C to +90 °C (–22 °F to 194 °F) (typical for valve when fluid viscosity and density within spec) Port / Cavity / Mounting Cartridge only (requires compatible cavity such as A6610) Functionality Load-holding: free‑flow from actuator to pump or tank via check when returning; when load needs to be moved, pilot pressure applied to open relief and meter flow to actuator. Provides hose‑failure/over‑run protection, stable load control.

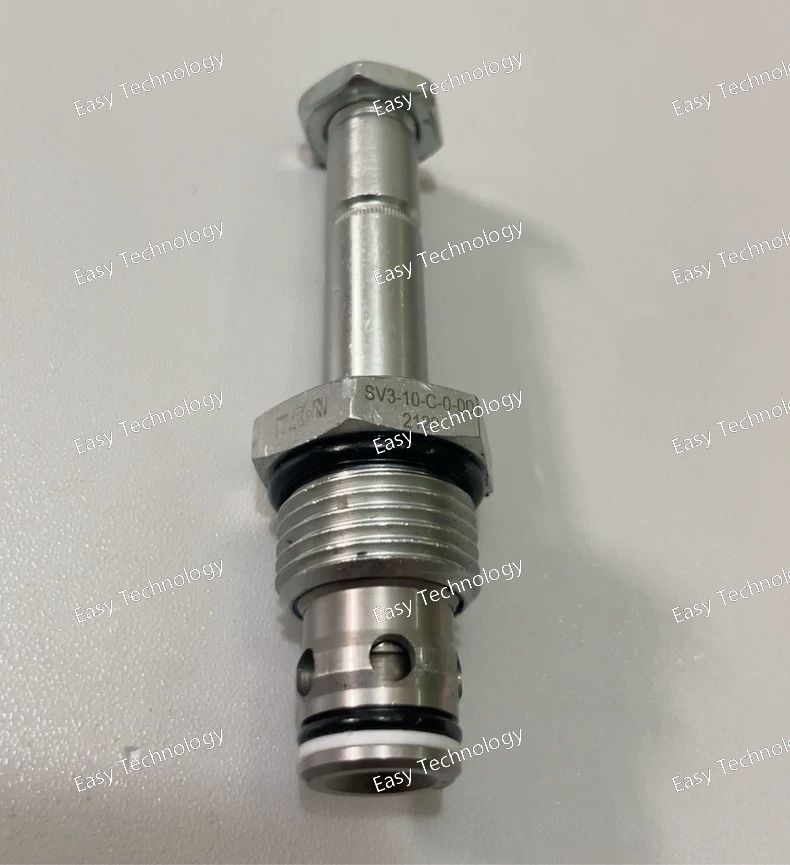

Key Parameters Parameter Specification / Description Valve Type 2‑Way, 2‑Position, Solenoid‑operated Cartridge Valve (poppet type) Port / Cavity Cartridge — requires C‑10‑2 cavity / housing Operation Electrically actuated (solenoid) Function (de‑energized) Normally Closed (blocks flow port 2 → 1; free flow port 1 → 2) Flow Capacity 45 L/min (≈ 12 US gpm) Maximum Operating Pressure 210 bar (≈ 3000 psi) Seal Material Buna‑N (standard) Fluid Compatibility Standard hydraulic fluids (e.g. MIL‑H‑5606, SAE 10, SAE 20, etc.) Recommended Fluid Cleanliness 18/16/13 micron (or better) Operating Temperature Range (fluid / ambient) –40 °C to +120 °C (–40 °F to +248 °F) Internal Leakage (max, closed) ≤ 5 drops/min at 210 bar Installation / Housing Screw‑in cartridge; housing / cavity must be supplied separately Port Count 2 (inlet and outlet)

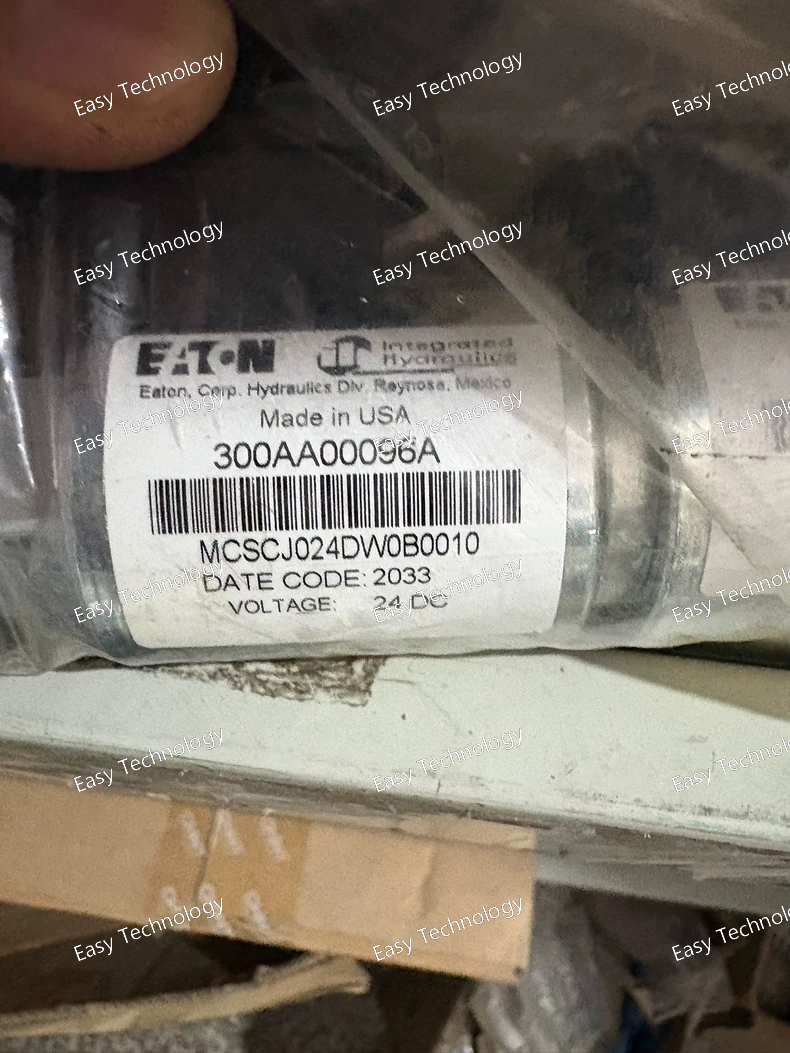

Key Specifications Attribute Specification / Description Coil Series / Size J-series coil — compatible with valve sizes 10–20 Rated Voltage 24 V DC Connector Type Flying leads (wire‑lead style) Housing Material Glass‑filled nylon Duty Rating Continuous duty, 85–110% of nominal voltage Environmental Protection IP65 (splash-proof / dust-tight) Suitable Hydraulic Fluids Mineral-based hydraulic oils (MIL‑H‑5606, SAE 10/20, etc.) Controlled Valve Pressure Up to ~210 bar (depending on valve) Typical Dimensions Approx. 1.83″ × 1.53″ × 2.40″ Mounting / Valve Type Screw-in cartridge valves compatible with J-series coils

Parameters Parameter Specification Explanation Manufacturer & Line Eaton RV Series A standard range of MCBs from Eaton's Moeller series. Number of Poles 3 3-Pole. Designed to protect a three-phase electrical circuit. Rated Breaking Capacity 10 kA Can safely interrupt electrical faults up to 10,000 Amperes. Tripping Characteristic Type C The "S" in the code typically denotes a standard characteristic, which for a 36A MCB is Type C. Suitable for circuits with moderate inrush currents (e.g., lighting, sockets, small motors). Auxiliary Contacts None The "0" indicates no auxiliary switches (e.g., alarm contact or shunt trip) are fitted. Rated Current (In) 36 A The maximum continuous current the breaker can carry without tripping under normal conditions.

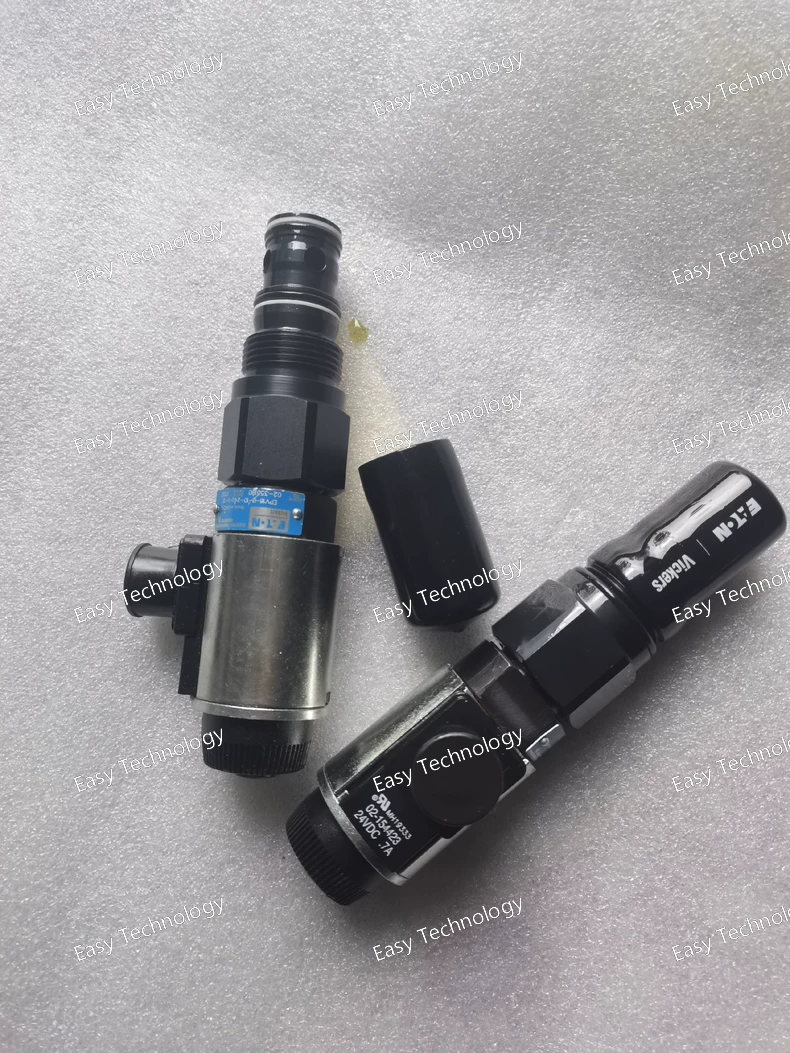

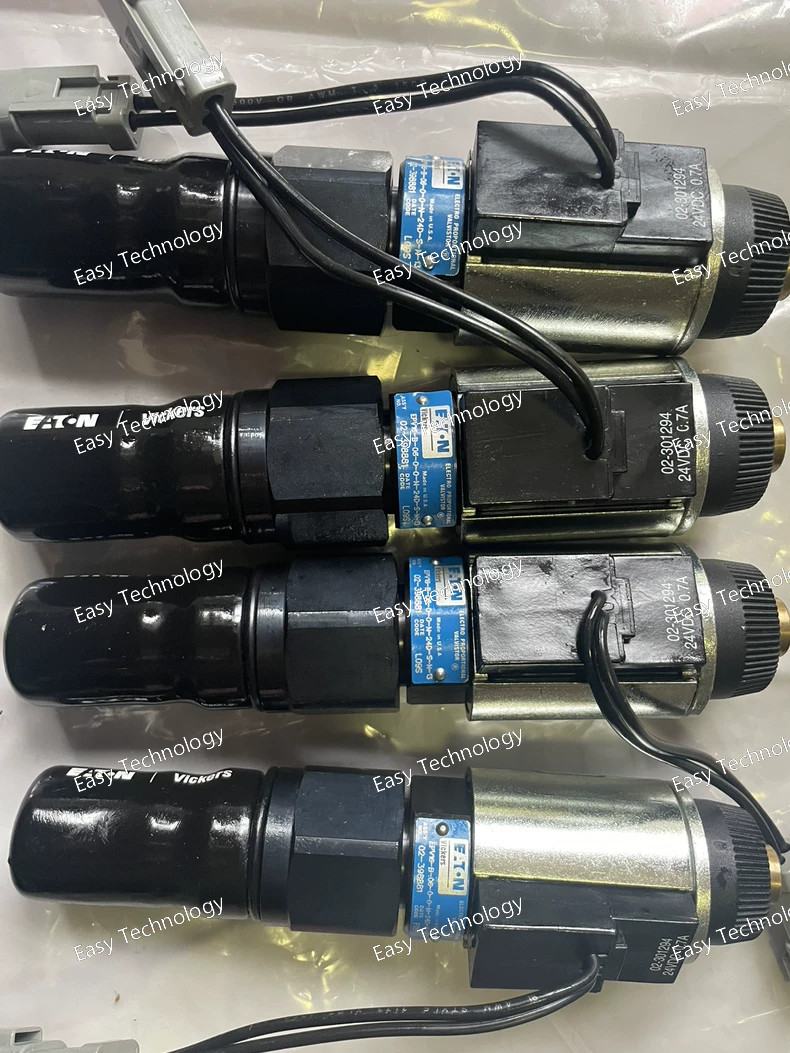

Key Parameters Item Specification / Description Valve Type Electro-proportional flow control cartridge valve (poppet type) Style / Orientation B style — side-in, nose-out Function (de-energized) Port-to-port flow blocked (normally closed) Function (energized) Flow allowed, rate proportional to coil current Cartridge / Cavity NG16, cavity C-16-3S Maximum Working Pressure 280 bar Rated Flow Capacity 0–160 L/min Operating Fluid Anti-wear hydraulic oils; standard Buna-N seals, Viton optional Fluid Viscosity Range 10–800 cSt Operating Temperature Range –30 °C to +90 °C Internal Leakage (max) ≤ 10 cm³/min at 140 bar Coil Supply Voltage 24 V DC Coil Current for Max Flow ~0.7 A @ 24 V DC Recommended Filtration 15/13/11 (high pressure) or 17/15/12 (lower pressure)

Key Parameters Item Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMPC‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type ABK (proportional spool) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (depends on variant)

Key Parameters Parameter Specification / Description Valve Type Solenoid-operated directional control valve (5/3-way) Series / Size DG4V-5M (subplate / modular mount) Spool Type / Center 2AJ spool, closed center Maximum Operating Pressure 350 bar (≈ 5000 psi) Maximum Flow Rate 160 L/min (≈ 42 US gpm) Coil Type / Voltage KUP5 solenoid, 24 V DC standard Electrical Connection 7-pin DIN connector (variant dependent) Seal Material H7 (Buna-N standard, compatible with mineral oil) Metering Function Meter-in or meter-out, depending on spool configuration Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 17/15/12 µm (or better) Operating Temperature –20 °C to +70 °C Mounting Subplate / manifold mount (ISO 4401 / CETOP 5)

Key Parameters Parameter Specification / Description Valve Type Proportional flow control cartridge valve Series / Size DGMC‑3 (NG6 / CETOP 3 / ISO 4401-03) Function Regulates flow proportionally based on electrical input; maintains consistent flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type BT spool (proportional) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Solenoid-operated directional control valve, 2-way, 2-position Series SBV series Function (de-energized) Normally closed — blocks flow Function (energized) Opens to allow flow Rated Flow 12 L/min (approx.) Maximum Operating Pressure 210 bar (≈ 3000 psi) Coil Voltage 24 V DC Electrical Connector DIN 43650-A / ISO 4400 standard connector Seal Material Buna-N (standard) Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount Port Size 1/4″ (or corresponding NG1 / CETOP 1 interface)
