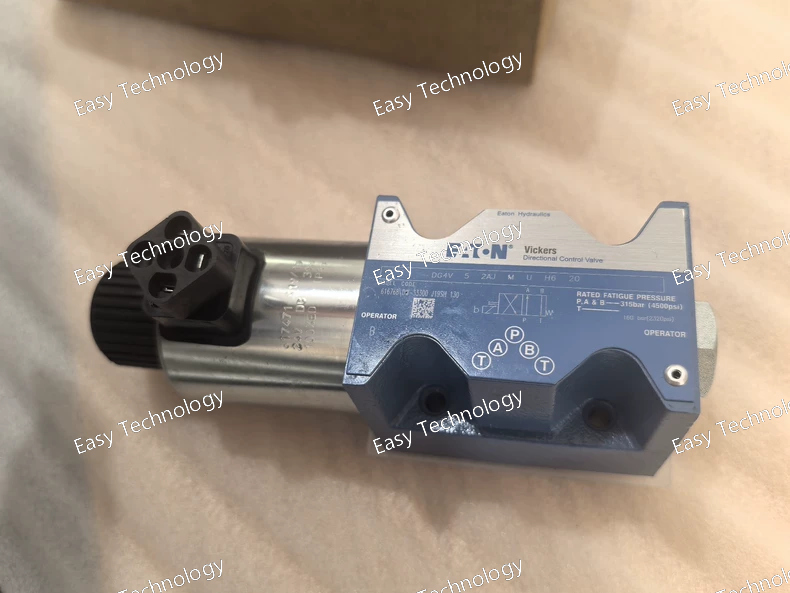

Parameter Specification Manufacturer / Series Eaton / DG4V-5 Part Number / Model DG4V-5-2AJ-M-U-H6-20 Valve Type Solenoid Operated, Directional Control Valve Configuration 5-Port, 4-Way (5/4) Actuation Type Single Solenoid, Spring Offset Spool Type 2AJ (This is a specific spool configuration. Refer to Eaton's datasheet for exact flow path characteristics). Mounting Style Subplate Mounting (ISO 4401-05 (CETOP 5) interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage (Example) Note: The "-H6-20" typically specifies the coil. H6 often denotes 12V DC. This must be confirmed with the supplier or datasheet as other voltages are available. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 20 L/min (5 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Maximum Peak Pressure 400 bar (6,000 psi) Solenoid Characteristics Solenoid Type Wet Pin AC or DC (specific to order code) Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~2.5 kg (5.5 lbs) - (varies with coil and options) Materials Housing Steel Spool Hardened Steel Seals Nitrile (Buna-N) - Standard

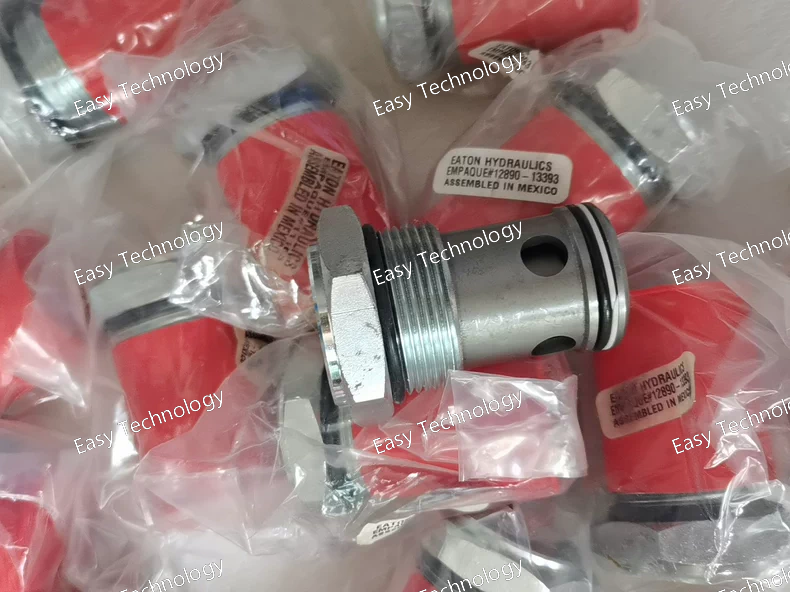

Parameter Specification Manufacturer / Series Eaton / CV2 Part Number / Model CV2-20-P-0-30 Valve Type Two-Port, Pilot Operated Relief Valve (Screw-in Cartridge) Cavity Standard ISO 7368 (Size 20) Thread M45x2 Seal Kit Eaton E-KT-30 (or similar - confirm with latest datasheet) Function Pressure Control / System Relief Performance Nominal Size 20 Adjustable Pressure Range 3 to 30 bar (43 to 435 psi) [Critical Feature] Maximum Operating Pressure 350 bar (5,000 psi) Flow Capacity Up to 150 L/min (40 US GPM) - Flow is dependent on pressure setting and pressure drop. Refer to performance curves. Recommended Flow Range 5 to 150 L/min Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14

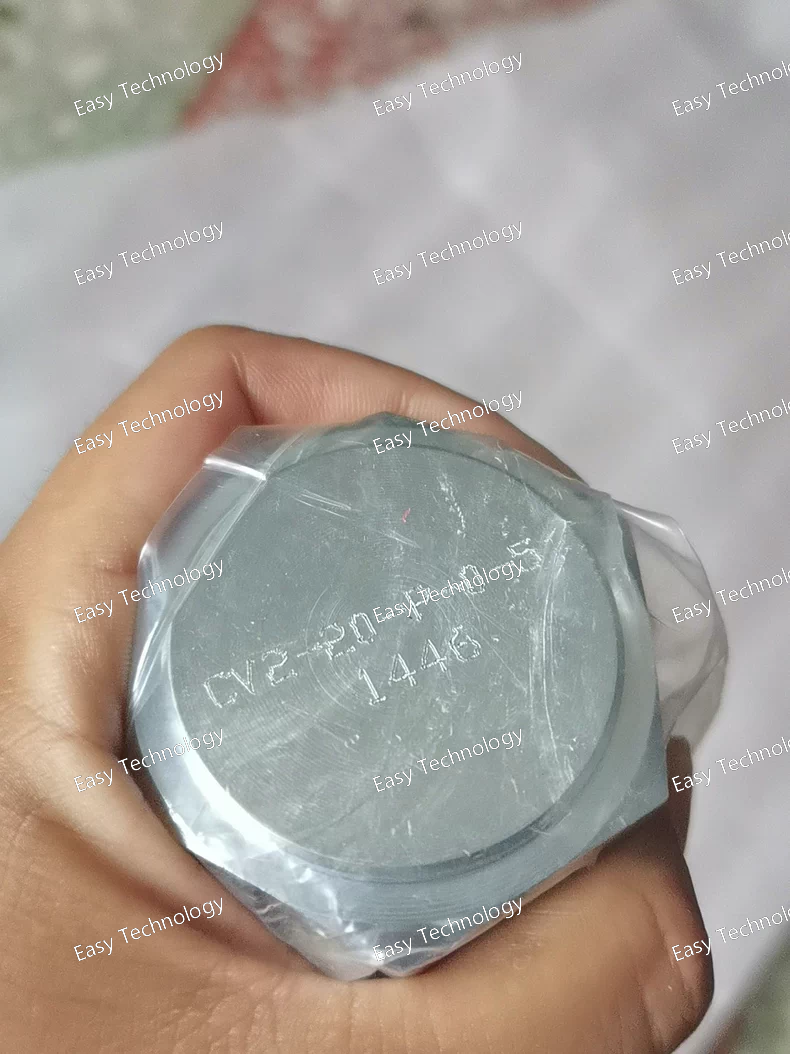

Parameter Specification Manufacturer / Series Eaton / CV2 Part Number / Model CV2-20-P-0-5 Valve Type Two-Port, Pilot Operated Relief Valve (Screw-in Cartridge) Cavity Standard ISO 7368 (Size 20) Thread M45x2 Seal Kit Eaton E-KT-30 (or similar - confirm with latest datasheet) Function Pressure Control / System Relief Performance Nominal Size 20 Adjustable Pressure Range 0.5 to 5 bar (7 to 73 psi) [Critical Feature] Maximum Operating Pressure 350 bar (5,000 psi) Flow Capacity Up to 150 L/min (40 US GPM) - Flow is highly dependent on the low pressure setting and pressure drop. Refer to performance curves for accurate data at low pressures. Recommended Flow Range 5 to 150 L/min Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14

Parameter Specification Manufacturer / Series Eaton / CV2 Part Number / Model CV2-20-P-O-100 Valve Type Two-Port, Pilot Operated Relief Valve (Screw-in Cartridge) Cavity Standard ISO 7368 (Size 20) Thread M45x2 Seal Kit Eaton E-KT-30 (or similar - confirm with latest datasheet) Function Pressure Control / System Relief Performance Nominal Size 20 Adjustable Pressure Range 10 to 100 bar (145 to 1450 psi) [Critical Feature] Maximum Operating Pressure 350 bar (5,000 psi) Flow Capacity Up to 150 L/min (40 US GPM) - Actual performance depends on pressure setting and pressure drop. Consult performance curves. Recommended Flow Range 5 to 150 L/min Hydraulic Fluid Mineral oil to ISO 11158 (HV46) or similar petroleum-based fluids. Fluid Temperature Range -20 °C to +80 °C (-4 °F to +176 °F) Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 19/17/14

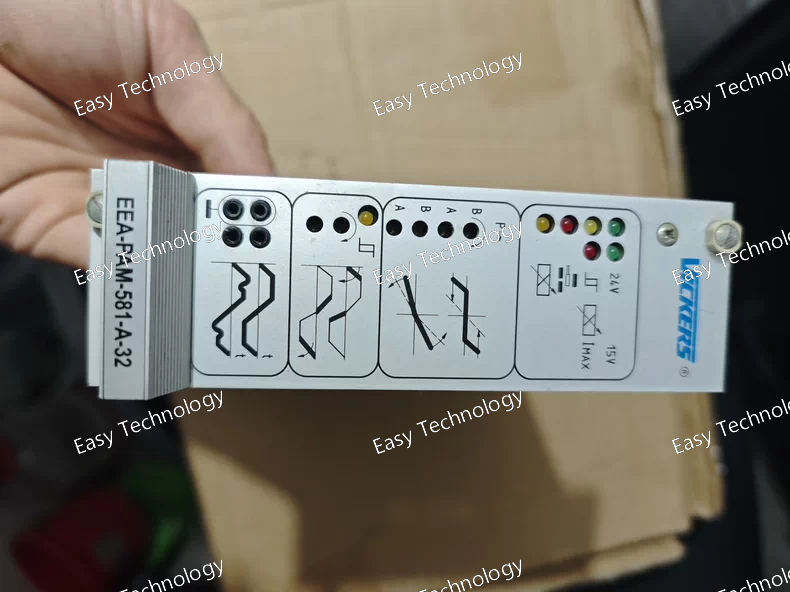

Parameter Specification / Description Manufacturer / Series Eaton / EEA-PAM (Advanced Mobile Controller) Part Number / Model EEA-PAM-581-A-32 Product Type Programmable Mobile Electronic Control Unit (ECU) Microprocessor High-performance 32-bit RISC processor Memory Flash: 2 MB, RAM: 512 KB (Typical for this series) Communication Interfaces CAN Interfaces 2 x CAN 2.0B channels (ISO 11898) CAN Protocol J1939, Supported: UDS (KWP2000) for diagnostics Inputs / Outputs Analog Inputs Multiple, configurable (e.g., 0-5V, 5-0V, 0-32V) PWM Inputs Multiple, frequency configurable Digital Inputs Multiple, 24V capable Proportional Outputs Multiple PWM outputs for driving proportional soloids Digital Outputs Multiple low-side and high-side drivers (e.g., 5A rated) Sensor Supply 5V and 10V sensor supply outputs (short-circuit protected) Electrical Specifications Operating Voltage 9 - 32 V DC Load Dump Protection Yes, per ISO 7637-2 Reverse Polarity Protection Yes Environmental Specifications Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F) Storage Temperature -40 °C to +105 °C Enclosure Rating IP6K9K (Dust and water tight, high-pressure/steam cleanable) Software & Programming Programming Tool Eaton EVI (Eaton Vehicle Interface) with CoDeSys-based environment Compliance ISO 11898, ISO 7637, ISO 16750, SAE J1939, CE Marked

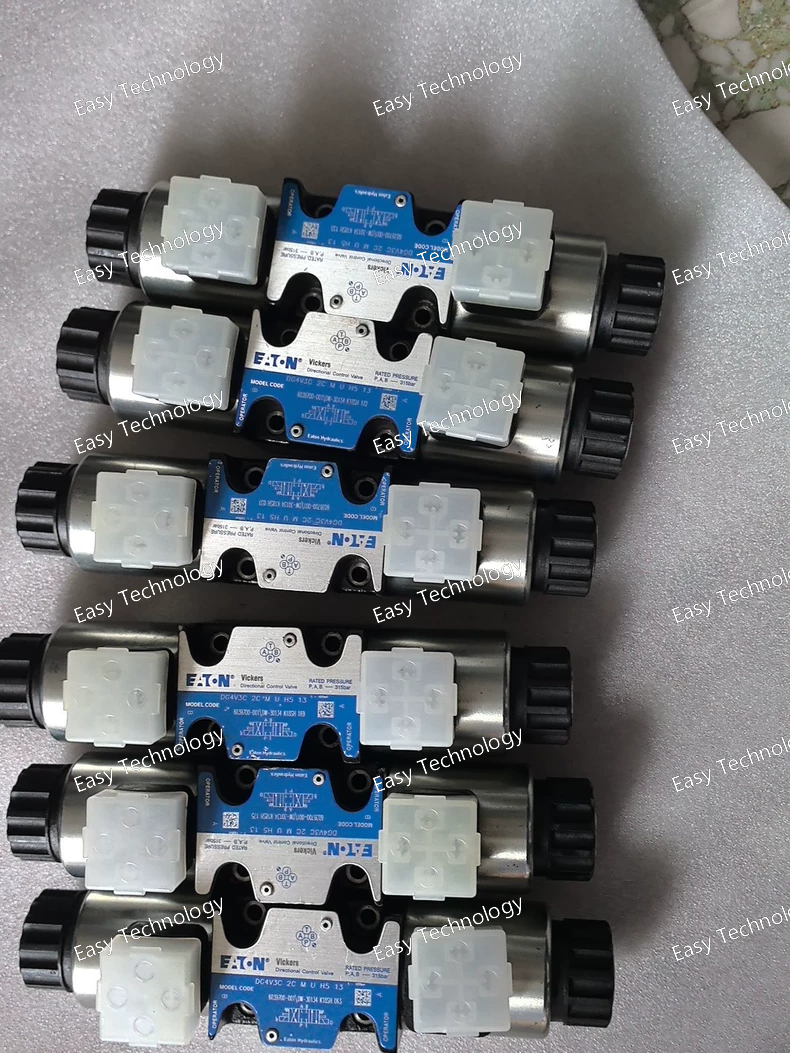

Parameter Specification Manufacturer / Series Eaton / DG4V-3 Part Number / Model DG4V-3S-2A-M-FW-B5-60 Valve Type Solenoid Operated, Directional Control Valve Configuration 4-Port, 3-Position (4/3) Actuation Type Double Solenoid, Spring-Centered Spool Type 2A (This defines the internal flow path geometry in the actuated positions) Middle Position Float (FW) - In center position: P to T, A to T, B to T Mounting Style Subplate Mounting (ISO 4401-03 (CETOP 3) interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage -B5- typically denotes a 12V DC coil. Always confirm with supplier or datasheet. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 60 L/min (15.8 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Solenoid Characteristics Solenoid Type Wet Pin DC Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~2.0 kg (4.4 lbs) - (varies with coil and options)

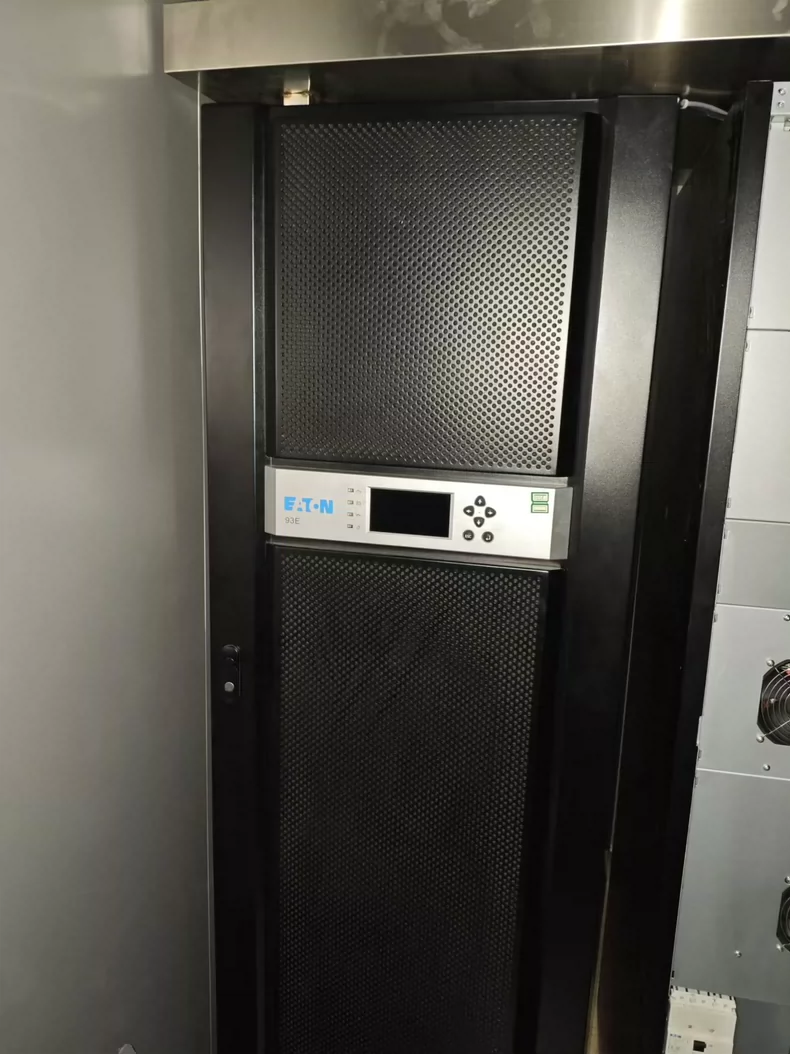

Parameter Specification Manufacturer / Series Eaton / 93PM Part Number / Model 300AA00126A Product Type Three-Phase, Double-Conversion On-Line UPS Power Rating 300 kVA / 300 kW (Unity Power Factor, PF=1) Input Input Voltage 400 V AC (3Ph+N+E) Input Voltage Range Adjustable via dip switches (e.g., -15% to +10%) Input Frequency 50/60 Hz (Auto-sensing) Input Power Factor >0.99 Output Output Voltage 400/230 V AC (3Ph+N+E) Output Voltage Regulation ±1% Output Frequency 50/60 Hz (Synchronized to bypass within range) Output Power Factor 1.0 Battery Battery Voltage Typically 480 V DC (Specific string configuration required) Standard Battery Runtime Typically 5-10 minutes at full load (varies based on external battery cabinets) Performance Efficiency at Full Load Up to 96.5% in Double Conversion mode Efficiency in Eco Mode Up to 99% Physical & Environmental Form Factor Tower / Free-Standing Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Communication Interfaces Standard (X-Slot for network management cards, SNMP, USB) Standards & Certifications IEC 62040-1, CE Mark, UL, cUL, RoHS

Parameter Specification Manufacturer / Series Eaton / DG4V-3 Part Number / Model DG4V-3C-2C-M-U-H5-13 Valve Type Solenoid Operated, Directional Control Valve Configuration 4-Port, 3-Position (4/3) Actuation Type Single Solenoid, Spring-Centered (-3C-) Spool Type 2C (This defines the internal flow path geometry in the actuated position) Middle Position Closed Center (M) - In center position: All ports (P, T, A, B) are blocked. Mounting Style Subplate Mounting (ISO 4401-03 (CETOP 3) interface) Electrical Connection DIN 43650 Form A (with LED indicator and manual override) Coil Voltage -H5- typically denotes a 12V DC coil. Always confirm with supplier or datasheet. Protection Class IP65 (Dust tight and protected against water jets) Performance Nominal Flow Rate 13 L/min (3.4 US GPM) Maximum Operating Pressure 350 bar (5,000 psi) Solenoid Characteristics Solenoid Type Wet Pin DC Duty Cycle Continuous (Class F insulation system) Hydraulic Fluid Mineral oil-based hydraulic fluids to ISO 11158 (e.g., HV46) Fluid Temperature Range -30 °C to +80 °C (-22 °F to +176 °F) Fluid Viscosity Range 10 to 500 cSt (50 SSU to 2300 SSU) Filtration Level Recommended: 25 µm absolute or better, per ISO 4406 code 18/16/13 Weight (Approx.) ~1.8 kg (4.0 lbs) - (varies with coil and options)

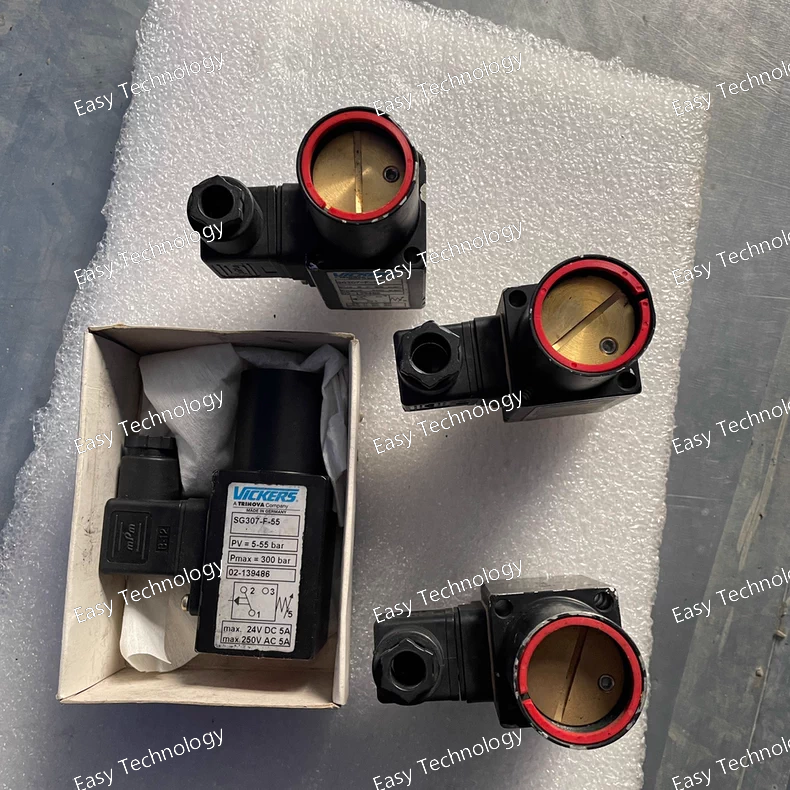

Parameter Specification Manufacturer / Series Eaton / SG307 Part Number / Model SG307-F-55 Product Type Pressure Transducer (Strain Gauge) Pressure Type Gauge Pressure Pressure Range 0 to 350 bar 0 to 5000 psi Output Signal 4...20 mA (2-wire) (This is the standard output for this series) Supply Voltage 10...30 V DC Electrical Connection M12x1, 4-pin connector (Typical for "-F-" variant) Pressure Port G1/4" female (ISO 1179-2) (Typical, confirm with datasheet) Performance Full Scale Span (FSS) ±0.5% (Includes Non-Linearity, Hysteresis, Non-Repeatability) Null Offset ±0.5 mV/V Long-Term Stability < ±0.2% FSO per year Operating Conditions Proof Pressure 2 x Full Scale (700 bar / 10000 psi) Burst Pressure 3 x Full Scale (1050 bar / 15000 psi) Media Temperature -40 °C to +125 °C (-40 °F to +257 °F) Compensation Temperature -20 °C to +85 °C (-4 °F to +185 °F) Environmental Protection Class IP66 / IP67 (with connector mated) Media Compatibility Hydraulic fluids, oils, water, and other media compatible with 17-4PH SS and Viton.

Parameter Specification Manufacturer / Series Eaton / 9PX Part Number / Model 300AA00135A Product Type Single-Phase, Double-Conversion On-Line UPS (Tower) Power Rating 11 kVA / 11 kW (Unity Power Factor, PF=1) Input Input Voltage 230 V AC (1Ph + N + E) Input Voltage Range 115 - 286 V AC (Sag compensation up to 138 V) Input Frequency 50/60 Hz (Auto-sensing) Output Output Voltage 230 V AC (1Ph + N + E) Output Voltage Regulation ±2% Output Frequency 50/60 Hz (±0.5% in battery mode) Output Power Factor 1.0 Battery Battery Type Sealed, maintenance-free Lead-Acid (VRLA) Standard Battery Runtime Typical 5-10 minutes at full load (Varies with load and battery cartridge) Performance Efficiency at Full Load >96% Physical & Environmental Form Factor Tower Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Communication Interfaces USB, Serial (RS-232), SmartSlot (for network management cards like EBM) Standards & Certifications IEC 62040-1, CE Mark, cUL, RoHS
