Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position, Single-Stage Porting Size NG05 (CETOP 5 / NFPA D02) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 40 - 60 L/min (10.5 - 16 US gpm) *Dependent on spool and pressure drop (e.g., Δp = 10 bar).* Spool Type 6CJ "6" denotes a high-performance spool series with LVDT feedback. "CJ" indicates the specific spool metering characteristic (e.g., linear or modified linear). Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Feedback Type Integrated LVDT The spool has a built-in LVDT for closed-loop position control. (This is implied by the "6" series and the H6 amplifier). Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector Integrated Electronics H6 On-board amplifier card designed for LVDT feedback valves. Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches Supply Voltage (to amplifier) 12-30 VDC For the H6 amplifier IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position, Single-Stage Porting Size NG05 (CETOP 5 / NFPA D02) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 40 - 60 L/min (10.5 - 16 US gpm) *Dependent on spool and pressure drop (e.g., Δp = 10 bar).* Spool Type 2CJ "2" denotes a specific high-performance spool series with LVDT feedback. "CJ" indicates a linear or modified linear flow characteristic. Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Feedback Type Integrated LVDT The spool has a built-in LVDT for closed-loop position control. Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector Integrated Electronics H6 On-board amplifier card designed for LVDT feedback valves. Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches Supply Voltage (to amplifier) 12-30 VDC For the H6 amplifier IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)

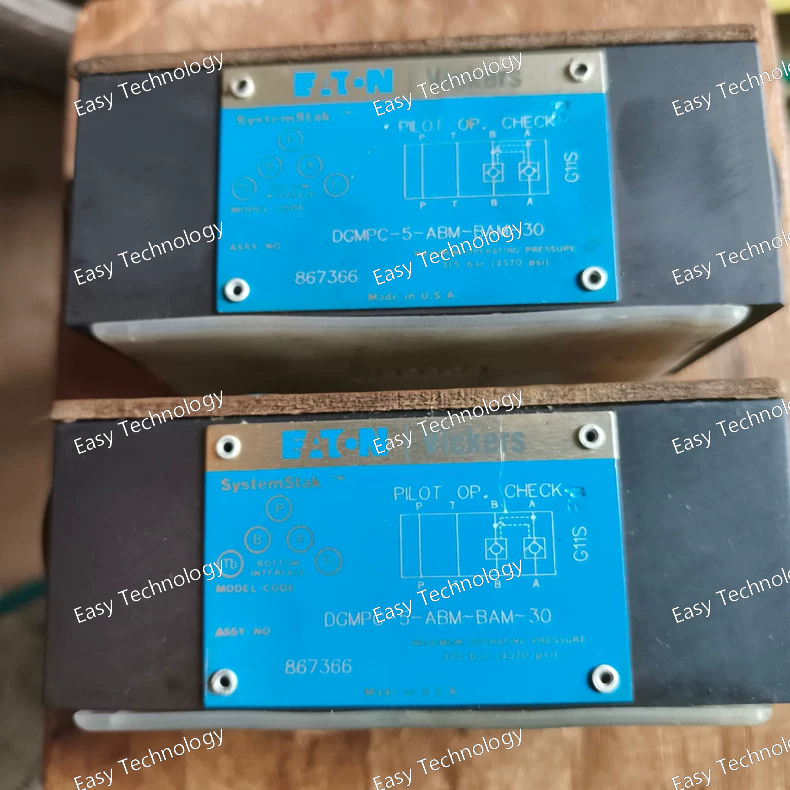

Key Parameters Item Parameter / Description Valve Type Proportional directional control valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO 4401‑05 / NFPA D05 / CETOP 5 (NG10) Maximum Operating Pressure (P, A, B ports) 315 bar (≈ 4565 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3045 psi) Maximum Flow Rate Up to 120 L/min (≈ 31.7 US gpm) Seal Material Viton (standard) Spool Type ABM-type proportional spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 19/17/14 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650 Coil Power 35 W

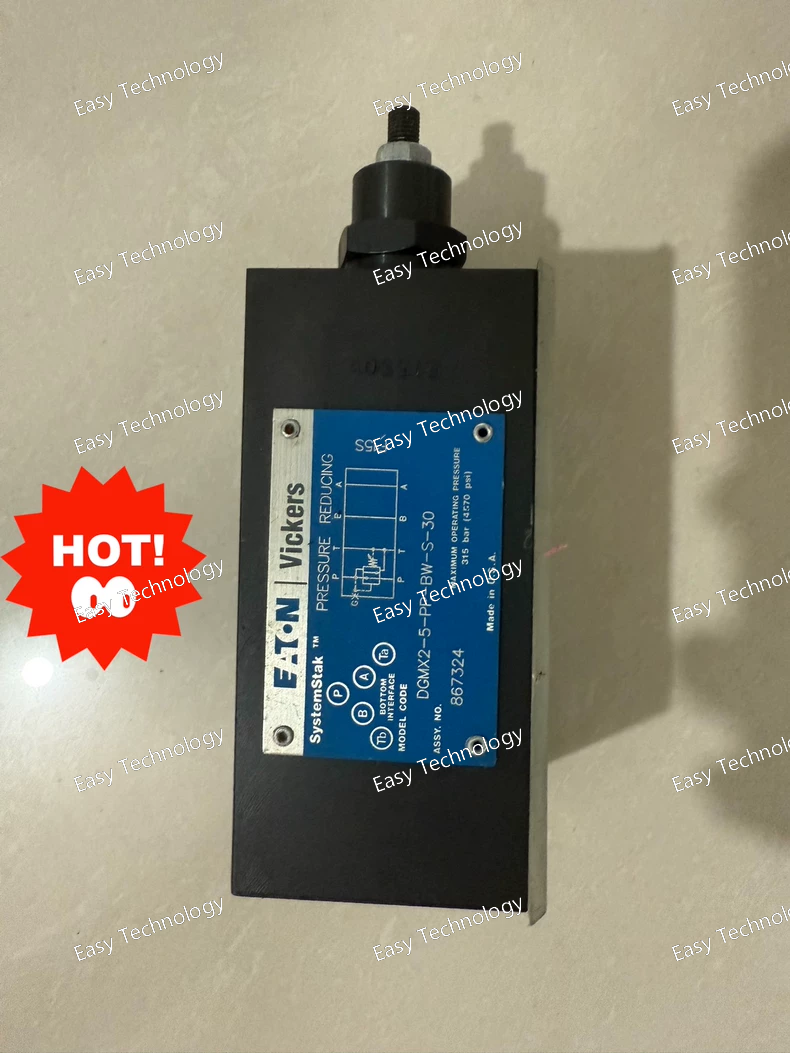

Key Parameters Item Parameter / Description Valve Type Proportional directional control valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO 4401‑05 / NFPA D05 / CETOP 5 (NG10) Maximum Operating Pressure (P, A, B ports) 315 bar (≈ 4565 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3045 psi) Maximum Flow Rate Up to 120 L/min (≈ 31.7 US gpm) Seal Material Viton (standard) Spool Type PP-type proportional spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 19/17/14 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650 Coil Power 35 W

Parameter Description / Value Notes Product Line Eaton DG5V Manual Directional Control Valve Series Valve Size 8 Nominal size 08, corresponding to a specific flow capacity. Actuator Type H (Spring Centered with Detents) Specifies the combination of springs and detent mechanisms for spool positioning. Spool Configuration OAL (4-Position, Complex Pattern) Positions: 1. Left Shift, 2. Spring-Centered, 3. Right Shift, 4. Detented (Float/Parallel). See below for details. Spool Type E This refers to the internal spool design and metering characteristics, often a standard industrial type. Porting Style U (Subplate Mounted) Mounts to ISO 4401-08-... or NFPA D08 interface. Main Seal Material H (Standard Nitrile Rubber / NBR) Compatible with standard mineral-based hydraulic oils. Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 75 - 110 L/min (20 - 29 US gpm) Dependent on spool and pressure drop. Manual Lever Force Typically < 60 N (13.5 lbf) Force required to shift the spool.

Key Parameters Item Parameter / Description Valve Type Proportional directional control valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO 4401‑10 / NFPA D10 / CETOP 10 (NG32) Maximum Operating Pressure (P, A, B ports) 250 bar (≈ 3625 psi) Tank Port (T) Pressure Rating 100 bar (≈ 1450 psi) Maximum Flow Rate Up to 250 L/min (≈ 66 US gpm) Seal Material Viton (standard) Spool Type Direct-acting proportional spool, CM-type Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 18/16/13 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650 Coil Power 35–40 W (depending on variant)

Key Parameters Item Parameter / Description Valve Type Proportional cartridge valve Actuation Solenoid-operated proportional spool Valve Size / Interface ISO / NG10 standard cartridge cavity Maximum Operating Pressure (P, A, B ports) 315 bar (≈ 4565 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3045 psi) Maximum Flow Rate Up to 120 L/min (≈ 31.7 US gpm) Seal Material Viton (standard) Spool Type DA3G-type proportional spool Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Recommendation 19/17/14 (micron) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Electrical Connector Standard ISO 4400 / DIN 43650 Coil Power 35 W

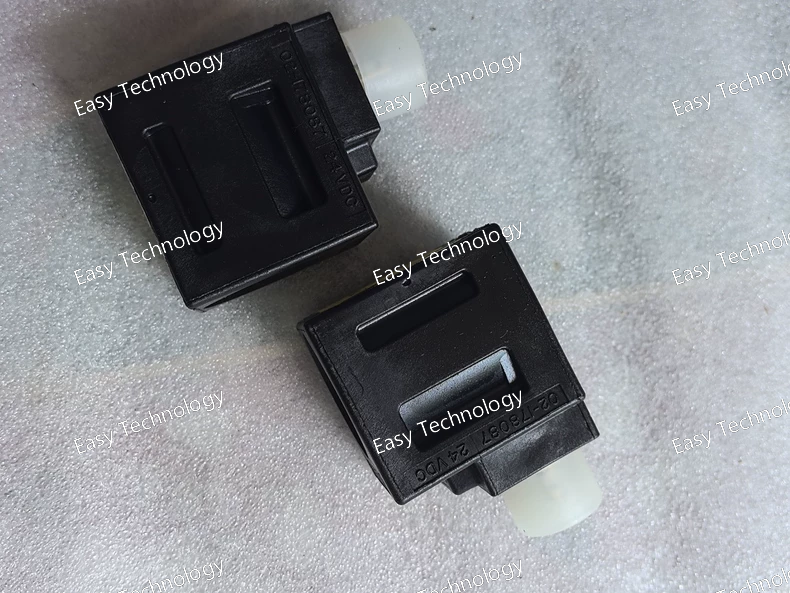

Key Parameters Item Parameter / Description Part Type Solenoid coil / coil assembly Voltage 24 V DC Duty Continuous duty Connector Type Lead-wire connection (flying leads) Weight Approx. 0.27–0.30 kg Dimensions Approx. 1.83” × 1.53” × 2.50” Fluid Compatibility Standard hydraulic fluids (e.g., MIL‑H‑5606, SAE 10, SAE 20) Mounting Fits onto compatible Eaton/Vickers hydraulic valve bodies

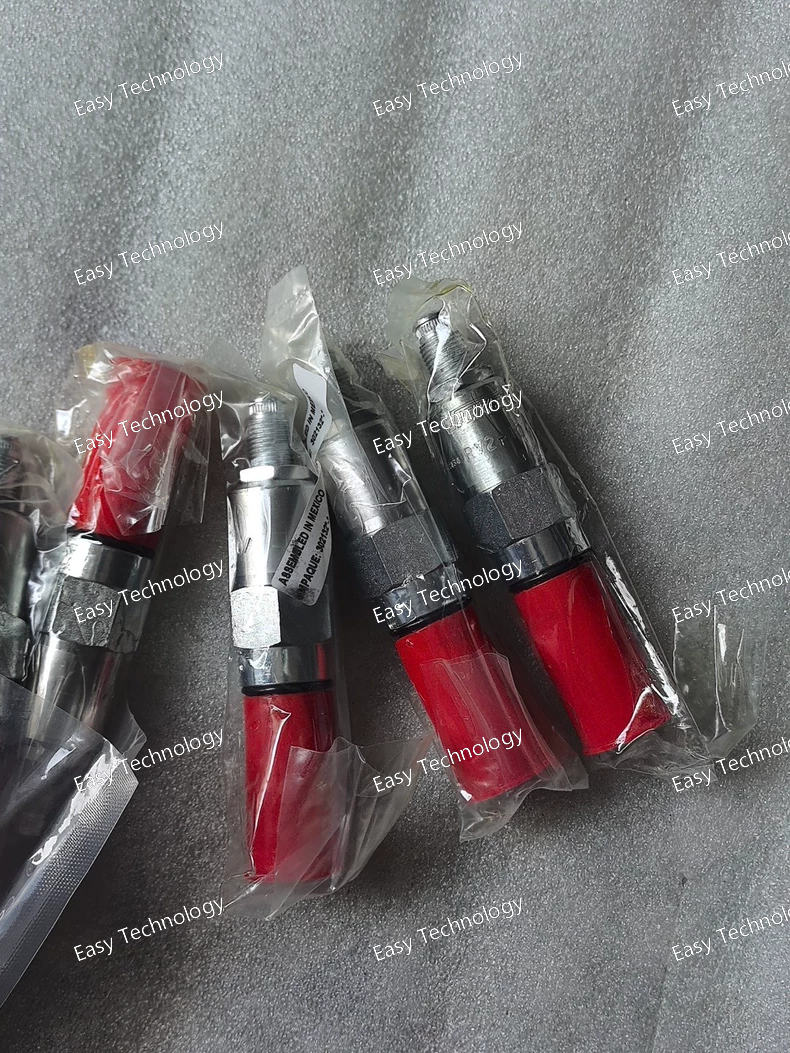

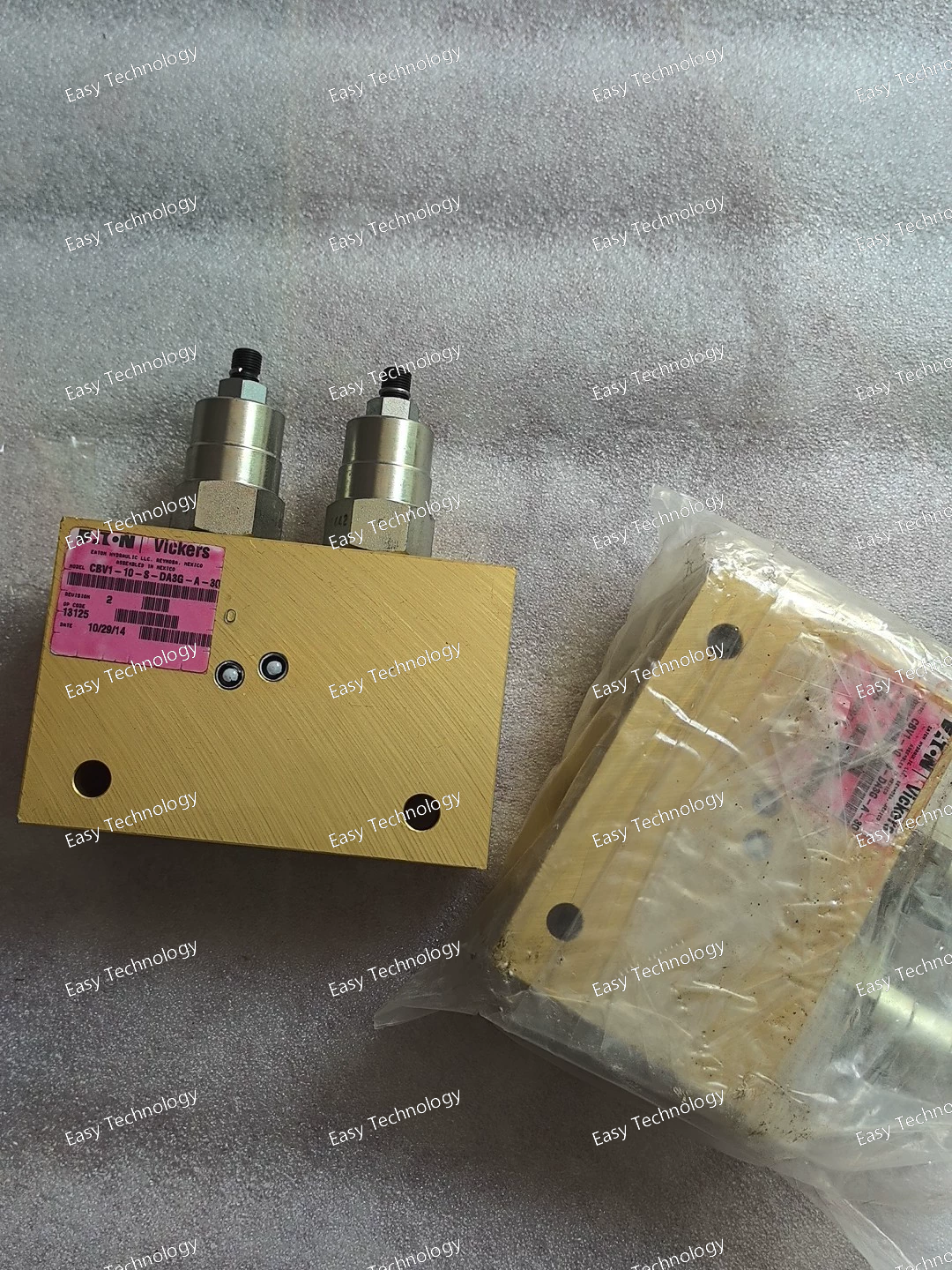

Key Parameters Item Parameter / Description Function Type Relief Valve (pilot‑operated) with reverse free‑flow check Mounting Style Cartridge valve (screw‑in cartridge) Valve Series / Cavity RV2‑10 series, C‑10‑2 cavity (standard cartridge cavity) Maximum Operating Pressure 350 bar (≈ 5000 psi) Typical Flow Capacity Up to 114 L/min (≈ 30 US gpm) Pressure Setting Adjustable (via screw/adjustment type) — factory example ~ 192.5 bar, but user‑adjustable depending on system needs Fluid Compatibility Standard hydraulic fluids (e.g. MIL‑H‑5606, SAE 10, SAE 20, etc.) Intended Use Pressure relief or system protection; can also protect work ports in directional valve circuits Flow Direction / Check Valve Behavior Flow from port 1 → port 2 when relieving; reverse flow (port 2 → port 1) allowed when pressure drops (free‑flow through check)

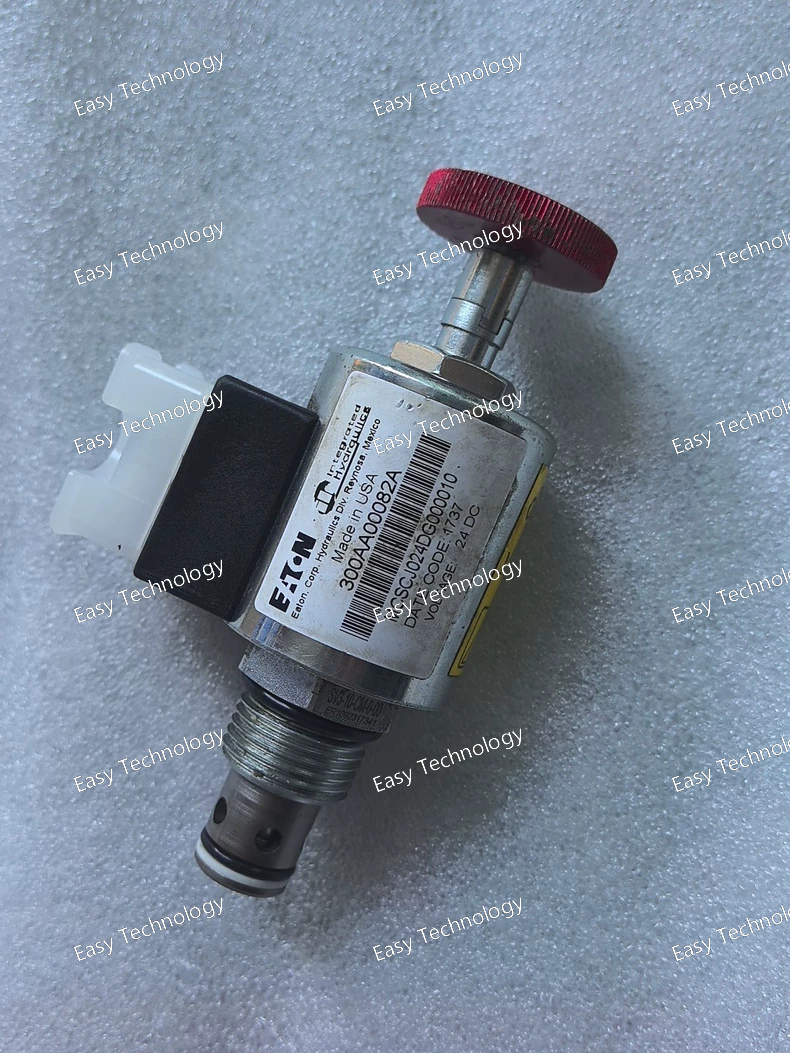

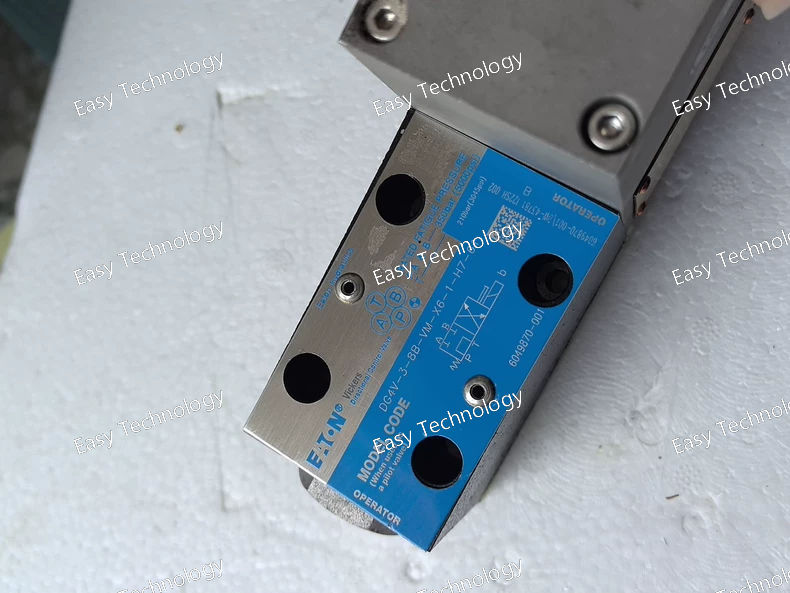

Key Parameters Item Value / Description Actuation Type Solenoid operated Coil Voltage 24 V DC Design Series 61 Series Electrical Connection ISO 4400 (DIN 43650) connector Maximum Operating Pressure (P, A, B ports) 350 bar (≈ 5000 psi) Tank Port (T) Pressure Rating 210 bar (≈ 3000 psi) Maximum Flow Rate 80 L/min (≈ 21 US gpm) Fluid Compatibility Petroleum hydraulic oils Seal Material Viton Spool Type Spool “8B” Spring Arrangement Spring offset (end-to-center) spool return Valve Size / Interface ISO 4401‑03 / NFPA D03 / CETOP 3 (NG6) Power Consumption (Coil) 30 W Fluid Cleanliness Recommendation 19/17/14 µm Operating Ambient Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Mounting Type Subplate / manifold mounted Valve Type Directional control valve (4/3‑way)
