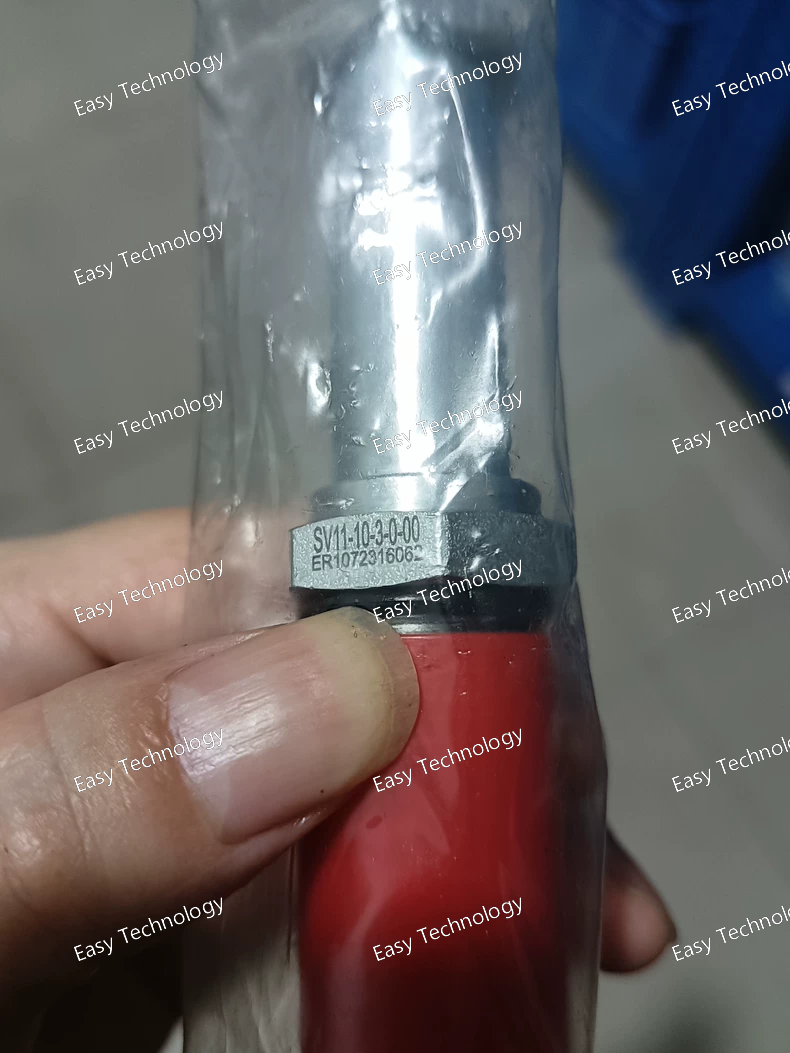

Key Parameters Parameter Specification / Description Valve Type 3-position, 4-way directional control valve Series SV11 Function Controls hydraulic flow direction to actuators; center position normally closed Maximum Flow Rate 100 L/min (approx.) Maximum Operating Pressure 250 bar (≈ 3600 psi) Actuation Type Solenoid-operated Coil Voltage 12/24 V DC or 110/220 V AC (variant dependent) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount Port Size NG10 / CETOP 5 interface

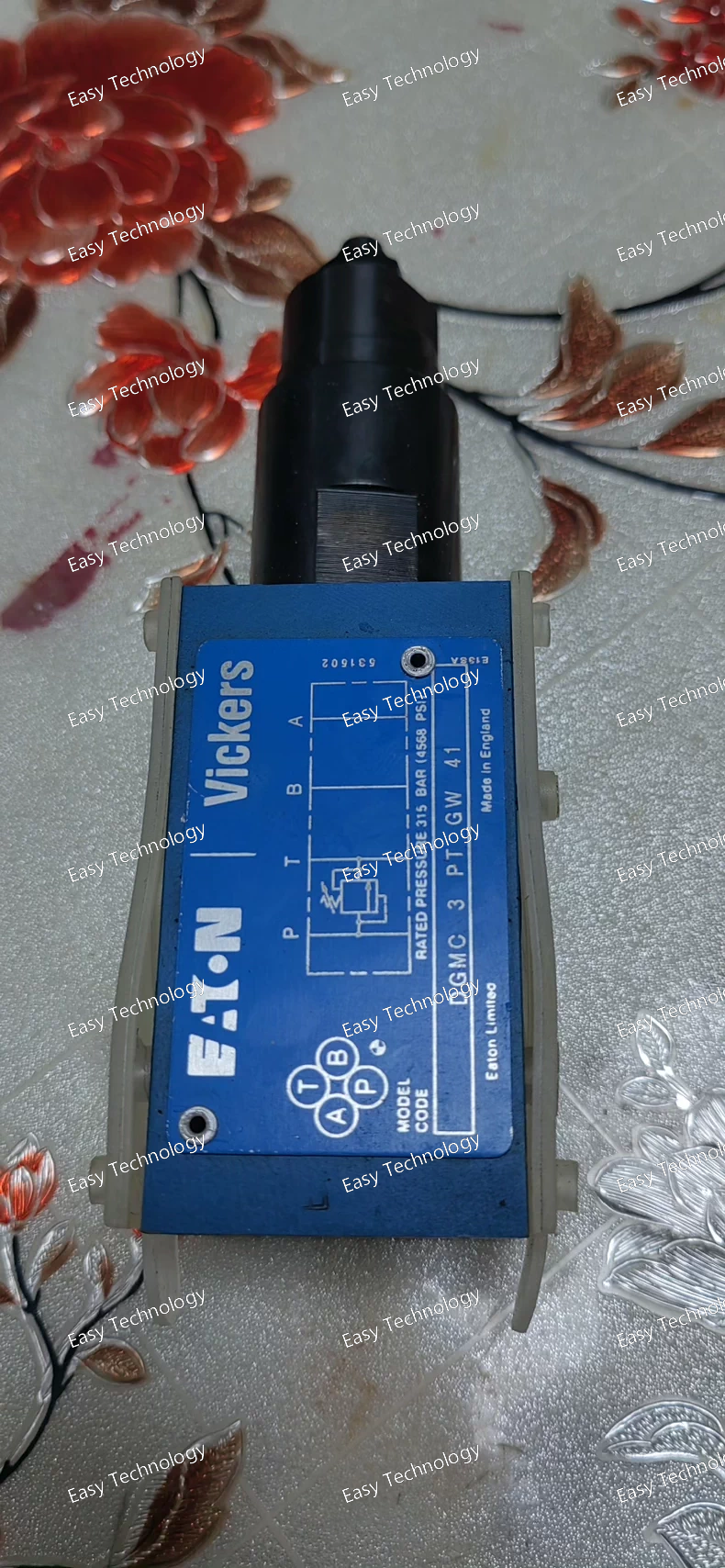

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMC3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Regulates flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type PTG (proportional) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMC2‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type AT / BT (proportional pilot-operated) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

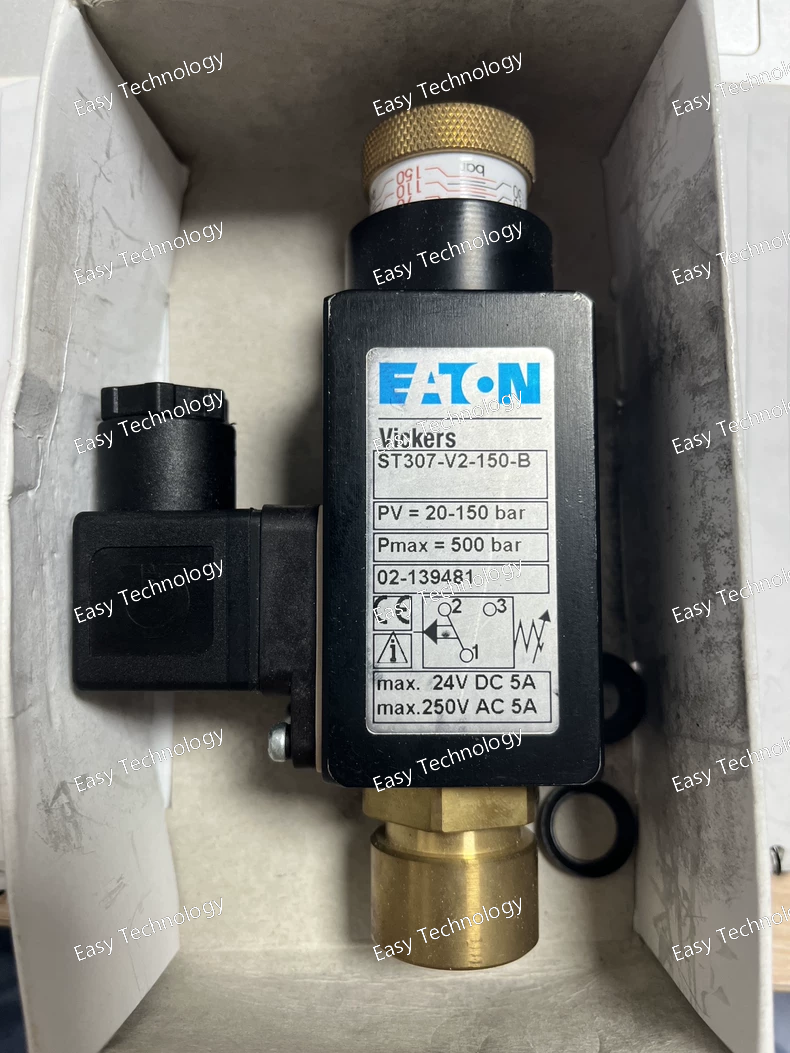

Key Parameters Parameter Specification / Description Valve Type Pilot-operated pressure relief valve Series / Size ST307‑V2 Function Limits system pressure by opening when preset pressure is exceeded Maximum Pressure 150 bar (≈ 2175 psi) Flow Capacity Up to rated flow (depends on system configuration, approx. 50–100 L/min typical) Adjustment Adjustable spring for setting desired relief pressure Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Viscosity Range 10–800 cSt Operating Temperature –20 °C to +80 °C Mounting Type Subplate / manifold mount Port Size NG10 / CETOP 5 (or as per installation requirements)

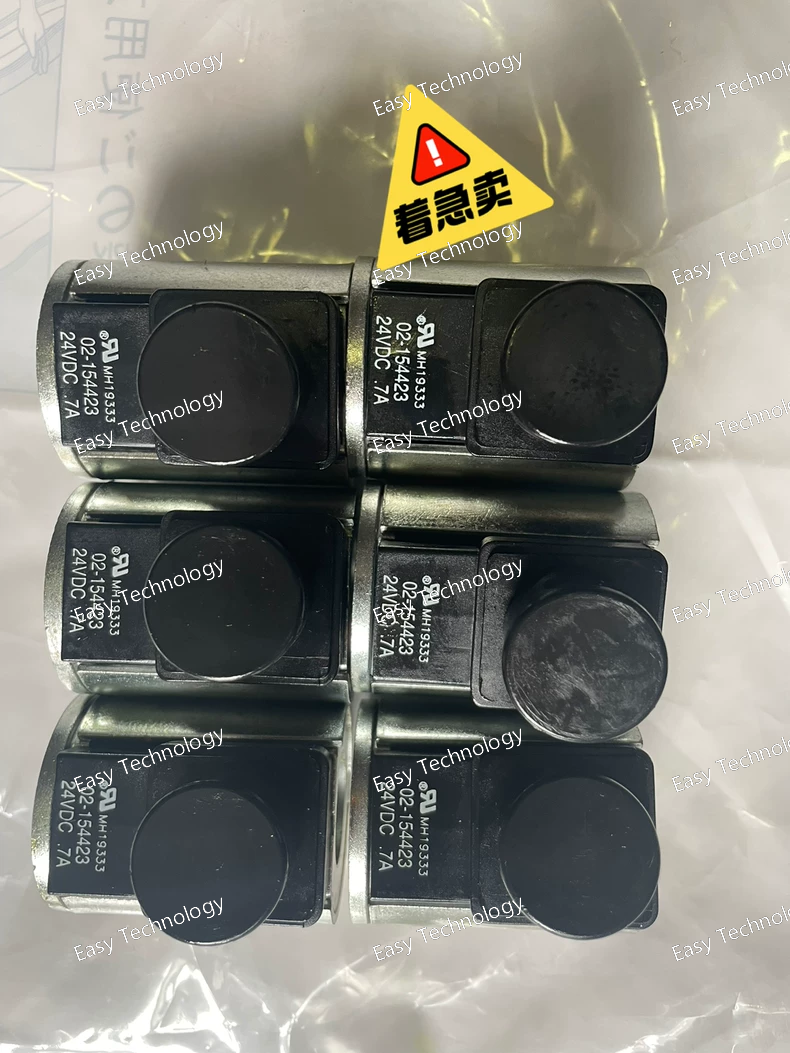

Key Parameters Parameter Specification / Description Coil Type Solenoid coil for hydraulic valves Part Number 02‑154423 Rated Voltage 24 V DC Rated Current 7 A Duty Cycle Continuous duty Operating Temperature –20 °C to +70 °C Electrical Connector Flying leads or DIN connector (variant dependent) Mounting Screw-in / valve-specific mount Insulation Class Typically Class H or equivalent Environmental Protection Designed for industrial/mobile environments (splash and dust resistant) Compatible Valves Directional control valves, proportional valves (specific series dependent)

Key Parameters Parameter Specification / Description Valve Type Proportional directional control cartridge valve Series / Size DGMDC‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow direction proportionally based on electrical input; maintains stable operation under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type X / BK (proportional pilot-operated) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Pilot-operated pressure relief cartridge valve Function Protects hydraulic circuits by relieving excess pressure Maximum Operating Pressure 350 bar (≈ 5000 psi) Flow Capacity Up to rated flow (depends on system design, typically 20–50 L/min) Adjustment Adjustable spring for setting desired relief pressure Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Viscosity Range 10–800 cSt Operating Temperature –20 °C to +80 °C Mounting Type Screw-in cartridge or manifold mount Port Size NG6 / CETOP 3 (or as per installation requirements)

Key Parameters Parameter Specification / Description Valve Type Solenoid-operated directional control valve, 3-position, 4-way Series DSG-01 Function Controls hydraulic flow direction; closed center in neutral Maximum Flow Rate 30 L/min (approx.) Maximum Operating Pressure 210 bar (≈ 3000 psi) Actuation Solenoid, 24 V DC Spool Type 3C2 (closed-center, 3-position) Seal Material NBR/Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate mount (ISO 4401 / CETOP 3 interface) Electrical Connector DIN 43650-A / ISO 4400 standard

Key Parameters Parameter Specification / Description Valve Type Solenoid-operated directional control valve, 3-position, 4-way Series DG4V-3 Function Controls hydraulic flow direction; closed center in neutral Maximum Flow Rate 60 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Actuation Solenoid, modular type Spool Type 2AL (closed-center, 3-position) Seal Material H7 (Buna-N standard, Viton optional) Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount (ISO 4401 / CETOP 3 interface) Electrical Connector DIN 43650 / ISO 4400 standard

Parameter Specification Product Series DPS2 Ordering Code / Article No. DPS2-20-S-F0-20 Input Input Voltage (AC) 100 - 240 V AC (±10%) Input Frequency 47 - 63 Hz Input Current 0.9 A at 115V AC; 0.5 A at 230V AC Inrush Current (I²t) < 20 A²s Output Output Voltage 24 V DC Rated Output Current 0.8 A Power Output Power (at 40°C) 20 W Boost Function Boost Current 1.2 A (for up to 5 seconds) Performance & Characteristics Efficiency Up to 94.5% Power Factor (λ) >0.65 at 230V AC / >0.5 at 115V AC Ripple and Noise < 150 mVpp Line Regulation < ±0.5% Load Regulation < ±1.0% Protections Overload Protection Electronic, self-recovery (Hiccup mode) Overvoltage Protection 28 - 32 V DC (Clamping type) Short-Circuit Protection Yes, automatic recovery Environmental & Physical Operating Temperature -25 °C to +70 °C (with derating above 40°C) Storage Temperature -40 °C to +85 °C Cooling Method Natural convection (fanless) Housing Material Plastic (Polycarbonate) Mounting Standard DIN Rail (EN 60715: 35mm) Dimensions (W x H x D) 22.5 x 90 x 96 mm Weight Approx. 0.18 kg Safety & EMC Standards Safety Standards UL 508, CSA C22.2 No. 14, EN 62368-1 (CB Report) EMC Standards EN 61000-6-2, EN 61000-6-4 Certifications cULus Listed, CE Marked, RCM Marked
