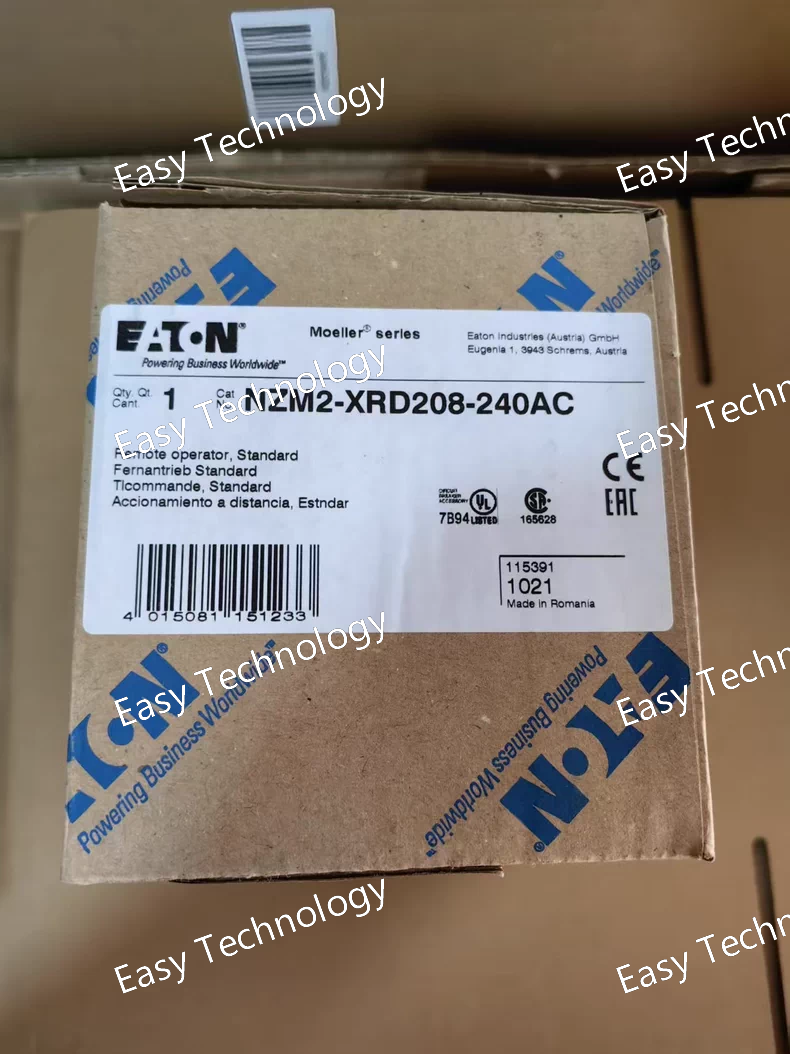

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZM2-XRD208-240AC Frame Size NZM2 (Compact Frame, specific current rating up to 160A) Mounting Type Draw-Out Version (Fixed mounting in a draw-out frame) Rated Operational Voltage (Ue) 208-240V AC Trip Unit Type Electronic Trip Unit (Specific type indicated by "X" in XRD) Rated Current 208A (Indicated by "208" in the model number) Control Voltage 240V AC (For the operating mechanism/shunt trip, etc.) Breaking Capacity High interrupting rating (Specific kA rating depends on the NZM2-XR platform) Standards Compliance IEC 60947-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, LH Series Model Number LH-50/2/C Fuse Type & Rating LH Cartridge Fuse Rated Current: 50 A Number of Poles / Quantity 2 pieces (2-pole set) Time-Current Characteristic Type C (General Purpose) Rated Voltage 500V AC / 250V DC Breaking Capacity Medium to High (Specific rating depends on certification) Standards Compliance IEC 60269-1 and related national standards Fuse Dimension 10 x 38 mm or 14 x 51 mm (Depending on specific LH type) Mounting Requires compatible fuse holder

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PKZM0 Series Model Number PKZM0-20 Rated Operational Current (Ie) 20 A Rated Current Setting (Ir) Adjustable, typically from 0.1A to 20A (or a specific range within this) Poles 3-Pole Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 690V AC Utilization Category AC-3 (Squirrel cage motor: Starting, switching off during running) Motor Power Rating (at 400V AC) 9 kW / 12 HP (Approximate) Short-Circuit Breaking Capacity (Icu) Typically 50 kA at 400V AC (Confirm with specific datasheet) Trip Class Class 10 (Standard for motor protection) Standards Compliance IEC/EN 60947-2, IEC/EN 60947-4-1 Mounting DIN Rail (35mm)

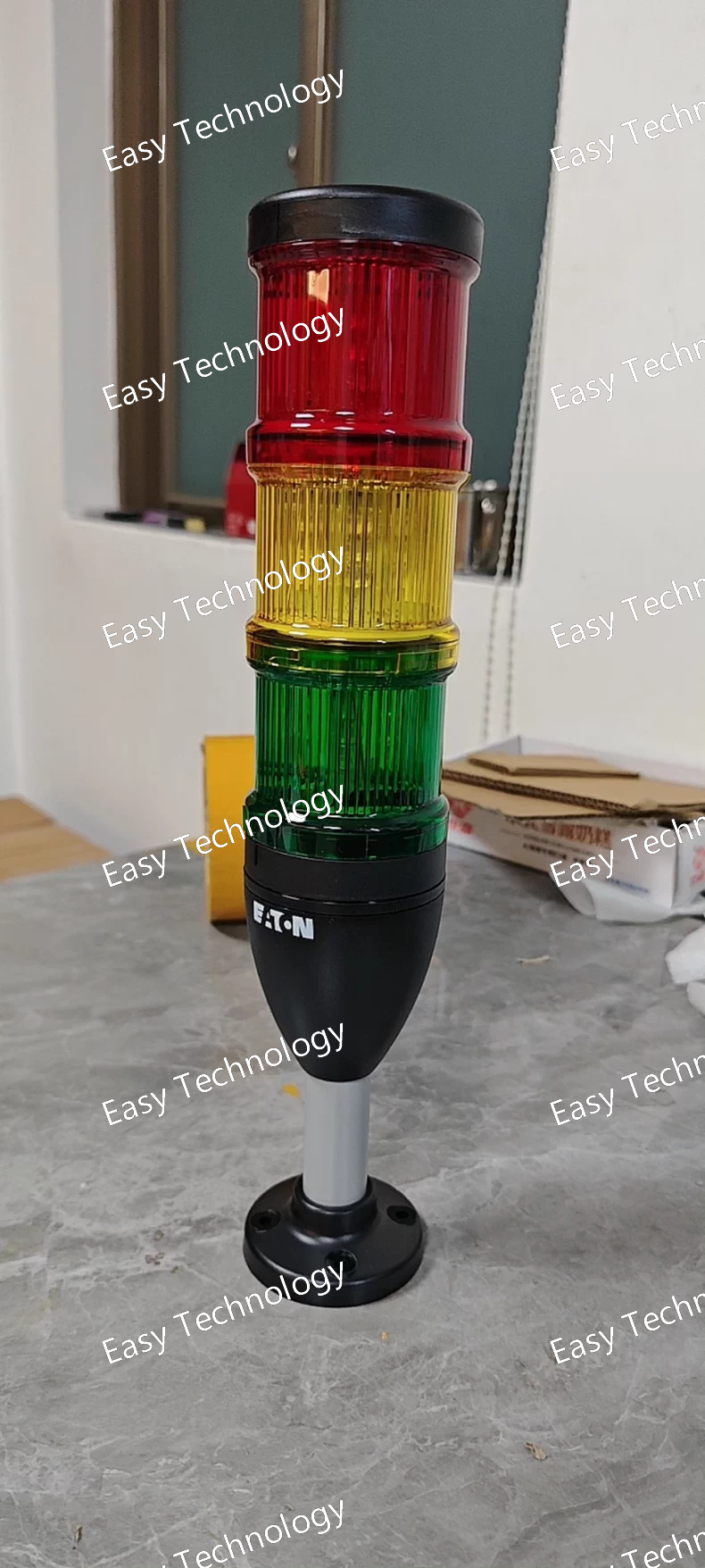

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, SL7 Series Model Number SL7-100-L-RYG-24LED Mounting Diameter 30 mm (Cut-out: Ø30.5 mm) Function Illuminated Pushbutton / Indicator Light Lens Type Multi-lens (RYG) - Red, Yellow, Green Operating Voltage 24V DC Light Source LED (Long-life, low power consumption) Contact Block 1 NO (Normally Open) pushbutton contact (Typically) Protection Degree IP65 (Front panel, when properly mounted) Mounting Panel Mount from the front with integrated snap-in mechanism Standards Compliance IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

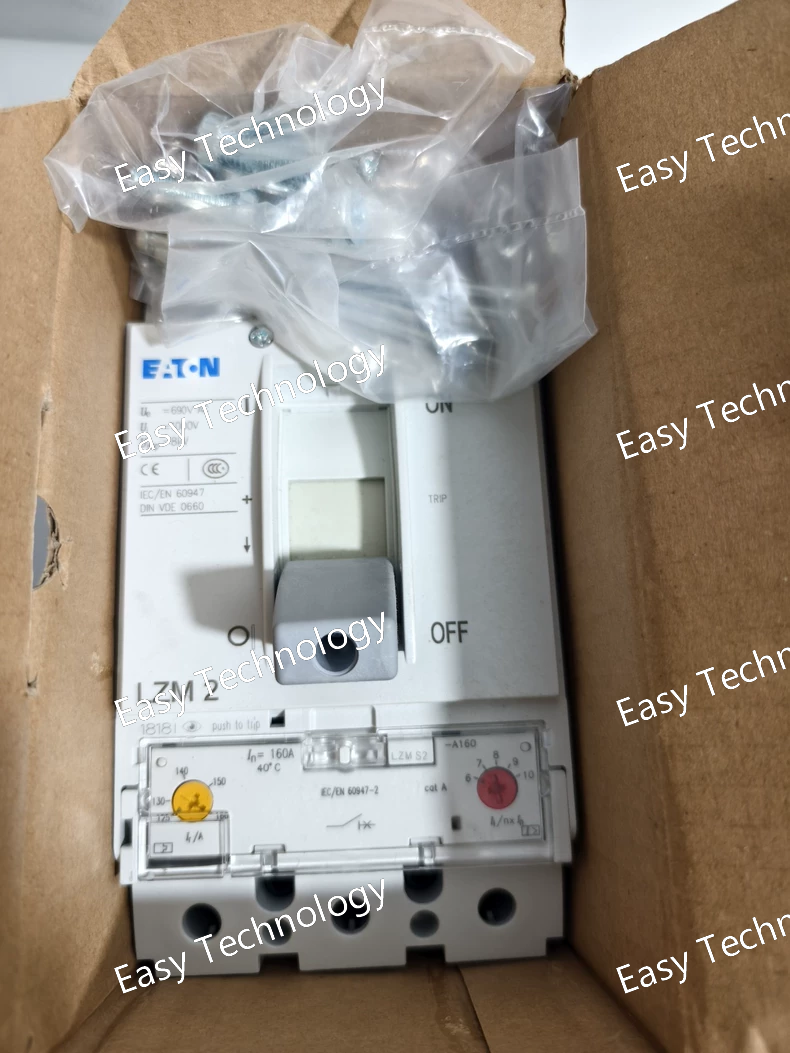

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, LZM2 Series Model Number LZM2-A160 Rated Current 160 A (Frame Size) Poles 3-Pole Rated Operational Voltage (Ue) Up to 690V AC Rated Insulation Voltage (Ui) 800V AC Trip Unit Type Type A - Adjustable Electronic Trip Unit Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) Breaking Capacity (Icu) High interrupting capacity (e.g., 35kA, 50kA, or 65kA depending on specific rating and voltage - confirm with datasheet) Standards Compliance IEC 60947-2

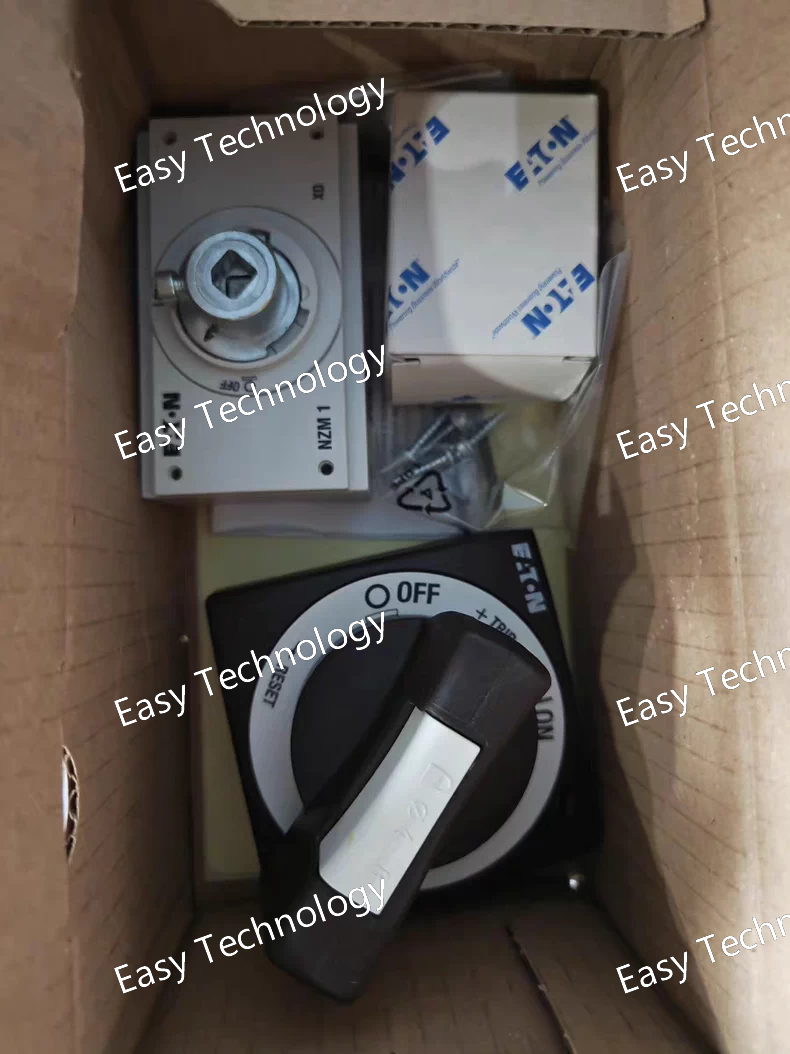

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZM1-XTVD-0 Compatibility NZM1 series Molded Case Circuit Breakers Function Universal Draw-Out Mechanism Kit Mounting Installs into a compatible switchboard/panel Position Indication Typically includes indicators for CONNECTED, TEST, DISCONNECTED positions Standards Compliance Designed to comply with the same standards as the NZM1 breaker (IEC 60947-2)

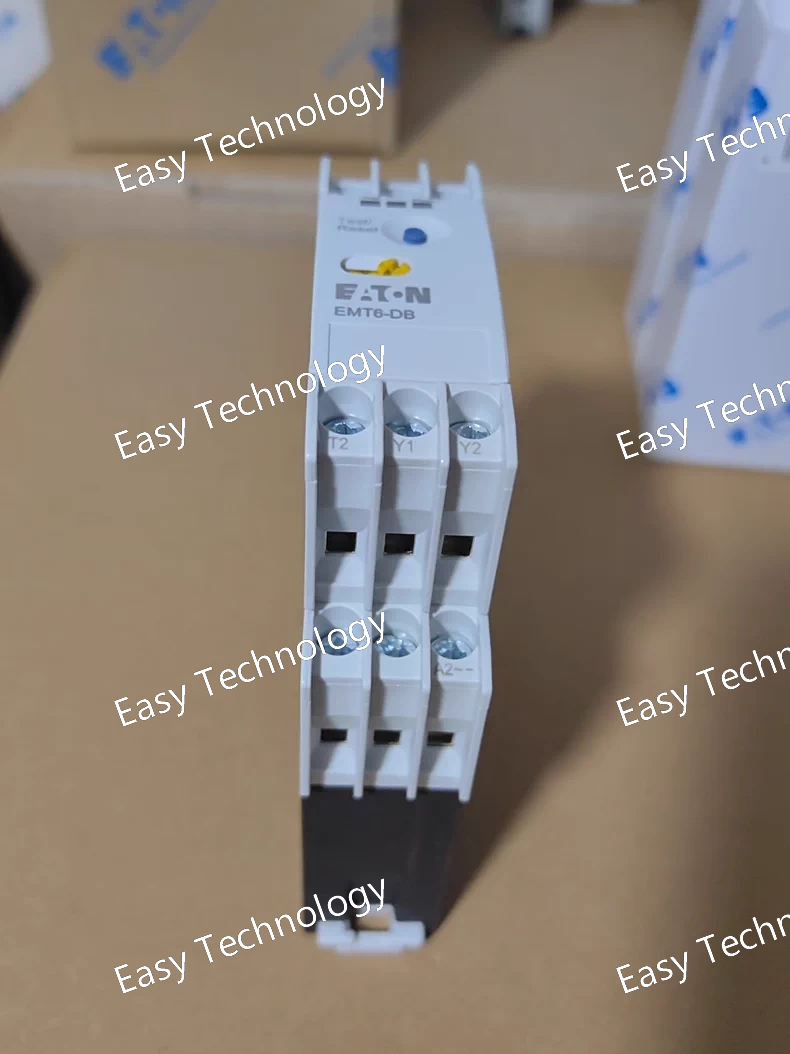

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, EMT6 Series Model Number EMT6-DB Power Supply Voltage 24-240V AC/DC (Wide range, auto-sensing) Output Relay DPDT (2 CO) - 2 Changeover contacts Contact Rating: Typically 8A @ 250V AC Timing Ranges Multiple ranges selectable (e.g., from 0.05 seconds up to 100 hours) Functions Multiple timing functions selectable (e.g., On-delay, Off-delay, Interval, Flasher, etc.) Accuracy ±0.5% of set time ± 20 ms (typical for digital timers) Mounting DIN Rail (35mm) Display / Indication LED Status Indicators (Power, Output state) Standards Compliance IEC/EN 61812-1, UL 508, CSA C22.2 No. 14

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, ZB Series Model Number ZB32C-24 Output Voltage 24V DC Rated Output Power 32 W Rated Output Current 1.3 A Input Voltage Range 85-264V AC (Wide range, auto-sensing) Input Frequency Range 47-63 Hz Efficiency Typically >85% Power Factor (PF) Typically >0.9 Output Adjustment Range Typically ±10% (e.g., 21.6-26.4V DC) Mounting DIN Rail (35mm) Protection Overload Protection, Overvoltage Protection, Short-Circuit Protection Standards Compliance IEC/EN 61347-1, IEC/EN 61347-2-13, UL 1310, CSA C22.2 No. 223

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PL9 Series Model Number PL9-C32/2 Fuse Standard & Rating IEC gG (General Application) Rated Current: 32 A Number of Poles / Quantity 2 pieces (2-pole set) Rated Voltage 500V AC Breaking Capacity 50 kA (50,000 A) at 500V AC Standards Compliance IEC 60269-1, IEC 60269-2-1 Fuse Dimension 10 x 38 mm (Diameter x Length) Mounting Requires compatible fuse holder for 10x38mm fuses Utilization Category gG - Full-range breaking capacity for general applications

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, ZB Series Model Number ZB12C-10 Output Voltage 12V DC Rated Output Power 10 W Rated Output Current 0.83 A Input Voltage Range 85-264V AC (Wide range, auto-sensing) Input Frequency Range 47-63 Hz Efficiency Typically >80% Power Factor (PF) Typically >0.9 Output Adjustment Range Typically ±10% (e.g., 10.8-13.2V DC) Mounting DIN Rail (35mm) Protection Overload Protection, Overvoltage Protection, Short-Circuit Protection Standards Compliance IEC/EN 61347-1, IEC/EN 61347-2-13, UL 1310, CSA C22.2 No. 223
