Technical Parameters Parameter Category Description / Value Brand & Series Eaton, T0 Series Model Number T0-4-15682/I1/SVB Rated Operational Current (Ie) 63 A (at AC-22/AC-23) Number of Poles 4-Pole (3 phases + neutral) Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 750V AC Rated Impulse Withstand Voltage (Uimp) 8 kV Utilization Categories AC-22 (Switching mixed resistive and inductive loads) AC-23 (Switching motor loads) Auxiliary Contacts I1 - Specific auxiliary contact configuration (e.g., 1 NO + 1 NC) Terminal Type SVB - Shrouded Terminal Barrier for enhanced safety Operation Type Rotary Handle Operation Mechanical Life ~ 20,000 operations Electrical Life ~ 5,000 operations (at rated current) Mounting DIN Rail (35mm) Standards Compliance IEC/EN 60947-3

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, P3 Series Model Number P3-63/V/SVB-SW/HI11 Rated Current (In) 63 A Number of Poles 3-Pole Rated Operational Voltage (Ue) 400/415V AC (Three-Phase) Rated Insulation Voltage (Ui) 500V AC Breaking Capacity (Icn) Typically 10 kA (Please confirm with specific catalog) Tripping Characteristic Type C (Instantaneous trip: 5-10 x In) Terminal Type SVB-SW - Shrouded Terminal Barrier for Switch Disconnectors Operation Type V - Rotary Switch Handle (Manual operation) Control Module HI11 - Multi-function Time Relay Mounting Standard 35mm DIN Rail (EN 60715) Standards Compliance IEC/EN 60898-1 (MCB), IEC/EN 61812-1 (Timer)

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILA Series Model Number DILA4MC145 Rated Operational Current (Ie) 45 A at AC-3, 400V Thermal Current (Ith) 45 A Poles (Main Circuit) 4-Pole (Typically 3 main poles + 1 auxiliary power pole) Auxiliary Contacts Typically 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage must be specified when ordering - e.g., 24V DC, 110V DC) Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 22 kW / 30 HP (Approximate) Mechanical Life ~ 10-15 million operations Electrical Life (AC-3) ~ 1-2 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, ZMX3C Series Model Number ZMX3C-3-AX630 Rated Current 630 A Number of Poles 3-Pole Rated Operational Voltage (Ue) Up to 690V AC Rated Insulation Voltage (Ui) 1000V AC Rated Ultimate Breaking Capacity (Icu) Typically 65 kA / 85 kA / 100 kA (depending on specific certification) Trip Unit Type AX - Advanced Electronic Trip Unit Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) G - Ground-Fault (Earth Leakage) Standards Compliance IEC 60947-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, ZB Series Model Number ZB150-50 XTOB050GC1 Output Voltage 50V DC Rated Output Power 150 W Rated Output Current 3.0 A Input Voltage Range 85-264V AC (Wide range, auto-sensing) Input Frequency Range 47-63 Hz Efficiency Typically >88% Power Factor (PF) Typically >0.95 Output Adjustment Range Typically ±10% (e.g., 45-55V DC) Connection Type Terminal Block Mounting DIN Rail (35mm) Protection Overload Protection, Overvoltage Protection, Short-Circuit Protection Cooling Method Convection cooling (Fanless design) Standards Compliance IEC/EN 61347-1, IEC/EN 61347-2-13, UL 1310, CSA C22.2 No. 223

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, Z5 Series Model Number Z5-220/FF250 Rated Current 220 A Rated Voltage 500V AC Breaking Capacity 120 kA (at 500V AC) Fuse Type Square Body Fuse Link Utilization Category gG (General Application, full-range) Indicator Yes (Visual blown fuse indicator) Standards Compliance IEC 60269-1, IEC 60269-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, XTCG Series Model Number XTCG080E00DT Rated Current 80 A Number of Poles 2-Pole Rated Voltage 240V AC Breaking Capacity Typically 10 kA (Please confirm with specific catalog) Trip Characteristics Thermal-Magnetic Mounting DIN Rail (35mm) Standards Compliance IEC/EN 60898-1

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM32C-XHI11 Rated Operational Current (Ie) 32 A at AC-3, 400V Thermal Current (Ith) 32 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Typically 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage must be specified - e.g., 24V DC) Integrated Timer HI11 Multi-function Time Relay Timer Functions Multiple timing modes (On-delay, Off-delay, Interval, etc.) Motor Rating (at 400V AC) 15 kW / 20 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) Standards Compliance IEC/EN 60947-4-1, IEC/EN 60947-5-1

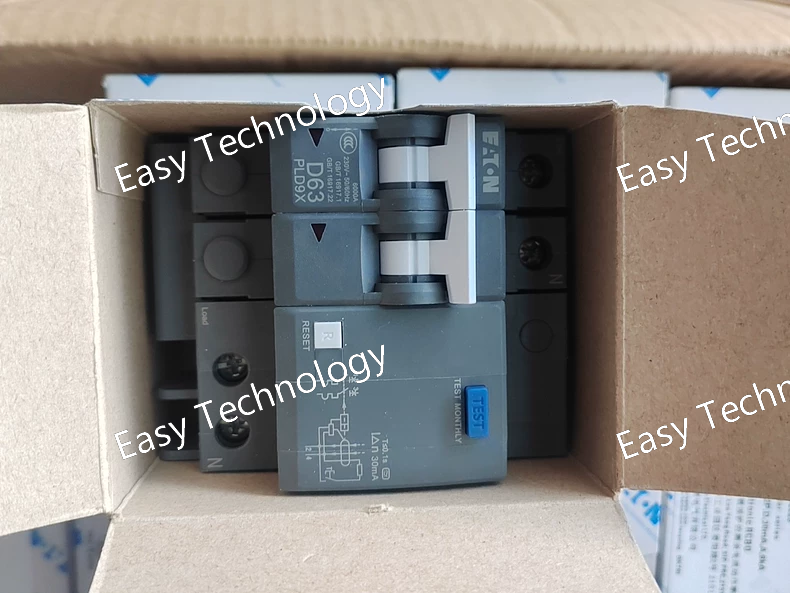

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PLD9X Series Model Number PLD9X-63/2/D/003-A Rated Operational Current (Ie) 63 A Number of Poles 2-Pole Rated Operational Voltage (Ue) 400V AC Rated Insulation Voltage (Ui) 500V AC Utilization Categories AC-22 (Switching mixed resistive and inductive loads) AC-23 (Switching motor loads) Operation Type Rotary Handle Operation (D) Fuse Compatibility Designed for use with 10x38mm fuses Mounting DIN Rail (35mm) Mechanical Life ~ 10,000 operations Electrical Life ~ 1,500 operations (at rated current) Standards Compliance IEC/EN 60947-3

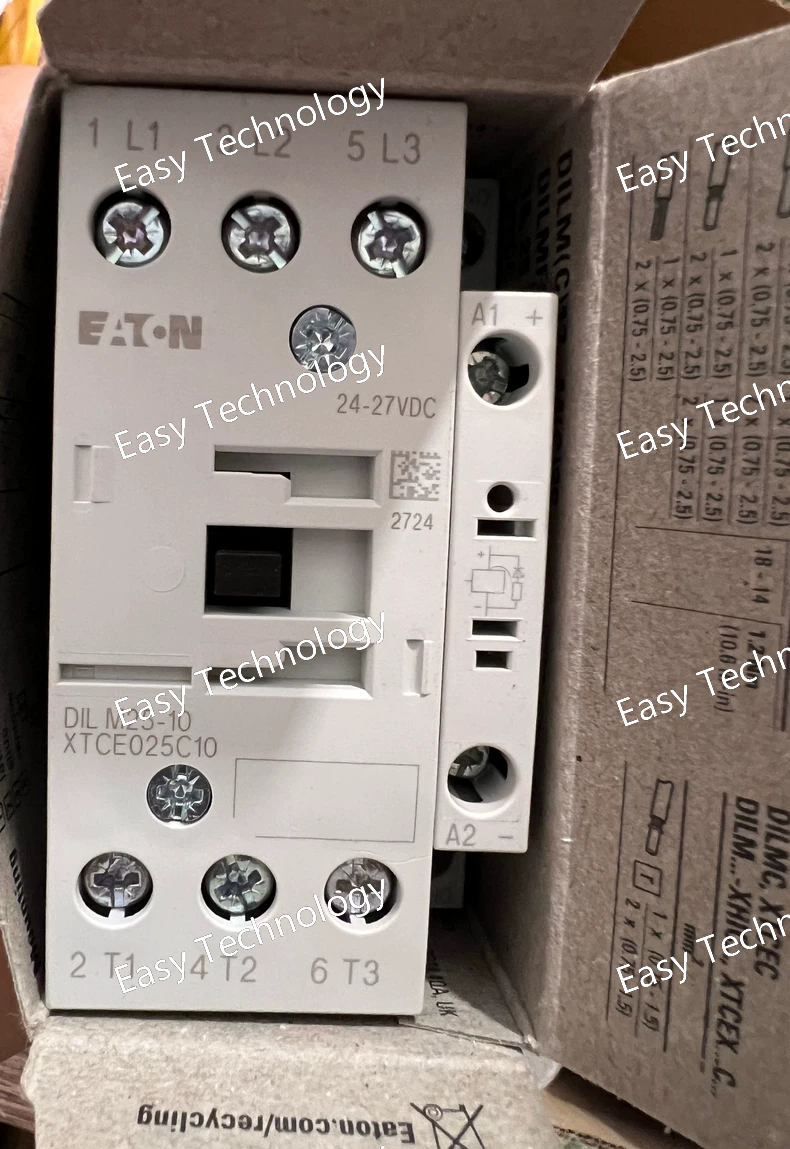

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM25-10 XTCE025C10 Rated Operational Current (Ie) 25 A at AC-3, 400V Thermal Current (Ith) 25 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage The XTCE025C10 suffix indicates a specific AC or DC coil voltage variant (exact voltage must be confirmed from datasheet, e.g., 230V AC or 24V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 11 kW / 15 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp
