Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-D15/3-NA Fuse Class & Rating Class D Rated Current: 15 A Rated Voltage: 600V AC / 300V DC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for a 3-phase application) Type Time-Delay (Dual-Element) Rated Voltage 600V AC / 300V DC Interrupting Rating 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-10 (Class D), CSA C22.2 No. 248.10 Electrical Characteristics Current-Limiting: Yes Time-Delay: Can typically withstand 500% of rated current for up to 10 seconds, allowing motor inrush currents to pass without nuisance opening. Physical Dimensions Body: 1-1/4" x 2-1/4" (31.8mm diameter x 57.2mm length) - Edison Base (screws into a standard fuse holder) Indicator / Feature NA - Indicates a non-indicating version. There is no visual indicator to show if the fuse has blown.

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C3/3-NA Fuse Class & Rating Class CC Rated Current: 3 A Rated Voltage: 600V AC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for a 3-phase application) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity (Interrupting Rating) 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Melting I²t (3A): Very low, providing excellent component protection. Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting / Fuse Holder Requires a compatible Class CC fuse holder or fuse block (e.g., Eaton FHCC100, KRP-C-100SP) Indicator / Feature NA - Indicates a non-indicating version. There is no visual indicator to show if the fuse has blown.

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C4/2-RT Fuse Class & Rating Class CC Rated Current: 4 A Rated Voltage: 600V AC Number of Poles / Quantity 2 pieces (Typically supplied as a 2-pole set) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity (Interrupting Rating) 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Melting I²t (4A): Very low, providing excellent component protection. Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting / Fuse Holder Requires a compatible Class CC fuse holder or fuse block (e.g., Eaton FHCC100, KRP-C-100SP) Indicator / Feature RT - Rectangular Target (Visual Blown Indicator). An indicator pops out to provide a clear visual signal that the fuse has blown.

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C32/3 Fuse Class & Rating Class CC Rated Current: 32 A Rated Voltage: 600V AC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for a 3-phase application) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity (Interrupting Rating) 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting / Fuse Holder Requires a compatible Class CC fuse holder or fuse block (e.g., Eaton FHCC100, KRP-C-100SP)

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C40/3-RT Fuse Class & Rating Class CC Rated Current: 40 A Rated Voltage: 600V AC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for a 3-phase application) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity (Interrupting Rating) 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting / Fuse Holder Requires a compatible Class CC fuse holder or fuse block (e.g., Eaton FHCC100, KRP-C-100SP) Indicator / Feature RT - Rectangular Target (Visual Blown Indicator). An indicator pops out to provide a clear visual signal that the fuse has blown.

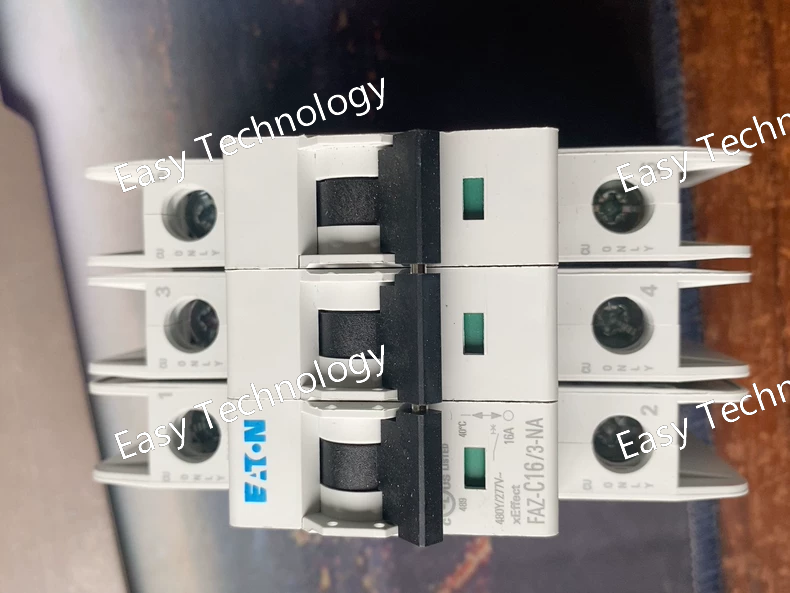

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C16/3-NA Fuse Class & Rating Class CC Rated Current: 16 A Rated Voltage: 600V AC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for 3-phase applications) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Melting I²t: Low values for excellent component protection Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting Requires compatible Class CC fuse holder or fuse block Indicator NA - Non-Indicating (No visual blown indicator)

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C6/2-NA Fuse Class & Rating Class CC Rated Current: 6 A Rated Voltage: 600V AC Number of Poles / Quantity 2 pieces (Typically supplied as a 2-pole set) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity (Interrupting Rating) 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Melting I²t (6A): Very low, providing excellent component protection. Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting / Fuse Holder Requires a compatible Class CC fuse holder or fuse block (e.g., Eaton FHCC100, KRP-C-100SP) Indicator / Feature NA - Indicates a non-indicating version. There is no visual indicator to show if the fuse has blown.

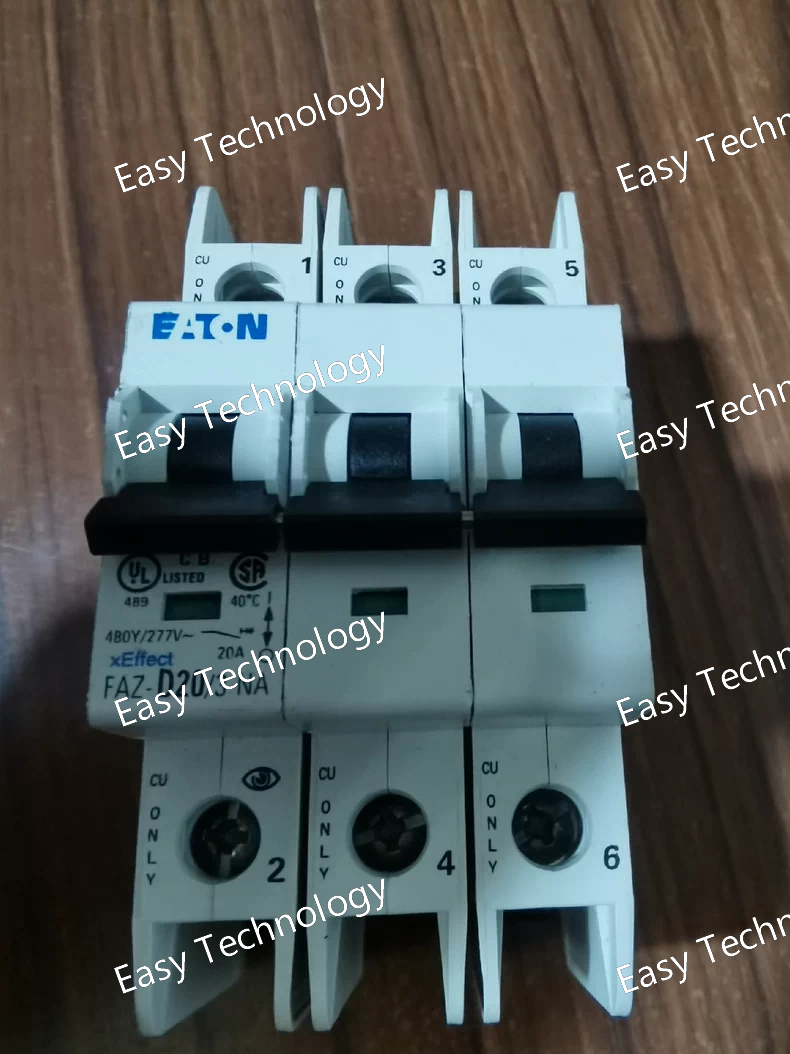

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-D20/3-NA Fuse Class & Rating Class D Rated Current: 20 A Rated Voltage: 600V AC / 300V DC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for a 3-phase application) Type Time-Delay (Dual-Element) Rated Voltage 600V AC / 300V DC Interrupting Rating 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-10 (Class D), CSA C22.2 No. 248.10 Electrical Characteristics Current-Limiting: Yes Time-Delay: Can typically withstand 500% of rated current for up to 10 seconds, allowing motor inrush currents to pass without nuisance opening. Physical Dimensions Body: 1-1/4" x 2-1/4" (31.8mm diameter x 57.2mm length) - Edison Base (screws into a standard fuse holder) Mounting / Fuse Holder Requires a compatible Class D fuse holder or fuse block Indicator / Feature NA - Indicates a non-indicating version. There is no visual indicator to show if the fuse has blown.

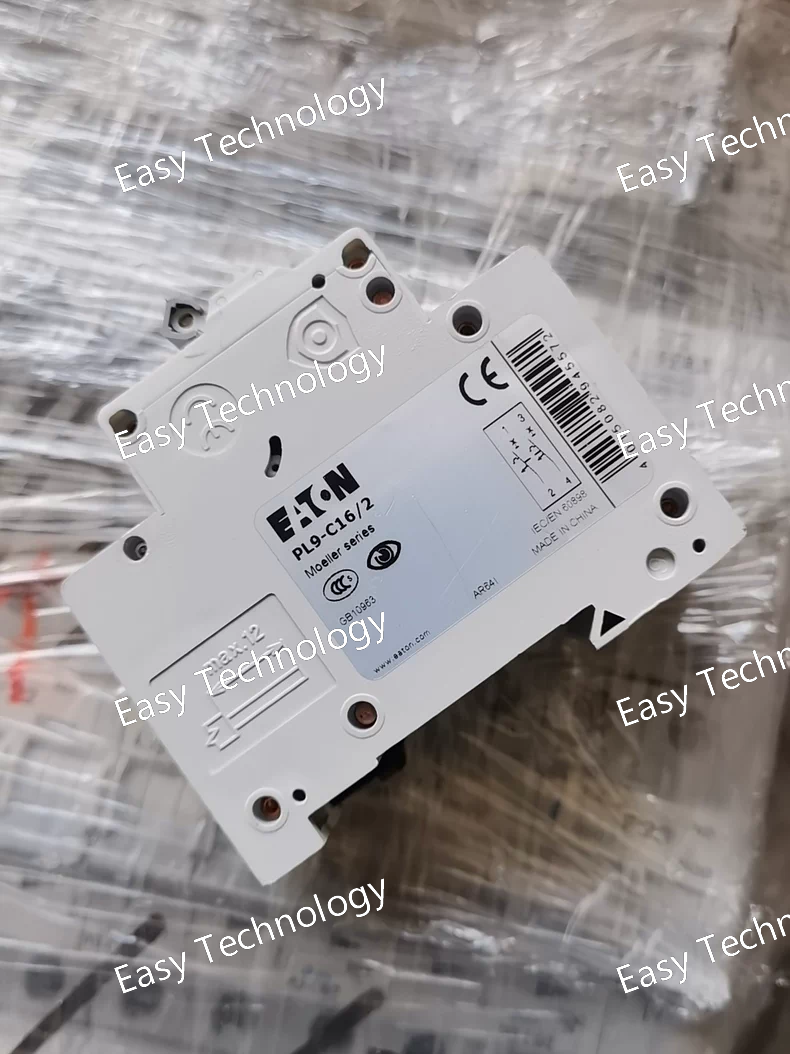

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PL9 Series Model Number PL9-C16/2 Fuse Standard & Rating IEC gG (General Application) Rated Current: 16 A Number of Poles / Quantity 2 pieces (2-pole set) Rated Voltage 500V AC Breaking Capacity 50 kA (50,000 A) at 500V AC Standards Compliance IEC 60269-1, IEC 60269-2-1 Fuse Dimension 10 x 38 mm (Diameter x Length) Mounting Requires compatible fuse holder for 10x38mm fuses Utilization Category gG - Full-range breaking capacity for general applications

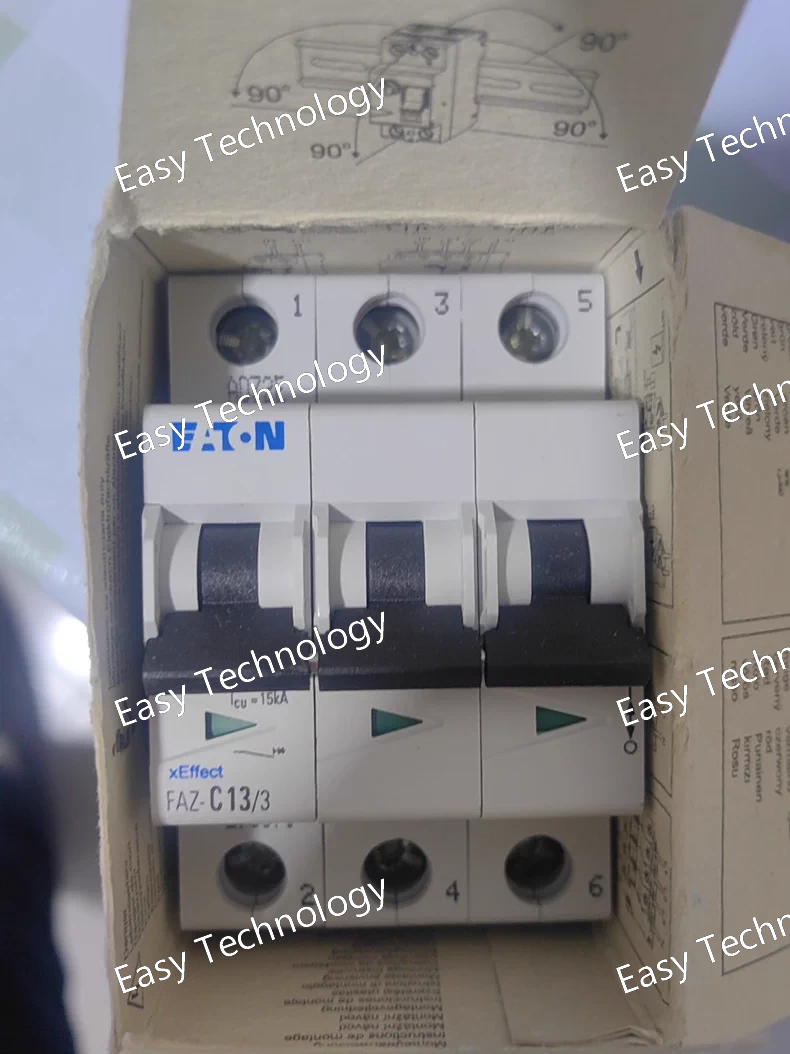

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C13/3 Fuse Class & Rating Class CC Rated Current: 13 A Rated Voltage: 600V AC Number of Poles / Quantity 3 pieces (Typically supplied as a 3-pole set for 3-phase applications) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting Requires compatible Class CC fuse holder or fuse block
