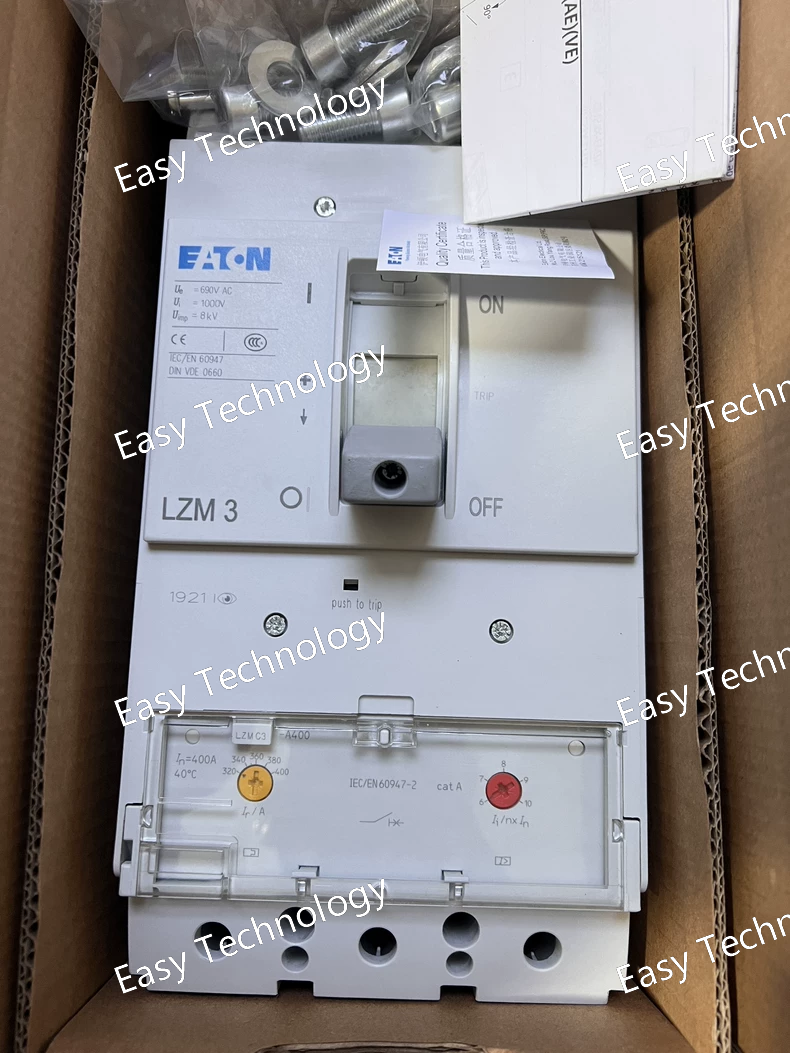

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, LZMC Series Model Number LZMC3-A400 Number of Poles 3-Pole Rated Current 400 A (Frame Size) Rated Operational Voltage (Ue) Up to 690V AC Breaking Capacity High interrupting capacity (Specific kA rating depends on voltage - typically 35-65kA range) Trip Unit Type Type A - Adjustable Electronic Trip Unit Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) Standards Compliance IEC 60947-2

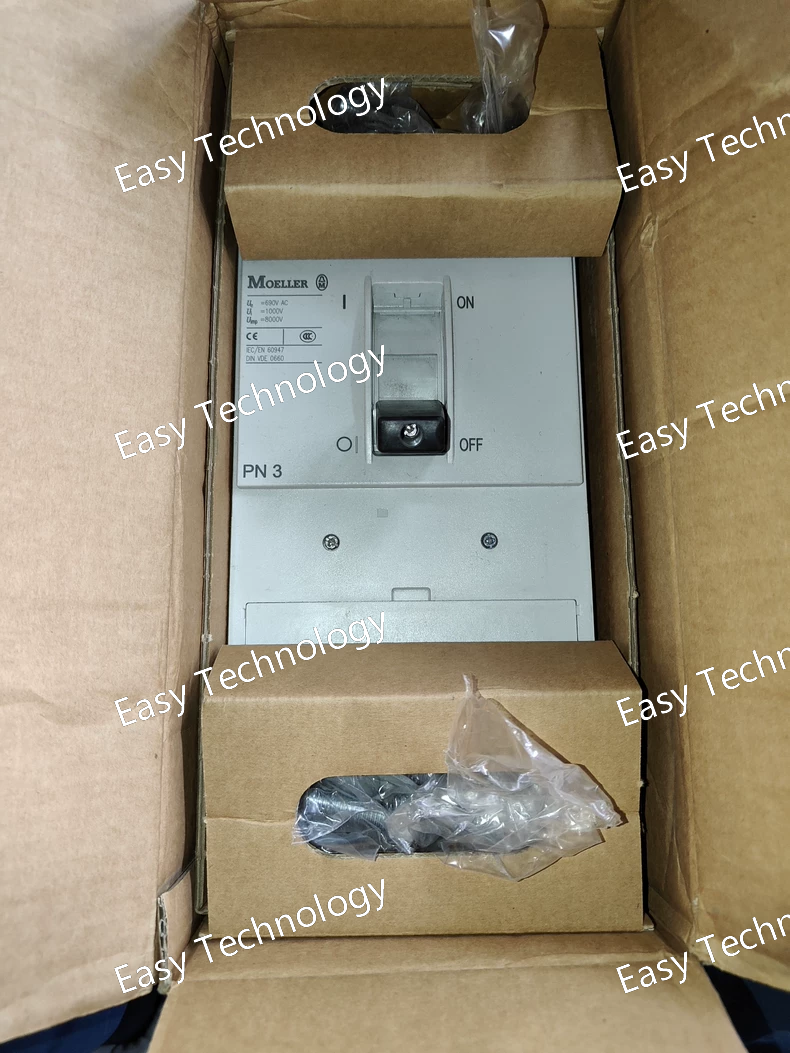

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PN Series Model Number PN3-400 Number of Poles 3-Pole Rated Current 400 A Rated Operational Voltage (Ue) Up to 690V AC Breaking Capacity (Icu) 50 kA at 415V AC (Typical - confirm with specific catalog) Trip Unit Type Thermal-Magnetic (Fixed characteristics) Standards Compliance IEC 60947-2

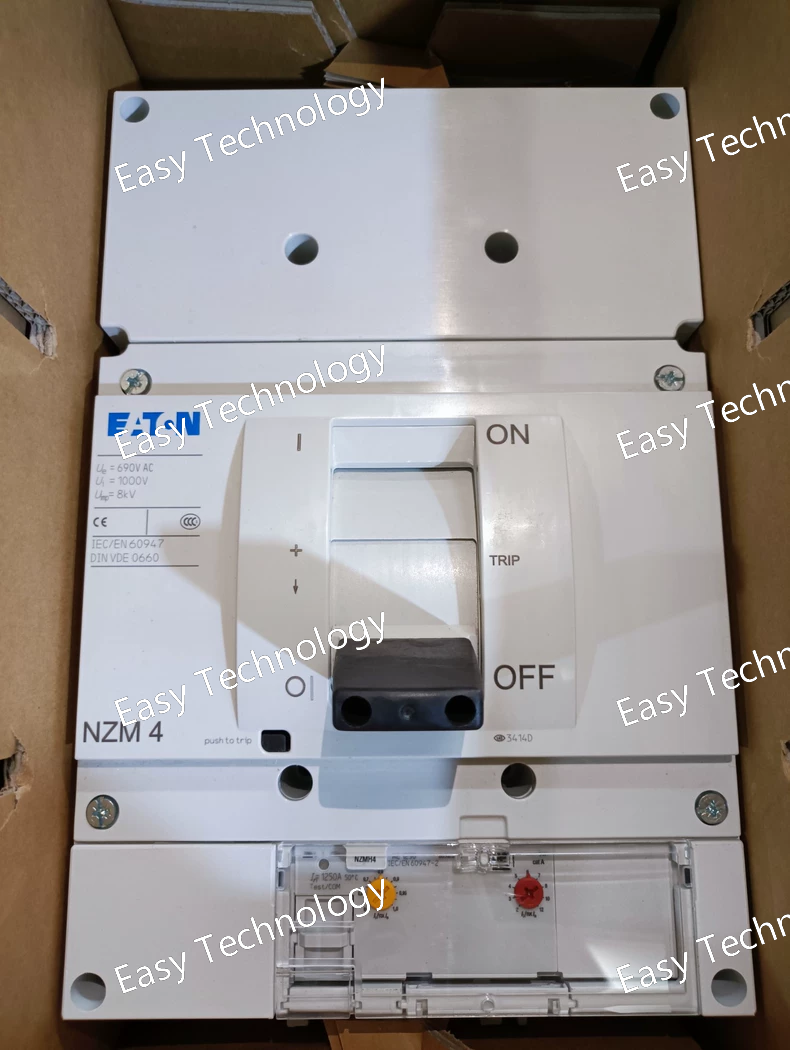

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZMH4-AE1250 Number of Poles 4-Pole Rated Current 1250 A (Frame Size) Rated Operational Voltage (Ue) Up to 690V AC Rated Ultimate Breaking Capacity (Icu) Typically 65 kA / 85 kA at 415V AC (Confirm with specific datasheet) Trip Unit Type AE - Advanced Electronic Trip Unit with LCD Display Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) G - Ground-Fault (Earth Leakage) Standards Compliance IEC 60947-2

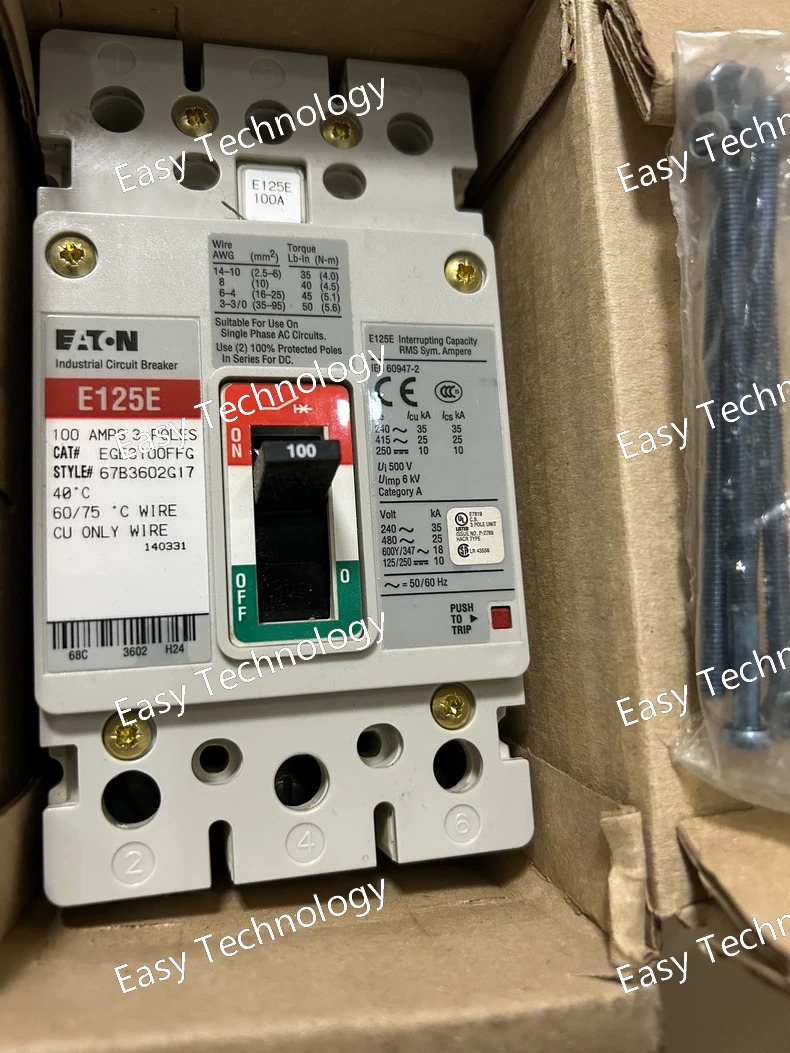

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, E-Frame Series Model Number E125E Rated Current 125 A (Frame Size) Pole Configurations Available in 1, 2, and 3-pole versions (specific model varies) Rated Voltage 120/240V AC for 1-2 poles 240V AC for 3 poles Interrupting Rating 10 kA / 14 kA / 22 kA (Depending on specific version and certification) Trip Characteristics Thermal-Magnetic • Thermal Trip: Inverse time delay for overloads • Magnetic Trip: Instantaneous for short-circuits Standards Compliance UL 489, CSA C22.2 No. 5

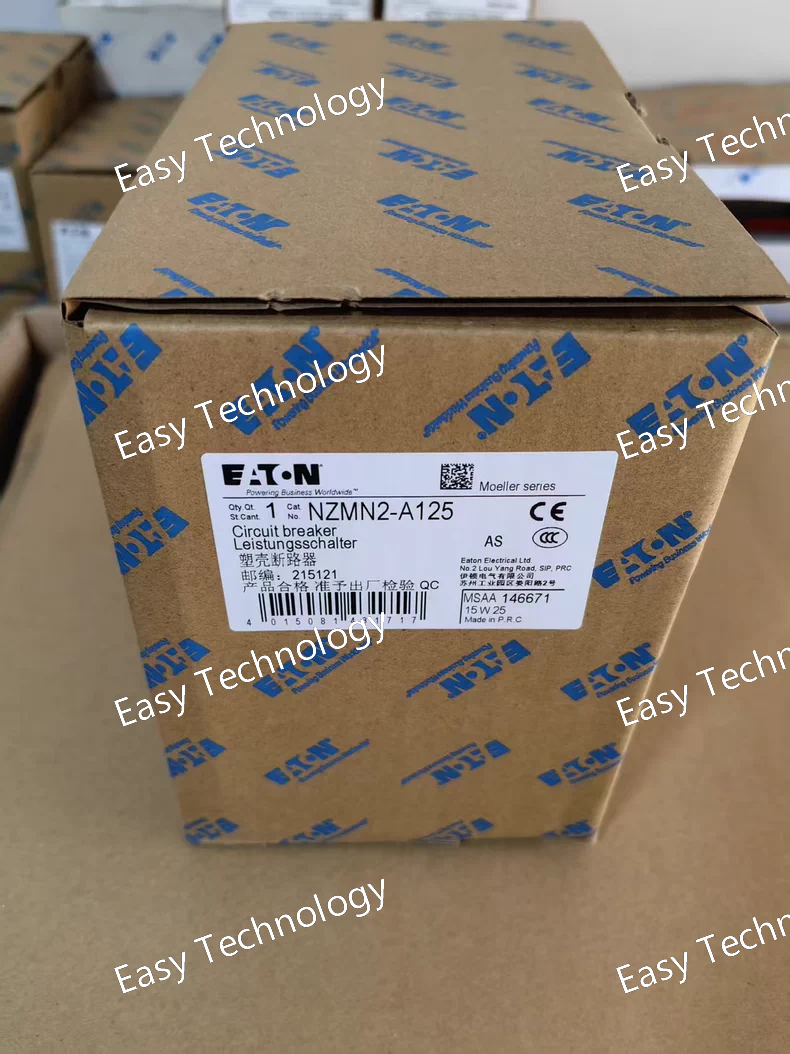

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZMN2-A125 Number of Poles 2-Pole Rated Current 125 A (Frame Size) Rated Operational Voltage (Ue) Up to 480V AC Rated Insulation Voltage (Ui) 690V AC Rated Ultimate Breaking Capacity (Icu) Typically 25 kA / 35 kA at 480V AC (Confirm with specific datasheet) Trip Unit Type Type A - Adjustable Electronic Trip Unit Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) Standards Compliance IEC 60947-2

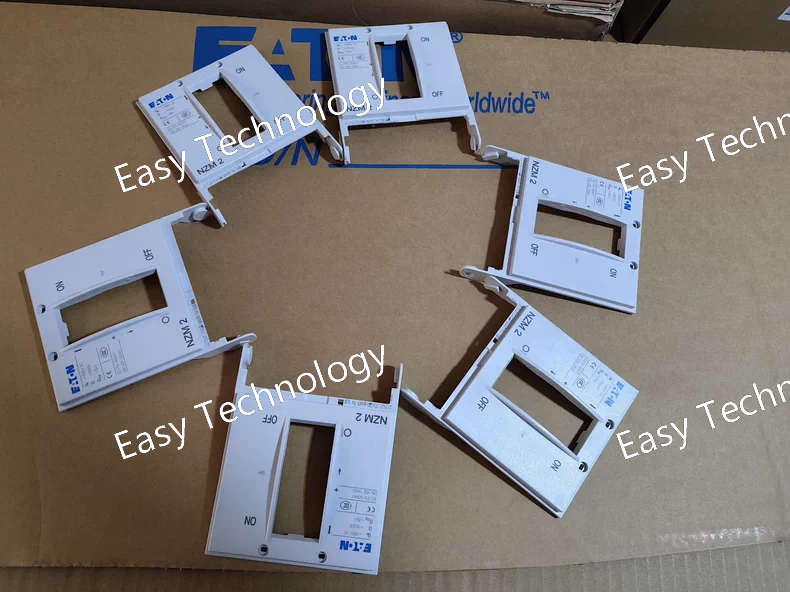

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Designation NZM2 Frame Size Compact Frame (Specific current ratings typically up to 160A) Pole Configurations Available in 2, 3, and 4-pole versions Rated Operational Voltage (Ue) Up to 690V AC Rated Insulation Voltage (Ui) 750V AC / 800V AC Breaking Capacity High interrupting rating (Typically 25kA to 50kA depending on specific model and voltage) Trip Unit Options Available with Thermal-Magnetic (TMD) or Electronic (A/ME) trip units Standards Compliance IEC 60947-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, ETR4 Series Model Number ETR4-11-A Poles 3-Pole Trip Class Class 10 Current Setting Range 0.11 - 0.16 A Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Ambient Temperature Range -25°C to +60°C (Derating may apply above +50°C) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Mounting Snap-on mounting to compatible Eaton DIL contactors Auxiliary Contacts 1 NO (95-96) + 1 NC (97-98) - Convertible Reset Mode Manual reset (Automatic reset optional)

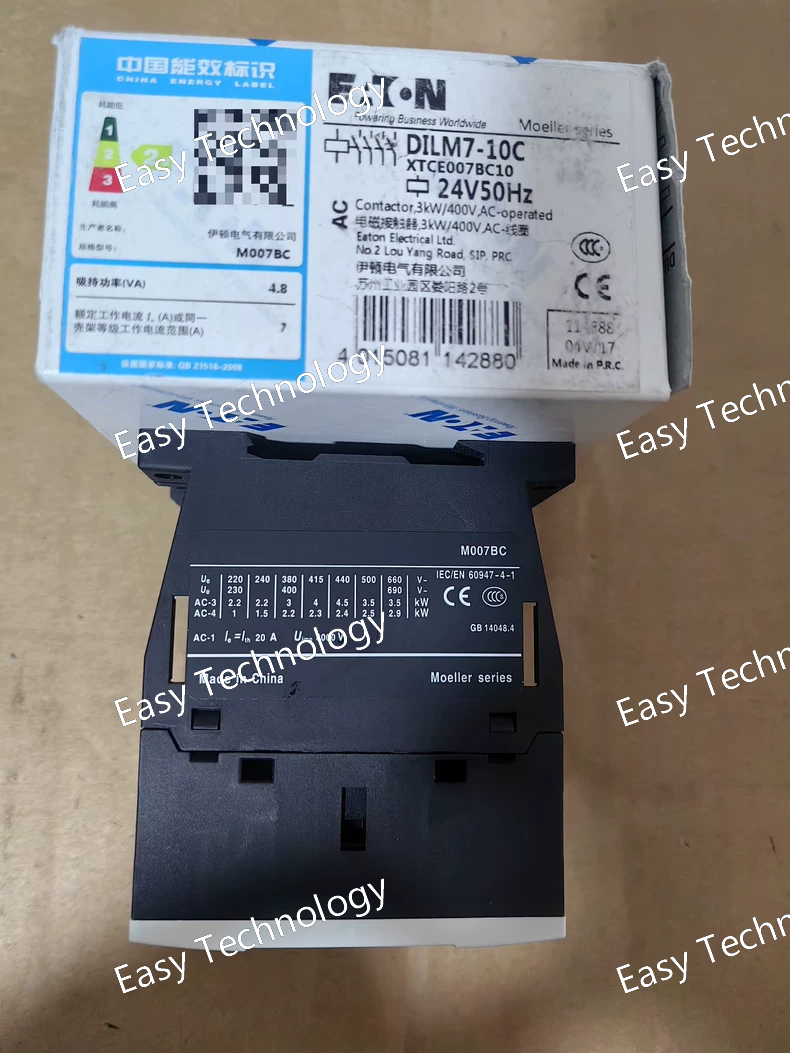

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM7-10C Rated Operational Current (Ie) 7 A at AC-3, 400V Thermal Current (Ith) 7 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) - Fixed Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage "C" denotes a standard DC voltage range. The specific voltage must be ordered (e.g., 24V DC, 110V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 3 kW / 4 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILA Series Model Number DILA-22C Rated Operational Current (Ie) 22 A at AC-3, 400V Thermal Current (Ith) 22 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) - Fixed Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage "C" denotes a standard DC voltage range. The specific voltage must be ordered (e.g., 24V DC, 110V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 11 kW / 15 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, HI System (formerly Moeller) Model Number HI11-P1/P3Z Power Supply Voltage 24-240V AC/DC (Wide range) Output Contact 1 CO (Changeover) - 1 NO + 1 NC Contact Rating: Typically 8A resistive at 250V AC Timing Ranges Multiple ranges selectable (e.g., 0.1s-10h, depending on function) Functions Multiple timing functions selectable via rotary switch: • On-delay (1) • Off-delay (2) • Star-delta (3) • Pulse generator (4) • On/off cycling (5) • Single shot (6) Accuracy ±0.5% of set value ±20ms Mounting DIN Rail (35mm) Display Digital display with status LEDs Standards Compliance IEC/EN 61812-1, UL 508, CSA C22.2 No. 14
