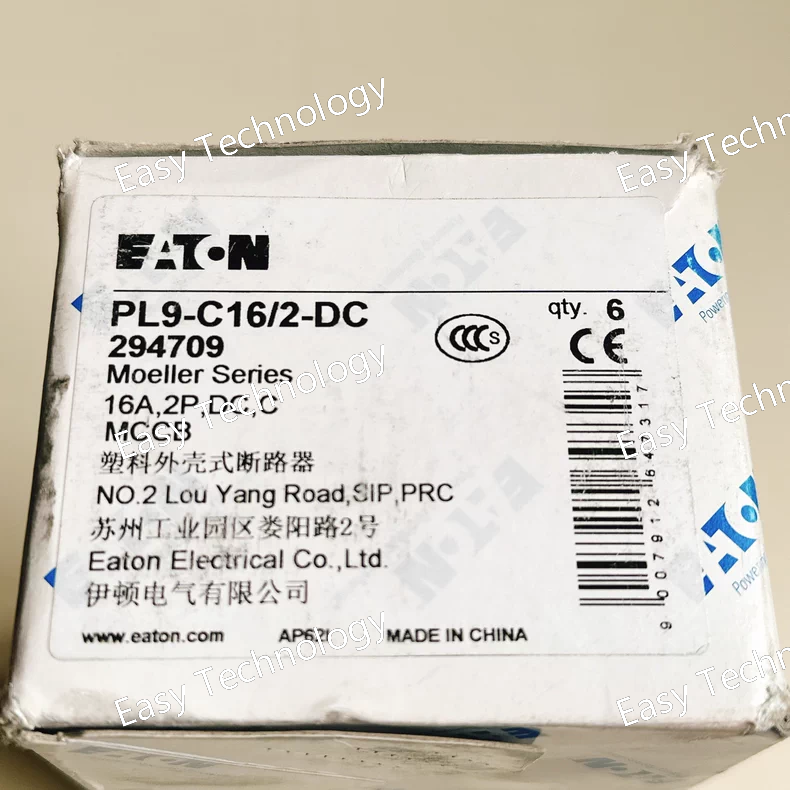

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 16 A Number of Poles 2-Pole (as indicated by "/2") Tripping Characteristic C-Curve Rated Operational Voltage (Uₑ) DC Voltage - The specific maximum DC voltage (e.g., 60V DC, 125V DC, 250V DC, 500V DC) must be confirmed from the device datasheet, as it differs from AC ratings. Breaking Capacity Rated for DC circuits according to relevant standards. Standards Compliance IEC/EN 60898-1 (or relevant DC standard) Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Connection Screw terminals.

Key Parameters Category Description / Value Product Line Eaton Surge Protection Type / Class Type 1 (As indicated by "EA" code, for high-energy surges) Nominal Discharge Current (In) 25 kA (8/20 μs) Max. Discharge Current (Imax) Higher than In, e.g., 50 kA or 100 kA (Must be verified from datasheet). Voltage Protection Level (Up) A specific value, e.g., ≤ 2.5 kV (Must be verified from datasheet). Rated Voltage For AC systems, e.g., 230/400V. Connection Screw Terminals (as indicated by "SW") Standards Compliance IEC 61643-11 Status Indication Typically includes a visual indicator (e.g., green/red window) to show operational status. Mounting Designed for mounting on 35 mm top-hat rail (DIN rail).

Key Parameters Category Description / Value Product Line Eaton Surge Protection Type / Class Likely Type 2 (For medium-energy surges at distribution level) Nominal Discharge Current (In) 63 kA (8/20 μs) Max. Discharge Current (Imax) Higher than In, e.g., 100 kA or higher (Must be verified from datasheet). Voltage Protection Level (Up) A specific low value, e.g., ≤ 1.5 kV (Must be verified from datasheet). Rated Voltage For AC systems, e.g., 230/400V. Connection Specific terminal design as per "XM" code. Standards Compliance IEC 61643-11 Status Indication Typically includes a visual indicator to show operational status. Mounting Designed for mounting on 35 mm top-hat rail (DIN rail).

Key Parameters Category Description / Value Product Line Eaton Surge Protection Type / Class Type 1 (Able to withstand partial lightning current) Nominal Discharge Current (In) 32 kA (8/20 μs) Max. Discharge Current (Imax) Higher than In, e.g., 60 kA, 80 kA, or 100 kA (Must be verified from datasheet). Voltage Protection Level (Up) A specific value, e.g., ≤ 2.5 kV (Must be verified from datasheet). Rated Voltage For AC systems, e.g., 230/400V. Standards Compliance IEC 61643-11 Status Indication Typically includes a visual indicator (e.g., green/red window) to show operational status. Mounting Designed for mounting on 35 mm top-hat rail (DIN rail).

Key Parameters Category Description / Value Product Line Eaton Surge Protection Type / Class Type 1 (Able to withstand partial lightning current) Nominal Discharge Current (In) 32 kA (8/20 μs) Max. Discharge Current (Imax) Higher than In, e.g., 60 kA, 80 kA, or 100 kA (Must be verified from datasheet). Voltage Protection Level (Up) A specific value, e.g., ≤ 2.5 kV (Must be verified from datasheet). Rated Voltage For 3-phase + N systems, e.g., 230/400V AC. Protection Mode L-PE (As indicated by "I2" code, for 3-phase systems) Neutral Connection Included (As indicated by "N") Standards Compliance IEC 61643-11 Status Indication Typically includes a visual indicator to show operational status. Mounting Designed for mounting on 35 mm top-hat rail (DIN rail).

Key Parameters Category Description / Value Product Line Eaton BZM (Explosion-Proof Enclosures) Type Explosion-Proof Junction Box Rated Current 100 A Body Material Typically Cast Aluminum or other non-corrosive, non-sparking material. Hazardous Location Classifications Certified for Class I, Division 1, Class II, Division 1, and Class III groups (Exact certification must be verified from product documentation). Enclosure Rating Typically NEMA 4X (Weatherproof and Corrosion-Resistant) Conduit Entries Multiple threaded openings (specific number and size defined by the "X1N-3" code). Cover Bolted cover with an integral sealing surface to maintain explosion-proof integrity. Internal Volume Specific internal cubic capacity for housing connections.

Key Parameters Category Description / Value Product Line Eaton BZM (Explosion-Proof Enclosures) Type Explosion-Proof Lighting Distribution Box Rated Current 50 A (as indicated by "AX50" suffix) Internal Component Includes a 50A circuit breaker or switch-disconnector Body Material Typically Cast Aluminum Hazardous Location Classifications Certified for Class I, Division 1, Class II, Division 1, and Class III (Exact certification must be verified from product documentation) Enclosure Rating NEMA 4X (Weatherproof and Corrosion-Resistant) Conduit Entries Multiple threaded openings Cover Bolted cover with integral sealing surface

Key Parameters Category Description / Value Product Line Eaton BZM Explosion-Proof Enclosures Type Explosion-Proof Distribution Box Rated Current 100 A (as indicated by "AX100" suffix) Internal Component 100A circuit breaker or switch-disconnector Body Material Cast Aluminum Hazardous Location Class I Division 1, Class II Division 1, Class III Enclosure Rating NEMA 4X Protection Level IP66/IP67

Key Parameters Category Description / Value Product Line Eaton Encoders Series PDG Type Incremental Encoder Housing Diameter 13 mm Shaft Type Hollow Shaft (with specific clamping mechanism) Resolution 80 PPR (Pulses Per Revolution) Output Channels A, B two channels with 90° electrical phase shift Output Circuit Typically Complementary (Differential) Output Supply Voltage 5-30 V DC Max. Rotation Speed Typically 6000 rpm Output Frequency Typically 100 kHz Protection Class Typically IP50-IP64

Key Parameters Category Description / Value Product Line Eaton EIS (Signal Towers) Series EIS-40 Type Single-level Module Lens Diameter 40 mm Mounting Designed for modular stacking with other EIS-40 units and accessories. Compatible Lamps/LEDs Uses separate bulb or LED cartridges (e.g., standard incandescent, long-life LED modules) which are inserted into the unit. Lens Colors Available in various colors (e.g., Red, Yellow, Green, Blue, White) depending on the ordered variant. Voltage Depends on the installed lamp or LED cartridge (e.g., 24V, 48V, 110V, 230V AC/DC). Connection Typically screw terminals.
