Key Parameters Category Description / Value Product Line Eaton FRBdM (RCBOs) Rated Current (Iₙ) 6 A Tripping Characteristic (Overcurrent) C-Curve (Instantaneous trip between 5-10 x Iₙ) Number of Poles 1P + N (2-Pole) Rated Operational Voltage (Uₑ) 230 V AC (Single-Phase) Rated Residual Operating Current (IΔn) 30 mA (0.03 A) RCD Type Type A (For AC and pulsating DC residual currents) Tripping Characteristic (Residual Current) General Type (G) - Instantaneous tripping Breaking Capacity According to standard (e.g., 6 kA). Standards Compliance IEC/EN 61009-1 (RCBOs) Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Connection Screw terminals.

Key Parameters Category Description / Value Product Line Eaton FI (Residual Current Releases) Type Residual Current Release (RCD Module) Compatible Main Device Specific Eaton load breakers (e.g., certain PK series switches). Poles For use with 4-pole (3P+N) main devices. Rated Operational Voltage (Uₑ) 400 V AC (Three-Phase + N) Rated Residual Operating Current (IΔn) 30 mA (0.03 A) RCD Type Type A (For AC and pulsating DC residual currents) Mounting Side-mounted onto the compatible load breaker. Connection Wiring for the current transformer and auxiliary connections.

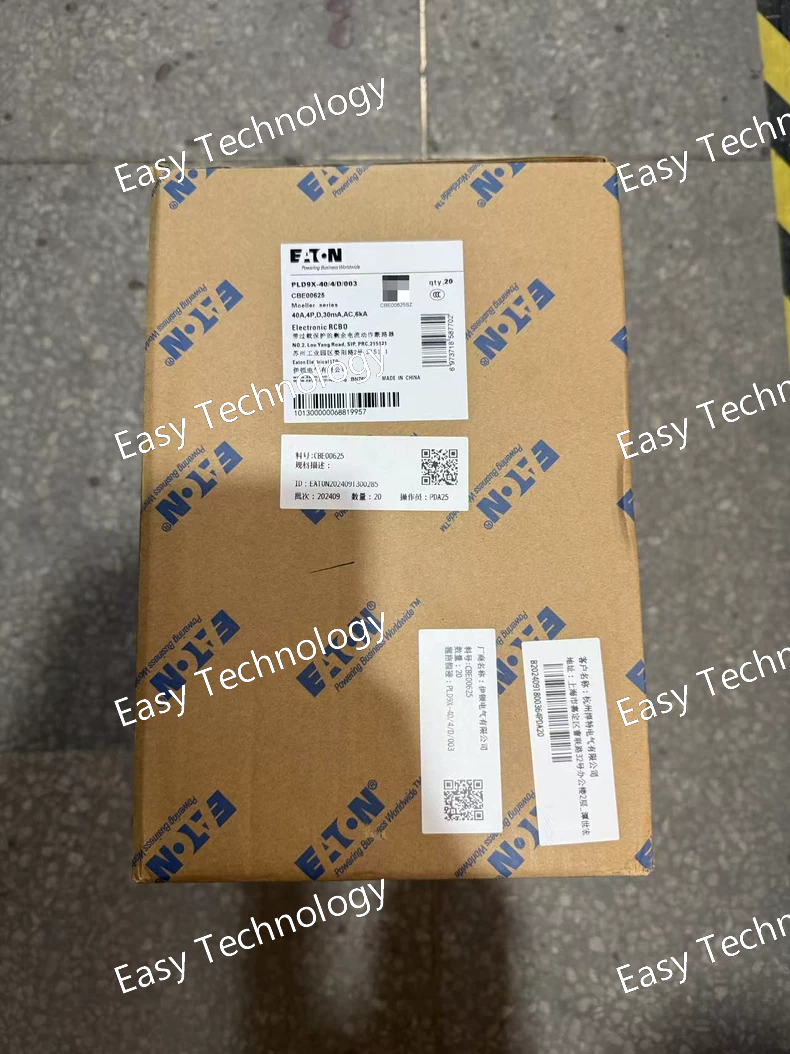

Key Parameters Category Description / Value Product Line Eaton PLD (RCBOs) Rated Current (Iₙ) 40 A Tripping Characteristic (Overcurrent) D-Curve (Instantaneous trip between 10-20 x Iₙ) Number of Poles 4 Poles (3P + N) Rated Operational Voltage (Uₑ) 400 V AC (Three-Phase + N) Rated Residual Operating Current (IΔn) 30 mA (0.03 A) RCD Type Typically AC Type (Responds to alternating sinusoidal residual currents) Breaking Capacity According to standard (e.g., 6 kA, 10 kA). Standards Compliance IEC/EN 61009-1 (RCBOs) Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Connection Screw terminals.

Key Parameters Category Description / Value Product Line Eaton NZM Accessories Compatible Breakers Specific models within the NZM series (e.g., certain frame sizes of NZM2, NZM3, NZM4). Compatibility must be verified. Function Motor Operator (Electric Drive) for remote OPEN and CLOSE operations. Control Voltage A common standard voltage for this type of accessory is 230V AC. However, the exact voltage must be confirmed by the order code and device label. Operation Electrically charges the breaker's spring-energy mechanism for a "CLOSE" operation. The "OPEN" command trips the breaker. Mounting Mounts directly onto the compatible NZM breaker. Control Connections Terminals for the power supply and control signals (e.g., Open, Close, Common). Manual Override Typically includes a manual crank or lever for local operation in case of power loss or for maintenance.

Key Parameters Category Description / Value Product Line Eaton NZM2 Accessories Compatible Breakers NZM2 series breakers of the specified frame size (Frame 4). Function Undervoltage Release (UVR) Rated Control Supply Voltage (Us) A common standard voltage is 400V AC, 50/60 Hz. However, the exact voltage must be confirmed by the order code sticker on the device itself, as other voltages (e.g., 230V AC, 110V AC) are available. Mounting Mounts directly onto the compatible NZM2 breaker. Operation The breaker can only be closed when the supply voltage is present and above the trip threshold. It automatically trips when the voltage drops below the threshold or is lost.

Key Parameters Category Description / Value Product Line Eaton Crouse-Hinds (Hazardous Location Equipment) Fixture Type Explosion-Proof Fluorescent Luminaire Lamp Type & Quantity T8 Fluorescent Lamps, typically 2 lamps, 24 inches (2-foot) long Rated Voltage 120 V AC (as indicated by "N3" code) Housing Color White (as indicated by "W") Hazardous Location Classifications Typically certified for Class I, Division 2 and Class II, Division 2 groups. May also be suitable for Class III. The exact certification must be verified from the product label and documentation. Enclosure Rating Typically NEMA 4X (Weatherproof and Corrosion-Resistant) Body Material Typically fiberglass-reinforced polyester or other non-corrosive material. Lens Material Polycarbonate or tempered glass.

Key Parameters Category Description / Value Product Line Eaton Power Quality (Active Harmonic Filters) Model / Series EMA71 Type Active Harmonic Filter (AHF) Key Functions • Harmonic Mitigation (e.g., 2nd to 25th order or higher) • Reactive Power Compensation (Power Factor Correction) • Load Balancing (for three-phase systems) Rated Current Available in various standard ratings (e.g., 50A, 100A, 150A, 200A, 300A). Rated Voltage 200-480V AC, 50/60 Hz (Three-Phase, 3-Wire or 4-Wire systems) Topology IGBT-based, PWM technology. Response Time Typically < 1 ms. Communication Standard communication interfaces (e.g., Modbus, Ethernet/IP) for monitoring and control. Mounting Wall-mounted or floor-standing cabinet. Standards Compliance IEEE 519, IEC 61000, UL, CE.

Key Parameters Category Description / Value Product Line Eaton Crouse-Hinds (Hazardous Location Equipment) Fixture Type Explosion-Proof Flood Light (Luminaire) Lamp Type & Wattage Typically 100W Metal Halide (MH) or High-Pressure Sodium (HPS) (as indicated by "R10" code). The exact lamp type and socket must be verified from the product datasheet. Rated Voltage 120 V AC (as indicated by "N3" code) Housing Color Silver / Grey (as indicated by "S") Hazardous Location Classifications Typically certified for Class I, Division 2 and Class II, Division 2 groups. May also be suitable for Class III. The exact certification must be verified from the product label and documentation. Enclosure Rating Typically NEMA 4X (Weatherproof and Corrosion-Resistant) Body Material Typically aluminum or other robust, corrosion-resistant material. Lens Material Tempered glass.

Key Parameters Category Description / Value Product Line Eaton Crouse-Hinds (Hazardous Location Equipment) Type Explosion-Proof Junction Box Body Material Typically Cast Aluminum or other non-corrosive, non-sparking material. Hazardous Location Classifications Typically certified for Class I, Division 1, Class II, Division 1, and Class III groups. The exact certification must be verified from the product label and documentation. Enclosure Rating Typically NEMA 4X (Weatherproof and Corrosion-Resistant) Conduit Entries Multiple threaded openings (e.g., 3/4" NPT). The exact number and size are defined by the "V65" code. Cover Bolted cover with an integral sealing surface to maintain explosion-proof integrity. Internal Volume Specific internal cubic capacity for housing connections.

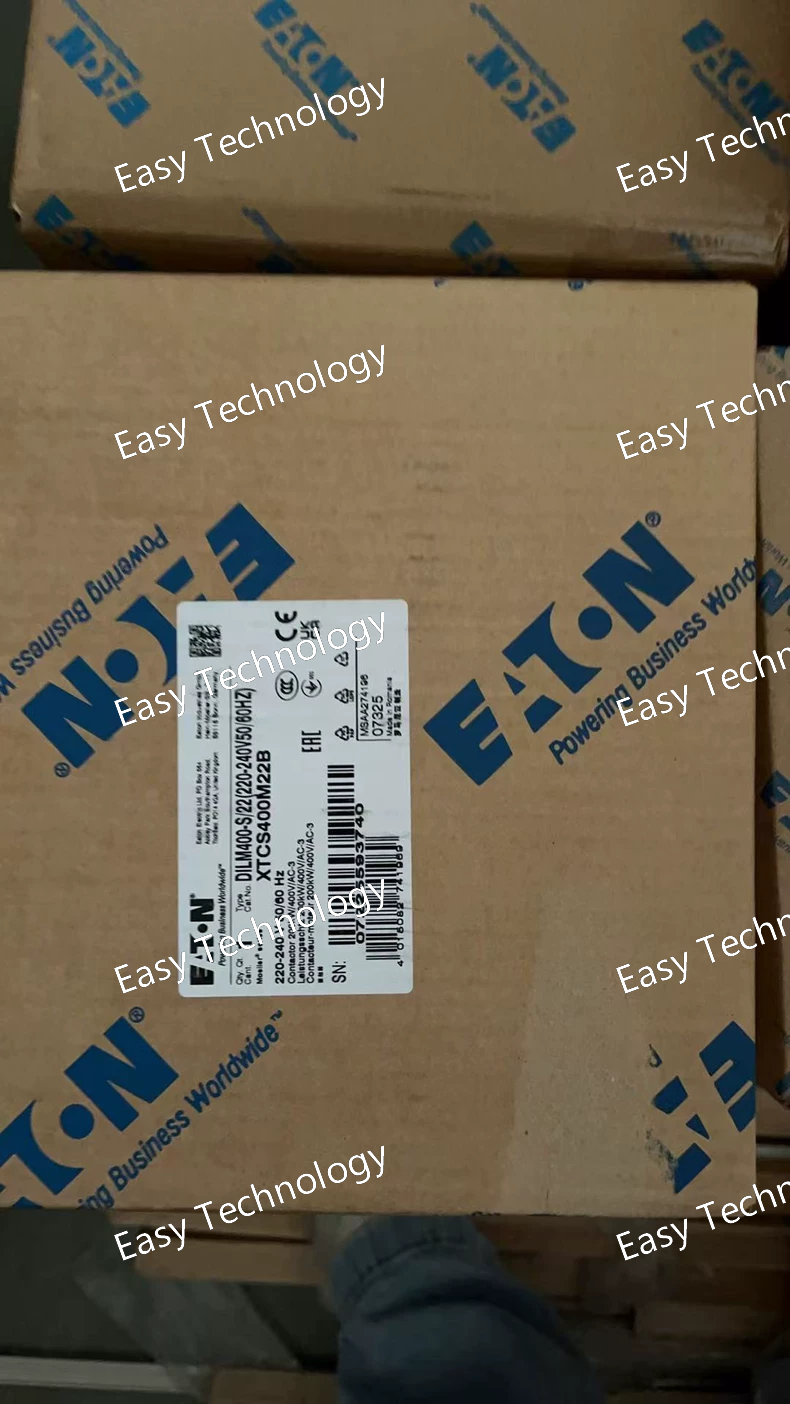

Key Parameters Category Description / Value Product Line Eaton DILM Model / Frame Size DILM400 Rated Operational Current (Iₑ) at AC-3 400 A (For squirrel-cage motors: Starting, switching off during running) Rated Operational Power at AC-3 ~ 200 kW / 268 HP at 400V 50Hz Rated Operational Voltage (Uₑ) Up to 1000 V AC, 50/60 Hz Rated Thermal Current (Iᵼₕ) 475 A Poles 3 (Main Contacts) Coil Control Voltage Standard factory setting is often 400V/500V AC. However, this is a configurable parameter. The coil is available in a wide range of AC and DC voltages (e.g., 24V, 110V, 230V, 400V, 500V). The exact voltage must be confirmed by the order code sticker on the device itself. Utilization Categories AC-3: Squirrel-cage motors (starting, switching off during running) AC-1: Non-inductive or slightly inductive loads Arc Extinction System Sintered metal arc chute (as indicated by "S") Standard Auxiliary Contacts 2 normally open (NO) contacts (as indicated by "/22") Electrical Durability Hundreds of thousands of operations (dependent on load) Mechanical Durability Millions of operations Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Mounting Screw mounting via integrated feet or mounting plate. Connection Large screw terminals for main power connections.
