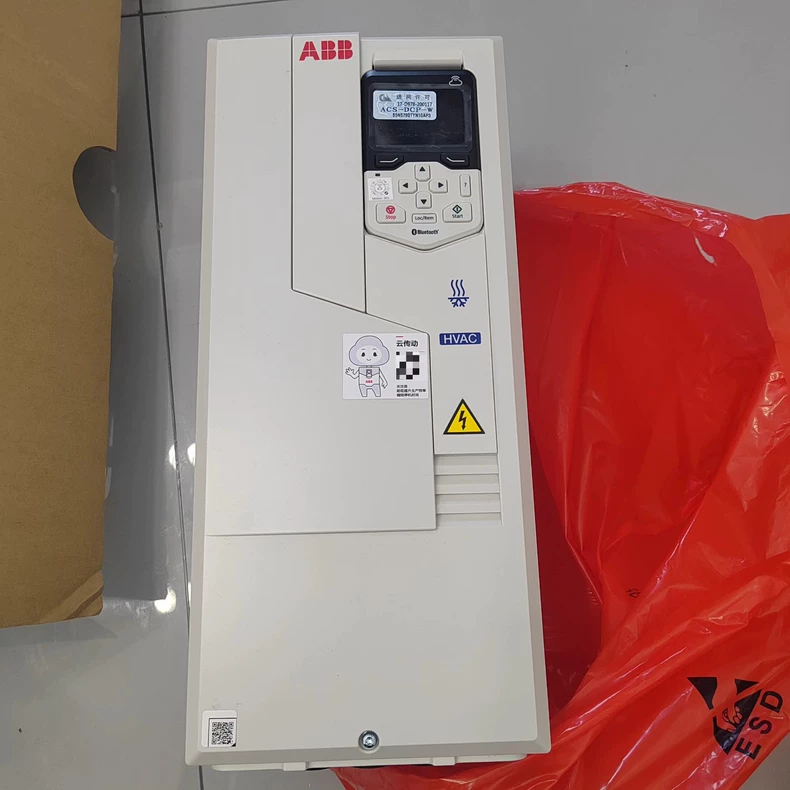

Key Specifications
Power Rating: 55 kW (75 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 110 A

Overload Capacity: 110% continuous, 150% for 60s

Control Method: Sensorless vector control

Efficiency: >98% (IE4 equivalent)

THDi: <5% (with optional filter)

Technical Highlights
✔ HVAC-Specific Intelligence

Adaptive pump/fan control algorithms

Automatic energy optimization (up to 25% savings)

Built-in multi-pump controller

Anti-condensation function

✔ Smart Connectivity

Embedded BACnet MS/TP and Modbus RTU

Cloud-ready with ABB Ability™

Optional wireless module (Wi-Fi/4G)

Predictive maintenance capabilities

✔ Advanced Protection

Motor thermal modeling (PTC/Pt100)

Phase loss protection

Surge protection (6kV/3kA)

Safe Torque Off (STO)

Physical Specifications
Dimensions: 482 × 800 × 350 mm (H×W×D)

Weight: 42 kg

Enclosure: IP21 (IP55 kit available)

Cooling: Forced air with ECO mode

Ambient Range: -15°C to +50°C (5°F to 122°F)

Certifications
UL 61800-5-1

CE

cULus

EN 61800-3 Cat C2

ISO 13849-1 PL c

Key Specifications
Power & Performance
Rated Power: 30 kW (40 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz

Output Current: 60 A

Overload Capacity:

110% continuous

150% for 60 seconds

Control Method: Sensorless Vector Control (DTC option)

Efficiency: >98% (IE4 equivalent)

Main Features
1. HVAC-Specific Control
Adaptive programming for pumps and fans

Automatic energy optimization

Built-in PID controller with sleep/wake function

Pump cleaning cycle program

2. Intelligent Connectivity
Embedded Modbus RTU (RS485)

BACnet MS/TP and Metasys N2 protocols

Cloud connectivity via optional gateway

ABB Ability™ enabled for remote monitoring

3. Protection & Safety
Motor thermal protection (PTC/Pt100)

Earth fault detection

Surge protection (IEC 61000-4-5)

Safe Torque Off (STO)

4. Physical Design
Compact form factor (30% smaller than previous gen)

IP21 enclosure (IP55 kit available)

Corrosion-protected (C5-M coating)

Plug-and-play installation

Technical Highlights
✔ Energy Savings Features

ECO mode saves up to 20% energy

Automatic derating at partial loads

Power factor >0.98

✔ Application Flexibility

10 pre-programmed HVAC macros

Customizable application programs

Multi-pump control capability

✔ Monitoring & Diagnostics

Built-in power quality monitoring

200-event fault log

Predictive maintenance alerts

Physical Specifications
Dimensions: 350 × 482 × 227 mm (H×W×D)

Weight: 15 kg

Cooling: Convection (fanless)

Ambient Temperature: -15°C to +50°C (5°F to 122°F)

Relative Humidity: 5-95% non-condensing

Certifications & Compliance
CE

UL 61800-5-1

cULus

EN 61800-3

ISO 13849-1 (PL c)

Key Specifications
Power & Performance
Rated Power: 90 kW (125 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz

Output Current: 180 A

Overload Capacity:

150% for 60 seconds

110% continuous

Control Method: Direct Torque Control (DTC)

Braking Capacity (P901):

Continuous: 90 kW

Peak (60s): 135 kW

Switching Frequency: 1-12 kHz (adjustable)

Efficiency: >98%

Main Features
1. Advanced Motor Control
DTC technology for precise speed (±0.1%) and torque (±1%) control

Automatic motor adaptation for optimal performance

Flying start and torque boost functions

2. Brake Chopper (P901)
Handles regenerative energy during deceleration

Requires external brake resistor (sold separately)

LED status indicator for fault monitoring

3. Application Flexibility
Pre-programmed macros for:

Pumps & fans

Conveyors

Cranes/hoists

Built-in PID controller

Customizable application programming

4. Protection & Safety
Motor thermal protection (PTC/KTY support)

Short-circuit and ground fault protection

DC bus overvoltage/undervoltage protection

Safe Torque Off (STO) compliant

5. Connectivity
Standard:

RS485 (Modbus RTU)

Analog I/O (2xAI, 1xAO)

Digital I/O (3xDI, 1xDO)

Optional fieldbus:

PROFIBUS DP

DeviceNet

CANopen

Physical Specifications
Dimensions: 482 × 800 × 350 mm (H×W×D)

Weight: 65 kg

Enclosure Rating: IP21

Cooling: Forced air (filtered)

Ambient Temperature: 0-40°C (32-104°F)

Key Specifications
Power Rating: 2.5 kW (3 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 6.5 A

Overload Capacity: 150% for 60 seconds

Control Technology: Direct Torque Control (DTC)

Encoder Interface: N671 module included

Main Features
✔ Precision Motion Control

Closed-loop speed control (±0.005% accuracy)

Torque control (±0.5% accuracy)

Automatic motor adaptation

Position control capability

✔ N671 Encoder Module

Supports incremental encoders (5V/24V)

Resolution up to 4096 ppr

Differential (RS422) and single-ended inputs

LED status indicators

✔ Application Flexibility

Multiple pre-programmed motion profiles

Electronic gearing function

Built-in PID controller

Customizable application programming

✔ Protection & Safety

Motor thermal protection

Encoder loss detection

Safe Torque Off (STO)

Overvoltage/undervoltage protection

Physical Characteristics
Drive Dimensions: 245 × 482 × 227 mm (W×H×D)

Weight: 8.5 kg (complete system)

Enclosure Rating: IP21

Cooling Method: Convection cooling

Ambient Temperature: 0-40°C (32-104°F)

Key Parameters
Core Specifications
Power: 40kW (55HP)

Input: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 80A

Overload: 150% for 60s

Control: DTC (Direct Torque Control)

Efficiency: >98%

Modules
P901 Brake Chopper

Braking power: 40kW cont. / 60kW peak (60s)

Requires external resistor

N661 Encoder Interface

Supports incremental encoders

Resolution: Up to 4096 ppr

Protocols: RS422/TTL

Performance
Speed accuracy: ±0.01% (with encoder)

Torque accuracy: ±1%

Switching freq.: 1-12kHz (adjustable)

Physical
Dimensions: 482×245×227mm (H×W×D)

Weight: 18kg

Cooling: Forced air

Ambient Temp: 0-40°C

Certifications
CE, UL, cUL

SIL3/PL e

Key Parameters
Core Drive
Power: 30kW (40HP)

Input: 3-phase 380-500V AC (±10%)

Output: 60A

Control: DTC (Direct Torque Control)

Overload: 150% for 60s

Modules
E200 I/O Extension

4AI (0-10V/4-20mA)

6DI + 2RO

1AO (0-20mA)

K454 Fieldbus

PROFIBUS DP-V1

12Mbps speed

LB03 Cooling

Liquid cooling system

8L/min flow requirement

Physical
Dimensions: 482×245×227mm (H×W×D)

Weight: 38kg (complete)

IP Rating: IP21 (standard)

Certifications
CE, UL, cUL

SIL3/PL e

Key Specifications
✔ Power Rating: 20 kW (25 HP)
✔ Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz
✔ Output Current: 43 A
✔ Overload Capacity:

150% for 60 seconds

110% continuous
✔ Control Method: Direct Torque Control (DTC)
✔ Braking Capacity (P901):

Continuous: 20 kW

Peak (60s): 30 kW
✔ Switching Frequency: 1-12 kHz (adjustable)
✔ Efficiency: >98%

Main Features
1. Advanced Motor Control
DTC technology for precise speed (±0.1%) and torque (±2%) control

Automatic motor adaptation for optimal performance

Flying start and torque boost functions

2. Brake Chopper (P901)
Handles regenerative energy during deceleration

Requires external brake resistor (sold separately)

LED status indicator for fault monitoring

3. Application Flexibility
Pre-programmed macros for:

Pumps & fans

Conveyors

Cranes/hoists

Built-in PID controller

Customizable application programming

4. Protection & Safety
Motor thermal protection (PTC/KTY support)

Short-circuit and ground fault protection

DC bus overvoltage/undervoltage protection

Safe Torque Off (STO) compliant

5. Connectivity
Standard:

RS485 (Modbus RTU)

Analog I/O (2xAI, 1xAO)

Digital I/O (3xDI, 1xDO)

Optional fieldbus:

PROFIBUS DP

DeviceNet

CANopen

Physical Specifications
Dimensions: 245 × 482 × 227 mm (W×H×D)

Weight: 14 kg

Enclosure Rating: IP21

Cooling: Forced air (filtered)

Ambient Temperature: 0-40°C (32-104°F)

Key Specifications
Power Rating: 11 kW (15 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 25 A

Overload Capacity: 150% for 60 seconds

Control Technology: DTC (Direct Torque Control)

Brake Chopper: Integrated (P901 module)

Switching Frequency: 1-12 kHz (adjustable)

Efficiency: >98%

Main Features
✔ Advanced Motor Control

Sensorless speed control (±0.1% accuracy)

Automatic motor adaptation

Torque control mode (±2% accuracy)

Flying start function

✔ Braking System (P901)

Handles regenerative energy

Requires external brake resistor

LED status indicator

150% braking torque capacity

✔ Application Functions

Multiple application macros

Built-in PID controller

Pump and fan control curves

Customizable application programming

✔ Protection Features

Motor thermal protection

Short circuit protection

Ground fault detection

DC bus overvoltage protection

Physical Characteristics
Dimensions: 245 × 482 × 227 mm (W×H×D)

Weight: 12 kg

Enclosure Rating: IP21

Cooling Method: Forced air

Ambient Temperature: 0-40°C (32-104°F)

Key Parameters
Power & Performance
Rated Power: 30kW (40HP)

Input: 3-phase 380-480V AC (±10%), 50/60Hz

Output Current: 60A

Overload: 150% for 60s

Control: DTC (Direct Torque Control)

Efficiency: >98%

Braking (P901)
Chopper: Integrated

Braking Power: 30kW cont. / 45kW peak (60s)

Resistor: External required

Control (D150)
Display: 7" color touchscreen

Interfaces: USB, RS485 (Modbus RTU)

Fieldbus Options: PROFIBUS, PROFINET

Physical
Dimensions: 482×245×227mm (H×W×D)

Weight: 32kg

Cooling: Forced air

IP Rating: IP21

Certifications
CE, UL, cUL

SIL3/PL e safety

ABB ACS800-04-0030-3+D150+P901 Technical Parameters
1. Power Specifications
Rated Power: 30 kW (40 HP)

Input Voltage: 3-phase 380-500V AC (-15%/+10%)

Output Current: 60 A (continuous)

Overload Capacity:

110% continuous

150% for 60 sec

Efficiency: 98.5% (typical at full load)

2. Control Performance
Control Method: Direct Torque Control (DTC)

Speed Accuracy: ±0.01% of setpoint (encoderless)

Torque Accuracy: ±1% of rated torque

Switching Frequency: 1-4 kHz (adjustable)

3. Braking System (P901)
Brake Chopper: Integrated

Continuous Braking Power: 30 kW

Peak Braking Power: 45 kW (60 sec)

External Resistor Required: Yes

4. Control Panel (D150)
Display: 7" color TFT touchscreen

Languages: 20 pre-installed

Data Logging: 1000 events

Interface: USB for parameter transfer

5. Communication
Standard:

RS485 (Modbus RTU)

Ethernet (TCP/IP)

Optional Fieldbus:

PROFIBUS DP-V1

PROFINET IRT

EtherNet/IP

6. Protection Features
Electrical:

Short-circuit (IGBT protection)

Ground fault detection

DC bus monitoring

Thermal:

Motor thermal model

Heatsink temperature control

7. Physical Parameters
Dimensions (Drive): 482H × 245W × 227D mm

Weight: 32 kg (complete system)

Cooling: Forced air (filtered)

Ambient Temperature: 0-40°C (32-104°F)

8. Compliance Standards
Safety: SIL3/PL e (ISO 13849-1)

EMC: IEC 61800-3 Category C3

Certifications: CE, UL, cULus, DNV GL
