Key Features
✔ Modular Design – Hot-swappable for easy maintenance and system scalability
✔ High-Speed Communication – Supports PROFIBUS, EtherCAT, or Modbus RTU/TCP (model-dependent)
✔ Wide Voltage Range – 24V DC operation with overvoltage/undervoltage protection
✔ Robust Construction – IP20/IP65 housing options for panel or field mounting
✔ Diagnostic LEDs – Real-time status monitoring (power, communication, I/O activity)

Technical Specifications
Parameter Specification
I/O Channels 8 digital inputs / 8 digital outputs (configurable)
Input Voltage 24V DC (sink/source compatible)
Output Type Relay / Transistor (model-specific)
Communication PROFIBUS DP / EtherCAT / Modbus
Operating Temp. -25°C to +60°C
Protection Rating IP20 (standard) / IP65 (optional)
Mounting DIN rail (TS-35/7.5)
Typical Applications
Factory Automation (conveyor control, assembly lines)

Process Control (chemical, water treatment)

Packaging Machinery (filling, labeling systems)

Energy Management (HVAC, power distribution)

Key Features & Benefits
✅ Ultra-High Power Handling

Voltage rating: 4500V

Current rating: 4000A (peak)

Optimized for high-power inverters & converters

✅ Advanced IGCT Technology

Low conduction & switching losses vs. traditional GTOs

Integrated gate driver for precise switching control

Short-circuit ruggedness for fault-tolerant operation

✅ Robust Mechanical Design

Press-pack housing for optimal thermal performance

Low-inductance terminal design

Forced-air or liquid-cooled configurations

✅ Industry-Leading Reliability

Designed for 24/7 operation in harsh environments

MTBF >100,000 hours in typical applications

Technical Specifications
Parameter Specification
Part Numbers 5SHY 3545L0016 (ABB ID)
3BHB020720R0002 (Order Code)
Device Type Asymmetric IGCT (with anti-parallel diode)
Voltage Rating VDRM = 4500V
Current Rating ITAV = 1200A (avg)
ITSM = 4000A (surge)
Switching Speed Turn-off time: <5µs
Thermal Resistance Rth(j-c) = 0.03 K/W
Mounting Bolt-clamped (press-pack)
Weight Approx. 2.5 kg
Typical Applications
⚡ Medium-Voltage Drives (e.g., ABB ACS 2000 series)
⚡ HVDC Power Transmission
⚡ Industrial Megawatt-Range UPS Systems
⚡ Renewable Energy Inverters (wind/solar farms)
⚡ Mining & Metals Industry (electrolytic processes)

Key Features
32-channel isolated digital input module

24V DC input voltage (sinking/sourcing configurable)

High-density design saves cabinet space

Galvanic isolation between channels and system

Hot-swappable for easy maintenance

Diagnostic LEDs per channel for status monitoring

Technical Specifications
Part Number: 3BSE008550R1

Input Type: Dry contact or wet contact (24V DC)

Input Current: 3-5mA typical

Isolation: 500V AC between channels

Response Time: <1ms

Operating Temperature: -25°C to +60°C

Protection Class: IP20 (panel-mounted)

Certifications: CE, UL, ATEX (optional)

Communication & Integration
Interfaces with ABB's S800 I/O system

Compatible with AC 800M controllers

Supports PROFIBUS DP and Foundation Fieldbus

Configurable via ABB Control Builder

Typical Applications
Process automation systems

Power generation plants

Oil & gas facilities

Chemical processing

Water treatment systems

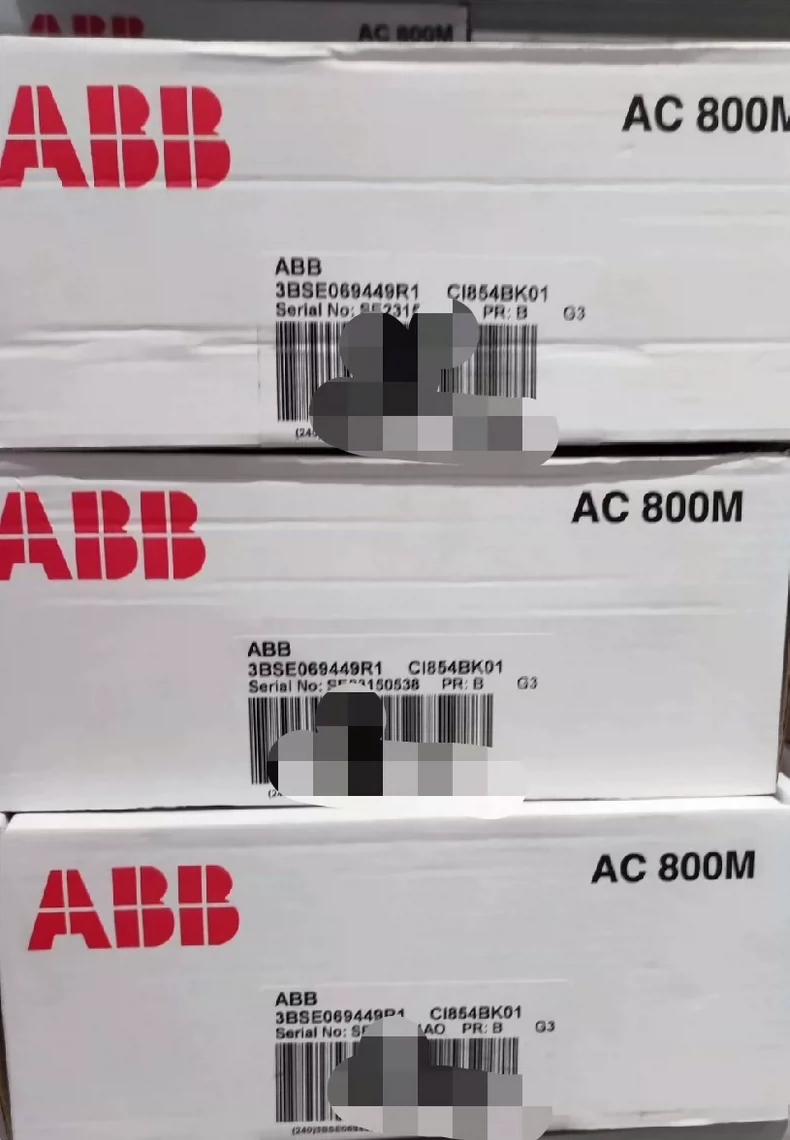

Key Features
✔ PROFIBUS DP-V1 Master/Slave Support – Compliant with IEC 61158/61784
✔ High-Speed Data Exchange – Up to 12 Mbps (auto-negotiating)
✔ Redundancy Support – Optional dual-channel for fault-tolerant systems
✔ Hot-Swappable – Allows replacement without system shutdown
✔ Diagnostics & Monitoring – Built-in LED indicators for status & errors
✔ Wide Compatibility – Works with ABB AC 800M, S800 I/O, and third-party PROFIBUS devices

Technical Specifications
Parameter Specification
Model Number CI854BK01 (3BSE069449R1)
Communication Standard PROFIBUS DP-V1 (IEC 61158)
Data Rate 9.6 kbps – 12 Mbps (auto-sensing)
Connector 9-pin D-sub (RS-485)
Isolation 500V (galvanic isolation)
Power Supply 24V DC (via backplane)
Operating Temp. -25°C to +60°C
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Automation (chemical, oil & gas, power plants)

Manufacturing & Factory Automation (PLC-to-drive communication)

Water/Wastewater Treatment

Mining & Metals Processing

Key Features
✔ PROFIBUS DP-V1 Master Functionality - Compliant with IEC 61158/61784 standards
✔ High-Speed Communication - Supports baud rates from 9.6 kbps to 12 Mbps (auto-negotiating)
✔ Robust Industrial Design - Operates in harsh environments (-25°C to +60°C)
✔ Comprehensive Diagnostics - LED indicators for power, status, and network activity
✔ Hot-Swappable - Allows replacement without system shutdown (when used in redundant configuration)
✔ Flexible Configuration - Supports up to 244 bytes of input/output data

Technical Specifications
Parameter Specification
Article Number 3BSE030221R1
Interface Type PROFIBUS DP-V1 (RS-485)
Connector 9-pin D-sub male
Power Supply 24V DC via backplane
Isolation 500V galvanic isolation
Data Transfer Cyclic and acyclic
Certifications CE, UL, ATEX (optional)
Typical Applications
Process control systems in oil & gas facilities

Power generation and distribution systems

Chemical and pharmaceutical plants

Water and wastewater treatment plants

Manufacturing automation systems

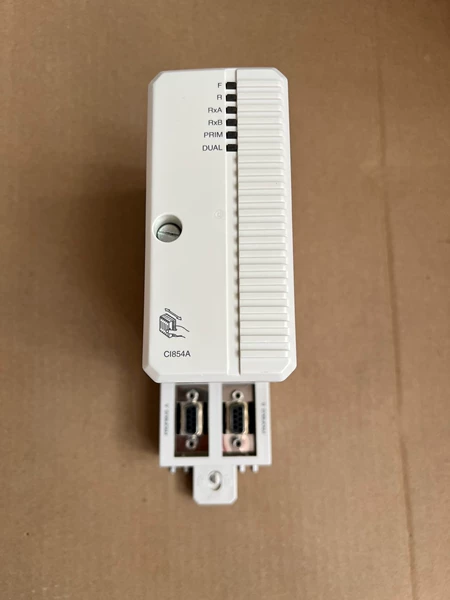

Key Parameters
Category Specification
Model CI854AK01 / 3BSE030220R1
Interface PROFIBUS DP-V1 (IEC 61158)
Role Master
Baud Rate 9.6 kbps – 12 Mbps (auto-sensing)
Connector 9-pin D-sub (RS-485)
Isolation 500V galvanic
I/O Capacity 244 bytes (max.)
Power 24V DC (backplane)
Temp. Range -25°C to +60°C
Certifications CE, UL
Features:

Hot-swappable (redundant setups)

LED diagnostics

AC 800M/800xA compatible

Typical Use: Process automation, motor control, remote I/O.

Key Features
✔ Dual-CPU Redundancy – Hot standby for continuous operation (99.999% availability)
✔ Powerful Processing – 800 MHz CPU with 512 MB RAM
✔ Extensive I/O Support – Connects to S800, S900, and Profibus/Fieldbus modules
✔ Industrial Robustness – Operates in -40°C to +70°C environments
✔ Cybersecurity – Supports role-based access & encryption (IEC 62443 compliant)
✔ Seamless Integration – Fully compatible with ABB System 800xA

Technical Specifications
Parameter Specification
Model Number PM856AK01 (3BSE066490R1)
CPU 800 MHz PowerPC
Memory 512 MB RAM / 128 MB Flash
Redundancy Yes (1:1 hot standby)
Communication Ethernet, PROFIBUS, Modbus TCP, OPC UA
I/O Capacity Up to 250,000 I/O points (system-wide)
Power Supply 24V DC (redundant inputs)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, offshore platforms)

Power Plants (turbine control, SCADA)

Chemical/Petrochemical (batch processing)

Pharmaceuticals (GMP-compliant automation)

Water Treatment (pump station control)

Key Features
✔ Dual-CPU Redundancy - 1:1 hot standby configuration for 99.999% availability
✔ Powerful Processing - 1.1 GHz dual-core CPU with 1 GB RAM for complex control tasks
✔ Extensive Connectivity - Supports PROFIBUS, Modbus TCP, OPC UA, and Ethernet/IP
✔ Cybersecurity - IEC 62443 compliant with role-based access control
✔ Wide Temperature Range - Operates in -40°C to +70°C harsh environments
✔ Large Capacity - Supports up to 500,000 I/O points system-wide

Technical Specifications
Parameter Specification
Model Number PM866AK01 (3BSE076939R1)
Processor 1.1 GHz dual-core
Memory 1 GB RAM / 256 MB Flash
Redundancy Yes (1:1 hot standby)
Communication Ethernet, PROFIBUS DP/PA, Modbus TCP, OPC UA
I/O Capacity Up to 500,000 I/O points (system-wide)
Power Supply 24V DC (redundant inputs)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, pipelines, offshore platforms)

Power Generation (turbine control, SCADA systems)

Chemical Processing (batch and continuous processes)

Pharmaceutical (GMP-compliant manufacturing)

Water/Wastewater (pump control, treatment plants)

System Integration
Compatible with:

ABB S800/S900 I/O modules

PROFIBUS DP/PA and Foundation Fieldbus devices

ABB System 800xA DCS

Configuration Tools:

Control Builder Professional

ABB Ability™ Edge Gateway for IIoT connectivity

Key Features
Industrial-grade Ethernet connectivity

Dual 10/100BASE-TX RJ45 ports

Supports redundant network configurations

DIN rail mounting for easy installation

LED status indicators for network monitoring

Compatible with ABB AC 800M controllers

Technical Specifications
Parameter Specification
Model Number RLM01 (3BDZ00398R1)
Ethernet Standard IEEE 802.3 10/100BASE-TX
Ports 2 x RJ45 (auto MDI/MDI-X)
Protocols Supported TCP/IP, UDP, ICMP
Power Supply 24V DC (via controller backplane)
Operating Temperature -25°C to +60°C
Relative Humidity 5% to 95% (non-condensing)
Certifications CE, UL, cUL
Typical Applications
Process automation systems

Power generation and distribution

Oil & gas facilities

Water treatment plants

Manufacturing automation

The ABB DO810 (3BSE008510R1) is a high-density digital output module designed for ABB's S800 I/O system, compatible with AC 800M controllers and System 800xA distributed control systems. This rugged industrial module provides reliable switching capabilities for automation applications.
