Technical Parameters Parameter Specification Rated Current 102A Rated Voltage 600V AC Number of Poles 3-phase + neutral Wire Range 8 AWG - 250 kcmil Enclosure Rating IP20 (standard) Connection Type Pressure plate connectors Operating Temperature -40°C to +110°C Mounting DIN rail mount (35mm) Material Thermoplastic housing, tin-plated copper conductors Standards Compliance UL 1059, IEC 60947-1 Functional Features Multi-circuit power distribution Transparent cover for visual inspection Pressure plate connections for secure wiring Snap-on DIN rail mounting Integrated test points Color-coded phases Typical Applications Industrial control panels Motor control centers Power distribution cabinets Electrical switchgear Commercial power systems

Technical Parameters Parameter Value Notes Nominal Size 16 Standard interface dimension Rated Flow 10 L/min 2.6 US gpm Maximum Operating Pressure 350 bar 5,075 psi Control Voltage 24V DC Proportional PWM signal Spool Configuration 3-position, 4-way Spring-centered Pilot Pressure 20-25 bar Required for operation Hysteresis < 3% Typical value Repeatability < 1% Typical value Operating Temperature -40°C to +85°C -40°F to +185°F Functional Characteristics Proportional Control: Infinite spool positioning between fully closed and fully open Spring-Centered: Automatically returns to neutral when de-energized Smooth Operation: Excellent metering characteristics for precise speed control Stackable Design: Can be combined with other EPV16 sections Electrical Specifications Voltage Range: 20-30V DC Current Consumption: 1.0-2.0A (typical) Duty Cycle: 100% Protection Rating: IP65 (solenoid) Typical Applications Mobile construction equipment Agricultural machinery Material handling systems Aerial work platforms Industrial hydraulic power units

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 15-20 L/min 4-5 US gpm (typical) Port Size NG06 CETOP 03 standard Spool Configuration 2-position, 4-way Closed center Solenoid Type Wet pin DC Standard construction Electrical Connection ISO 4400 Industrial standard Fluid Compatibility Mineral-based hydraulic oil - Operating Viscosity 10-100 mm²/s Optimal range Typical Applications Industrial hydraulic power units Machine tool hydraulics Press machinery Mobile equipment Factory automation systems

Technical Parameters Parameter Value Notes Maximum Operating Pressure 315 bar 4,570 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 2-position, 4-way Solenoid operated Solenoid Type Wet pin DC or AC options available Electrical Connection DIN 43650 Form A Standard industrial connector Mounting ISO 4401 Standard interface Fluid Compatibility Mineral-based hydraulic oil Petroleum-based fluids Operating Temperature -20°C to +70°C -4°F to +158°F

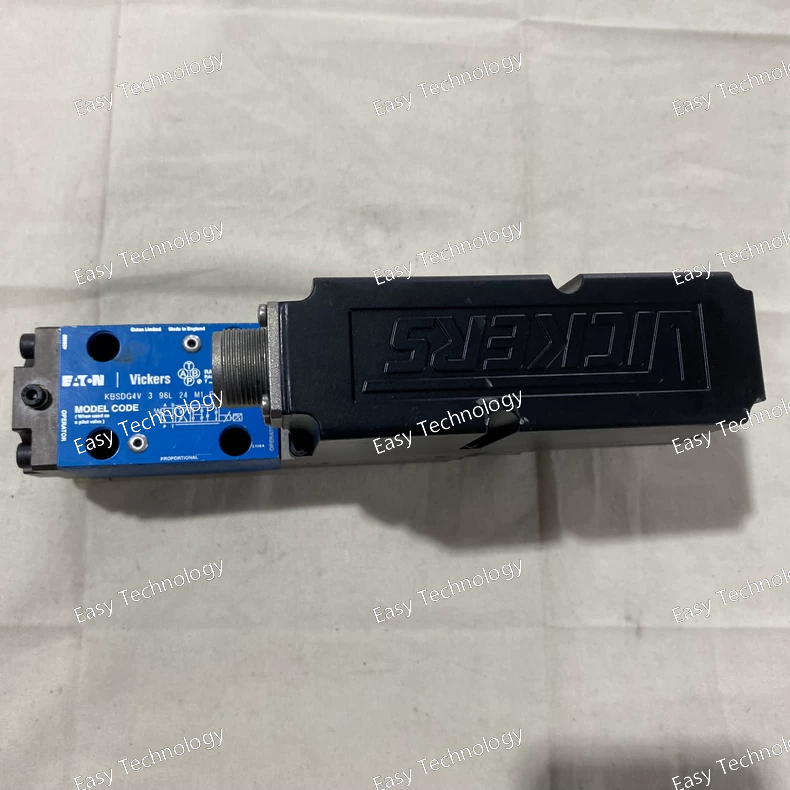

Technical Parameters Parameter Value Notes Nominal Size 20 Standard interface dimension Maximum Flow Rate 80 L/min 21 US gpm Minimum Controlled Flow 2-3 L/min 0.5-0.8 US gpm Maximum Operating Pressure 315 bar 4,570 psi Control Signal 0-10V DC or 4-20mA Proportional analog input Hysteresis < 2% Typical value Linearity < 3% Typical value Response Time < 50 ms To 90% of commanded value Operating Temperature -20°C to +60°C -4°F to +140°F

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 3-position, 4-way Various center options Solenoid Type Wet pin DC Standard construction Manual Override Standard feature For emergency operation Mounting ISO 4401 Standard interface Fluid Compatibility Mineral-based hydraulic oil Petroleum-based fluids Operating Temperature -20°C to +70°C -4°F to +158°F

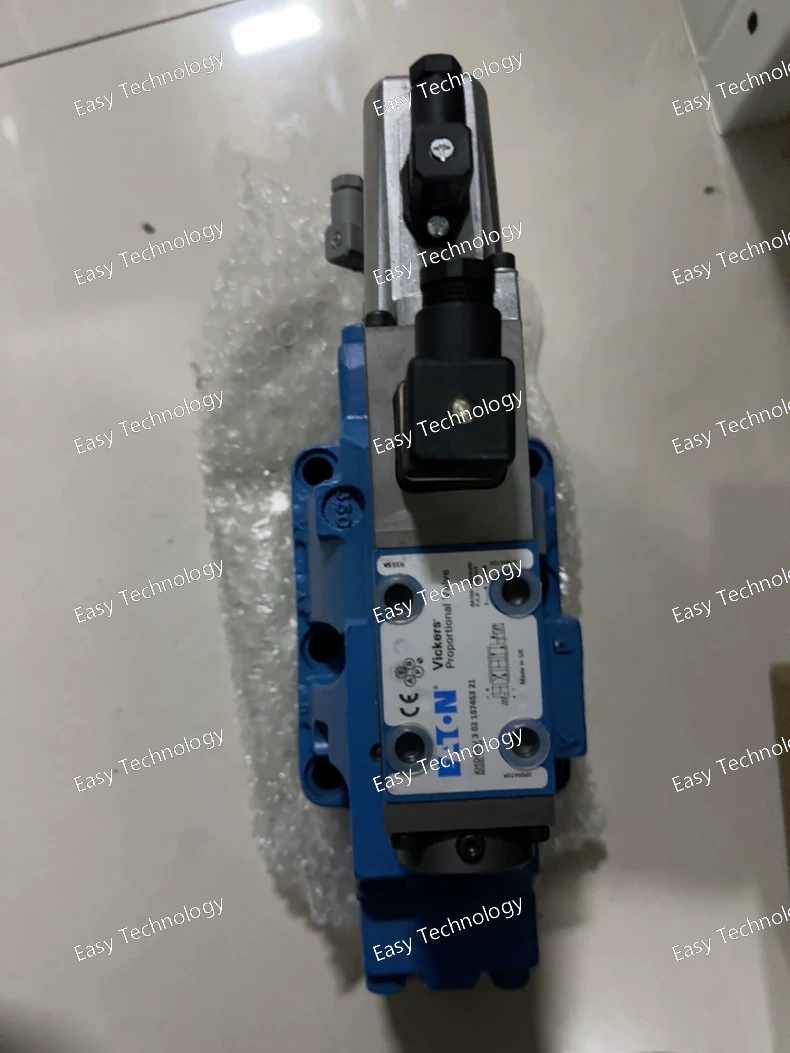

Technical Parameters Parameter Value Notes Nominal Size 40 NG10 (CETOP 05) equivalent Maximum Flow Rate 80 L/min 21 US gpm Minimum Controlled Flow 1.5 L/min 0.4 US gpm Maximum Operating Pressure 350 bar 5,075 psi Control Signal 0-10V DC or 4-20mA Analog input with digital interface Hysteresis < 1.5% Typical value Linearity < 2% Typical value Response Time < 30 ms To 90% of commanded value Repeatability < 0.5% Typical value

Technical Parameters Parameter Value Notes Nominal Size 40 NG10 (CETOP 05) interface Maximum Flow Rate 80 L/min 21 US gpm Minimum Controlled Flow 1.5 L/min 0.4 US gpm Maximum Operating Pressure 350 bar 5,075 psi Control Signal 0-10V DC or 4-20mA Analog input with digital interface Hysteresis < 1.5% Maximum value Linearity < 2% Maximum deviation Response Time < 30 ms 10-90% step response Repeatability < 0.5% Typical value

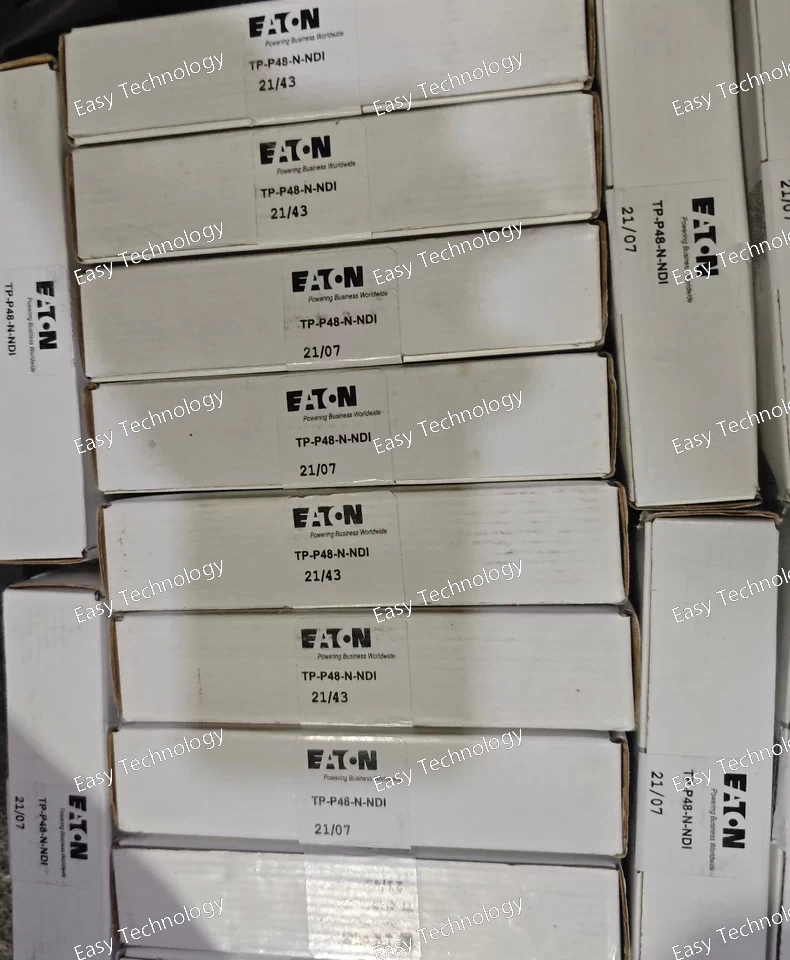

Parameter Specification Product Model TP-P48-N-NDI Product Type 19-inch Rackmount Patch Panel Total Ports 48 Connector Type 8P8C (RJ45) Shielding Unshielded (UTP) Performance Category Category 6A Compliant Standards TIA/EIA-568-B.2-10 (Cat 6A) Cable Termination 110-Type Insulation Displacement Connectors (IDC) Wire Gauge 22-26 AWG (solid) Bandwidth Up to 500 MHz Supported Applications

• 10GBASE-T (IEEE 802.3an)
• NDI (Network Device Interface) High-Bandwidth Video
• PoE/PoE+ (IEEE 802.3at/af)
• Gigabit Ethernet (1000BASE-T)

Color Black Mounting Standard 19-inch Rack (1U Height) Key Feature Optimized and tested for superior performance with NDI protocols.

Parameter Specification Product Model XTOE1P6CGSS Product Type Duplex Receptacle / Outlet Grade Commercial Spec Grade Current Rating 15 A Voltage Rating 125 VAC Poles & Wires 2-Pole, 3-Wire Receptacle Configuration 5-15R (Two vertical slots and a round ground pin) Tamper Resistance Yes (TR), complies with NEC requirements for safety. Construction Material Stainless Steel body and faceplate Color / Finish Stainless Steel (Brushed Satin look) Wiring Type Side and Back Wire (Pressure Plate Clamp terminals for secure connections) Mounting Standard Wall Mount Compliant Standards UL Listed, cULus Listed, compliant with NEC and OSHA standards. Special Features

• Corrosion-resistant stainless steel construction.
• Self-grounding (No separate ground wire needed to the mounting strap).
• Thermoplastic interior for electrical insulation.
• Designed for high-traffic and harsh environments.
